Yard Machines 11Z-084C062 (2000) Push Walk-Behind Mower

Model: 11Z-084C062 (2000)

Back To Assemblies

Save Part Not Listed?
product name

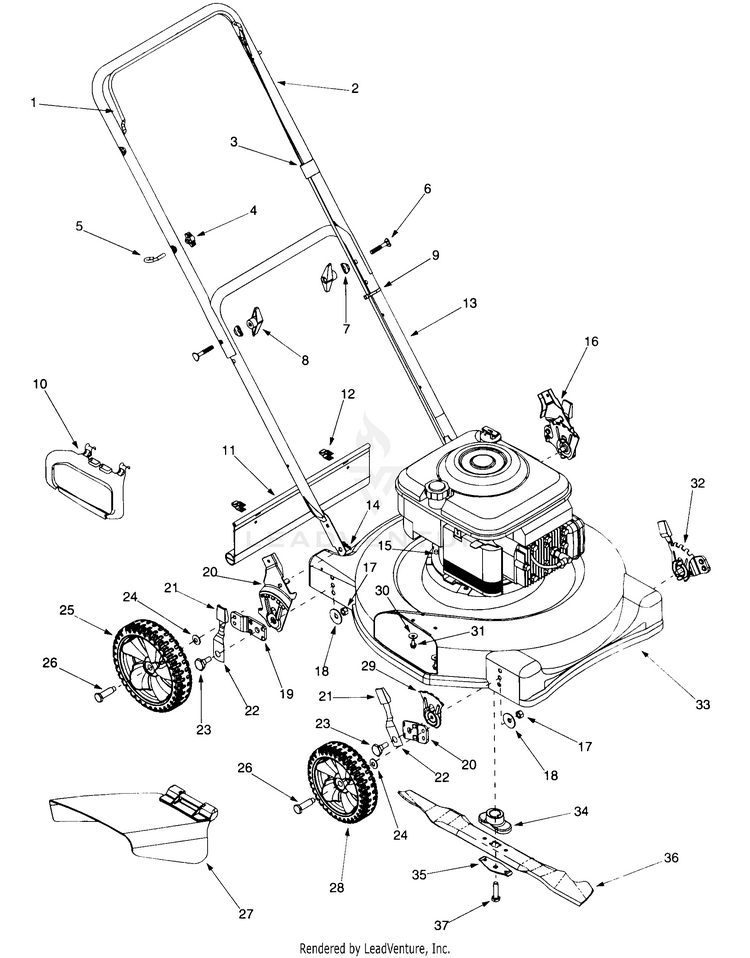

General Assembly

...
...
1
Blade Control MTD-747-1161A-0637
...
2
Upper Handle MTD-749-1092A
...
3
Control Cable (brake) MTD-946-0957
...
xx
Control Cable MTD-946-0946
...
4
Handle Knob MTD-720-0279
...
5
Eye Bolt MTD-710-1205
...
6
Carriage Bolt MTD-710-1174
...
7
Shoulder Washer MTD-736-0451
...
8
Wing Nut MTD-720-0284
...
9
Cable Tie MTD-725-0157
...
10
MULCH PLUG (If Equipped) MTD-731-1386D
...
11
TRAILSHED MTD-731-1026
...
12
HINGE CLIP MTD-17098P
...
13
Lower Handle MTD-749-0928A-0637
...
14
Cotter Pin MTD-714-0104
...
15
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
16
BRACKET ASSEMBLY MTD-987-02107A
...
xx
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
17
Hex Nut 3/8-16 MTD-712-0798
...
18
BELL WASHER MTD-936-0356
...
19
Pivot Bar MTD-15262B
...
20
BRACKET ASSEMBLY MTD-987-02107A
...
xx
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
21
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
22
Front Spring Lever MTD-94832
...
23
Shoulder Screw MTD-738-0507B
...
24
Spring Washer .401 ID x .870 OD MTD-736-0105
...
25
Wheel Assembly 8" x 1.8 MTD-734-1987
...
26
Shoulder Screw MTD-738-0102
...
27
CHUTE DEFLECTOR MTD-931-1034B
...
28
Wheel Assembly 7" x 1.8 MTD-734-1988
...
29
Height Adjustment Plate MTD-787-01290A
...
30
SPRING WASHER BELL MTD-736-0270
...
31
Hex Washer Screw 1/4-20 x .50 MTD-710-0599
...
32
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
33
DECK 22"SD MTD-682-0084
...
34
Blade Adapter MTD-748-0376E
...
35
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
Blade MTD-742-0742A-0637
...
37
Hex Cap Screw 3/8-24 x 1.50 MTD-710-1044
