Yard Machines 11B-508P352 (2000) Push Walk-Behind Mower

Model: 11B-508P352 (2000)

Back To Assemblies

Save Part Not Listed?
product name

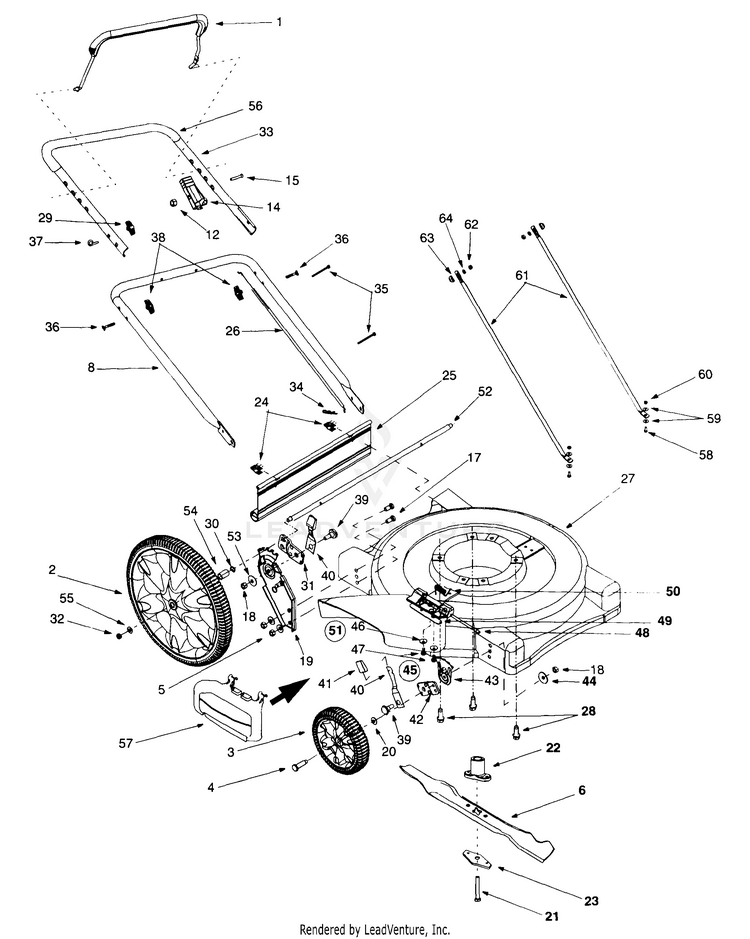

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
xx
Std. Control Handle (Shown) MTD-747-0824B-0637
...
xx
Handle Ass'y. Control MTD-747-0956-0637
...
2
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
xx
AERO GRAY WITH BALL BEARINGS MTD-734-1842
...
3
Front Wheel Bar Grey MTD-734-1987
...
xx
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
xx
Wheel, 8 x 1.7 MTD-734-1855
...
4
Front Axle Bolt MTD-738-0102
...
5
Hex Nut 3/8-24 Thd. MTD-712-0241
...
6
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade MTD-742-0742A-0637
...
8
Lower Handle MTD-749-0928A-0637
...
12
UNKNOWN MTD-NA
...
14
Control Cable Housing MTD-746-0883
...
15
SCREW 1/4-20 x 1.310 MTD-710-1270
...
17
SCREW 3/8-24 x .80 MTD-710-0793
...
18
Hex Nut 3/8-16 MTD-712-0798
...
19
HANDLE BRACKET ASSEMBLY (RH) MTD-682-0518
...
xx
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) MTD-682-0517-0637
...
20
Bell Washer MTD-736-0105
...
21
Hex Bolt 3/8-24 x 1.5" MTD-710-1044
...
22
Blade Adapter MTD-748-0376E
...
23
BLADE BELL SUPPORT MTD-736-0524B-1
...
24
HINGE CLIP MTD-17098P
...
25
TRAILSHED MTD-731-1026
...
26
Control Cable 43.0" Lg. MTD-946-0551
...
xx
Control Cable - 51" MTD-946-0737
...
27
DECK 22"SD MTD-682-0084
...
28
Hex Washer Screw MTD-710-0654A
...
29
Handle Knob 1/4-20 MTD-720-0279
...
30
Wave Washer.510 ID x.750 OD MTD-936-0504
...
31
PIVOT BAR MTD-782-0519A
...
xx
PIVOT BAR MTD-782-0520A
...
32
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
33
UPPER HANDLE MTD-749-0705
...
34
Internal Cotter Pin MTD-714-0104
...
35
Cable Tie MTD-725-0157
...
36
Curved Bolt 5/16-18 x 2" MTD-710-1174
...
37
Rope Guide MTD-710-1205
...
38
Hand Knob MTD-920-0276
...
39
Shoulder Bolt MTD-738-0507B
...
40
Front Spring Lever MTD-94832
...
41
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
42
Pivot Bar MTD-15262B
...
43
Height Adjustment Plate MTD-787-01290A
...
44
BELL WASHER MTD-936-0356
...
45
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
46
SPRING WASHER BELL MTD-736-0270
...
47
Hex Tap Screw 1/4-20 x .5" MTD-710-0599
...
48
Hinge Pin MTD-747-0710A
...
49
PLATE-ADAPTER MTD-17032A
...
50
Torsion Spring MTD-932-0593
...
51
CHUTE DEFLECTOR MTD-931-1034B
...
52
AXLE-RR MTD-738-0878
...
53
Bell Washer MTD-736-0331
...
54
Spacer .550 ID x .750 OD MTD-950-0151
...
55
Flat Washer MTD-736-3050
...
56
Foam Grip (If equipped) MTD-720-0295
...
57
MULCH PLUG (If equipped) MTD-731-1386D
...
58
SCREW 1/4-20 x .620 GR5 (If equipped) MTD-710-0751
...
59
SPRING WASHER BELL (If equipped) MTD-736-0270
...
60
HEX NUT 1/4-20 (If equipped) MTD-912-0287
...
61
STRUT-HAND (If equipped) MTD-749-0939
...
62
HEX NUT 5/16-18 (If equipped) MTD-712-3010
...
63
Saddle Washer (If equipped) MTD-736-0451
...
64
Lock Wash. 5/16" I.D. (If equipped) MTD-936-0119
