YCS464-AD Murray - Yard King 18" Walk Behind Mower

Model: YCS464-AD

Back To Assemblies

Save Part Not Listed?

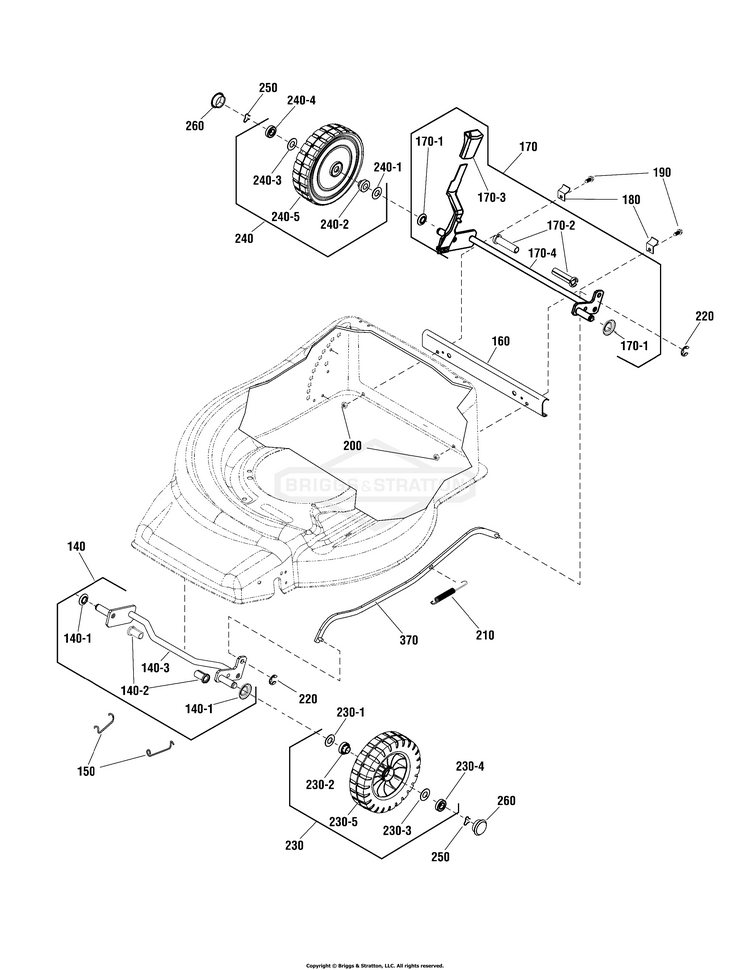

Wheels Group (YCS464)

140

AXLE ASSEMBLY, Front (Includes Ref. Nos. 140-1, 140-2 & 140-3) BS-CH85955DZ

140-1

DUST SEAL BS-CH81445A

140-2

BUSH, Front Axle BS-CH82399A

150

CLIP, Axle, Front BS-CH84899B

160

REAR SKIRT, Safety BS-CH84860A

170

AXLE ASSEMBLY, Rear (Includes Ref. Nos. 170-1, 170-2, 170-3 & 170-4) BS-CH85956DZ

170-1

DUST SEAL BS-CH81445A

170-2

BUSH, Rear Axle BS-CH84861A

180

CLIP, Axle, Rear BS-CH84863D

190

SCREW, Hex Head, M6x16 BS-HA21336D

200

NUT, Nylock, M6 BS-HA24985D

210

SPRING BS-CH85943A

220

CIRCLIP BS-HA25131D

230

WHEEL, 6in Easytrak 150, Front (Includes Ref. Nos. 230-1, 230-2, 230-3, 230-4 & 230-5) BS-CH87081G

240

WHEEL, 7in Easytrak 175, Rear (Includes Ref. Nos. 240-1, 240-2, 240-3, 240-4 & 240-5) BS-CH87082G

250

CAPTIVATED CLIP, Wheel BS-CH86298A

260

HUBCAP BS-CH83765K

370

LINK, Connecting BS-CH86083DZ
