YCS464-AD Murray - Yard King 18" Walk Behind Mower

Model: YCS464-AD

Save Part Not Listed?

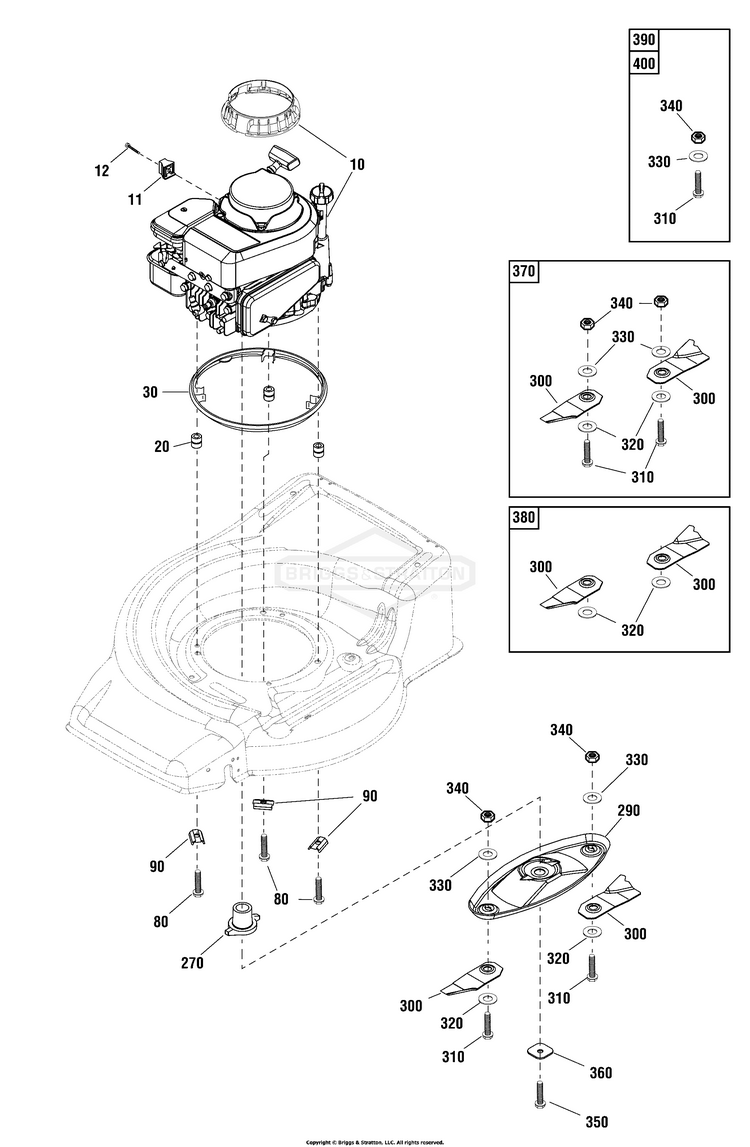

Engine & Blade Group (YCS464)

* ENGINE, Briggs & Stratton Series 450 BS-09T502-3141-H1

SPACER, Throttle Mount BS-EE14444A

SCREW, Hex Head Phillips, 8 x 35 BS-HA20435D

SPACER, 20mm BS-EN73043AZ

SPACER RING BS-EN73041AZ

BOLT, Taptite, 3/8 UNC x 50 BS-HA21318D

SADDLE PLATE BS-VV17130D

270

SLEEVE, Locking, 4 Stroke BS-EE14417A

290

BLADE Disc, Oval BS-CA09495GZ

320

WASHER, Blade Tension BS-CA09347A

330

WASHER, Belleville BS-HA25276B

340

NUT, Nylock, 3/8 UNC BS-CA09241D

350

BOLT, Blade Disc BS-EE14484B

360

WASHER, Blade Disc BS-EN73054B

370

KIT, Blade & Bolt (1 Pair) (Includes Ref. Nos. 300, 310, 320, 330 & 340) BS-CA09506B

380

KIT, Blade & Bolt, Bulk Pack (50 Pairs) (Includes Ref. Nos. 300, 310, 320, 330 & 340) BS-CA09306P

390

KIT, Hardware, Bolt, Washer, Nut (1 Pack) (Includes Ref. Nos. 310, 330 & 340) BS-CA09277S

400

KIT, Hardware, Blade, Washer, Nut , Bulk Pack (50 Pairs) (Includes Ref. Nos. 310, 330 & 340) BS-CA09277P
