Wizard by MTD 3940A68 Push Walk-Behind Mower

Model: WizardMTD 3940A68

Save Part Not Listed?
product name

Parts

...
...
1
CLIP-STOP (For Rope) MTD-751-0441
...
2
Engine MTD-NA
...
3
CASING CLAMP MTD-751-0442
...
4
CABLE CLAMP MTD-12894
...
5
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
6
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
7
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
8
PLUG MTD-731-0564
...
9
Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
L-Wash. 1/4" I.D. MTD-936-0329
...
12
PUSH NUT MTD-726-0106
...
13
PIVOT PIN MTD-711-0555
...
14
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
15
20" Deck Ass'y. (152) MTD-14909
...
xx
DECK ASSEM (162) MTD-14918
...
16
Hex Nut 3/8-16 Thd. MTD-712-0798
...
17
BELL WASHER MTD-936-0356
...
18
20" BLADE (152) MTD-742-0123
...
xx
22" BLADE (162) MTD-942-0125B
...
19
Blade Adapter Kit MTD-753-0348
...
20
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
21
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
22
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
Blade Adapter MTD-719-0262
...
25
Hex Nut 5/16-24 Thd. MTD-912-3057
...
26
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
27
Deflector Hinge Plate MTD-11143-462
...
28
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
29
Height Adjustment Plate MTD-787-01290A
...
30
Pivot Bar MTD-15262B
...
31
Front Spring Lever MTD-94832
...
32
Shoulder Bolt .50" Dia. MTD-738-0507B
...
33
BALL BEARING MTD-941-0484
...
34
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
35
FORTIFLEX BEARING MTD-741-0267
...
36
Axle Bolt MTD-710-0347
...
37
HUB CAP-BLACK MTD-731-0354
...
38
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
39
DEFLECTOR MTD-11679
...
40
TORSION SPRING MTD-732-0253
...
41
Spacer MTD-750-0484
...
45
STRIP-RETA MTD-14835
...
46
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
REAR FLAP ASS'Y. (152) MTD-731-0582
...
xx
FLAP-RR (162) MTD-731-0587
...
48
Intern Cotter Pln 5/16" Dia. MTD-714-0104
...
49
BRACKET ASSY-HDLE MTD-12936
...
50
HEX NUT 5/16-18 MTD-712-3010
...
51
Lock Wash. 5/16" I.D. MTD-936-0119
...
52
OPE GUIDE BOLT MTD-710-0842
...
53
UPPER HANDLE MTD-749-0536
...
54
LABEL MTD-777-5776
...
55
CONTROL CABLE MTD-946-0477A
...
56
CIUTCH PANEL HALF MTD-731-0816
...
57
Truss Mach. H1-B Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
58
Grip-Handle-22" Lg. MTD-718-0145
...
59
BAIL (LH) MTD-731-0609
...
60
CONROL DISC PIN MTD-731-0524
...
61
Throttle Control Lever MTD-931-0972
...
62
PANEL MTD-731-0817
...
63
Throttle Wire-58" Lg. MTD-946-0674A
...
64
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
65
Lower Handle MTD-749-0928A-0637
...
66
BRACKET AS MTD-12935
...
67
Cable Tie MTD-725-0157
...
68
Cable Tie MTD-725-0157
...
69
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
70
Star Knob MTD-720-04072A
...
71
CONTROL HOUSING COMP. MTD-753-0360
...
72
Throttle Control-Label MTD-777-5774

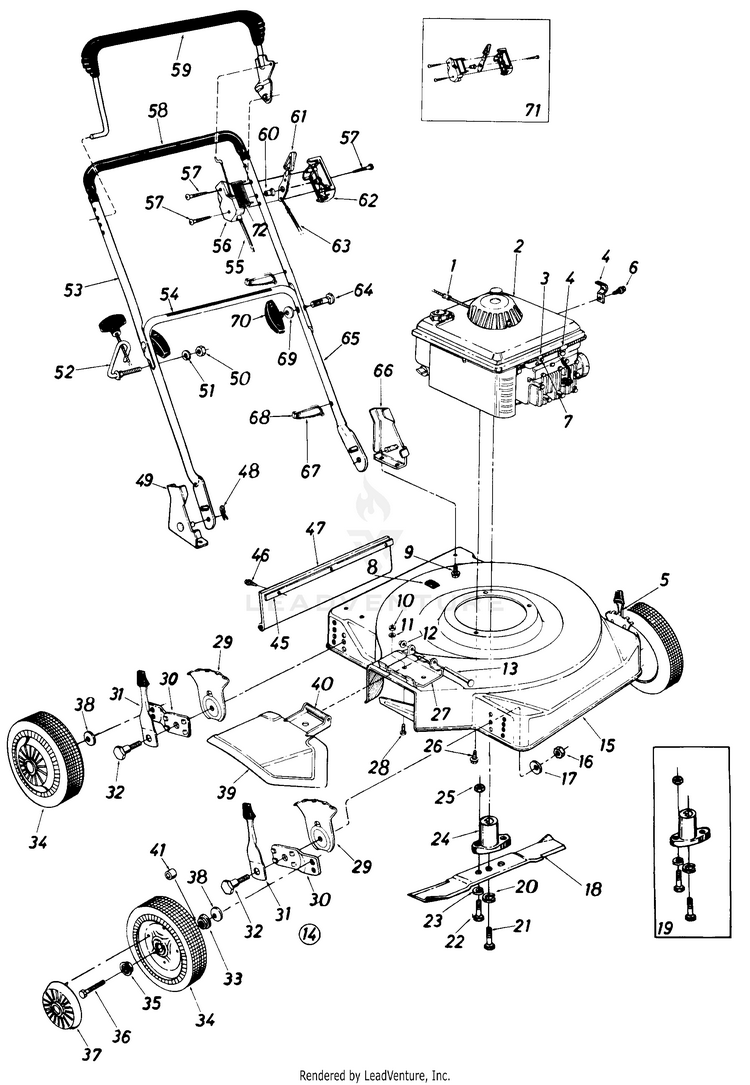

Schematic Image Zoomed
