Wizard by MTD 3932A68 Push Walk-Behind Mower

Model: WizardMTD 3932A68

Save Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDIE ASS'Y.-L.H. MTD-14321
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-0244
...
3
Front Wheel Ass'y.-Comp.8.0 x 1.75 MTD-NA
...
xx
WHEEL ASSEMBLY MTD-734-0841
...
xx
ASS'Y. COMP. (WAFFLE TREAD) MTD-734-0812
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
4
Bearing MTD-NA
...
xx
1/2" I.D. Bearing (2 per wheel) MTD-741-0262
...
xx
FORTIFLEX BEARING MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
xx
Spacer MTD-750-0434
...
5
Axle Bolt-Front MTD-NA
...
xx
Axle Bolt MTD-738-0213
...
xx
Axle Bolt MTD-738-0213
...
xx
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
6
Shoulder Screw MTD-938-0481A
...
7
22" BLADE MTD-942-0125B
...
8
Throttle Wire-58" Lg. MTD-946-0674A
...
9
Lower Handle MTD-749-0928A-0637
...
xx
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
CHUTE DEFLECTOR MTD-931-1034B
...
12
ADAPTER PLATE MTD-11130
...
13
PIVOT PIN MTD-711-0555
...
14
PUSH NUT MTD-726-0106
...
15
TORSION SPRING MTD-732-0253
...
16
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
BRACKET AS MTD-12935
...
20
BRACKET ASSY-HDLE MTD-12936
...
21
Hex Wash. Hd. "B" Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
22
Extension Brkt.-R.H. MTD-14068
...
23
BRACKET-EX MTD-14069
...
24
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
25
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
26
Hex Wash. Hd. "B" Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
27
HEX NUT 1/4-20 MTD-912-0287
...
28
NUT-OVAL 3/8-16 MTD-712-0297
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
30
L-Wash. 1/4" I.D. MTD-936-0329
...
31
STRUT-STABILIZING MTD-749-0400
...
32
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
33
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
34
Hex Nut 5/16-24 Thd. MTD-912-3057
...
35
Blade Adapter Kit MTD-753-0348
...
36
L-Wash. 3/8" I.D.-H.D. MTD-736-0217
...
37
Lock Wash. 5/16" I.D. MTD-936-0119
...
38
STRIP-RETA MTD-14836
...
39
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
40
FLAP-RR MTD-731-0587
...
41
BRACKET-CA MTD-14924
...
42
RIVET MTD-728-0171
...
43
CONTROL CABLE MTD-946-0477A
...
44
22" Deck Ass'y. MTD-14919
...
45
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
46
Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
47
Cable Tie MTD-725-0157
...
48
PANEL MTD-731-0817
...
49
CONROL DISC PIN MTD-731-0524
...
50
CIUTCH PANEL HALF MTD-731-0816
...
51
Throttle Control Lever MTD-931-0972
...
52
UPPER HANDLE MTD-749-0536
...
xx
UPPER HANDLE MTD-749-0538
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
OPE GUIDE BOLT MTD-710-0842
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
59
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
60
CLAMP-CONDUIT MTD-751-0369
...
61
CABLE CLAMP MTD-12894
...
62
LABEL MTD-777-5776
...
63
LABEL - THROTTLE CONTROL MTD-777-5773
...
64
CONTROL HOUSING COMP. MTD-753-0430
...
65
FLANGE BEARING MTD-748-0147
...
66
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
67
PLUG MTD-731-0564
...
68
CASING CLAMP MTD-751-0442
...
69
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
70
INSULATOR-SPARK PLUG MTD-735-0639
...
xx
Hardware Pack MTD-8500-000-6

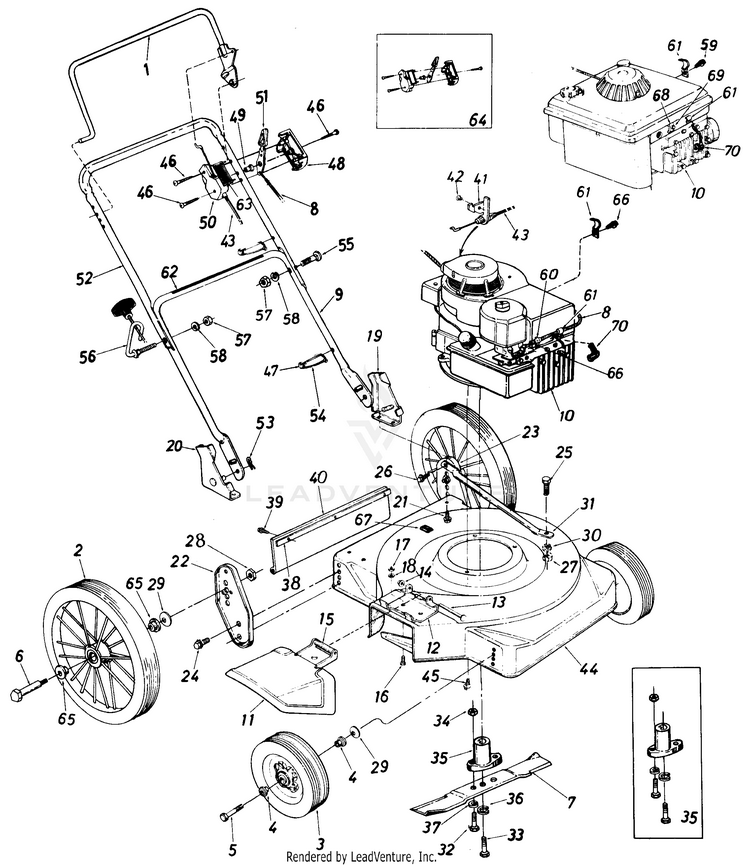

Schematic Image Zoomed
