Wizard by MTD 212-430-098 (MTD4109A29) (1992) Tiller

Model: 212-430-098 (MTD4109A29) (1992)

Save
Part Not Listed?Part Not Listed?

product name

Engine And Drive Assembly

...
...
1
Engine MTD-NA

...
2
Belt Cover Mounting Brkt. MTD-784-0199A

...
3
Hex Bolt 3/8-16 x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0514

...
4
Tine Shield Mtg. Brkt.- R.H. MTD-784-0178

...
5
Tine Shield Mtg. Brkt.- L.H. MTD-784-0177

...
6
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
7
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
8
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
9
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
10
TUBELESS VALVE MTD-934-0255

...
11
Hex Bolt 5/16-24 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0237

...
12
Bell-Wash..345" I.D. x .88" MTD-736-0242

...
13
Wheel Rim Ass'y. Only MTD-734-1376

...
14
L.H. Wheel Ass'y. Comp. MTD-734-1377

...
xx
R.H. Wheel Ass'y. Comp. MTD-734-1378

...
xx
Tire Only 13 x 5.0 MTD-734-1154-0901

...
15
Spacer 3/8" I.D. x 3.38" Lg. MTD-750-0688

...
16
Transmission Comp. MTD-784-0150

...
17
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
19
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118

...
21
L-Wash. 3/8" I.D.- H.D. MTD-736-0217

...
22
HEX NUT For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0206

...
23
L-Wash. 1/2" I.D. MTD-736-0921

...
24
Engine Mounting Rail - R.H. MTD-784-0155

...
25
COUNTERWEIGHT MTD-723P0381

...
26
Fl-Wash. .510" I.D. x 1.0" MTD-736-0326

...
27
Hex Bolt 1/2-13 x 5.00" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0382

...
30
Engine Mounting Rail - L.H. MTD-784-0154

...
31
Hex Bolt 3/8-16 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0216

...
32
SCREW 5/16-18 x 1.5 LG For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0805A

...
33
Hex Bolt 5/16-18 x 4.75" Lg.- Gr. 2 MTD-710-0974

...
34
Screw, 5/16-18 x .625 MTD-710-0604A

...
35
Bracket Clutch Cable MTD-784-0203

...
36
Clutch Control Cable 53" Lg. MTD-946-0612

...
37
Idler Bracket Ass'y. MTD-784-0175

...
38
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
39
Shld. Bolt .500" Dia. x 2.27" MTD-738-0681

...
40

...
41
"V"-Pulley Split 5/8" I.D. MTD-756-0472

...
42
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176

...
43
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412

...
44
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599

...
45
Fl-Wash. .281" I.D. x .625" MTD-736-0463

...
46
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0262

...
47
Flat Washer: .344 ID X 1.12 OD MTD-936-0123

...
48
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
49
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
50
BELT COVER MTD-784-0158B

...
51
Fl-Idler w/Flanges 3.75" O.D. MTD-756-0405

...
52
Hex Bolt 5/16-24 x 1.75" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0409

...
53
Hex Bolt 3/8-24 x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-1039

...
54
Fl-Wash. 3/8" I.D. x 1.00" MTD-736-0258

...
55
Spacer .758" I.D. x .990" MTD-750-0345

...
56
Engine Pulley MTD-748-0282

...
57
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-3057

...
58
Hex Bolt 5/16-24 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0237

...
59
Belt Keeper Ass'y. MTD-784-0197

...
60
Casing Clamp MTD-751B221535

...
61
Hex Sems Scr. #10-32 x .62" MTD-710-0899A

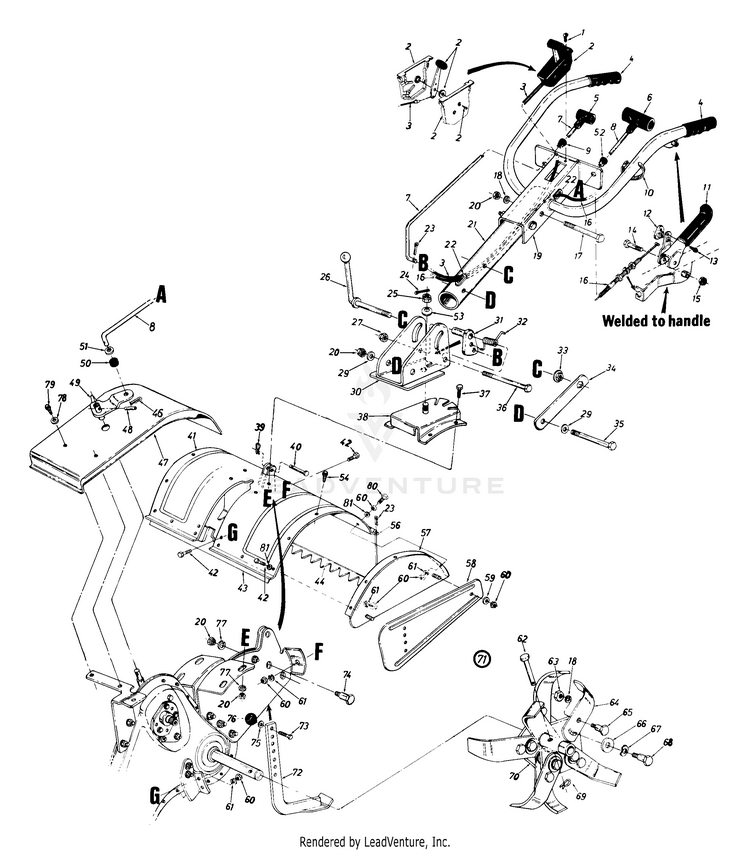

Rear Tine Tiller

...
...
1
Truss Mach. AB-Tap. Scr. #10 x .50" Lg. MTD-710-0779A

...
2
Throttle Control Box Ass'y. MTD-831-0823A

...
3
THROTTLE CABLE 50" MTD-946-0513B


...
5
Small "T" Knob MTD-720-0210A

...
6
Large "T" Knob MTD-720-0209

...
7
Clutch Rod MTD-747-0666

...
8
Control Rod 37" Lg. MTD-747-0664

...
9
Snap On Bushing 3/8" Dia. MTD-735-0228

...
10
Cable Tie-Self Clinching MTD-725-0157

...
11
CLUTCH LEVER ASSEMBLY (POWDER BLACK) MTD-684-04399A-0637

...
12
Barrel Cable Hold Down MTD-946-0605

...
13
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919

...
14
Hex Bolt 3/8-24 x 2.25" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0331

...
15
Hex Jam L-Nut 3'-24 Thd. MTD-712-0262

...
16
Clutch Control Cable 46" Lg. MTD-946-0908

...
17
HEX SCREW 3/8-16 x 3.00 GR2 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0194

...
18
L-Wash. 3/8" I.D.- H.D. MTD-736-0217

...
19
Handle Ass'y. Code 638 MTD-649-0030-0638

...
20
Hex Nut 3/8-16 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
21
Handle Tubing Ass'y. MTD-784-0189

...
22
Rubber Grommet .66" I.D. MTD-735-0226

...
23
Cotter Pin 3/32" Dia. x .75" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0507

...
24
Cotter Pin 3/32" Dia. x 1.25" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-914-3021

...
25
Hex Slotted Nut 5/8-18 Thd. MTD-712-0386A

...
26
Handle Adj. Crank MTD-784-0190

...
27
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375

...
29
Bell-Wash. .4" I.D. x .87" O.D. MTD-736-0105

...
30
PIVOT BRACKET ASSEMBLY (POWDER BLACK) MTD-684-0263A-0637

...
31
Positioner Crank Ass'y. MTD-784-0183

...
32
Spring Handle Adj. (Torsion) MTD-732-0493

...
33
Hex Flange Nut 3/8-24 Thd. MTD-712-0379

...
34
Bracket Hex Nut Retainer MTD-784-0191

...
35
Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8) For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3130

...
36
Hex Bolt 3/8-16 x 3.00" Lg.- Gr. 8 MTD-710-0521

...
37
Hex Bolt 3/8-16 x 1" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0514

...
38
Handle Positioner Brkt. Ass'y. MTD-686-0071

...
39
Intern. Cotter Pin MTD-714-01498

...
40
Clevis Pin .375" Dia. MTD-711-0415

...
41
Tine Shield 18" Code 638 MTD-784-0156

...
42
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118

...
43
Bracket Reinforcement - 18" MTD-784-0210

...
44
Rear Tine Shield Code 638 MTD-786-0113

...
46
Intern. Cotter Pin 5/16" Dia. MTD-714-0104

...
47
Shift Cover MTD-784-0208C

...
48
Spring Roll Pin 3/16" Dia. MTD-715-0120

...
49
Shifting Crank Ass'y. MTD-784-0173

...
50
Rubber Washer .33" l.D. MTD-735-0127

...
51
Fl-Wash. .4" I.D. x 1.25" O.D. MTD-736-0133

...
52
Snap On Bushing 1/2" Dia. MTD-735-0227

...
53
Bell-Wash. .63" I.D. x 1.25" MTD-736-0317

...
54
Hex Wash. Tap Scr. MTD-710-0607

...
56
Tiller Flap Rod MTD-747-0432

...
57
End Cover Ass'y. Code 638 MTD-984-0179A-0637

...
58
Side Shield Code 638 MTD-15390

...
59
Bell-Wash. .345" I.D. x .88" MTD-736-0242

...
60
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
61
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
62
Clevis Pin .375" Dia. MTD-711-0415

...
63
Hex Nut 3/8-24 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241

...
64
ARTICULATING TINE MTD-742-0305A-0637

...
65
SHOULDER SCREW MTD-938-0689

...
66
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208

...
67
Bell-Wash. .515" I.D. x 1.14" MTD-736-0255

...
68
SHOULDER SCREW MTD-938-0688

...
69
Intern. Cotter Pin MTD-714-0149B

...
70
TINE ADAPTER ASSEMBLY MTD-784-0160-0637

...
71
TINE ASSEMBLY MTD-984-0205A-0637

...
72

...
73
Hex Bolt 3/8-16 x .75" Lg, For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0216

...
74
Shoulder Screw, .50 x .66 MTD-938-0148

...
75
Fl-Wash. MTD-936-0117

...

...
77
L-Wash. 3/8" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
78
Fl-Wash. .281" I.D. x .62" MTD-736-0463

...
79
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599

...
80
Hex Bolt 5/16-18 x 11/4" Lg." For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0528

...
81
Fl-Wash. .344" I.D. x .62' O.D. MTD-736-0264

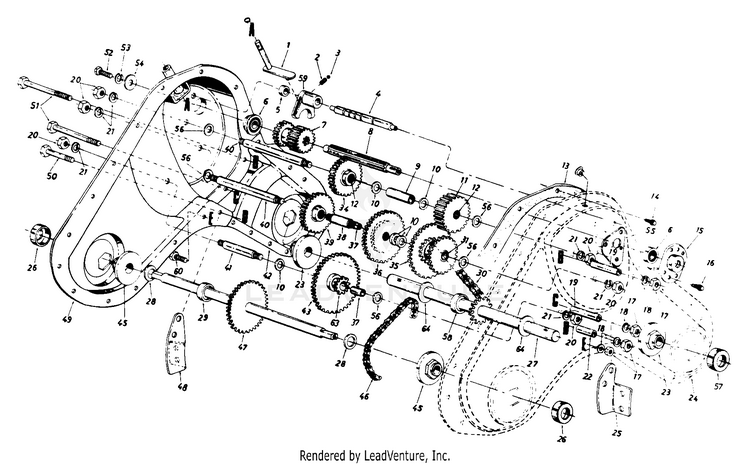

Transmission

...
...
1
Shifting Bracket Ass'y. MTD-784-0171A

...
2
Compression Spring .50" Lg. MTD-932-0496

...
3
DETENT BALL .250 MTD-741-0862

...
4
Detent Shaft 1/2" Dia. MTD-738-0645

...
5
Spacer .505" 1.0. x .88" O.D. MTD-750-0664

...
6
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155

...
7
Spur Gear 16T (Input) MTD-717-0851

...
8
Input Spline Shaft 7/8" MTD-717-0852

...
9
Spacer .657" I.D. x 2.85" Lg. MTD-750-0651

...
10
Fl-Wash. .640" I.D. x 1.24" MTD-736-0187

...
11
Spur Gear 30T 7/8" I.D. MTD-717-0857

...
12
Bearing, Needle MTD-941-0478

...
13
Gasket - Trans. Hsg. MTD-921-0211

...
14
Hex S-Tap Scr. 1/4-20 x .5" MTD-710-0599

...
15
1-3/8" Dia. Bearing Housing MTD-784-0211

...
16
Hex TT-Tap Scr. 1/4-20 x .75" MTD-710-0642

...
17
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
18
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
19
Spacer 1.56" Lg. MTD-750-0662

...
20
Hex Nut 7/16-20 Thd. MTD-712-0378

...
21
Bell-Wash. .45" I.D. x 1.0" MTD-736-0407

...
22
Spacer 1.015" Lg. MTD-750-0661

...
23

...
24
Trans. Housing Ass'y.- L.H. MTD-784-0214

...
25
Bracket Gear Case - L.H. MTD-784-0193

...
26
Shaft Seal MTD-721-0379

...
27
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A

...
28
Fl-Wash. .76" I.D. x 1.5" O.D. MTD-736-0351

...
29
Spacer .75 x 2.0 x .50 MTD-950-0671

...
30
Chain #50 5/8 Pitch x 52 Links - Endless MTD-913-0226

...
31
Needle Bearing 5/8" I.D. MTD-741-0488

...
?32
Snap Ring MTD-716-0865

...
?33
Taper Cap Plug MTD-726-0277

...
34
Spur Gear 30T 12/16" I.D. MTD-717-0854

...
35
30/44T Gear Ass'y. Comp. MTD-717-0874

...
36
Spur Gear 447 MTD-717-0863

...
37
Sleeve Bearing MTD-941-0181

...
38
Gear Hub 3/4" I.D. x 3" Lg. MTD-717-0835

...
39
Spur Gear 30T 1.0" I.D. x 1/2" W MTD-717-0855

...
40
Jack Shaft 5/8" Dia. x 5" MTD-738-0647

...
41
Jack Shaft 5/8" Dia. x 2.38" MTD-738-0648

...
42
Trans. Housing Ass'y. - R.H. MTD-686-0073-0637

...
43
Spur Gear 557 MTD-717-0858

...
45

...
46
#420 Chain 1/2 Pitch x 50 Links MTD-913-0367

...
47
Wheel Shaft Ass'y. 15.6" MTD-784-0170

...
48
Bracket Gear Case - R.H. MTD-784-0192

...
49
R.H. Housing Ass'y. MTD-784-0195

...
50
Hex Bolt 5/16-18 x 2.00" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3103

...
51
Hex Bolt 5/16-18 x 2.5" For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0378

...
52
BOLT 1/4-28 X .625 GR8 MTD-710-0513A

...
53
L-Wash. 3/8" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
54
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176

...
55
Gear Positioner Bracket MTD-784-0207

...
56
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406

...
57
Seal 1.0 Shaft MTD-921-0378

...
58
Step Spacer MTD-950-0570

...
59
Shifting Fork MTD-717-0853A

...
60
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118

...
63
10T Sprocket Ass'y. MTD-984-0162A

...
64
Thrust Wash. 1.03" I.D. x 1.62" O.D. MTD-736-0163

...
xx
Grease, Benalene 8 oz tube MTD-737-0300A

...
?85
Gear Positioner Bracket Use with For model A430 MTD-786-0065

...
xx
Transmission MTD-784-0150
...
...
...
