Wizard DWOAS4ED 41AJS4ED938 Handheld Product

Model: DWOAS4ED 41AJS4ED938

Save
 Part Not Listed?Part Not Listed?
product name

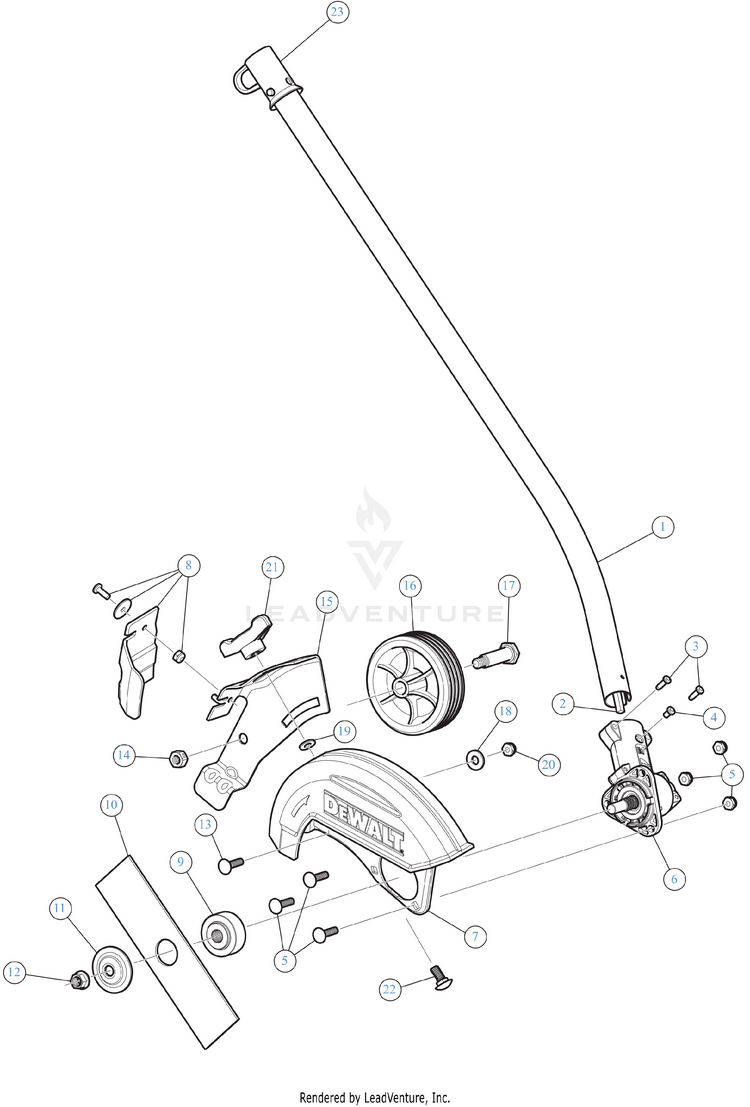

General Assembly

...
...
1
BOOM ASSEMBLY MTD-841-090516S
...
2
LOWER DRIVE SHAFT MTD-753-05267
...
3
SCREW #10-24X11/16 T-25 MTD-791-182195
...
4
SCREW, 8-32 x .312 P MTD-791-182519
...
5
BLADE LOCK NUT MTD-712-04105
...
6
GRBX ASSEMBLY MTD-753-04258
...
7
EDGER GUARD MTD-BD-N840764-PP
...
8
GUARD (W/HDWR) MTD-753-11109
...
9
SPACER MTD-792-10785
...
10
EDGER BLADE MTD-797-00045
...
11
WASHER-BLADE CLAMP BRUSH CUT MTD-791-147490
...
12
BLADE LOCK NUT MTD-712-04105
...
13
CARRIAGE BOLT 1/4-20 x 1 MTD-710-04063
...
14
LOCK NUT 3/8-16 MTD-712-3000
...
15
BRACKET GUARD MTD-753-08021
...
16
WHEEL 3.75" (WHITE) MTD-6356
...
17
SHOULDER SCREW 0.498x1.494 3/8-16 MTD-5556
...
18
FLAT WASHER MTD-3010
...
19
WASHER .406X1.0X.095 MTD-736-04107
...
20
NUT 1/4-20 NYLOC MTD-2952
...
21
WING KNOB 5/16-18 MTD-720-04122
...
22
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
23
HANGER MTD-731-08926
...
xx
TOOL-LOCKING ROD MTD-791-613226
...
...
...
