Wizard DCMWSP244 18AEU2C2738 (2023) Walk-Behind Mower

Model: DCMWSP244 18AEU2C2738 (2023)

Back To Assemblies

Save Part Not Listed?
product name

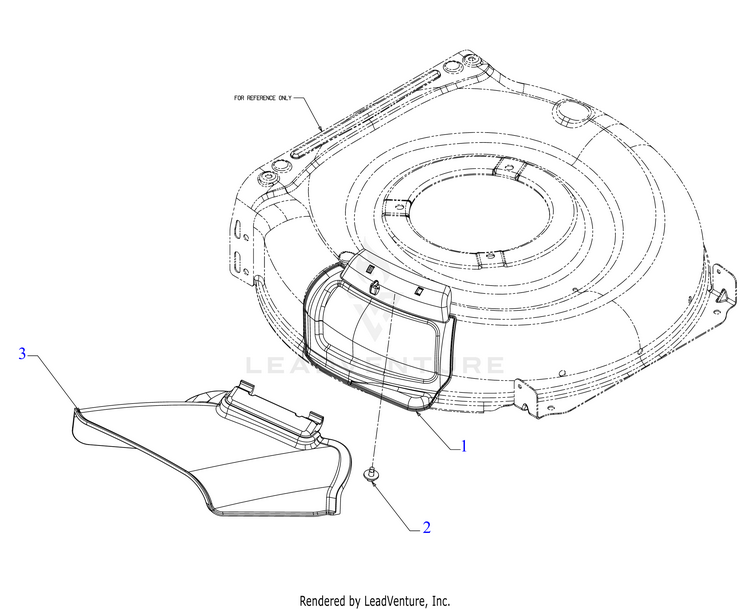

Side Discharge Chute

...
...
1
MULCH PLUG MTD-687P06028
...
1
TORSION SPRING (Not Shown) MTD-732-1014C
...
1
HINGE PIN (Not Shown) MTD-747-0710A
...
1
CHUTE DEFLECTOR BRACKET (Not Shown) MTD-787-01779
...
2
SCREW 1/4-20 x .50 MTD-710-05073
...
3
SIDE DISCHARGE CHUTE MTD-731-26695
