product name

Wizard BDXGSAM214102 41AY4216936 Handheld Product

Model: BDXGSAM214102 41AY4216936

Save
 Part Not Listed?Part Not Listed?
product name

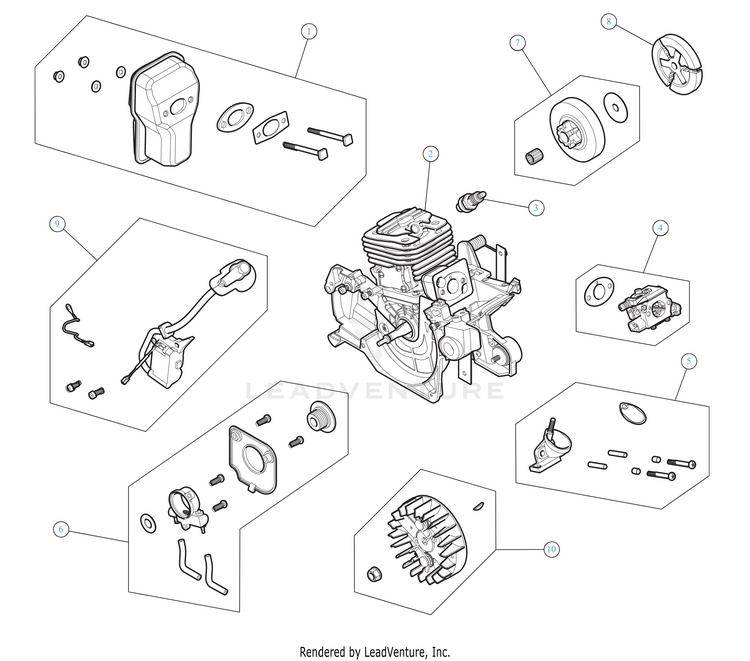

Engine Assembly

...
...
1
MUFFLER MTD-753-10289
...
2
42CC SHORT BLOCK (Incl. 6) MTD-753-10333
...
3
SPARK PLUG MTD-794-00304
...
4
CARBURETOR MTD-753-10295
...
5
CARBURETOR HARDWARE MTD-753-10296
...
6
OIL PUMP MTD-753-10297
...
7
CLUTCH DRUM MTD-753-10300
...
8
CLUTCH MTD-753-10301
...
9
IGNITION MODULE MTD-753-10291
...
10
FLYWHEEL MTD-753-10293

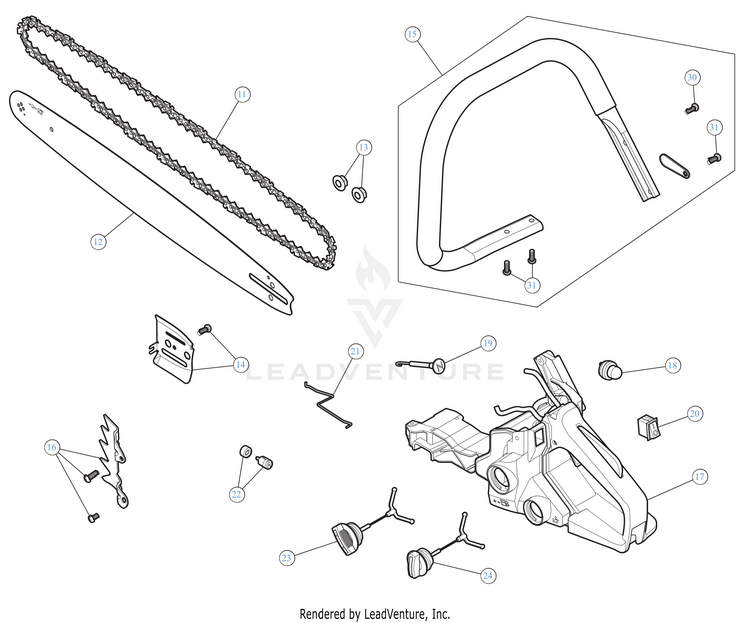

General Assembly

...
...
11
16" CHAIN MTD-713-05276
...
12
16" Guide Bar MTD-795-01148
...
13
BAR NUT M8 MTD-953-08105
...
14
BAR PLATE MTD-753-10336
...
15
CHAINSAW HANDLE (Incl. 30 & 31) MTD-753-10284
...
16
SPIKE PLATE MTD-753-10332
...
17
TANK MTD-753-10304
...
18
PRIMER BULB MTD-753-10330
...
19
CHOKE LEVER MTD-753-11222
...
20
STOP SWITCH MTD-753-10331
...
21
THROTTLE ROD MTD-753-10329
...
22
FUEL FILTER MTD-753-10328
...
23
FUEL CAP MTD-753-11223
...
24
OIL CAP MTD-753-10325
...
30
SCREW MTD-753-10285
...
31
SCREW MTD-753-10286

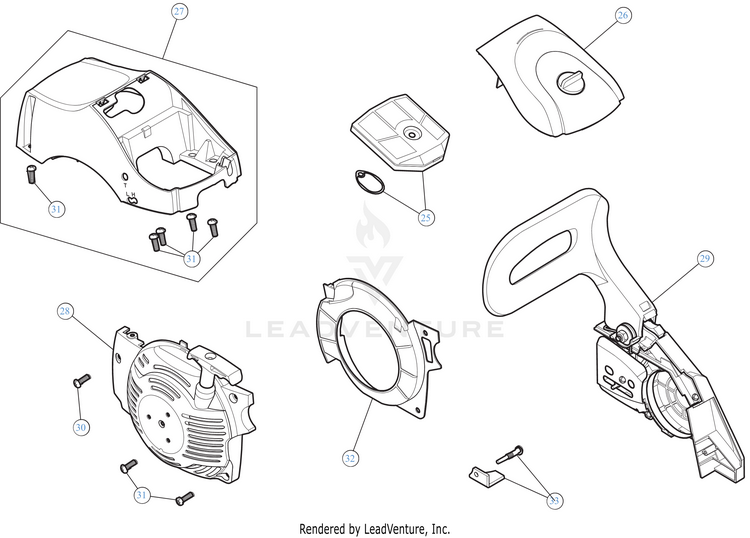

Housing Assembly

...
...
25
AIR FILTER MTD-753-10302
...
26
AIR FILTER COVER MTD-753-10303
...
27
CYLINDER COVER (Incl. 31) MTD-753-10294
...
28
STARTER HOUSING MTD-753-11221
...
29
BRAKE MTD-753-11224
...
30
SCREW MTD-753-10285
...
31
SCREW MTD-753-10286
...
32
BAFFLE MTD-753-10290
...
33
CHAIN CATCHER MTD-753-10337
...
...
...
