Wizard 21A-414A098 (2000) Tiller

Model: 21A-414A098 (2000)

Save Part Not Listed?
product name

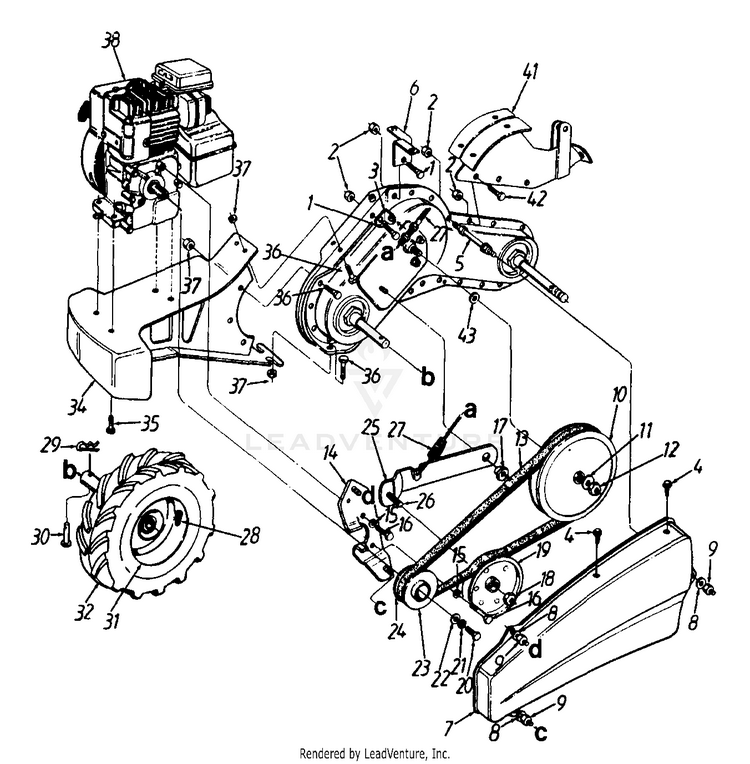

Drive & Wheels

...
...
1
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
CABLE BRACKET MOUNTING MTD-786-0107
...
4
Torx Mach. AB-Tap Scr. 1/4 x .6" Lg MTD-710-1017
...
5
BELT COVER BOLT MTD-738-0899
...
6
BRACKET CO MTD-786-0117
...
7
BELT COVER MTD-786-0100
...
8
Fl-Wash. .281" I.D. x .5" O.D. MTD-736-0142
...
9
Hex Cap Nut 1/4-28 Thd. MTD-712-0392
...
10
Flat Pulley 8" O.D. MTD-756-0634
...
11
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
12
Hex Flange Nut. MTD-712-0379
...
13
Drive Belt MTD-954-0438
...
14
BELT KEEPER BRACKET (POWDER BLACK) MTD-686-0031A-0637
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
17
SHOULDER NUT MTD-738-0876A
...
18
JAM LOCK NUT MTD-712-0266A
...
19
Fl-Idler w/Flanges MTD-756-0405
...
20
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
21
L-Wash. 3/8" I.D. MTD-736-0217
...
22
Fl-Wash. 3/8" I.D. x 1" O.D. MTD-736-0258
...
23
Outer Engine Pulley Half MTD-756-0972
...
24
Inner Engine Pulley Half MTD-756-0971
...
25
IDLER BRACKET MTD-786-0080-0637
...
26
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-0723
...
27
Clutch Cable MTD-946-0916
...
28
TUBELESS VALVE MTD-934-0255
...
29
Hairpin Clip MTD-714-0104
...
30
Clevis Pin MTD-711-1017
...
31
RIM ASSEMBLY (6.0 x 3.25) MTD-634-0112
...
xx
RIM MTD-634-0108
...
32
WHEEL ASSEMBLY (14 x 4.5) (RH) MTD-634-0110
...
xx
WHEEL ASSEMBLY (14 x 4.5) (LH) MTD-634-0111
...
xx
WHEEL ASSEMBLY (16 x 4) (RH) MTD-634-0106
...
xx
WHEEL ASSEMBLY (16 x 4) (LH) MTD-634-0107
...
xx
Tire MTD-734-1796A
...
xx
TIRE 16.25 X 4.5-8 MTD-734-0808A
...
34
COUNTERWEIGHT FRAME MTD-619-0009
...
35
Hex TT-Tap Scr. 3/8-16 Thd. MTD-710-1007
...
36
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5) MTD-710-0376
...
37
HEX FLANGE NUT MTD-712-3004A
...
38
Engine MTD-NA
...
41
TINE SHIELD BRACKET ASSEMBLY MTD-686-0043A
...
42
Hex Bolt 5/16-18 x 7/8" Lg. MTD-710-3038
...
43
Fl-Wash. MTD-936-0256

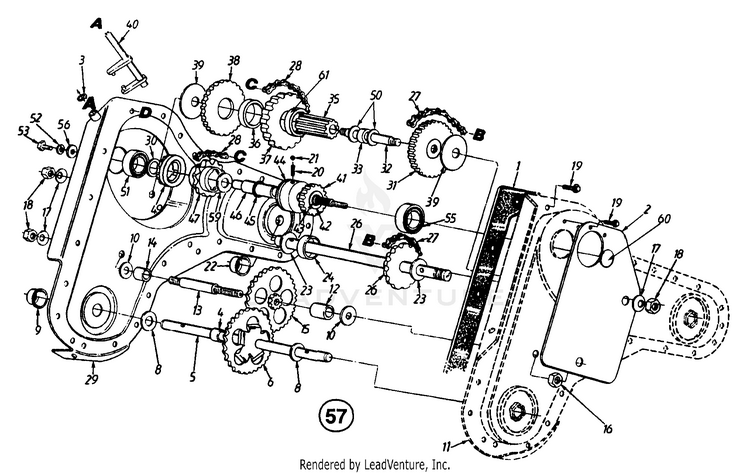

Gear Case Assembly

...
...
1
CHAIN CASE GASKET MTD-721P0295
...
2
Reinforcement Plate MTD-786-0086-0637
...
3
Snap Ring MTD-716-0865
...
4
SPACER MTD-950-0938
...
5
SERVICE WHEEL KIT MTD-611-0058
...
6
Spur Gear 46T MTD-717-1458
...
8
Fl-Wash. .76" I.D. x 1.5" O.D. MTD-736-0351
...
9
Shaft Seal MTD-721-0379
...
10
Thr. Wash. .445 I.D. x 1.92 O.D. x .060 MTD-736-0518
...
11
GEAR CASE ASSEMBLY HALF (LH) MTD-986-0039-0637
...
12
SPACER MTD-750-0935
...
13
JACK SHAFT MTD-738-0885
...
14
SPACER MTD-950-0936
...
15
IDLER GEAR ASSEMBLY MTD-917-0004
...
16
Hex Patch L-Nut 7/16-20 Thd. MTD-712-3067
...
17
Bell-Wash. .45" I.D. x 1" O.D. MTD-736-0407
...
18
Hex Nut 7/16-20 Thd. MTD-712-0378
...
19
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0896
...
20
DETENT SHAFT SPRING MTD-932-05125
...
21
DETENT BALL .250 MTD-741-0862
...
22
Seal 1.0 Shaft MTD-921-0378
...
23
Thrust Wash. 1.03" I.D. x 1.62" MTD-736-0163
...
24
Step Spacer MTD-950-0570
...
26
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
27
Chain #50 5/8 Pitch x 52 Links - Endless MTD-913-0226
...
28
Chain - #41 1/2" Pitch x 30 Links - Endless MTD-713-0233
...
29
GEAR CASE HALF (RH) MTD-686-0038
...
30
FLAT WASHER MTD-736-0541
...
31
GEAR SPROCKET ASSEMBLY MTD-917-0003
...
32
JACK SHAFT MTD-738-0884
...
33
SPACER MTD-750-0931
...
35
GEAR SPUR 10T MTD-917-1411
...
36
SPACER MTD-950-0930
...
37
SPROCKET MTD-713-0436
...
38
REVERSE GEAR 46T MTD-717-1405
...
39
Thrust Wash. .445" I.D. x 1.92" MTD-736-0518
...
40
SHIFTER ASSEMBLY MTD-618-0245B
...
41
Spur Gear 17T MTD-717-1409
...
42
FLAT WASHER .67X 1.174X .02 MTD-736-05031
...
43
Wire Ring MTD-732-0614
...
44
Clutch Collar MTD-718-0234
...
45
Retaining Ring .875" Shaft MTD-916-0235
...
46
Drive Shaft MTD-711-1087
...
xx
SPECIAL KEY (Not Shown); 2 Used MTD-718-0237
...
47
Sprocket 11T MTD-713-0435
...
49
Spur Gear 167 MTD-717-1451A
...
50
FLAT WASHER MTD-936-0336
...
51
BALL BEARING MTD-941-0600
...
52
L-Wash. 1/4" I.D. MTD-936-0329
...
53
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
55
BALL BEARING MTD-941-0563
...
56
Fl-Wash. .281" I.D. x .875" O.D. MTD-736-0512
...
57
GEAR CASE KIT MTD-753-05328
...
?58
SPECIAL KEY (Not Shown) MTD-718-0237
...
59
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
60
BUTTON PLUG MTD-726-0331
...
61
SPECIAL SPACER MTD-950-0987
...
xx
Grease, Benalene 8 oz tube (40 oz. Req'd.) MTD-737-0300A
