Wizard 19A20001038 33" Grass Bag Kit Tiller

Model: 19A20001038 33" Grass Bag Kit

Save
 Part Not Listed?Part Not Listed?
product name

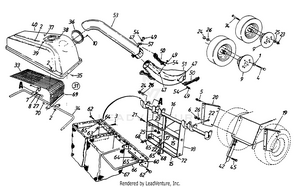

083 Grass Collector

...
...
1
Fl-Wash. .385" I.D. MTD-736-0300
...
2
Pop Rivet .188 Dia. MTD-928-0123
...
3
Truss Mach. Scr. #10-24 x .5" MTD-710-0473
...
4
Hex Bolt 3/8-16 x 4.5" ig. MTD-710-0693
...
5
Screw, 5/16-18 x .625 MTD-710-0604A
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
Bell-Wash. .515" I.D. MTD-736-0255
...
8
Fl-Wash. .510" I.D. MTD-736-0108
...
9
Wheel Weight MTD-723-0414B
...
10
Truss AB-Tap Scr. #6 x .6" MTD-710-0936
...
15
Catcher Support Tube Mtg. Brkt. MTD-17200A
...
16
Catcher Support Tube Ass'y. MTD-749-0750
...
17
SPRING WASHER BELL MTD-736-0270
...
18
Catcher Support Bracket MTD-783-0601-0637
...
19
Catcher Support Brkt.- R.H. MTD-17190
...
20
Grass Catcher Support Brkt. - L.H. MTD-17191-0637
...
21
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
22
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex Nut 3/8-16 Thd. MTD-712-0798
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
L-Wash. 3/8" I.D." MTD-736-0169
...
27
Shld. Bolt 3/8-16 x .500" Dia. MTD-738-0380
...
31
Catcher Cover Ass'y. Comp. MTD-17204
...
33
Screen MTD-723-0407
...
34
Hinge Brkt. Ass'y. MTD-749-0747
...
35
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
36
Tube Seal MTD-723-0413
...
37
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
38
Plastic Plate MTD-731-0824
...
39
U-Type Speed Nut MTD-712-0147
...
40
Grass Catcher Cover MTD-731-0896
...
42
Retainer Brkt. Ass'y. MTD-17192
...
45
Hex Bolt 3/8-24 x .75" Lg. MTD-710-0180
...
47
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
49
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
50
Retainer Strap Assembly MTD-923-0383
...
51
Discharge Chute MTD-731-0925C
...
53
Chute Tube MTD-731-0926B
...
54
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
57
Retainer Hook Brkt. MTD-96606
...
60
Bag Frame Hanger Bracket MTD-17201A-0637
...
62
Hex Bolt 1/4-28 x .88" Lg. MTD-710-0281
...
63
Hex Sems Nut 010-24 Thd. MTD-712-0272
...
64
Hex Nut 1/4-28 Thd. MTD-712-0138
...
65
L-Wash. 1/4" I.D. MTD-936-0329
...
66
Grassbag Frame Tube MTD-749-0745A-0637
...
67
Grassbag MTD-964-0251
...
68
Hex Nut 1/4-20 Thd. MTD-912-0287
...
69
Screen Mtg. Brkt. MTD-17202
...
70
Flat Wash. 1/4" I.D. MTD-736-0400
...
72
Support Tube Bracket MTD-17247-0637
...
74
Hex Bolt 5/16-18 x 4" Lg. MTD-710-0190

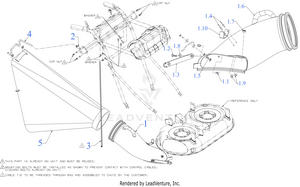

General Assembly

...
...
1
SERVICE REPLACEMENT KITLAC MTD-753-06127
...
1.1
CLEVIS PIN 5/16 x 3/4 MTD-711-05063
...
1.2
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
1.3
CHUTE STRAP MTD-723-04008A
...
1.4
POP RIVET .187 DIA MTD-728-04021
...
1.5
PLASTIC RIVET .250 MTD-728-04042
...
1.6
Not Serviceable/ Order Complete Assembly MTD-NSOCA
...
1.7
ROD CONTROL BUSHING MTD-731-1706
...
1.8
FLAT WASHER (4/1/23 & After) MTD-736-0264
...
1.8
FLAT WASHER .344 ID x .62 OD x .033 (4/1/23 & Before) MTD-736-0204
...
1.9
FLAT WASHER .194x.620x.063 MTD-736-0400
...
1.10
ELBOW HOLDER BRACKET MTD-787-01533-0637
...
2
HOLDER ROD ASSEMBLY (POWDER BLACK) MTD-647-04110-0637
...
3
CABLE TIE 36" MTD-726-0230
...
4
GRASSBAG HANGER ROD MTD-747-04671
...
5
GRASSBAG (2.6 BUSH) MTD-764-05530
...
...
...
