Wizard 13AU618H098 (2000) Lawn Tractor

Model: 13AU618H098 (2000)

Back To Assemblies

Save Part Not Listed?
product name

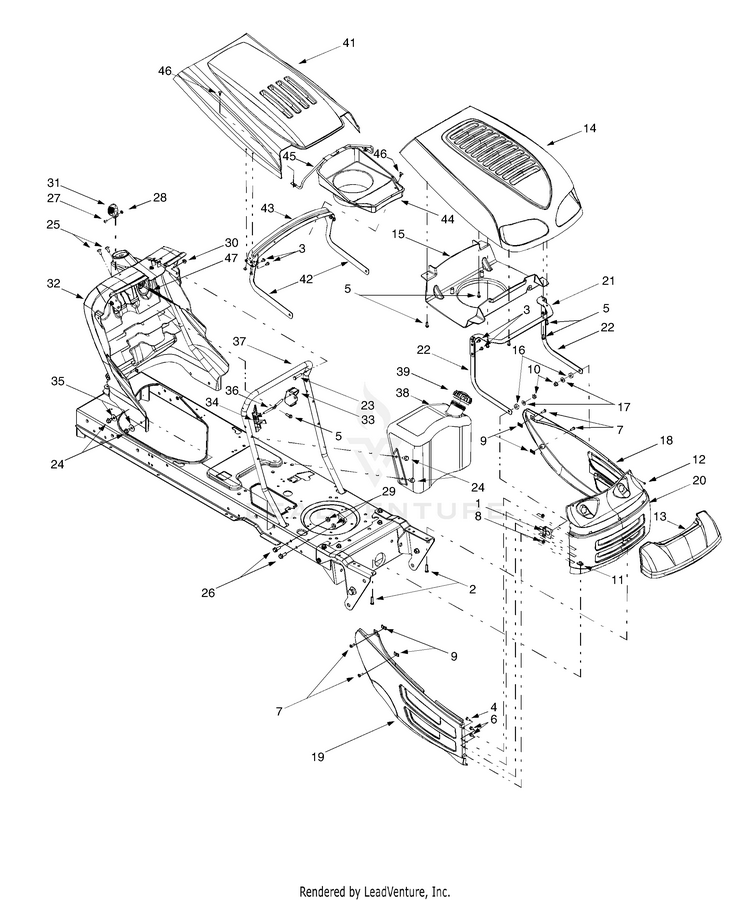

Hood Style 8

...
...
1
BRACKET ASSEMBLY (POWDER BLACK) MTD-683-0195-0637
...
2
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
3
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
4
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
5
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
6
Screw, 1/4-15 x .75 MTD-710-0896
...
7
Phillips Pan Screw, 1/4-20 x .75 MTD-710-0924
...
8
Hex Sems Nut, 1/4-20 MTD-712-0271
...
9
U-type Speed Nut, 1/4-20 MTD-712-0292
...
10
Flange Lock Nut 3/8-16 MTD-912-0431
...
11
U-nut, 5/16-18 MTD-726-0211
...
12
RETAINING NUT MTD-726-0293
...
13
Headlight Lens (8-style) MTD-931-1854A
...
14
HOOD MTD-731-2300
...
xx
HOOD MTD-731-2301
...
xx
HOOD MTD-731-2302
...
xx
HOOD, 7-STYLE, CHARCOAL GREY MTD-731-2303
...
15
HOOD PLENUM MTD-731-2306
...
16
RUBBER WASHER MTD-735-0126A
...
17
Bell Washer, .401 x .87 x .063 MTD-736-0105
...
18
SIDE PANEL (LH) 8STY MTD-783-0475C
...
19
SIDE PANEL (RH) 8STY MTD-783-0476B
...
20
GRILLE MTD-783-0477
...
21
HOOD BRACKET MTD-783-1034
...
22
Hood Side Bracket, 7-style MTD-783-1038
...
23
Hex Cap Screw, 1/4-20 x 1.25 MTD-710-0106
...
24
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
25
Truss Phillips Screw, 1/4-20 x .625 MTD-710-1017
...
26
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
27
Truss Phillips Screw, #8-32 x .375 MTD-710-3217
...
28
Hex Nut, #8-32 MTD-712-0142
...
29
HEX FLANGE NUT MTD-712-3004A
...
30
LOCK NUT 1/4 MTD-912-3027
...
31
Throttle Control Knob MTD-731-1857
...
32
DASH PANEL MTD-731-2122C
...
33
DASH BRAKE LEVER MTD-731-2227
...
34
CRUISE COVER MTD-731-2228
...
35
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
36
Pivot Rod MTD-747-1196
...
37
DASH SUPPORT TUBE MTD-749-1087A-0637
...
38
Fuel Tank 2 Gal. (shown) MTD-751-0659D
...
xx
FUEL TANK MTD-751-0658
...
39
TANK CAP MTD-751-0603B
...
?40
Screw, #10-16 x .375 MTD-710-1268
...
41
HOOD-8 STYLE MTD-983-0478B
...
42
HOOD BRACKET MTD-783-0551A
...
43
HOOD SUPPORT BRACKET MTD-783-0553A-0637
...
44
HOOD SHIELD Tractors with a B&S Single-cylinder (I/C or OHV) engine have NO heat shield. MTD-731-2247A
...
xx
HOOD SHIELD Tractors with a B&S Single-cylinder (I/C or OHV) engine have NO heat shield. MTD-731-2248A
...
45
AIR DUCT SUPPORT ROD MTD-747-1184
...
46
Ratchet Clip MTD-726-3046
...
47
Choke Cable 39" Lg. Tractors with a B&S Single-cylinder (I/C or OHV) engine have NO choke knob/cable. The choke is activated with the throttle control. MTD-946-1085A
