Wizard 13AN695G098 (2000) Lawn Tractor

Model: 13AN695G098 (2000)

Back To Assemblies

Save Part Not Listed?
product name

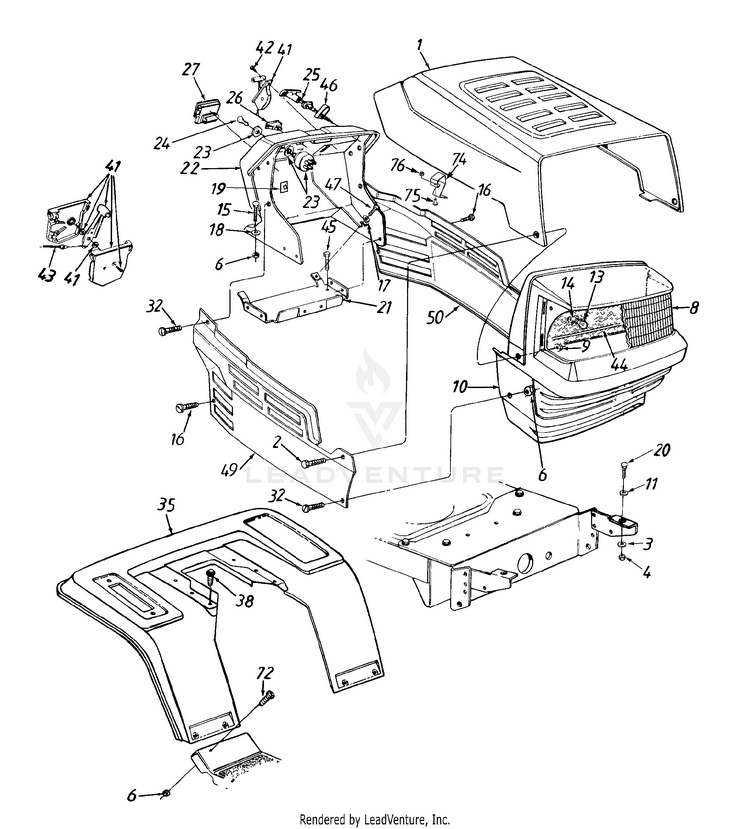

Hood Style 5

...
...
1
HOOD-STY O W/LOUVERS MTD-783-0250
...
2
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
HEX NUT 5/16-18 MTD-712-3010
...
6
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
8
Lens MTD-931-1099A
...
xx
Lens MTD-931-1099A
...
9
LOCK NUT 1/4 MTD-912-3027
...
10
GRILLE-10 STYLE MTD-931-1097G
...
11
Flat Washer .344" I.D. x 1" O.D. MTD-736-3078
...
?12
HEX NUT 5/16-18 MTD-712-3010
...
13
Miniature Lamp 12V Socket Type MTD-925-0963
...
14
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
15
Carriage Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
16
Hex Wash. Hd. TT-Tap Scr .1/4-20 x .5". MTD-710-0599
...
17
Flat Washer .281" I.D. x .73" O.D. MTD-736-0173
...
18
Bolt Retainer 1/4" I.D. MTD-726-0233
...
19
SPEED NUT 1/4-20 MTD-712-0185
...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
GAS TANK SUPPORT BRKT. MTD-17632A
...
22
KIT-DASH MTD-731-1096B
...
xx
DASH PANEL MTD-731-1337A
...
23
Ignition Switch MTD-925-0267B
...
24
Key MTD-925-0201
...
25
Choke Control 23" MTD-946-0616A
...
xx
Choke Control 38" Lg. MTD-746-0614A
...
xx
CHOKE CONTROL CABLE 29'' MTD-746-3021
...
xx
CHOKE CONTROL 20" MTD-746-0720
...
26
Light Switch MTD-925-0634
...
27
Ammeter MTD-925-0925
...
32
Pan Hd. Scr. 1/4-20 x .75" MTD-710-0924
...
35
FENDER-RR MTD-17871B
...
38
Hex Wash. Hd. AB-Tap Scr.5/16 x .75" MTD-710-0726
...
41
Throttle Box Assembly MTD-831-0823A
...
42
Truss Mach. AB-Tap Scr.#10 x .5" Lg. MTD-710-0779A
...
43
Throttle Control Wire 18.5" MTD-946-0638
...
xx
Throttle Wire MTD-946-0634
...
xx
Throttle Control Wire 18.5" MTD-946-0638
...
44
LABEL-REFLECTIVE MTD-777X40318
...
45
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
46
CLIP-CHOKE RETAINER MTD-17782
...
47
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
49
SIDE PANEL (RH) MTD-783-0150A
...
50
SIDE PANEL (LH) MTD-783-0151A
...
72
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
?73
Flat Washer .283" I.D. x .75" Lg. MTD-736-0342
...
74
HOOD LATCH MTD-732-0835
...
75
Hex Sems Nut 10-24 Thd. MTD-712-0272
...
76
Truss Mach. Scr. 10-24 x .5" Lg. MTD-710-0473
...
xx
HEADLIGHT HARNESS (Not Shown) MTD-929-0469B
