Wizard 12A-264A098 (2000) Self-Propelled Mower

Model: 12A-264A098 (2000)

Save Part Not Listed?
product name

General Assembly

...
...
1
Drive Control Handle MTD-747-1214
...
2
Blade Control MTD-747-1161A-0637
...
3
Upper Handle MTD-749-1092A
...
4
CONTROL CABLE 55.50" MTD-946-1092A
...
5
Control Cable MTD-946-1113A
...
5
Control Cable MTD-946-1114
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut 1/4-20 MTD-720-0279
...
8
Hex Lock Nut 1/4-20 MTD-712-0324
...
9
Hex Cap Screw 1/4-20x 1.5 MTD-710-0606
...
10
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
11
Shoulder Washer .320 ID x .93 OD MTD-736-0451
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
Hinge Clip MTD-782-9065
...
16
Trailshield MTD-731-04019
...
17
Hex Screw 1/4-14 x .625 MTD-710-0896
...
18
Hex Washer Screw 3/8-16 x 1.875 MTD-710-1008
...
19
ENGINE BELT BRACKET MTD-782-9063B-0637
...
20
22" DECK ASSEMBLY MTD-687-02046
...
21
Handle Bracket Assembly, LH MTD-682-3065-0637
...
22
Hex Jam Nut 7/16-20 MTD-912-0240
...
23
Bell Washer .45 ID x 1.00 OD MTD-736-0407
...
24
INPUT PULLEY 3.44 X MTD-756-1167
...
25
V-BELT 3L x 38.3" MTD-954-0483
...
26
Compression Spring MTD-732-0992
...
27
SCREW 1/4-20 x .750 MTD-710-1276
...
28
TRANSMISSION BRACKET MTD-782-9062
...
29
Rivet MTD-728-0199
...
30
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
31
Retainer Ring MTD-716-0198
...
32
SLEEVE SPACER MTD-750-1209
...
33
TRANSMISSION MTD-918-0607A
...
34
SLEEVE SPACER MTD-750-1210
...
35
Transmission Cover MTD-731-0073
...
36
DRIVE PULLEY MTD-756-1163
...
37
Blade Adapter MTD-748-0426
...
38
Standard Blade 22-inch MTD-942-0642A
...
38
Blade MTD-742-0742A-0637
...
39
Bell Washer .396 ID x 1.140 OD MTD-736-0452
...
40
Hex Cap Screw 3/8-24 x 2.5 MTD-710-1257
...
41
Lock Nut 3/8-16 MTD-712-3005
...
42
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
43
SLEEVE BEARING .504 X.627 X1.0 MTD-741-0710
...
44
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
45
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
46
LEVER ASSEMBLY-SPR (RH)/RWD - (LH)/FWD Not shown MTD-682-0586
...
46
LEVER ASSEMBLY-SPR (LH)/RWD - (RH)/FWD Shown MTD-682-0587
...
47
WHEEL COVER MTD-731-2249
...
48
Dowel Pin MTD-915-0221
...
49
Spur Gear 14T - LH MTD-717-1533
...
49
SPUR GEAR 14T (RH) MTD-717-1534
...
50
Bell Washer .401 ID x .870 OD MTD-736-0105
...
51
Wheel MTD-634-0190A
...
52
Shoulder Screw 3/8-16 MTD-738-0102
...
53
Hinge Pin MTD-747-0710A
...
54
Torsion Spring MTD-932-0593
...
54
Torsion Spring - Mulching Baffle MTD-732-0981
...
55
Mulching Baffle (If Equipped) (If Equipped) MTD-631-0098
...
56
CHUTE DEFLECTOR MTD-931-1034B
...
57
SPRING WASHER BELL MTD-736-0270
...
58
CHUTE DEFLECTOR MTD-931-1034B
...
59
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-3064-0637
...
60
PIVOT ARM ASSEMBLY MTD-682-0143
...
61
HEIGHT ADJUSTER BEARING MTD-741-1102
...
62
LEVER-SPRING 22" SD MTD-732-0969
...
63
Shoulder Screw 3/8 - 16 x.442 MTD-738-1127B
...
64
Wheel 8 x 1.8 MTD-734-1987
...
65
DISCHARGE CHUTE (If Equipped) MTD-731-2230
...
66
MULCH PLUG (If Equipped) MTD-731-1386D
...
67
Bearing Spacer MTD-748-0390

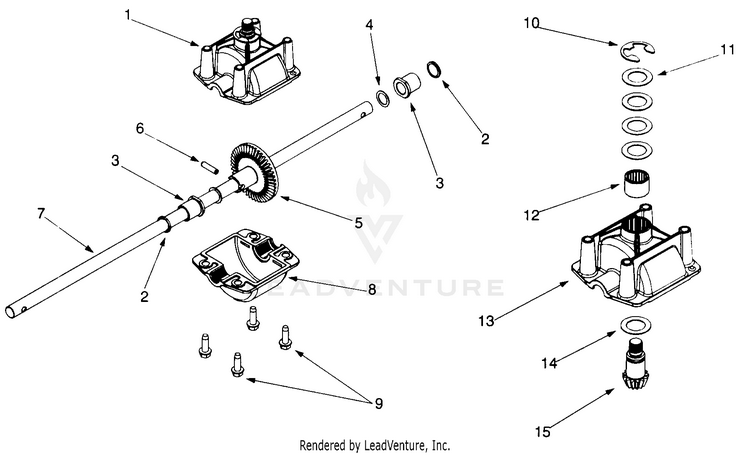

Transmission Assembly

...
...
1
UPPER HOUSING ASSEMBLY MTD-618-0392
...
2
Oil Seal MTD-921-0329
...
3
Bearing MTD-941-0673
...
4
Flat Washer .504 ID x .70 OD MTD-936-0520
...
xx
FLAT WASHER MTD-736-0711
...
xx
FLAT WASHER MTD-736-0712
...
xx
FLAT WASHER MTD-736-0713
...
5
BEVEL GEAR 44T MTD-717-1596
...
6
SPRING PIN MTD-715-0139
...
7
OUTPUT SHAFT MTD-711-1388
...
8
LOWER HOUSING MTD-719-0538
...
9
SCREW 1/4-20 x .750 MTD-710-1276
...
10
E-Ring .750 MTD-716-0231
...
11
FLAT WASHER MTD-936-0336
...
xx
Flat Washer .625 ID x 1.0 OD MTD-736-0337
...
xx
FLAT WASHER MTD-936-0349
...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494
...
xx
THRUST WASHER MTD-736-0495
...
12
NEEDLE BEARING .625X .813X .625 MTD-741-0735
...
13
UPPER HOUSING MTD-719-0537
...
14
FLAT WASHER MTD-936-0336
...
xx
Flat Washer .632 ID x 1.0 OD x .035 MTD-736-0494
...
15
INPUT SHAFT MTD-711-1390
