Wizard 12A-148L098 (1997) Self-Propelled Mower

Model: 12A-148L098 (1997)

Back To Assemblies

Save Part Not Listed?
product name

Transmission Complete

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER MTD-717-0418A
...
4
SPROCKET-7T MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg..631" I.D. MTD-741-0413
...
7
CUP BEARING HEX MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
PINION SHAFT 11T MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
OIL SEAL -.375 ID MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
20
Shld. Bolt.375" Dia. x .40" MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing (Incl. Ref. 22) MTD-956-0008
...
22
Needle Brg..375" x .31 MTD-741-0556
...
24
Idler Bracket MTD-682-0054
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
HOUSING HALF LOWER MTD-717-0419B
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY MTD-717-0616A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
36
Belt Keeper MTD-782-7569
...
37
Plug 1/4 x .437" MTD-721-0325
...
38
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHEEL-YELLOW S WAVE MTD-734-1790
...
xx
Wheel Ass'y. Comp. (Beige Rim) MTD-734-1517B
...
39
Bell-Wash..380" I.D. x .88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
41
Front Axle Bolt MTD-738-0102
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281A
...
49
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
50
BELT COVER MTD-782-7558
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr.1/4 x .62" MTD-710-0896
...
53
HEX NUT 1/4-20 MTD-912-0287
...
54
BELT GUARD MTD-17058A-0637
...
55
BELT GUARD MTD-747-0549
...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
57
Bell-Wash..345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-NA
...
xx
Hub Cap Optional MTD-731-0981C
...
xx
HUB CAP Optional MTD-920-0249
...
59
S.P. Cable MTD-946-0710A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
64
UNKNOWN MTD-NA
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
?66
Plug MTD-721-0325
...
67
LOCK NUT 1/4 MTD-912-3027
...
70
L-Wash. 1/4" I.D. MTD-936-0329
...
71
BALL BEARING (Optional) MTD-941-0484
...
72
Wave Washer.510 ID x.750 OD (Used w/Ref. 71) MTD-936-0504
...
xx
TRANSMISSION MTD-917-0417B

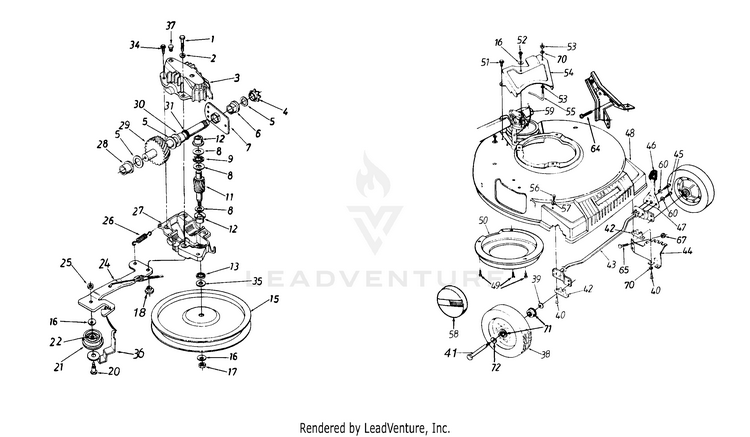

Schematic Image Zoomed
