Wizard 11A-084A098 (2001) Push Walk-Behind Mower

Model: 11A-084A098 (2001)

Save Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
USE 910-1256 MTD-710-1256
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694A
SHRD:ENG:BLACK QUA MTD-731-1694A
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934A
ENGINE SHROUD MTD-731-1934A
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
7510143208
SHROUD ENG MTD-7510143208
...
751B281857
ENGINE SHROUD MTD-751B281857
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
751A143188
SHROUD ENGINE MTD-751A143188
...
751B281451
SHROUD MTD-751B281451
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
SHROUD-ENGINE RED MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

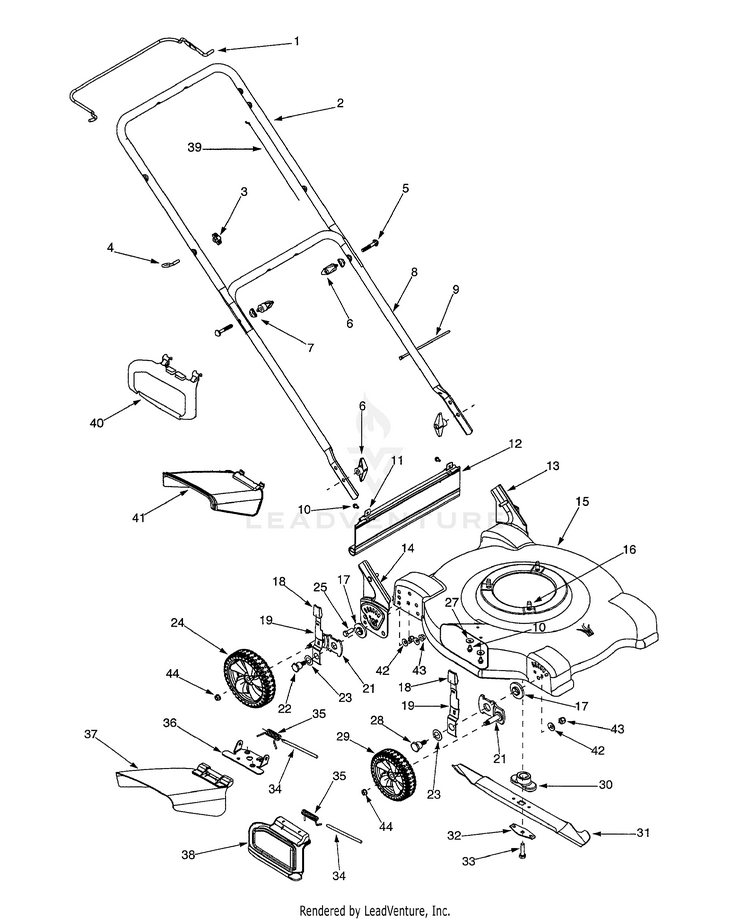

General Assembly

...
...
1
Blade Control Handle MTD-747-1161A
...
2
Upper Handle MTD-749-1092A
...
3
Wing Nut MTD-720-0279
...
4
Eye Bolt MTD-710-1205
...
5
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
6
Wing Nut MTD-720-0284
...
7
Shoulder Washer .320 ID x .93 OD MTD-736-0451
...
8
Lower Handle MTD-749-04037
...
9
Cable Tie MTD-725-0157
...
10
TT Screw 1/4-20 x 0.5" MTD-710-0599
...
11
Hinge Clip Use with Ref #10 MTD-782-9065
...
xx
HINGE CLIP MTD-17098P
...
12
Trailshield MTD-731-04019
...
13
Handle Bracket Assembly, LH MTD-682-3065-0637
...
14
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-3064-0637
...
15
22" DECK ASSEMBLY MTD-687-02048A
...
xx
22" DECK ASSEMBLY MTD-687-02048A
...
16
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
17
Height Adjuster Bearing MTD-741-0751
...
18
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
19
Spring Lever MTD-732-1026
...
20
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
21
PIVOT ARM ASSEMBLY MTD-682-0113
...
22
Shoulder Screw MTD-738-1173
...
23
Bell Washer .760 ID x 1.25 OD MTD-736-0741
...
24
Rear Wheel 8 x 1.8 MTD-734-1987
...
25
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0514
...
26
Flange Lock Nut 3/8-16 MTD-912-0431
...
27
SPRING WASHER BELL MTD-736-0270
...
28
Shoulder Screw MTD-738-1172
...
29
Front Wheel 7 x 1.8 MTD-734-1988
...
30
Blade Adapter MTD-748-0376E
...
31
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade MTD-742-0742A-0637
...
32
BLADE BELL SUPPORT MTD-736-0524B-1
...
33
Hex Cap Screw 3/8-24 x 1.5 MTD-710-1044
...
34
Hinge Pin MTD-747-0710A
...
35
Torsion Spring MTD-732-1014C
...
36
CHUTE DEFLECTOR MTD-931-1034B
...
37
CHUTE DEFLECTOR MTD-931-1034B
...
38
Mulching Baffle (If Equipped) (If Equipped) MTD-631-0098
...
39
Control Cable (brake) MTD-946-0957
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
CONTROL CABLE 50.06" MTD-946-1091
...
40
MULCH PLUG (If Equipped) MTD-731-1386D
...
41
DISCHARGE CHUTE (If Equipped) MTD-731-2230
...
42
Washer Spacer.401 ID x .870 OD MTD-736-0105
...
43
Hex Lock Nut 3/8-16 MTD-712-0130
...
44
Flange Lock Nut 3/8-16 MTD-912-0431
