Wizard 11A-022B098 (2002) Push Walk-Behind Mower

Model: 11A-022B098 (2002)

Save Part Not Listed?
product name

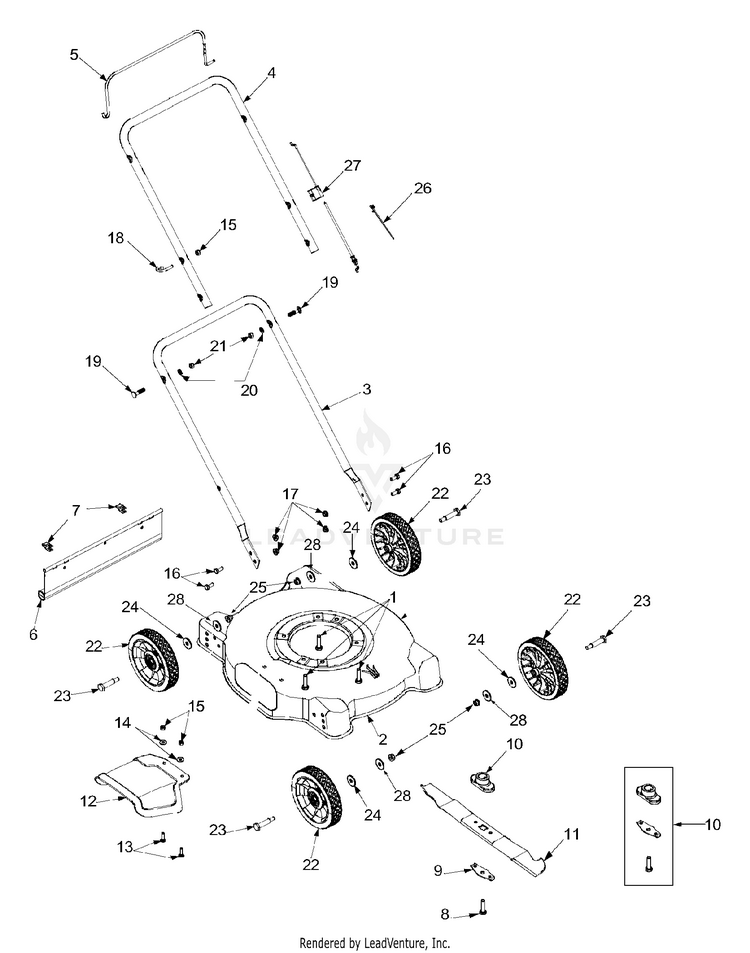

General Assembly

...
...
1
Hex Ind. Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
2
20" DECK ASSEMBLY MTD-782-0048
...
3
LOWER HANDLE (POWDER BLACK) MTD-749-1077-0637
...
4
UPPER HANDLE (POWDER BLACK) MTD-749-1076-0637
...
5
BLADE CONTROL BAIL MTD-747-0976B
...
6
Rear Flap MTD-731-0872B
...
7
HINGE CLIP MTD-17098P
...
8
Screw 3/8-24 x 1.5" Group 8 MTD-710-1044
...
9
BLADE BELL SUPPORT MTD-736-0524B-1
...
10
Blade Adapter Kit (Incl. Ref. 13-15) MTD-753-06315
...
11
20" BLADE (POWDER BLACK) MTD-742-0640-0637
...
12
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
13
SCREW 1/4-20 x 1 GR5 MTD-710-0932A
...
14
Flat Washer MTD-736-0173
...
15
Lock Nut 1/4-20 MTD-712-0324
...
16
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
Eye Bolt MTD-710-1205
...
19
Carriage Bolt 5/16-18 x 1.5" MTD-710-0262
...
20
Lock Washer MTD-936-0119
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Wheel Ass'y. MTD-734-1779A
...
23
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
24
Bell Washer MTD-736-0105
...
25
Flange Lock Nut MTD-712-0798
...
26
Cable Tie MTD-725-0157
...
27
Control Cable MTD-946-0946
...
27
Control Cable (37.25" lg.) MTD-946-0957
...
28
Bell Washer MTD-736-0331

Shroud Chart

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587A
SHRD-ENG-QUATRO-52 MTD-731-1587A
...
731-1603A
ENGINE SHROUD - YELLOW MTD-731-1603A
...
731-1610A
ENGINE SHROUD PEWT MTD-731-1610A
...
731-1620A
ENGINE SHROUD GRAY MTD-731-1620A
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934
ENGINE SHROUD MTD-731-1934
...
710-1258
SCREW THUMB ADJ 5/16-18 x .63 MTD-710-1258
...
7510143208
SHROUD ENG MTD-7510143208
...
751A143188
SHROUD ENGINE MTD-751A143188
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
751B281451
SHROUD MTD-751B281451
...
710-1256
SCREW-PAN HD PHILS MTD-710-1256
...
751B281476
ENGINE SHROUD MTD-751B281476
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
Shroud - Red MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011
...
751B2251037
Control Cover MTD-751B2251037
...
751B281136
REWIND COVER MTD-751B281136
...
751B281145
LINKAGE COVER MTD-BS-690595
...
751B095130
HEX SCREW MTD-BS-691147
