product name

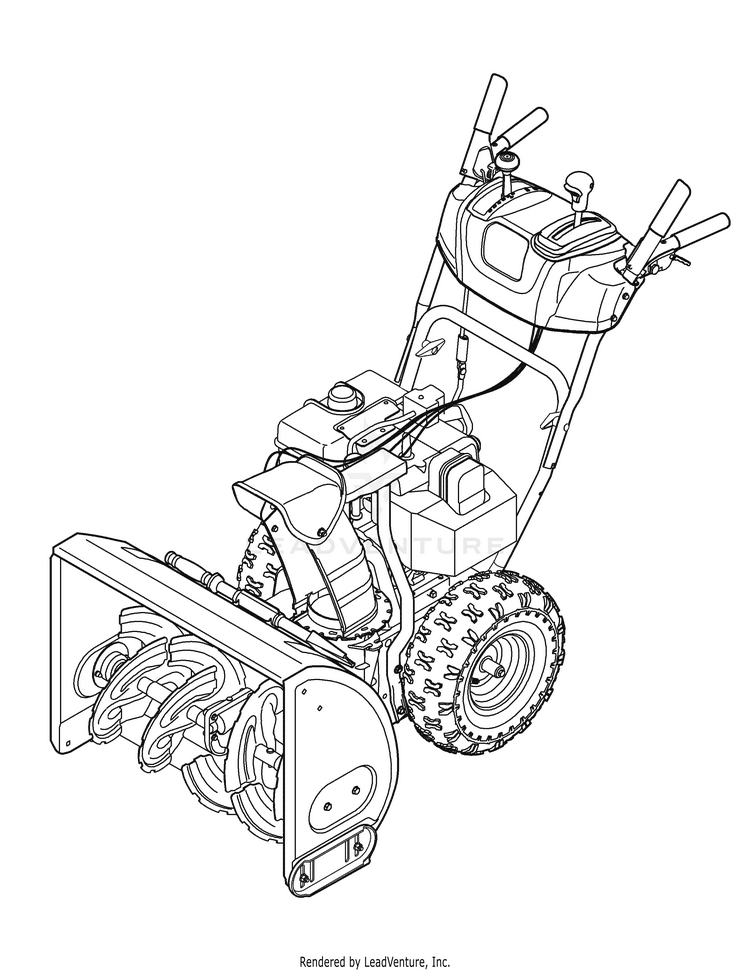

White Outdoor 31AH5MLH590 (2006) SB-630 31AH5MLH590 (2006)

Model: 31AH5MLH590 (2006) SB-630 31AH5MLH590 (2006)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Key MTD-TC-35062
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive Cable MTD-946-04229B
...
xx
Auger Cable MTD-946-0897
...
xx
Speed Cable MTD-746-04227A
...
xx
STEERING CABLE MTD-946-0956C
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
Shave Plate MTD-790-00119-0637
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Slide Shoe MTD-784-5580-0637
...
xx
Slide Shoe - Reversible MTD-790-00091-0637
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp MTD-925-1629
...
xx
Lamp - Units w/ Heated Grips Only MTD-925-04213
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Belt MTD-754-04088
...
xx
Friction Wheel Assembly MTD-684-04159C
...
xx
FRICTION WHEEL 5.50OD MTD-935-04054A
...
xx
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER GRAY) MTD-634Z07695-0662
...
xx
WHEEL ASSEMBLY (16 x 6.5 x 8) (RH) (OYSTER GRAY) MTD-634Z07696-0662

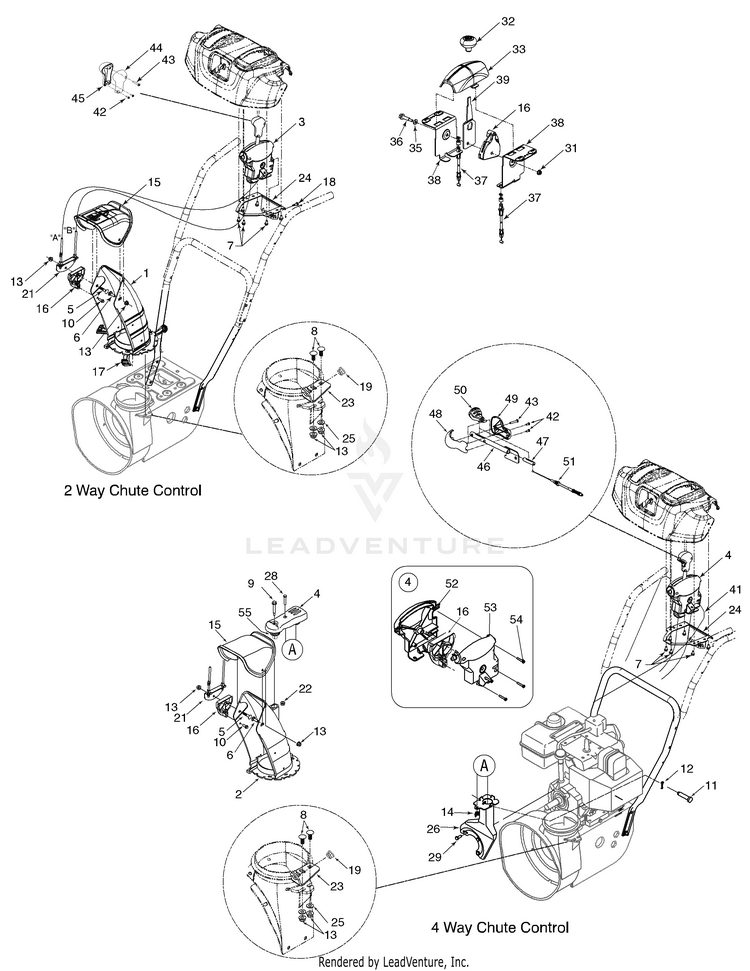

Chute Assembly

...
...
1
Lower Chute (2 Way) (2 Way) MTD-631-04131B
...
2
Lower Chute (4 Way) (4 Way) MTD-731-04861B
...
3
2 Way Chute Control Assembly (2 Way) MTD-984-04117A
...
4
SERVICE KIT 4-WAY CHUTE CONTROL (4 Way)(Also order 684-04310A-0637 support bracket in this application) (Replaces 984-04116B 4 Way Chute Control) (Discard the support bracket furnished in the 753-08388 service kit) MTD-753-08388A
...
5
Carriage Bolt 5/16-18 x 1.50 Gr. 2 MTD-710-0262
...
6
Carriage Screw 5/16-18 x 1.0 MTD-710-04071
...
7
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
8
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
9
Shoulder Screw .312 x 1.7:1/4-20 MTD-738-04194
...
10
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
11
Clevis Pin 3/8 x 1.87 MTD-711-04469A
...
12
Bow Tie Cotter Pin MTD-714-04040
...
13
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
WING NUT 1/4-20 MTD-712-3087
...
15
Upper Chute w/Export Label, Remote MTD-931-04425B
...
16
Cable Guide MTD-731-1313C
...
17
Chute Flange Keeper MTD-731-04869A
...
18
SHOULDER SCREW .25 MTD-738-04135
...
19
Plastic Bushing .380 ID MTD-941-0475
...
20
SUPPORT TUBE *CHOOSE COLOR WHEN ORDERING* MTD-749-04155
...
21
Cable Bracket Chute Tilt *CHOOSE COLOR WHEN ORDERING* MTD-784-5594
...
22
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
23
Chute Crank Brkt. MTD-784-5647-0637
...
24
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
25
Fl-Wash. .344" I.D. MTD-736-0159
...
26
CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK) (use with 984-04116B 4 Way Chute Control Assembly) MTD-684-04162B-0637
...
26
CHUTE SUPPORT BRACKET (POWDER BLACK) (use with 753-08388 4 Way Chute Control Assembly Service Kit) MTD-684-04310B-0637
...
27
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
28
Hex Hd. Cap Screw 1/4-20 x 1.5 Gr. 5 MTD-710-0606
...
29
Hex Hd. Cap Screw 5/16-24 x .75 MTD-710-0627
...
30
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
31
Flange Locknut 1/4-20 Gr. F, Nylon MTD-712-04064
...
32
Knob MTD-720-04039
...
33
Control Cover - 2 Way (2 Way) MTD-731-05307
...
35
Spring Washer .390 x .625 x .012 MTD-736-0413
...
36
Flg Shlder Spacer .310 x .995 x 1/4-20 MTD-738-04185
...
37
Cable - 2 Way MTD-946-04238
...
38
2 WAY CONTROL BRACKET (2 Way) MTD-790-00200A-0637
...
39
Lever - 2 Way (2 Way) MTD-790-00210A-0637
...
40
Joystick Pulley NLA MTD-731-04889
...
41
Chute Rotation Cable NLA MTD-746-04166
...
42
Plastite Screw #6 x .375 MTD-710-04352
...
43
Plastite Screw #8 x 1.00 MTD-710-04353
...
44
RH Control Knob NLA MTD-731-04891
...
45
LH Control Knob NLA MTD-731-04892
...
46
LEVER ASSEMBLY MTD-984-04115
...
47
Plunger MTD-731-04893A
...
48
RH Trigger Control Knob MTD-731-04904
...
49
LH Trigger Control Knob MTD-731-04905
...
50
Trigger Levier NLA MTD-731-04910
...
51
Detent Cable NLA MTD-746-04164
...
52
Control Head Housing LH NLA MTD-731-04888
...
53
Control Head Housing RH NLA MTD-731-04887
...
54
Screw #8 x 1.0 Plastite MTD-710-04353
...
55
Joystick Pulley NLA MTD-731-04889

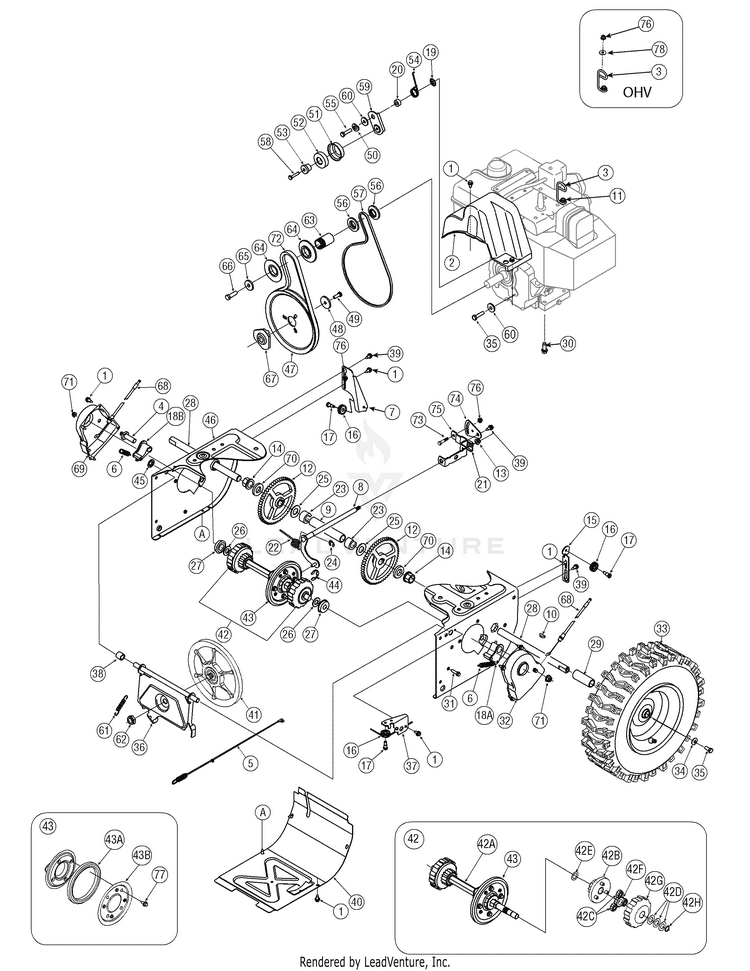

Drive Assembly

...
...
1
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
2
BELT COVER (SMALL BLOCK) (w/4 Way Chute Control) MTD-631-05321
...
2
BELT COVER (Std.) MTD-731-05353B
...
3
Cable Control Wire Use with OHV engine MTD-732-0705
...
4
Drive Shaft Actuator MTD-711-1268B
...
5
Drive Clutch Cable 44.83" Lg. MTD-946-04229B
...
6
Extension Spring .5 OD x 1.71 Lg. MTD-732-04345
...
7
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
8
SHIFT ROD ASSEMBLY MTD-684-04156A
...
9
Axle Support Tube MTD-750-04474
...
10
Key MTD-714-0126
...
11
Hex Wash Hd Tapp Scr 5/16-18 x 1.00 MTD-710-0602
...
12
Gear, 56T MTD-917-04210
...
13
Flange Lock-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
Hex. Flange Bearing.751" ID MTD-941-0245
...
15
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
16
Cable Guide Roller MTD-756-0625
...
17
Hex Shld.Scr.1/4-28 x .375 MTD-738-0924A
...
18A
DOGG ASSEMBLY (LH) MTD-618-04288
...
18B
Dogg Assembly - RH MTD-618-04287
...
19
Nut, Push-on, .25 Dia. MTD-726-04012
...
20
Spacer .340 x .750 x .360" Lg. MTD-750-04477A
...
21
Shift Spacer Bracket MTD-790-00156
...
22
Torsion Spring .750 ID x .968" Lg. MTD-732-04311A
...
23
Spacer MTD-731-05297
...
24
Retaining Ring MTD-916-0104
...
25
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
26
Flat Washer .580 x 1.125 x .080 MTD-736-0626
...
27
Ball Bearing MTD-741-04076
...
28
Axle MTD-938-04180
...
29
Spacer MTD-731-04873
...
30
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
31
Hex Bolt 1/4-20 x 1.00 MTD-710-0788
...
32
HEX SHAFT RETAINER (LH) *CHOOSE COLOR WHEN ORDERING* MTD-790-00185
...
33
Wheel Assembly 16 x 6.5 x 8 LH X-Trac *CHOOSE COLOR WHEN ORDERING* MTD-634-04136
...
33
Wheel Assembly 16 x 6.5 x 8 RH X-Trac *CHOOSE COLOR WHEN ORDERING* MTD-634-04137
...
33
Tire MTD-734-2031
...
33
Rim *CHOOSE COLOR WHEN ORDERING* MTD-634-04174
...
33
Axle MTD-938-04180
...
34
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
35
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
36
Friction Wheel Support Brkt Ass’y MTD-684-04154B-0637
...
37
Auger Cable Guide Bracket MTD-790-00096-0637
...
38
Spacer .513 ID x 1.0 MTD-748-0190
...
39
Shoulder Screw .373 x .105:TT 1/4-20 MTD-738-04184A
...
40
FRAME COVER *CHOOSE COLOR WHEN ORDERING* MTD-790-00226
...
41
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
42
Drive Shaft Assembly (w/o Friction Wheel Ass'y) MTD-918-04322A
...
42A
Hex Drive Shaft (500) MTD-711-04416A
...
42B
Planetary Carrier Ass'y MTD-918-04284
...
42C
Gear 12T MTD-717-1209A
...
42D
Flat Washer .58 x 1.12 x .02 MTD-936-0502
...
42E
Flat Washer 5/8 ID x 1.0 OD MTD-936-0336
...
42F
Gear 18T MTD-717-1210A
...
42G
Ring Planetary Gear Ass'y (500) MTD-918-04285
...
42H
Retaining Ring 1.56 diam. MTD-716-0194
...
43
Friction Wheel Assembly MTD-684-04159C
...
43A
FRICTION WHEEL 5.50OD MTD-935-04054A
...
43B
Friction Plate MTD-790-00174C
...
44
Retainer Ring MTD-716-0136
...
45
Cap Speed Nut 1/4 Rod MTD-726-0221
...
46
DRIVE FRAME HOUSING *CHOOSE COLOR WHEN ORDERING* MTD-790-00183E
...
47
Auger Pulley MTD-756-04109
...
48
Flat Washer .34 x 1.50 x .150 MTD-736-0505
...
49
Hex Bolt 5/16-24 x 0.875 MTD-710-1245B
...
50
L-Wash 5/16 ID MTD-936-0119
...
51
Bearing Sleeve MTD-790-00230
...
52
BALL BEARING MTD-741P0919B
...
53
Spacer MTD-750-04571
...
54
TORSION SPRING MTD-732-04308C
...
55
Hex HD. Cap Scr. 5/16-24 x 1.25 Lg. MTD-710-0672
...
56
HALF PULLEY:1/4-V x 1.5 OD MTD-956-04179
...
57
Belt 33.0" Lg. MTD-754-04088
...
58
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
59
Drive Idler Bracket MTD-790-00208D
...
60
Spacer, Shoulder, .3175 x .500 MTD-748-04112B
...
61
Extension Spring 3/8 OD x 2.50 MTD-932-0264
...
62
Nut, Jam Lock, 5/8-18, Gr5, Nylon MTD-712-0413
...
63
Spacer .875 ID x 1.185 OD MTD-750-04303
...
64
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
65
Flat Washer .40 ID x 1.25 OD x .160 MTD-736-0247
...
66
Hex Screw 3/8-24 x 1.25 MTD-710-0191
...
67
PulleyAdapter MTD-748-04053A
...
68
STEERING CABLE MTD-946-0956C
...
69
HEX SHAFT RETAINER (RH) *CHOOSE COLOR WHEN ORDERING* MTD-790-00186
...
70
Axle Spacer MTD-750-0767
...
71
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
72
Auger Drive Belt MTD-954-04050A
...
73
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
74
Pivot Bracket, Speed Selector MTD-790-00217A
...
75
Shift Bracket, Speed Selector MTD-790-00218A
...
76
Flange Lock-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
77
Hex Wash. Hd. TT Scr. 1/4-14 x .625 MTD-710-0896
...
78
Flat Washer .28 ID x .74 DE x .063 MTD-736-0173

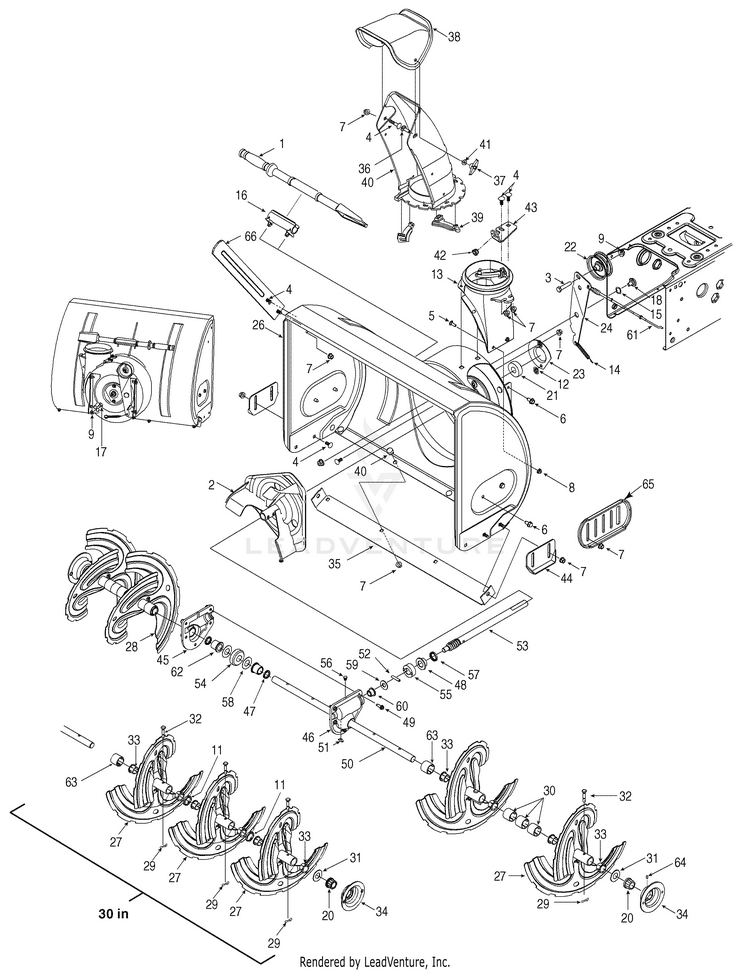

General Assembly

...
...
1
Clean-Out Tool MTD-931-2643
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
4
Carriage Bolt 5/16-18 x .75 Gr. 1 MTD-710-0451
...
5
Carriage Screw 1/4-20 x .75 Gr. 5 MTD-710-0703
...
6
Hex Wash HD AB Tap Scr 5/16-18 x .625 MTD-710-0604A
...
7
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
8
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
9
Hex L-Flanged Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
10
Cable Tie MTD-725-0157
...
11
Spacer 1.25 x .75 x 3/16" Lg. MTD-731-04871
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Extension Spring MTD-932-0611
...
15
Wave Washer .660 ID x .88 OD x .010 MTD-736-0174
...
16
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
17
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
18
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
20
Hex. Flange Brg. .751" I.D. MTD-941-0245
...
21
Self-aligning bearing MTD-941-0309
...
22
Flat Idler Pulley 2.75" OD MTD-756-04224
...
23
BEARING HOUSING 1.85 ID MTD-790-00075B
...
24
AUGER IDLER BRACKET MTD-790-00080D
...
26
30" AUGER HOUSING *CHOOSE COLOR WHEN ORDERING* MTD-684-04080
...
27
AUGER SPIRAL (LH) *CHOOSE COLOR WHEN ORDERING* MTD-684-04107A
...
28
AUGER SPIRAL (RH) *CHOOSE COLOR WHEN ORDERING* MTD-684-04108A
...
29
Bow Tie Cotter Pin MTD-714-04040
...
30
Spacers MTD-731-04871
...
31
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
32
Shear Pin .25 x 1.5 Gr. 2 MTD-738-04124A
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Bushing Housing (w/o grease fitting hole) (w/o grease fitting hole)*CHOOSE COLOR WHEN ORDERING* MTD-790-00087A
...
34
BEARING HOUSING 1" HEX (w/grease fitting hole) MTD-790-00138A-0637
...
35
Shave Plate *CHOOSE COLOR WHEN ORDERING* MTD-790-00119
...
36
Carriage Bolt 5/16-18 x 1.0 MTD-710-04071
...
37
Handle Knob Assembly MTD-720-04072A
...
38
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
39
Chute Flange Keeper MTD-731-04869A
...
40
Lower Chute MTD-731-04912B
...
42
Plastic Bushing .380 ID MTD-941-0475
...
43
Chute Crank Brkt. MTD-784-5647-0637
...
44
Slide Shoe *CHOOSE COLOR WHEN ORDERING* MTD-784-5580
...
45
RH Reduced Auger Housing MTD-918-0123A
...
46
LH Reduced Auger Housing MTD-918-0124A
...
47
Oil Seal 3/4" I.D. MTD-721-0179
...
48
Flange Bearing .75 ID x 1.00 OD x .50 MTD-741-0662
...
49
Thd Forming Scr. 1/4-20 x .75 MTD-710-0642
...
50
Auger Axle, 30" MTD-711-04282A
...
51
Hi Pro Key 3/16 x 5/8 MTD-914-0161
...
52
Dowel Pin .25 OD x 1.2 MTD-715-04021
...
53
Worm Shaft .75 OD MTD-917-04126
...
54
WORM GEAR 20T MTD-917-04861
...
55
Thrust Collar MTD-718-04071
...
56
Plug, 1/4 x .437 MTD-721-0325
...
57
Oil Seal .75 x 1 x .131 MTD-721-0327
...
58
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
59
Fl. Washer .510 x 1.120 x .060 MTD-736-3084
...
60
Flange Bearing .75 ID x 1.0 OD x .925 MTD-741-0663
...
61
Auger Clutch Cable (w/"Z" fitting) (w/"Z" fitting) MTD-946-0897
...
62
Flange Bearing.75 ID x 1.0 OD x .975 MTD-741-0661B
...
63
Spacer 1.25 x .75 x 1.00 MTD-731-04870
...
64
Grease Fitting (optional) MTD-937-3000
...
65
Reversible Slide Shoe *CHOOSE COLOR WHEN ORDERING* MTD-790-00091
...
66
Drift Cutter (optional) *CHOOSE COLOR WHEN ORDERING* MTD-790-00181
...
67
Cupped Washer .340 x 872 x .060 MTD-736-0242
...
68
Hex Wash HD AB Tap Scr 5/16-18 x .75 MTD-710-1260A
...
xx
30" GEARBOX ASSEMBLY Not Shown MTD-918-04165B

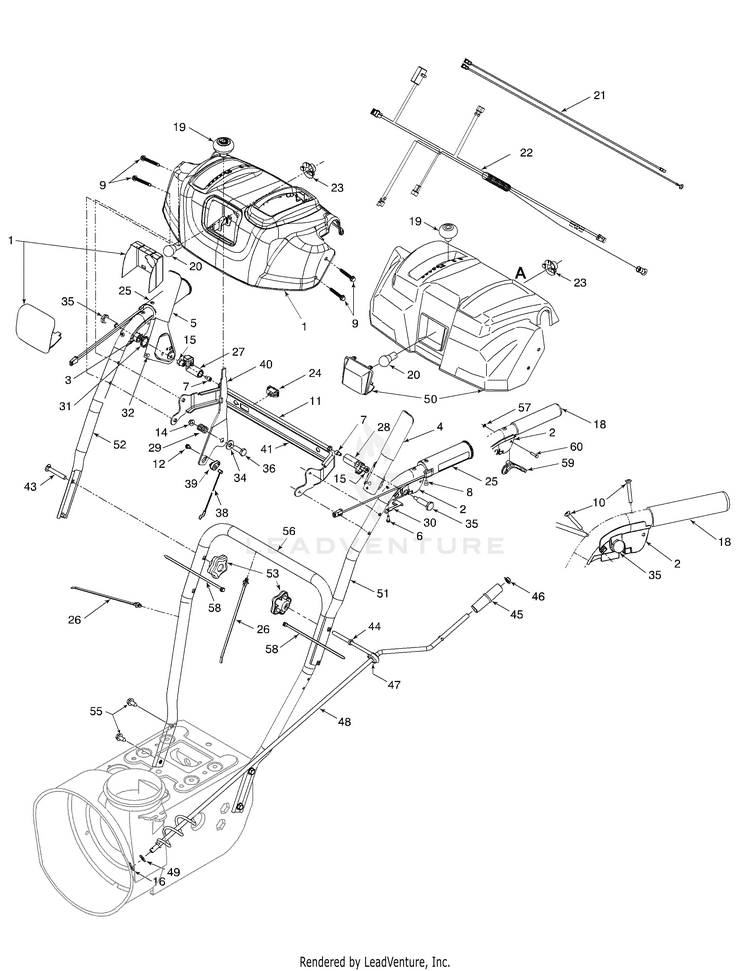

Handle Assembly

...
...
1
Handle Panel Ass’y - Yellow Yellow MTD-631-04180
...
1
Handle Panel Ass’y - Black Black MTD-631-04185
...
1
Handle Panel Ass’y-Black w/Chute Control Black w/Chute Control MTD-931-04183
...
2
LH Clutch Lock Handle Ass’y MTD-631-04133A
...
3
RH Clutch Lock Handle Ass’y MTD-631-04134B
...
4
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
5
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
6
Screw #8-16 x .50 MTD-710-04326
...
7
Screw 1/4-20 x .375 MTD-710-04354
...
8
Oval HD C-Sunk Scr #10 x 5/8 MTD-710-0837
...
9
Hex TT-Tap Scr 1/4-20 x 1.625 MTD-710-04586
...
10
Oval C-Sunk Hd Screw 10-24 x 1.375 MTD-710-1233
...
11
Pivot Rod MTD-753-04882C
...
12
Screw #10-16 x .50 MTD-910-0224
...
14
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
15
Hex Shoulder Nut 1/4-20 MTD-712-04081A
...
16
Hairpin Clip MTD-714-0104
...
18
Grip MTD-720-0274
...
19
Shift Knob MTD-720-04039
...
19
SHIFT KNOB MTD-720-04045
...
20
Lamp #1295 (w/heated grips) with heated grips only MTD-925-04213
...
20
Lamp MTD-925-1629
...
21
HARNESS MTD-725-04214
...
22
Heated Grip Wire Harness with heated grips only MTD-725-04216B
...
23
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
24
Switch MTD-725-04393
...
25
Heated Grip with heated grips only MTD-725-1757
...
26
Cable Tie 19 x 8.39" (w/plug) (w/plug) MTD-726-0470
...
26
Cable Tie (w/heated grips) with heated grips only MTD-725-0157
...
27
Lock Plate MTD-731-04894D
...
28
CLUTCH LOCK CAM MTD-731-04896C
...
29
Compression Spring .38 ID x .88 Lg MTD-732-0193
...
30
Spring: Clutch Lock MTD-732-04219C
...
31
TORSION SPRING MTD-732-04238B
...
32
Bumper, Rubber MTD-735-0199A
...
34
Flat Washer .38 ID x .87 OD x .09 MTD-936-0267
...
35
Shoulder Screw 1/4-20 x 1.345 MTD-738-04348
...
36
Shoulder Screw .374 Dia. x 1.05 Lg. MTD-738-04125
...
38
Selector Speed Cable MTD-746-04227A
...
39
Cable Barrel Holder MTD-946-0605
...
40
SHIFT LEVER MTD-790-00203-0637
...
41
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
43
Carriage Bolt 5/16-18 x 2.25 MTD-710-0572
...
44
Chute Crank Eye Bolt Special MTD-747-04263
...
45
Knob 1.0 x 3.2 MTD-720-0201A
...
46
Push Cap 3/8" Rod MTD-726-0100
...
47
Grommet MTD-735-0234
...
48
Chute Crank Assembly MTD-684-04104-0637
...
49
Flat Washer .375 ID x .738 OD MTD-736-0185
...
50
Handle Panel Ass’y - Troy-Bilt MTD-931-04181A
...
51
Upper Handle, LH *CHOOSE COLOR WHEN ORDERING* MTD-749-04191A
...
51
Upper Handle, LH *CHOOSE COLOR WHEN ORDERING* with heated grips only MTD-749-04191A
...
52
Upper Handle RH *CHOOSE COLOR WHEN ORDERING* MTD-749-04141
...
52
Upper Handle RH (Heated Grips) *CHOOSE COLOR WHEN ORDERING* with heated grips only MTD-749-04190A
...
53
Handle Knob Assembly MTD-720-04072A
...
55
Hex Wash HD Lo Tap Scr 5/16 x .75 MTD-710-1260A
...
56
Lower Handle *CHOOSE COLOR WHEN ORDERING* MTD-749-04138A
...
57
E Ring MTD-716-04036
...
58
Cable Tie MTD-725-0157
...
59
Steering Control MTD-731-04913
...
60
Pin 3/16 MTD-738-04126
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
