White Outdoor 318-840-190 Snow Boss 810 (1988)

Model: 318-840-190 Snow Boss 810 (1988)

Save Part Not Listed?
product name

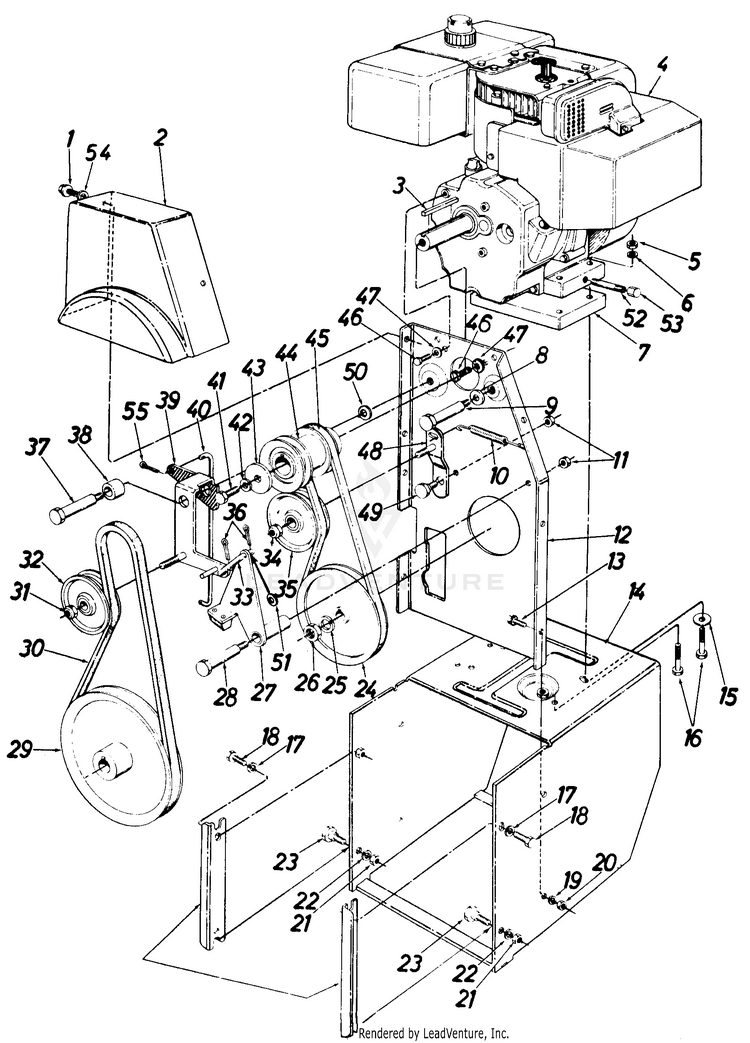

Belt Drive Assembly

...
...
1
Hex AB-Tap Scr. 5/16 x .75 Lg. MTD-710-0726
...
2
Belt Cover MTD-931-2531
...
3
Sq. Key 1/4" x 1.50" Lg. MTD-714-0118
...
4
Engine MTD-NA
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
L-Wash. 5/16"' I.D.* MTD-936-0119
...
7
ENGINE BLOCK SPACER MTD-717-0522
...
8
Bell-Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
9
Shld. Bolt .498" Dia. x 3.00"-Lg. MTD-738-0215A
...
10
Ext Spring .38 O.D. x 3.18" MTD-932-0303
...
11
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
12
452 ENGINE BRKT. ASS'Y. NLA MTD-05491
...
13
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
14
452 Frame Ass'y. NLA MTD-784-5129
...
15
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
16
Hex Bolt 5/16-18 x 2.50" Lg.* MTD-710-0378
...
17
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
18
Pilot Scr. 3/8-16 x .88" Lg. MTD-710-0216
...
19
L-Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
22
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
23
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
24
V-Pulley .628 I.D. x 7.50 O.D. MTD-756-0344
...
25
L-Wash. for 5/8" I.D.* MTD-936-0158
...
26
HEX NUT MTD-712-0221
...
27
BRACKET-ASSEMBLY BRAKE MTD-05510A
...
28
Shld. Bolt .498" Dia. x 2.00" Lg. MTD-738-0129
...
29
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243
...
30
V-Belt MTD-954-0194
...
31
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
32
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
33
BRAKE LINKAGE ASS'Y. NLA MTD-05531
...
34
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
35
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
36
Int. Cot. Pin 3/32" Dia. MTD-914-0507
...
37
SHOULDER SCREW .625 DI NLA MTD-738-0282
...
38
Spacer .75 O.D. x 1.00" Lg. NLA MTD-750-0227
...
39
BLOWER IDLER BRACKET. ASS'Y. NLA MTD-05493
...
40
Auger Clutch Rod .31" Dia. x 10.62" Lg. NLA MTD-747-0149
...
41
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
42
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
43
FLAT WASHER .395ID 1 MTD-07386
...
44
Engine Pulley-Double Groove MTD-756-0241B
...
45
V-Belt MTD-954-0131
...
46
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
47
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
48
Drive Idler Brkt. Ass'y. NLA MTD-05495
...
49
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
50
Bell-Wash. .40 I.D. x 1.12 O.D. MTD-936-0219
...
51
Fl-Wash. .385" I.D. x .620" O.D. MTD-936-0117
...
52
PIPE DRAIN 1/4 NPT MTD-737-0298
...
53
Hex Hd. Cap 1/4-18 Pipe Thd. MTD-737-0132
...
54
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
55
Hairpin Clip MTD-714-0104
...
xx
Ignition Key MTD-TC-35062

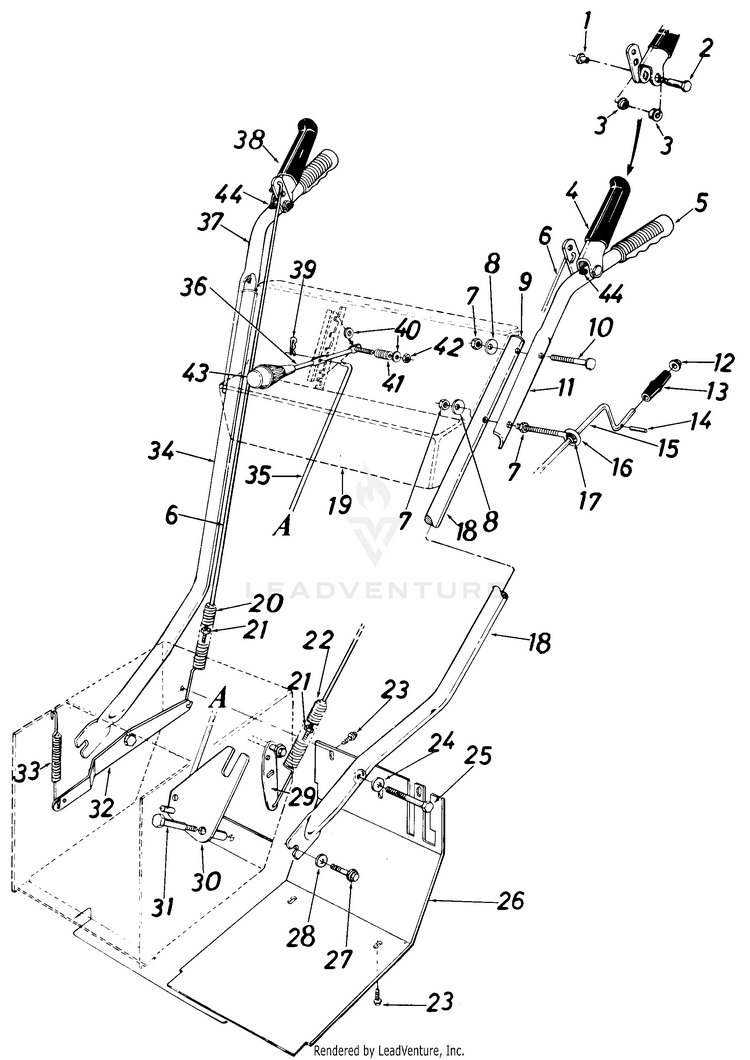

Handle Assembly

...
...
1
SHOULDER NUT MTD-938-0561
...
2
Shld. Bolt .374 Dia. x 1.53"-Lg. MTD-938-0560
...
3
FLANGE BEARING MTD-941-0402
...
4
Clutch Grip Ass'y.-L.H. NLA MTD-05987
...
5
GRIP NLA MTD-720-0220
...
6
LOCK RODOU NLA MTD-747-0461
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
9
PLUG NLA MTD-731-0496
...
10
Curved Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
11
HANDLE-UPPER-LH NLA MTD-749-0593
...
12
Push Cap 3/8" Rod MTD-726-0100
...
13
Knob 3/8" Rod MTD-720-0201A
...
14
Roll Pin .12 Dia. x .631" Lg. MTD-915-0138
...
15
CHUTE CRANK ASS'Y. NLA MTD-05980
...
16
BOLT-EYE NLA MTD-747-0416
...
17
Plastic Bushing MTD-941-0475
...
18
Lower Handle-L.H. NLA MTD-749-0341
...
19
HANDLE PANEL ASSEMBLY NLA MTD-784-5451
...
20
Extension Spring .75" O.D. x 5.0" Lg MTD-732-0463A
...
21
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
22
Extension Spring .75" O.D. x 5.0" Lg. MTD-732-0184
...
23
SCREW 5/16-24 x .500 MTD-710-0600
...
24
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
25
Hex Bolt 3/8-16 x 2.0" Lg. MTD-710-3144
...
26
Frame Cover NLA MTD-784-5131
...
27
Pilot Hex Scr. 3/8-16 x .88"-Lg. MTD-710-0216
...
28
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
29
Drive Clutch Brkt. Ass'y. NLA MTD-05500
...
30
BRACKET ASSY NLA MTD-784-5133
...
31
Shld. Bolt .498 Dia. x 2.0"-Lg. MTD-738-0129
...
32
AUGER CLUTCH BRACKET NLA MTD-05518
...
33
Extension Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
34
Lower Handle-R.H. NLA MTD-749-0342
...
35
ROD-SHIFT NLA MTD-747-0356
...
36
SHIFT HANDLE NLA MTD-747-0696
...
37
HANDLE-FOLDING-RH NLA MTD-749-0594
...
38
GRIP ASSEMBLY- NLA MTD-05988
...
39
Hairpin Clip MTD-714-0104
...
40
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
41
Compression Spring MTD-732-0193
...
42
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
43
Knob MTD-720-0218
...
44
Bumper, Rubber MTD-735-0199A

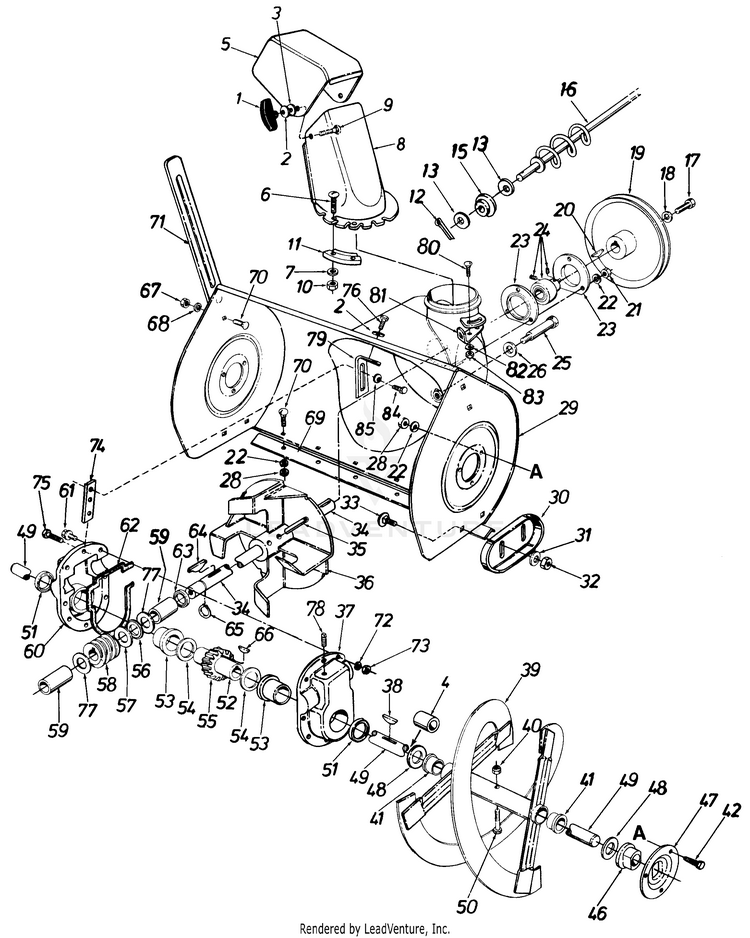

Tine Assembly

...
...
1
Hand Knob Ass'y. MTD-720-04072A
...
2
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
3
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
4
Spacer NLA MTD-750-0653
...
5
Top Chute MTD-731-0846C
...
6
Truss Mach. Scr. 1/4-20 x 75" MTD-710-0924
...
7
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
8
Chute MTD-931-0840B
...
9
Carr. Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
10
Hex Cent. L-Nut 1/4-20 Thd. MTD-912-0107
...
11
Chute Flange Keeper MTD-731-0851A
...
12
Cotter Pin MTD-914-0507
...
13
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
15
Bushing MTD-941-0475
...
16
CRANK ASSEMBLY NLA MTD-05981
...
17
SCREW 5/16-18 x .750 MTD-710-1880
...
18
Bell-Wash. .345 I.D. x .88 MTD-736-0242
...
19
V-Pulley .875 I.D. x 10.12 MTD-756-0243
...
20
Key MTD-714-0126
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
L-Wash. 5/16" I.D.* MTD-936-0119
...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
24
Self Aligning Brg. .875 I.D. MTD-941-0185
...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
26
Bell-Wash. .400 I.D. x .88 0 O.D. x .060 MTD-736-0105
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Blower Hsg. Ass'y. NLA MTD-705-5082
...
30
Slide Shoe MTD-784-5038B-0637
...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
Carr. Bolt 3/8-16 x .62" Lg. MTD-710-0389
...
34
Blower Axle MTD-738-0276
...
35
SPRING PIN SPIR 5/16 DIA X 1.7 MTD-715-0118
...
36
BLOWER FAN ASS'Y. NLA MTD-05812
...
37
GEAR BOX HOUSING KIT (Incl. Bearing) MTD-753-0889
...
38
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
39
26" SPIRAI ASS'Y. L.H. NLA MTD-05463
...
39
2" SPIRAL ASS'Y. R.H. NLA MTD-05464
...
40
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
41
Plastic Bushing MTD-741-0494
...
42
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
46
Flange Brg. w/Flats 1.0" I.D. MTD-941-0170
...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
48
Fl-Wash. 1.06 I.D. x l.75" O.D. x .100 MTD-736-0250
...
49
SPIRAL AXLE NLA MTD-738-0493
...
50
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-0891
...
51
Oil Seal 1.50" I.D. MTD-921-0146
...
52
Worm Gear Shaft MTD-738-0275
...
53
BEARING, FLANGE NLA MTD-741-0182
...
54
FLAT WASHER MTD-736-0266
...
55
Double Threaded Worm Gear MTD-917-1425
...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184
...
57
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
58
Double Threaded Worm-L.H. MTD-917-0299
...
59
Sleeve Brg. .875 I.D. MTD-941-0217
...
60
GEAR BOX HOUSING KIT (Incl. Ref. Nos. 51 &-53 ) MTD-753-0889
...
61
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376
...
62
Gasket MTD-921-0144
...
63
Oil Seal .875" I.D. MTD-921-0145
...
64
Key MTD-714-0126
...
65
Snap Ring-.875" Dia. MTD-716-0111
...
66
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
67
HEX NUT 5/16-18 MTD-712-3010
...
68
L-Wash. 5/16" I.D.* MTD-936-0119
...
69
Shave Plate-28" MTD-705-5084-0637
...
70
Carr. Bolt 5/16-18 x .62" Lg. MTD-710-0260A
...
71
Drift Cutter MTD-790-00181-0637
...
72
Wave Wash. 5/16" I.D. MTD-936-0271
...
73
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
74
SUPPORT PLATE-GEAR MTD-784-5075
...
75
Hex Bolt 5/16-18 x 1.25"* MTD-710-0528
...
76
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
77
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
78
Filler Plug MTD-737-0175
...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
80
Carr. Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
81
Chute Crank Bracket MTD-784-5123-0637
...
82
Bell-Wash. .345 I.D. x .88" MTD-736-0242
...
83
HEX NUT 5/16-18 MTD-712-3010
...
84
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
85
SPRING WASHER BELL MTD-736-0270

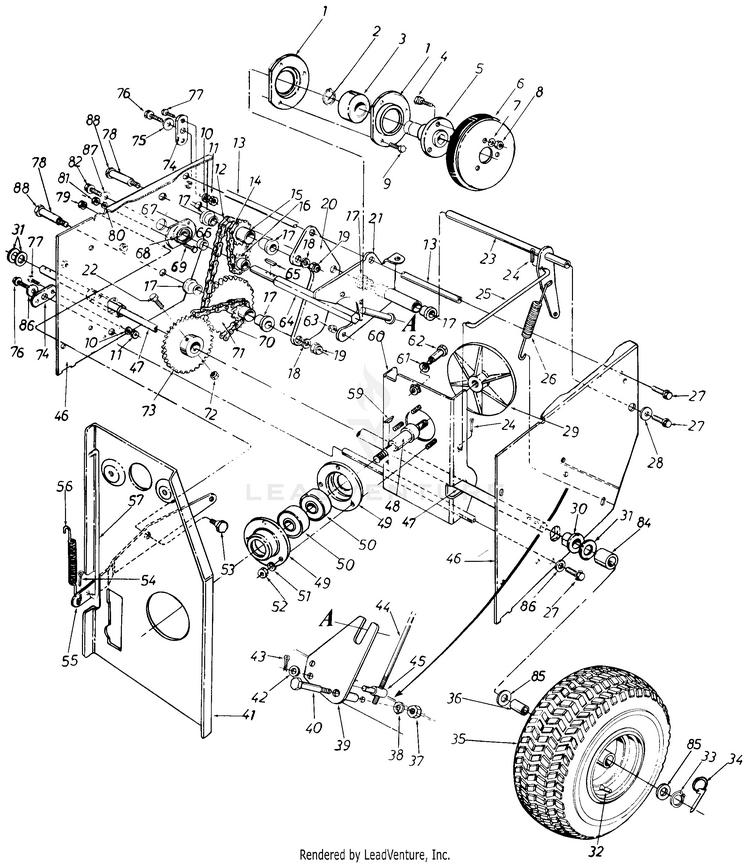

Wheel Drive Assembly

...
...
1
HOUSING-BR NLA MTD-05794
...
2
Snap Ring MTD-716-0102
...
3
Bail Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301
...
4
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
5
ADAPTER-FRICTION WHL NLA MTD-748-0281
...
6
Friction Wheel Ass'y. MTD-05080AP
...
7
L-Wash. 5/16" I.D.* MTD-936-0119
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
10
L-Wash. 1/4" I.D.* MTD-936-0329
...
11
HEX NUT 1/4-20 MTD-912-0287
...
12
#41 CHAIN NLA MTD-713-0270
...
12
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
13
AXLE-SLIDING SUP NLA MTD-738-0278
...
14
#41 CHAIN NLA MTD-713-0199
...
14
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
15
SPROCKET & HUB ASSEMBLY 9 &14T MTD-913-0193
...
16
CENTER SPROCKET #41-8T MTD-748-0204
...
17
FLANGE BEARING .630 ID MTD-748-0184
...
18
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
19
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
20
BRACKET-CHAIN SUP NLA MTD-05520
...
21
BRACKET ASSEMBLY-SLIDING NLA MTD-784-5137
...
22
SCREW 1/4-28 x 1.50 GR5 MTD-710-0698
...
23
Drive Clutch Brkt. Ass'y. NLA MTD-05500
...
24
Hairpin Clip MTD-714-0104
...
25
CLUTCH ROD-DR NLA MTD-747-0150
...
26
Extension Spring 4.31" Lg. MTD-932-0121
...
27
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
28
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
29
Aluminum Drive Plate MTD-917-0302
...
30
Flange Brg. w/Flats MTD-941-0490
...
31
Fl-Washer MTD-736-0315
...
32
Tubeless Air Valve MTD-934-0255
...
33
Snap Ring .75 Dia. MTD-716-0101
...
34
Klick Pin MTD-714-0143A
...
35
Wheel Ass'y. Comp. 15 x 6 NLA MTD-734-1416
...
35
TIRE-15 x 6 MTD-734-0864
...
35
Rim Only NLA MTD-734-1145
...
36
Bearing.75" I.D. MTD-941-0401
...
37
Jam Nut, 3/8-16 MTD-912-3008
...
38
L-Wash. 3/8" I.D. MTD-736-0169
...
39
BRACKET ASSY NLA MTD-784-5133
...
40
Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129
...
41
452 ENGINE BRKT. ASS'Y. NLA MTD-05491
...
42
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
43
Cotter Pin 3/32" Dia. x .75"-Lg.* MTD-914-0507
...
44
ROD-SHIFT NLA MTD-747-0356
...
45
ADJUSTMENT FERRULE NLA MTD-711-0628
...
46
452 Frame Ass'y. NLA MTD-784-5129
...
47
FREE WHEELING AXLE MTD-738-0566
...
48
Drive Plate Spindle MTD-738-0279
...
49
Bearing Housing MTD-08253B
...
50
BALL BEARING MTD-741P0919B
...
51
L-Wash. 5/16" I.D. MTD-936-0119
...
52
HEX NUT 5/16-18 MTD-712-3010
...
53
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
54
Hairpin Clip MTD-714-0104
...
55
AUGER CLUTCH BRACKET NLA MTD-05518
...
56
Extension Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
57
Auger Clutch Rod .31" Dia. x 10.62" Lg. NLA MTD-747-0149
...
59
#61 Hi-Pro Key 3/16" x 5/8" Dia. MTD-914-0388
...
60
452 DRIVE PLATE MTG. BRKT. ASS'Y. NLA MTD-05497
...
61
Bell-Wash. .44" I.D. x .88" O.D. MTD-736-0105
...
62
SHOULDER SCREW .498 DIA x 1.640 MTD-938-0144
...
63
Hex Ins. Jam Nut 1/4-28 Thd. MTD-712-0896
...
64
HEX SHAFT NLA MTD-738-0280
...
65
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
66
SPACER NLA MTD-750-0277
...
67
BEARING HOUSING MTD-05034A
...
68
Ball Bearing MTD-741-0133
...
69
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
70
#420 Chain NLA MTD-713-0268
...
70
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
71
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194
...
72
Hex L-Nut 1/4-20 Thd. MTD-712-0896
...
73
SPROCKET 22T MTD-713-0274
...
74
BRACKET-PIVOT AXLE NLA MTD-05523
...
75
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
76
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
77
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
78
HUB-SPROCKET NLA MTD-750-0275
...
79
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
80
L-Wash. 1/4" I.D. MTD-936-0329
...
81
HEX NUT 1/4-20 MTD-912-0287
...
82
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
84
SPACER NLA MTD-750-0506
...
85
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
86
Fl-Wash. .344" I.D. MTD-736-0159
...
87
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
88
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
