White Outdoor 316-550-190 Snow Boss 510 (1986)

Model: 316-550-190 Snow Boss 510 (1986)

Save Part Not Listed?

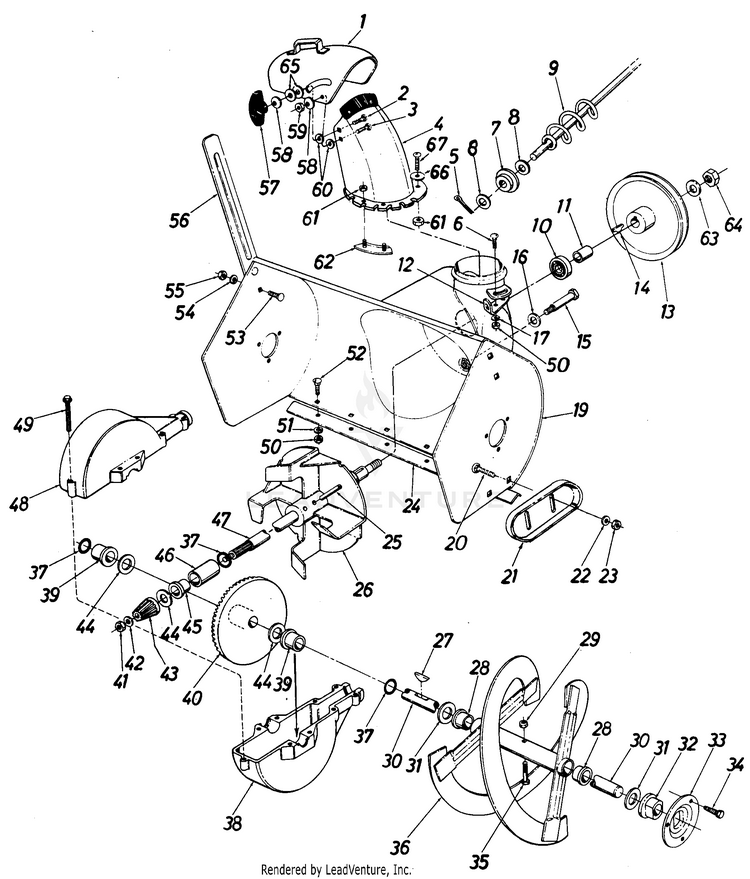

product name

Chute Assembly

...
...
1
Top Chute Ass'y. MTD-731-0846C
...
2
Carriage Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
3
Carriage Bolt 5/16-18 x .62" Lg . MTD-710-0260A
...
4
Chute Ass'y. NLA MTD-5951
...
5
Cotter Pin MTD-914-0507
...
6
Carriage Bolt 5/16-18 x .75" Lg.* MTD-710-0451
...
7
Hex Bushing MTD-941-0475
...
8
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
9
CRANK ASSEMBLY NLA MTD-05981
...
10
Ball Brg 62" I.D. x 1.38" O.D. MTD-941-0155
...
11
SLEEVE MTD-950-0118
...
12
Chute Crank Brkt. MTD-784-5123-0637
...
13
1/2" "V"-Pulley .625" I.D. x 7.50" O.D. MTD-756-0344
...
14
#61 Hi-Pro Key 3/16" x 5/8" Dia. MTD-914-0388
...
15
BOLT-AXLE NLA MTD-738-0154
...
16
Bell-Wash. .40" I.D. x .88" O.D. x .06 MTD-736-0105
...
17
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
19
24" Blower Housing Ass'y. NLA MTD-784-5125
...
20
Carriage Bolt 3/8-16 x .62" Lg. MTD-710-0389
...
21
Slide Shoe MTD-784-5038B-0637
...
22
Bell-Wash. 3/8" I.D. MTD-736-0105
...
23
Jam Nut, 3/8-16 MTD-912-3008
...
24
SHAVE PLATE MTD-05847-0637
...
25
Spring Pin 1.5" Lg. MTD-715-0114
...
26
FAN ASSEMBLY-BLOWER MTD-05865A-0637
...
27
Key MTD-714-0126
...
28
FLANGE BUSHING MTD-741-0493C
...
29
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
30
SPIRAL AXLE MTD-738-0488A
...
31
Fl-Wash. .75" I.D. x 1.50" O.D. x .06 MTD-736-0188
...
32
Flange Brg. w/ Flats .755" I.D. MTD-941-0300
...
33
Bearing Housing MTD-05845C-0637
...
34
SCREW 5/16-24 x .500 MTD-710-0600
...
35
Hex Bolt 5/16-18 x 1.50" Lg. MTD-710-0890A
...
36
24" Spiral Ass'y.-L.H. NLA MTD-05923
...
36
24" Spiral Ass'y.-R.H. NLA MTD-05924
...
37
O-Ring-3/4" I.D. MTD-921-0176
...
38
Bevel Gear Housing-Lower Half NLA MTD-717-0456
...
39
Plastic Flange Brg. .755" I.D. MTD-741-0293
...
40
BEVEL GEAR NLA MTD-717-0457
...
41
Hex Cent. L-Nut 5/16-24 Thd. MTD-912-0237
...
42
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
43
Pinion Gear MTD-948-0237
...
44
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
45
Flange Brg. .755" I.D. MTD-748-0171
...
46
SLEEVE BEARING .752 ID MTD-748-0106
...
47
AXLE-BLOWER MTD-738-0649
...
48
Bevel Gear Housing-Upper Half NLA MTD-717-0455
...
49
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x 1.00" Lg. NLA MTD-710-0583
...
50
HEX NUT 5/16-18 MTD-712-3010
...
51
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
52
Carriage Bolt 5/16-18 x .62" Lg.* MTD-710-0260A
...
53
Carriage Bolt 5/16-18 x .62" Lg.* (Optional equipment) MTD-710-0260A
...
54
L-Wash. 5/16" I.D.* (Optional equipment) MTD-936-0119
...
55
HEX NUT 5/16-18 (Optional equipment) MTD-712-3010
...
56
Drift Cutter Bar (Optional equipment) MTD-790-00181-0637
...
57
Knob MTD-720-04072A
...
58
Bell-Wash . .34 " 1. D. x .88" O.D. MTD-736-0242
...
59
Hex Cent. L-Nut 5/16-18 Thd. NLA MTD-712-0153
...
60
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
61
Hex Cent. L-Nut 1/4-20 Thd. MTD-912-0107
...
62
GUARD ASSEMBLY NLA MTD-05783
...
63
Fl-Wash. .64" I.D. x .94" O.D. x .06 MTD-936-0116
...
64
Hex Jam Nut 5/8-18 Thd. MTD-712-0923
...
65
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
66
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
67
Hex Bolt 1/4-20 x .50" MTD-910-0289
...
xx
Gear Box Complete NLA MTD-717-0454

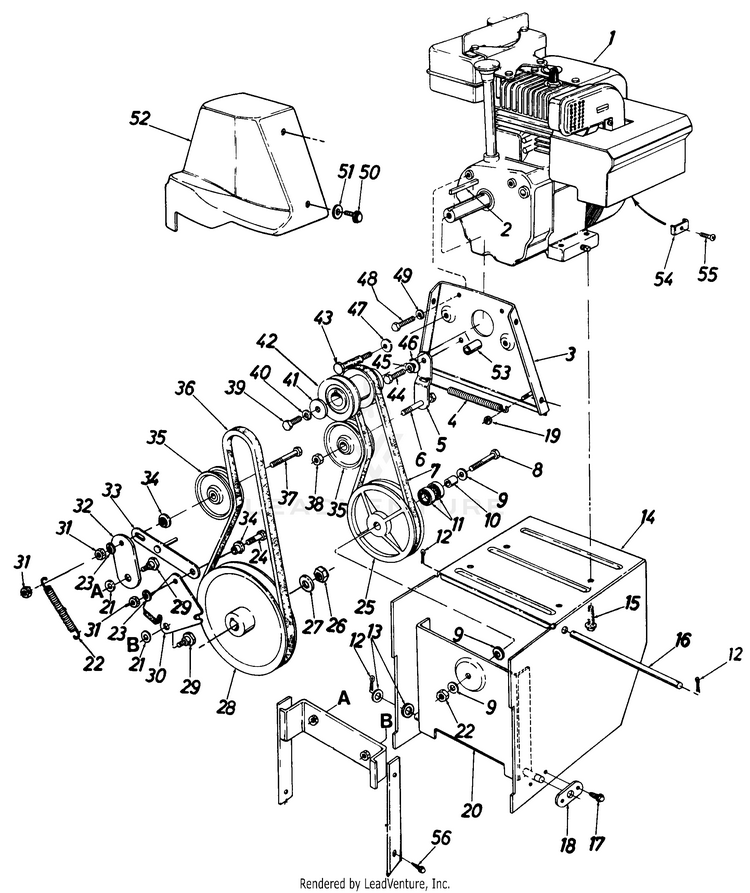

Drive Assembly

...
...
1
Engine MTD-NA
...
2
Sq. Key 3/16 x 1.5" Lg. MTD-714-0133
...
3
Engine Plate Ass'y. NLA MTD-05872
...
4
Extension Spring .50" O.D. x 3.97" Lg. MTD-932-0429A
...
5
BRACKET-IDLR- NLA MTD-05896
...
6
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
7
V"-Belt MTD-954-0256
...
8
Hex Bolt 3/8-24 x 1.50" Lg.* MTD-954-0256
...
9
Bell-Wash. .40" I.D. x .88" O.D. x .06 MTD-710-0459A
...
10
Spacer .38" I.D. x .62" O.D. x.75" Lg. MTD-711-0396
...
11
Ball Brg. .62" I.D. x 1.38" O.D. x .44 MTD-941-0155
...
12
Cotter Pin 3/32" Dia. x .75" Lg.* MTD-914-0507
...
13
FLAT WASHER .510 x .995 MTD-736-0272
...
14
Frame Ass'y. NLA MTD-05874
...
15
Hex Wash. Hd. Self-Tap Scr. 318-16 x 1.25" Lg. MTD-710-0502A
...
16
Shaft .50" Dia. x 9.50" Lg. NLA MTD-738-0497
...
17
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
18
BRACKET-AX NLA MTD-05897
...
19
Hex L-Nut 1/4-20 Thd. MTD-912-0107
...
20
Drive Pulley Support Brkt. Ass'y. NLA MTD-05878
...
21
Bell-Wash. .40" I.D. x 1.13" O.D. MTD-936-0219
...
22
Extension Spring .50" O.D. x 3.97" Lg. MTD-932-0429A
...
23
L-Wash. 3/8" I.D. MTD-736-0169
...
24
Hex Scr. 3/8-16 x 1.25" Lg. MTD-710-0723
...
25
PULLEY-DRI NLA - (Incl. Ref. #11) MTD-05921
...
26
Hex Jam Cent. L-Nut 5/8-18 Thd. MTD-712-0923
...
27
Fl-Wash. .64" I.D. x .94" O.D. x .06 MTD-936-0116
...
28
1/2" V-Pulley .625" I.D. x 7.50" O.D. MTD-756-0344
...
29
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
30
BRACKET-BRAKE NLA MTD-784-5061
...
31
Jam Nut, 3/8-16 MTD-912-3008
...
32
BRACKET-ID NLA MTD-05895
...
33
Brake Linkage Ass'y. NLA MTD-05870
...
34
Shld. Spacer.625" I.D. MTD-938-0347
...
35
FLAT IDLER PULLEY-2 1/4 OD X NLA MTD-756-0137
...
36
V -Belt 3/8" x 38" Lg. MTD-954-0257
...
37
HEX SCREW NLA MTD-710-0756
...
38
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Hex Bolt 3/8-24 x 1.50" Lg. MTD-710-0459A
...
40
L-Wash. 3/8" I.D. MTD-736-0169
...
41
Fl-Wash. .40" I.D. x 1.25" O.D. MTD-736-0247
...
42
PULLEY MTD-756-0421
...
43
Shld. Scr. .498" x 3.0" Lg. MTD-738-0215A
...
44
Hex Bolt 5/16-24 x 1.00" Lg.* MTD-710-0888
...
45
L-Wash. 5/16" I.D. MTD-936-0119
...
46
Shld. Spacer.320" I.D. MTD-748-0234
...
47
Bell-Wash. .40" I.D. x .88" x .06 MTD-736-0105
...
48
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
49
L-Wash. 5/16" I.D. MTD-936-0119
...
50
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
51
Fl-Wash. .28" I.D. x .75" O.D. x .06 MTD-736-0173
...
52
BELT COVER MTD-731-0642
...
53
SPACER .790 ID X .347 LG. MTD-750-0456
...
54
Throttle Control Wire Clamp MTD-751B221535
...
55
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
56
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
xx
Ignition Key MTD-TC-35062

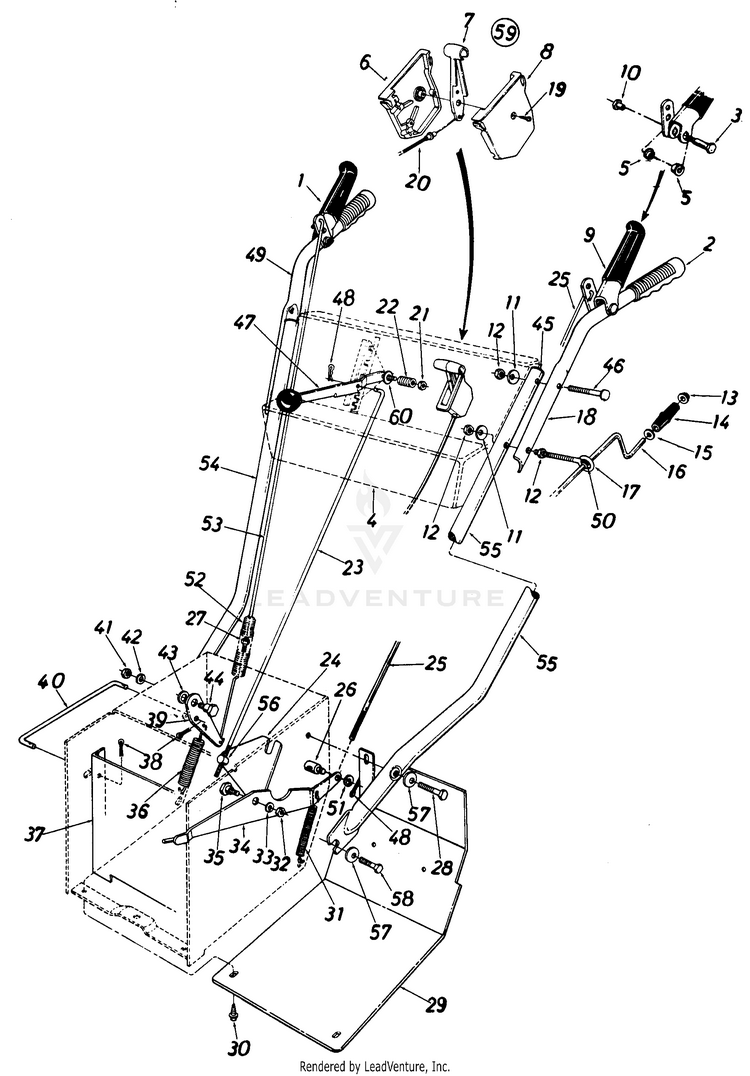

Frame Assembly

...
...
1
GRIP ASSEMBLY- NLA MTD-05988
...
2
Grip MTD-720-04083
...
3
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
4
Handle Panel Ass'y. NLA MTD-784-5000
...
5
FLANGE BEARING MTD-941-0402
...
6
See Ref. No. 59 MTD-NA
...
7
See Ref. No. 59 MTD-NA
...
8
See Ref. No. 59 MTD-NA
...
9
Clutch Grip Ass'y.-L.H. NLA MTD-05987
...
10
SHOULDER NUT MTD-938-0561
...
11
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Push Cap 3/8" Rod MTD-726-0100
...
14
Knob 3/8" Rod MTD-920-0171
...
15
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
16
CRANK ASSEMBLY NLA MTD-05981
...
17
BOLT-EYE NLA MTD-747-0416
...
18
HANDLE-UPPER-LH NLA MTD-749-0593
...
19
See Ref. No. 59 MTD-NA
...
20
Throttle Control Wire MTD-946-0500
...
21
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
22
Compression Spring .50" O.D. x .88" Lg. MTD-732-0193
...
23
ROD-SHIFT NLA MTD-747-0356
...
24
5HIFTING LINKAGE BRACKET NLA MTD-05898
...
25
CLUTCH ROD NLA MTD-747-0452
...
26
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
27
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
28
Hex BoIt 3/8-16 x 2.00" Lg. MTD-710-3144
...
29
Frame Cover NLA MTD-05899
...
30
Hex Wash. Self-Tap Scr.1/4-20 x .50" Lg. MTD-710-0599
...
31
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
L-Wash. 3/8" I.D. MTD-736-0169
...
34
BRACKET-AUG CLUTCH NLA MTD-784-5050
...
35
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
36
Extension Spring .75" O.D. x 4.31" Lg. MTD-932-0121
...
37
Drive Pulley Support Brkt. Ass'y. NLA MTD-05878
...
38
Cotter Pin 3/32" Dia. x .75" Lg . * MTD-914-0507
...
39
BRACKET-DR NLA MTD-05501
...
40
ROD-VAR SP NLA MTD-10080
...
41
Jam Nut, 3/8-16 MTD-912-3008
...
42
L-Wash. 3/8" I.D. MTD-736-0169
...
43
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
44
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
45
PLUG NLA MTD-731-0496
...
46
Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
47
HANDLE-SHI NLA MTD-05694
...
48
Hairpin Clip MTD-714-0104
...
49
HANDLE-FOLDING-RH NLA MTD-749-0594
...
50
Grommet MTD-941-0475
...
51
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
52
Extension Spring .75" O.D. 5.00" Lg. MTD-732-0184
...
53
LOCKOUT ROD MTD-747-0154
...
54
LOWER HANDLE (RH) NLA MTD-749-0344
...
55
LOWER HANDLE (LH) NLA MTD-749-0343
...
56
ADJUSTMENT FERRULE NLA MTD-711-0628
...
57
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
58
Hex Wash. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
59
Throttle Control Box Ass'y. MTD-831-0796A
...
60
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

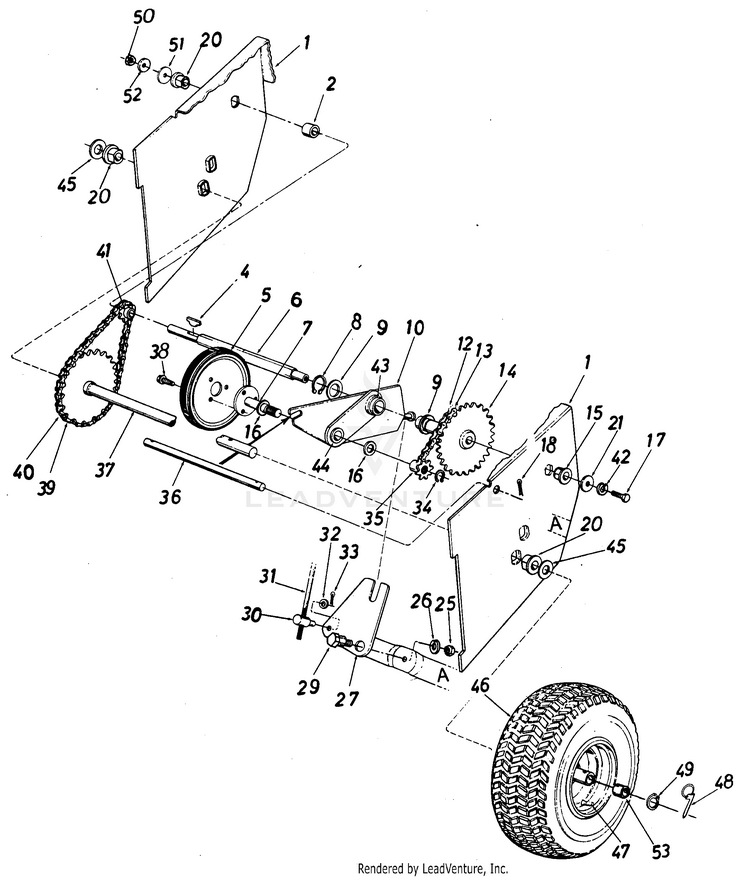

Wheel Chain Drive Assembly

...
...
1
Frame Ass'y. NLA MTD-05874
...
2
Spacer.50" I.D. x .75" O.D. x .78" Lg . MTD-750-0499
...
4
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
5
Friction Wheel Ass'y. MTD-05080AP
...
6
HEX SHAFT NLA MTD-738-0496
...
7
PLATE ASSEMBLY NLA MTD-05883
...
8
Snap Ring MTD-716-0102
...
9
Fl-Wash. 1.00" x 1 63" O.D. x .03 MTD-936-0163
...
10
BRACKET AS NLA MTD-05880
...
12
#41 CHAIN 1/2" PITCH x 35 0 LINKS NLA MTD-713-0285
...
13
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
14
32 Teeth Sprocket Ass'y. NLA MTD-713-0281
...
15
Hex Flange Brg. .630" I.D. MTD-941-0225
...
16
FLAT WASHER MTD-736-0290
...
17
Hex Lock Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
18
Cotter Pin 3/32" Dia. x .75" Lg. MTD-914-0507
...
20
Flange Brg. w/ Flats .755" I.D. MTD-941-0490
...
21
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
25
Jam Nut, 3/8-16 MTD-912-3008
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
5HIFTING LINKAGE BRACKET NLA MTD-05898
...
29
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
30
ADJUSTMENT FERRULE NLA MTD-711-0628
...
31
ROD-SHIFT NLA MTD-747-0356
...
32
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
33
Cotter Pin 3/32" Dia. x .75" Lg.* MTD-914-0507
...
34
RETAINING RING MTD-716-0397
...
35
SPROCKET-7T NLA MTD-713-0280
...
36
Shaft .50" Dia. x 9.50" Lg. NLA MTD-738-0497
...
37
AXLE ASSEMBLY-WHEEL NLA MTD-713-0323
...
38
SCREW 5/16-24 x .500 MTD-710-0600
...
39
#420 CHAIN 1/2 PITCH x 39 MTD-913-0287
...
40
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
41
CENTER SPROCKET #41-8T MTD-748-0204
...
42
L-Wash. 5/16" I.D. MTD-936-0119
...
43
Bearing MTD-741-04488
...
44
FLANGE BEARING .630 ID MTD-748-0184
...
45
Fl-Wash. .76" I.D. x 1.49 O.D. MTD-736-0188
...
46
Wheel Ass'y. Comp. 13 x 5.0 (550) NLA MTD-734-1253
...
46
Tire MTD-734-0298-0901
...
47
Air Valve MTD-934-0255
...
48
Klick Pin MTD-714-0143A
...
49
Snap Ring .75 Dia. MTD-716-0101
...
50
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
51
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
52
Bell Washer MTD-736-0253
...
53
Sleeve Brg. MTD-941-0401
