White Outdoor 315E666H190 Snow Boss 1050 (1995)

Model: 315E666H190 Snow Boss 1050 (1995)

Save Part Not Listed?
product name

Snow Thrower

...
...
1

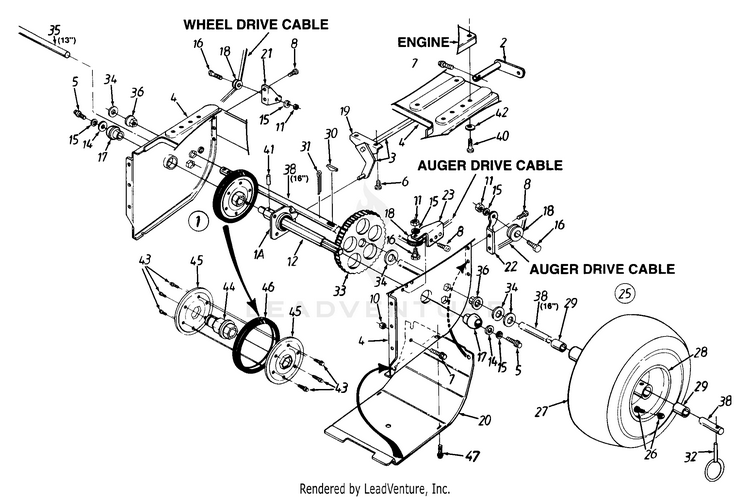

Friction Wheel Ass'y. Comp. MTD-984-0042C
...
1A
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
2
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
3
SHAFT ASSEMBLY NLA MTD-684-0013
...
4
FRAME NLA MTD-684-0030
...
5
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
7
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
8
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
12
HEX DRIVE SHAFT NLA MTD-717-1415A
...
14
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
SCREW, SHOULDER NLA MTD-738-0870
...
17
Ball Brg. w/Snap Ring MTD-941-0563
...
18
Cable Roller Guide MTD-756-0625
...
19
Shift Bracket - Frame *CHOOSE COLOR WHEN ORDERING* MTD-784-5590
...
20
FRAME COVER *CHOOSE COLOR WHEN ORDERING* MTD-784-5638A
...
21
BRACKET-DR NLA MTD-784-5644
...
22
AUGER CABLE GUIDE BRKT NLA MTD-784-5646
...
23
SUPPORT BRACKET MTD-784-5658-0637
...
25
WHEEL ASSEMBLY 13 x 5 MTD-734-1714A
...
25
WHEEL ASSEMBLY 16X4.8 MTD-734-1709
...
25
WHEEL ASSEMBLY 16 x 6.5 MTD-734-1712
...
26
Air Valve MTD-934-0255
...
27
TIRE-SNOW HOG 13X5 TIRE-CODE MTD-734-1527
...
27
Tire Only (646F) MTD-734-1530
...
27
TIRE-SNOW HOG-16X6 MTD-734-1525
...
28
RIM ASSEMBLY 6.0 x 3.25 MTD-734-1713
...
28
WHEEL-RIM *CHOOSE COLOR WHEN ORDERING* MTD-934-1708A
...
28
WHEEL RIM 8.0 x 5.38 x 7.30 MTD-734-1711
...
29
Sleeve Bearing .752" I.D. MTD-941-0401
...
30
Key MTD-714-0126
...
31
Cotter Pin 5/32" x 1-1/4" Lg. MTD-714-0162
...
32
Klik Pin MTD-714-0143A
...
33
GEAR-79T NLA MTD-717-1414
...
34
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0188
...
35
Wheel Axle (616E) MTD-738-0869
...
36
Hex Flange Brg. .752" I.D. MTD-941-0598
...
38
AXLE .750X24.5 MTD-738-0830
...
40
Hex Bolt 3/8-16 x 1.25" MTD-710-0502A
...
41
Spr. Roll Pin 1.12" Lg. MTD-915-0249
...
42
Fl-Wash. .406" I.D. x 1" O.D. MTD-736-3052
...
43
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
44
HUB-FRICTION WHEEL NLA MTD-718-0240
...
45
FRICTION PLATE NLA MTD-784-5677
...
46
Friction Wheel Rubber MTD-935-0243B
...
47
Hex Wash. Tap Scr. 3/8" Lg. MTD-710-3007

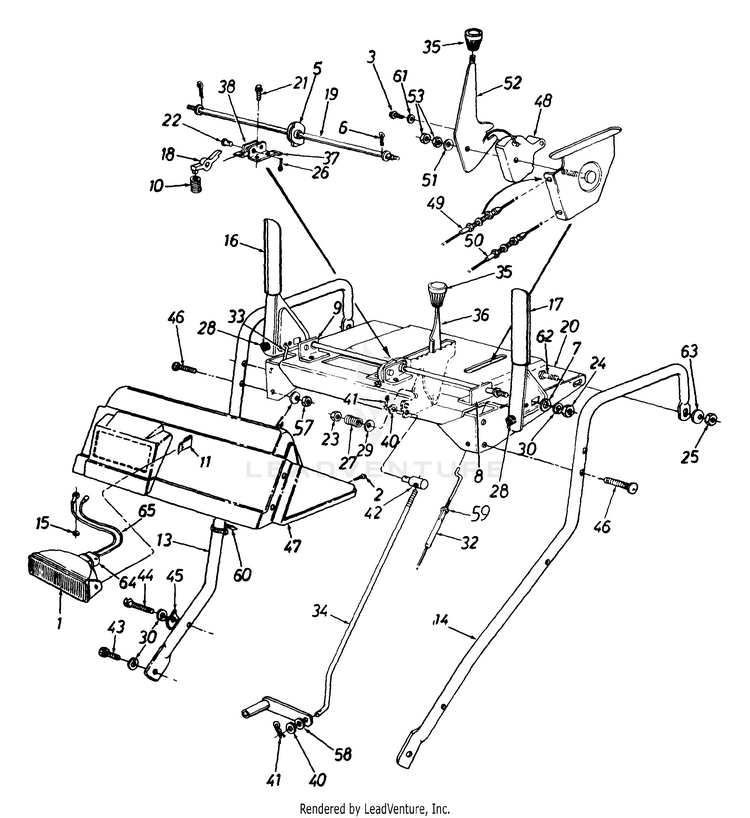

Snow Throwers Illustration (Part 2)

...
...
1
Lamp Housing w/Lens For models 646F and 666H Only MTD-925-1672
...
2
Truss Mach. B-Tap Scr. #10 x .5 MTD-710-0351
...
3
Hex AB-Tap Scr. 1/4 x .62" Lg. For models 646F and 666H Only MTD-710-0896
...
4
Bell - Wash. .325" I.D. x .88" O.D. MTD-736-0242
...
5
Cam Handle Lock MTD-748-0362
...
6
Cotter Pin 3/32" Dia. x .75" Lg. MTD-914-0507
...
7
Washer (Special) .72" O.D. MTD-736-0509
...
8
Handle Support Brkt. - L.H. MTD-784-5681
...
9
Handle Support Brkt. - R.H. MTD-784-5682-0637
...
10
Compression Spring MTD-732-0145
...
11
Retaining Clip For models 646F and 666H Only MTD-747-1136
...
13
HANDLE (RH) MTD-749-0908A-0637
...
14
HANDLE (LH) MTD-749-0909-0637
...
15
Hex Sems Nut 1/4-20 Thd.t For models 646F and 666H Only MTD-712-0271
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
18
Pawl Handle Lock MTD-948-0363
...
19
Rod Cam MTD-747-0877
...
20
HANDLE PANEL SUPPORT NLA For models 646F and 666H Only MTD-684-0032A
...
20
HANDLE PANEL SUPPORT NLA For model 616E Not shown MTD-684-0033A
...
21
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
22
CLEVIS PIN NLA MTD-711-0946
...
23
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
HEX NUT 1/4-20 MTD-912-0287
...
26
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
27
Compression Spring MTD-732-0193
...
28
Bumper, Rubber MTD-735-0199A
...
29
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
30
L-Wash. 5/16" I.D. MTD-936-0119
...
31
Spring Wash. .265" I.D. MTD-936-0175
...
32
Auger Clutch Cable MTD-946-0897
...
33
Drive Clutch Cable MTD-946-0898
...
34
Shift Rod MTD-747-0798A
...
35
Shift Knob MTD-920-0232
...
36
HANDLE-SHI NLA MTD-784-0297
...
37
HANDLE BRACKET (LH) MTD-784-5679-0637
...
38
Handle Brkt. - R.H. MTD-784-5680-0637
...
40
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
41
Hairpin Clip MTD-714-0104
...
42
Ferrule MTD-911-0677
...
43
Hex Bolt 5/16-18 x .62" Lg. (Special) MTD-710-0538
...
44
Hex Bolt 5/16-18 x 1.75" Lg (Gr 5) MTD-710-3180
...
45
Handle Tab MTD-984-5599
...
46
Curved Carr. Bolt 5/16-18 x 1.5" Lg. MTD-710-1250
...
47
HANDLE PANEL NLA For model 616E Not shown MTD-731-1334
...
47
PANEL-HDLE CONTROL NLA For models 646F and 666H Only MTD-731-1347
...
48
Cable Guide For models 646F and 666H Only MTD-731-1313C
...
49
Chute Control Cable For models 646F and 666H Only MTD-946-0896
...
50
Chute Control Cable w/Clip For models 646F and 666H Only MTD-946-0901
...
51
Bell-Wash. .325" I.D. For models 646F and 666H Only MTD-736-0425
...
52
Chute Tilt Handle For models 646F and 666H Only MTD-784-5604A-0637
...
53
Hex Cent. L-Nut 5/16-18 Thd. For models 646F and 666H Only MTD-912-0158
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Spr. Wash. .32" I.D. x .62" O.D. MTD-936-0271
...
59
Hex Nut #10-24 Thd. Included w/Ref 32 & 33 MTD-712-0121
...
60
Cable Tie For models 646F and 666H Only MTD-725-0157
...
61
SPECIAL WASHER For models 646F and 666H Only MTD-736-0506A
...
62
Hex Bolt 1/4-20 x .85" Lg. MTD-710-3015
...
63
SPRING WASHER BELL MTD-736-0270
...
64
Bulb For models 646F and 666H Only MTD-925-1658
...
65
Wire Harness For models 646F and 666H Only MTD-929-0059
...
xx
Right Control Panel NLA Instruction. For model 616E(500) MTD-777-0932
...
xx
Left Control Panel w/o Chute NLA Instruction. For model 616E(500) MTD-777-0934
...
xx
AXLE PIN LABEL NLA Instruction. For model 616E(500) MTD-777-8160
...
xx
Snow Boss 500 NLA Decorative. For model 616E(500) MTD-777-2377
...
xx
Handle Panel w/o Lights NLA Decorative. For model 616E(500) MTD-777-2393
...
xx
Handle Panel Center NLA Instruction. For model 646F(850) MTD-777-0873
...
xx
Right Control Panel NLA Instruction. For model 646F(850) MTD-777-0932
...
xx
Left Control Panel NLA Instruction. For model 646F(850) MTD-777-0933
...
xx
Snow Boss 850 NLA Decorative. For model 646F(850) MTD-777-2379
...
xx
Handle Panel with Lights NLA Decorative. For model 646F(850) MTD-777-2382
...
xx
8 HP Snow Thrower Engine NLA Decorative. For model 646F(850) MTD-777-2436
...
xx
Handle Panel Center NLA Instruction. For model 666H (1050) MTD-777-0873
...
xx
Right Control Panel NLA Instruction. For model 666H (1050) MTD-777-0932
...
xx
Left Control Panel NLA Instruction. For model 666H (1050) MTD-777-0933
...
xx
Snow Boss 1050 NLA Decorative. For model 666H (1050) MTD-777-2381
...
xx
Handle Panel with Lights NLA Decorative. For model 666H (1050) MTD-777-2382
...
xx
10 HP Snow Thrower Engine NLA Decorative. For model 666H (1050) MTD-777-2438
...
xx
LABEL-WARNING Danger. All models MTD-777-0783
...
xx
Auger NLA Danger. All models MTD-777-2361
...
xx
LABEL-DANG NLA Danger. All Models MTD-777-8088B

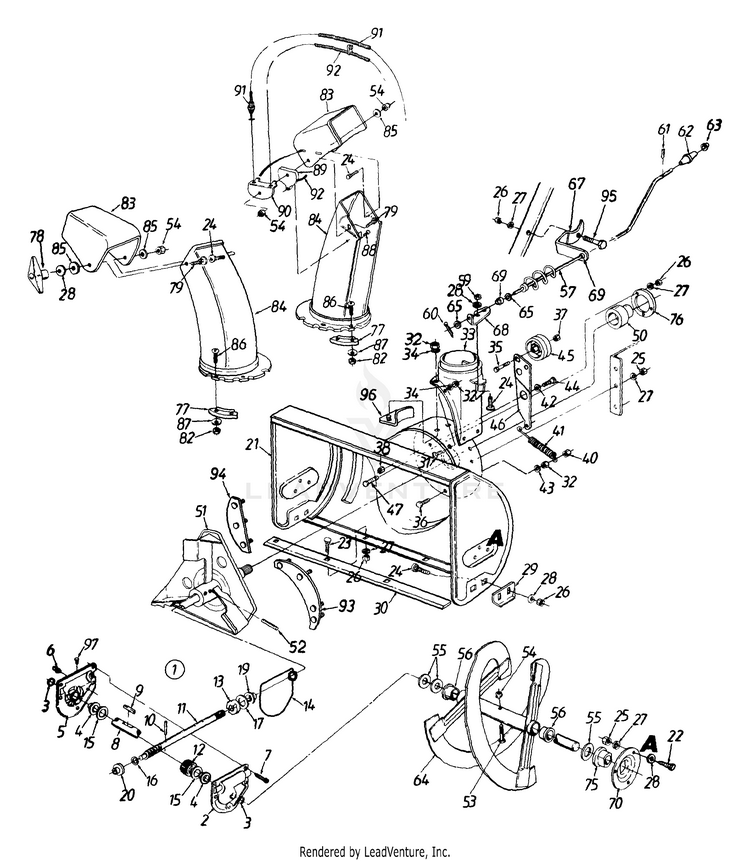

Snow Throwers Illustration (Part 3)

...
...
1
GEARBOX ASSEMBLY 24" W FITTING (616E) MTD-918-0414B
...
1
GEARBOX ASSEMBLY 26" W FITTING (646F) MTD-918-0415B
...
1
AUGER ASSEMBLY 30" (666H) MTD-918-0417B
...
2
REDUCER HOUSING (LH) NLA MTD-719-0292
...
3
Oil Seal 3/4" I.D. MTD-721-0179
...
4
Flange Bearing .75" I.D. MTD-941-0339
...
5
REDUCER HOUSING (RH) NLA MTD-719-0293
...
6
Grease Fitting MTD-937-3000
...
7
Hex TT-Tap Scr. 1/4-20 x . MTD-710-0642
...
8
24"AUGER SHAFT (616E) MTD-711-0908A
...
8
26"AUGER SHAFT (646F) MTD-711-0909A
...
8
30"AUGER SHAFT (666H) MTD-711-1024A
...
9
#61 Hi-Pro Key 3/16" x 5/8" Dia. MTD-914-0388
...
10
Spiral Pin MTD-715-0143
...
11
IMPELLER SHAFT MTD-717P0526
...
12
WORM GEAR 20T MTD-917-04861
...
13
Thrust Collar MTD-718-0186
...
14
Oil Seal MTD-721-0327
...
15
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
16
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
17
Fl-Wash. .760" I.D. x 1.5" O.D. MTD-736-0445
...
19
Flange Bearing .75" I.D. MTD-941-0376
...
20
Flange Bearing .503" I.D. MTD-948-0108
...
21
24" HOUSING ASSEMBLY (616E)*CHOOSE COLOR WHEN ORDERING* MTD-684-0039D
...
21
26" HOUSING ASSEMBLY (646F)*CHOOSE COLOR WHEN ORDERING* MTD-684-0040D
...
21
30" HOUSING ASSEMBLY (666H)NLA MTD-684-0055
...
22
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
23
Carriage Bolt 5/16-18 x .62" Lg. MTD-710-0260A
...
24
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
25
Hex Nut 5/16-24 Thd. MTD-912-3057
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
L-Wash. 5/16" I.D. MTD-936-0119
...
28
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
29
Slide Shoe *CHOOSE COLOR WHEN ORDERING* MTD-784-5580
...
30
Shave Plate 24" (616E) MTD-790-00120-0637
...
30
Shave Plate: Auger 26" (646F) MTD-790-00121-0637
...
30
30" SHAVE PLATE (POWDER BLACK) (666H) MTD-790-00119-0637
...
31
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
32
HEX NUT 1/4-20 MTD-912-0287
...
33
Chute Adapter MTD-731-1379D
...
34
Spring Washer 1/4" I.D. MTD-936-0175
...
35
Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5) MTD-710-0459A
...
36
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
37
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
38
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
40
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
41
Ext. Spring 3.6" Lg. MTD-932-0611
...
42
Fl-Wash. 5/8" I.D. x 1.25" MTD-936-0167
...
43
L-Wash. 1/4" I.D. MTD-936-0329
...
44
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
45
Fl-Idler 2.75" O.D. MTD-756-0178
...
46
Auger Idler Brkt. MTD-984-0064-0637
...
47
Hex Bolt 5/16-18 x 5/8" Lg. MTD-710-3038
...
50
Ball Bearing .75" I.D. MTD-941-0309
...
51
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
52
Spring Pin 1.5" Lg. MTD-715-0114
...
53
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
54
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
55
Fl-Wash .76" I.D. x 1.49" MTD-736-0188
...
56
FLANGE BUSHING MTD-741-0493C
...
57
Chute Crank Ass'y. MTD-984-0022
...
59
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
60
Cotter Pin 3/32" Dia x 75" MTD-914-0507
...
61
Roll Pin 1/8" Dia. x 63" Lg MTD-915-0138
...
62
Chute Crank Knob MTD-720-0201A
...
63
Push Cap 3/8" Rod MTD-726-0100
...
64
24" SPIRAL ASSEMBLY (LH) (POWDER BLACK) (616E) MTD-684-04181-0637
...
64
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) R.H. For model 616E. Not shown MTD-684-04180-0637
...
64
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) (646F) MTD-684-04183-0637
...
64
26" SPIRAL ASSEMBLY (RH) (POWDER BLACK) R.H. For model 646F. Not shown MTD-684-04182-0637
...
64
30" SPIRAL ASSEMBLY (LH) (POWDER BLACK) (666H) MTD-684-04187-0637
...
64
30" SPIRAL ASSEMBLY (RH) (POWDER BLACK) R.H. For model 666H. Not shown MTD-684-04186-0637
...
65
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
67
BRACKET NLA MTD-784-5678
...
68
Lower Chute Crank Brkt. MTD-784-5647-0637
...
69
Plastic Bushing .38" I.D MTD-941-0475
...
70
Bearing Housing MTD-05845C-0637
...
75
Plastic Bearing w/Flats MTD-941-0300
...
76
Bearing Housing MTD-05931A
...
77
Chute Flange Keeper MTD-731-0851A
...
78
Knob (616E) (616E) MTD-720-04072A
...
79
Carriage Bolt 5/16-18 x 1.5" Lg. MTD-710-0262
...
82
Hex L-Nut 1/4-20 Thd. MTD-912-0107
...
83
UPPER CHUTE (W/LBL MANUAL TILT) (616E) MTD-731-04426C
...
83
UPPER REMOTE CHUTE WITH LABEL (646F & 666H) MTD-731-04427B
...
84
Lower Chute MTD-731-1300E
...
85
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
86
Truss Mach. Scr 1/4-20 x .75" Lg. MTD-710-0924
...
87
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
88
SCREW 1/4-14 x .625 (646F) MTD-710-0896
...
89
CABLE GUIDE (646F & 666H) MTD-731-1313C
...
90
CABLE BRACKET (646F & 666H)*CHOOSE COLOR WHEN ORDERING* MTD-784-5594
...
91
CHUTE CONTROL CABLE (646F & 666H) MTD-946-0896
...
92
CHUTE CONTROL CABLE w/Clip (646F) MTD-946-0901
...
95
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
96
CHUTE REINFORCEMENT MTD-705-5225
...
97
Plug MTD-721-0325

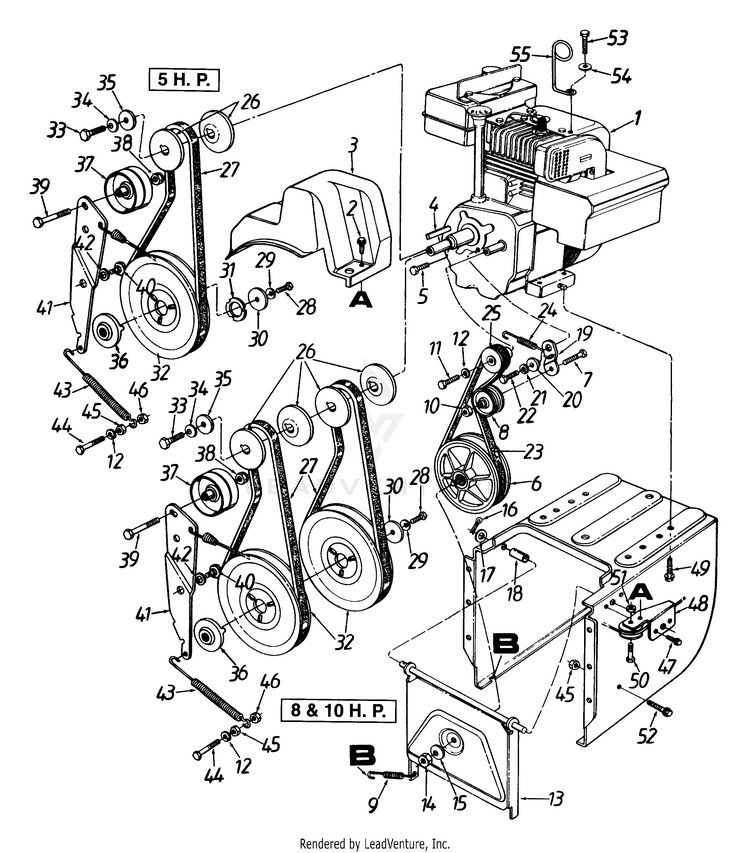

Snow Throwers Illustration (Part 4)

...
...
1
Engine MTD-NA
...
2
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Belt Cover MTD-731-1324
...
4
Sq. Key 3/16 x 1.5" Lg. MTD-714-0133
...
4
Square Key 3/16" x .75 MTD-714-0122
...
5
Hex Patch Bolt 5/16-24 x 1" Lg. (Gr. 5) MTD-710-0627
...
6
Friction Wheel Disc Ass'y. MTD-956-0012A
...
7
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
8
Fl-Idler 2.12" O.D. MTD-756-0313
...
9
Ext. Spring 2.5" Lg. MTD-932-0264
...
10
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
11
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
12
L-Wash. 1/4" I.D." MTD-936-0329
...
13
BRACKET ASSEMBLY MTD-984-0021-0637
...
14
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
15
Bell - Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
16
Cotter Pin 1/8" x .75" Lg. MTD-914-0474
...
17
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
18
Spacer .508" I.D. x .75" O.D. MTD-748-0190
...
19
BRACKET-IDLR- NLA MTD-05896A
...
20
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234
...
21
UNKNOWN MTD-NA
...
22
Hex Bolt 5/16-24 x 1" Lg. (616E) MTD-710-0888
...
22
Hex Wash. Hd. Tap Scr. 5/16-18 x .62" Lg. (646F & 666H) MTD-710-0604A
...
23
V Belt (616E) MTD-954-0343
...
23
V Belt (646F & 666H) MTD-954-0346
...
24
SPRING MTD-932-0339
...
24
Extension Spring (646F & 666H) MTD-932-0710
...
25
PULLEY MTD-956-0959
...
26
3/8 "V" - Pulley Half MTD-756-0569
...
27
BELT: 3V X 35.00 LG MTD-954-0430C
...
28
Hex Cap L-Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
29
Bell - Wash .345" I.D. x .88" O.D. MTD-736-0242
...
30
Fl-Wash .34" I.D. x 1.5" O.D. MTD-736-0505
...
31
Brg. Retaining Washer (616E Only) MTD-936-0507
...
32
Auger Pulley MTD-756-0967
...
33
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696
...
34
Bell - Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
35
Fl-Wash .406" I.D. x 1.25" O.D. MTD-736-0247
...
36
Adapter Pulley MTD-948-0360
...
37
Fl-Idler 2.75" O.D. MTD-756-0178
...
38
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Hex Bolt 3/8-24 x 1.5" Lg. (Gr 5) MTD-710-0459A
...
40
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
41
Auger Idler Brkt. MTD-984-0064-0637
...
42
Wave Wash .66" I.D. x .88" MTD-736-0174
...
43
Ext. Spring 3.6" Lg MTD-932-0611
...
44
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
45
HEX NUT 1/4-20 MTD-912-0287
...
46
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
47
Torx Mach. AB-Tap Scr 1/4 x .62" Lg MTD-710-1017
...
48
SUPPORT BRACKET MTD-784-5658-0637
...
49
Hex L-Wash TT-Tap Scr 3/8-16 x 1.25" Lg MTD-710-0502A
...
50
SCREW, SHOULDER NLA MTD-738-0870
...
51
Hex Jam Nut 1/4-20 Thd MTD-912-0298
...
52
Hex Wash Hd TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
53
Hex Wash Hd Tap Scr 5/16-18 x 1" Lg. (646F & 666H) MTD-710-0602
...
54
Fl-Wash. .344" I.D. MTD-736-0159
...
55
Cable Control Wire (646F & 666H) MTD-732-0705
...
xx
3-Prong Extension Cord MTD-929-0071B
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
