White Outdoor 311-180-190 Snow Boss 300 (1991)

Model: 311-180-190 Snow Boss 300 (1991)

Save Part Not Listed?
product name

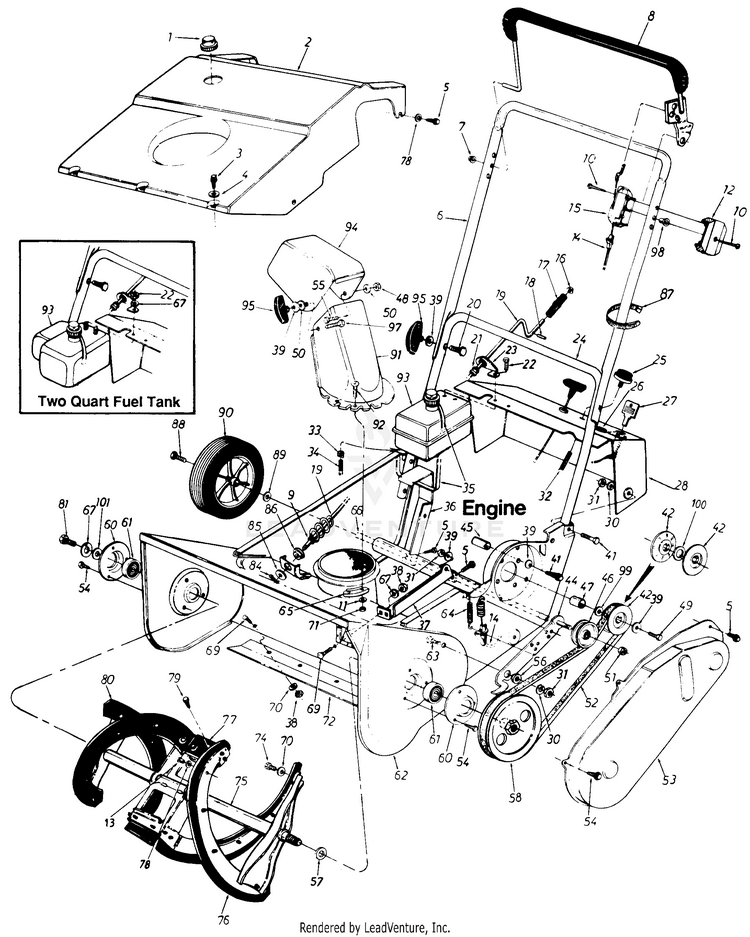

Snow Thrower Assembly

...
...
1
FUEL CAP MTD-TC-410240
...
2
SHROUD NLA MTD-731-0702
...
3
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
4
SPRING WASHER NLA MTD-736-0370
...
5
HEX SCREW L-WASH HD MTD-910-0892
...
6
UPPER HANDLE NLA MTD-749-0705
...
7
Cap Speed Nut MTD-726-0135
...
8
HANDLE ASSEMBLY-CONTROL (LH) NLA MTD-731-0791
...
9
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
10
Truss Mach. Hi-B 0 Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
11
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
12
PANEL HALF-CONTROL MTD-731-0817A
...
13
Pop Rivet .188" Dia. MTD-928-0173
...
14
Clutch Cable 35" Lg. MTD-946-0506
...
15
CIUTCH PANEL HALF NLA MTD-731-0816
...
16
Push Cap 3/8" Rod MTD-726-0100
...
17
Knob-3/8" Dia. Hole MTD-720-0201A
...
18
Roll Pin 1/8" Dia. x .63" Lg. MTD-915-0138
...
19
CHUTE CRANK ASSEMBLY MTD-784-5344
...
20
Curved Carriage Bolt 5/16-18 x 1.75" Lg. MTD-710-1174
...
21
Chute Crank Grommet MTD-941-0475
...
22
Hex AB-Tap Scr. 1/4 x .75" Lg. (Used w/One Quart Gas Tank) MTD-710-0895
...
22
HEX NUT 1/4-20 (Used w/Two Quart Gas Tank) MTD-912-0287
...
23
CHUTE CRANK BRACKET MTD-784-5178A
...
24
LOWER HANDLEED NLA MTD-749-0713
...
25
Primer MTD-TC-570682A
...
26
PLUG MTD-731-0732
...
27
Plastic Key (Tech. Eng.) MTD-TC-35062
...
28
DASH PANEL (MTD RED) NLA MTD-784-5168B-0638
...
30
L-Wash. 5/16" I.D. MTD-936-0119
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
LINE-PRIMER MTD-TC-32180C
...
33
Hose Clamp-1/2" Dia. MTD-726-0205
...
34
Gas Line-12" Lg. MTD-751-10349
...
35
CABLE TIE NLA MTD-726-0225
...
36
BRACKET-EN NLA MTD-784-5341
...
37
SUPPORT-ENGINE NLA MTD-784-5495
...
38
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
39
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
41
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
42
3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D. MTD-956-0416B
...
44
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
45
Spacer .325" I.D. x .625" O.D. x .875" MTD-950-0589
...
46
Fl-ldler w/Flanges 2.12" O.D. MTD-756-0313
...
47
SPACER MTD-948-0201
...
48
Hex L-Nut 5/16-18 Thd. MTD-912-0158
...
49
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
50
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
51
HEX LOCK NUT 3/8-2 MTD-912-0296
...
52
V-Belt (Used w/3/8" Pulley) MTD-954-0367
...
52
V-Belt (Used w/1/2" Pulley) MTD-954-0101A
...
53
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
54
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
55
Carriage Bolt 5/16-18 x .75" MTD-710-0451
...
56
Shld. Spacer .50" Dia. x .27" MTD-748-0234
...
57
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
58
PULLEY-6.0 OD x 3/8 MTD-756-0550
...
58
1/2" "V"-Pulley 1/2-20 L.H. x 6" MTD-756-0475
...
60
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
61
Ball Brg. .669" I.D. x 1.574" MTD-941-0600
...
62
21" BLOWER HOUSING NLA MTD-784-5325C
...
63
Truss Mach. Scr. 5/16-18 x .75" Lg.* MTD-710-0323
...
64
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
65
Chute Flange Keeper MTD-731-0851A
...
66
AXLE-WHEEL 20.60 L NLA MTD-711-0848
...
67
L-Wash. 1/4" I.D. MTD-936-0329
...
69
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
70
Fl-Wash. .281" I.D. x .73" MTD-736-0173
...
71
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
72
Shave Plate MTD-731-1033
...
74
Hex Wash. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
75
AUGER ASSEMBLY MTD-984-04027A
...
76
Rubber Spiral-L.H. MTD-931-0780A
...
77
Rubber Paddle MTD-931-0782A
...
78
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400
...
79
Hex Wash. B-Tap Scr. #10 x .62" Lg. MTD-710-04669
...
80
Rubber Spiral-R.H. MTD-931-0780A
...
81
Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
84
Cotter Pin 3/32" Dia. x .75" MTD-914-0507
...
85
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
86
BUSHING-HEX MTD-741-0403
...
87
Cable Tie MTD-725-0157
...
88
Hex Tap Scr. 3/8-24 x .5" Lg. MTD-710-0773
...
89
Fl-Wash. .510" I.D. x .75" MTD-936-0108
...
90
WHEEL ASSEMBLY W/TIRE NLA MTD-734-1176
...
91
LOWER CHUTE MTD-731-0915C
...
92
Truss Mach. Scr. 1/4-20 x .75" MTD-710-0924
...
93
FUEL TANK MTD-TC-32660A
...
94
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
95
Knob Handle.Ass'y. MTD-720-04072A
...
97
Carriage Bolt 5/1 6-1 8 x 1"* MTD-710-0276
...
98
CONROL DISC PIN NLA MTD-731-0524
...
99
Fl-Wash. .635" I.D. x 1.04" O.D. MTD-736-0162
...
100
Fl-Wash. .635" I.D. x .93" O.D. MTD-936-0116
...
101
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
xx
3 HP 110V Electric Start NLA MTD-OEM-390-697
