product name

White Outdoor 25A-100-190 HWT4 Trimmer Mower (1999) HWT4

Model: 25A-100-190 HWT4 Trimmer Mower (1999) HWT4

Save Part Not Listed?
product name

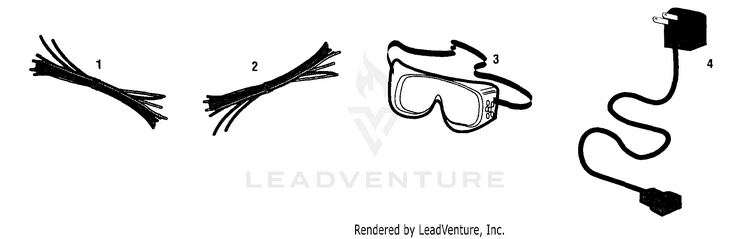

Accessories And Kits

...
...
1
Trimmer String Kit, .155" Not Included with unit, order separately MTD-OEM-743-0112
...
2
Trimmer String Kit, .130" Not Included with unit, order separately MTD-OEM-743-0113
...
3
Safety Goggles MTD-723-0400
...
4
BATTERY CHARGER (Electric start units) MTD-725-13345

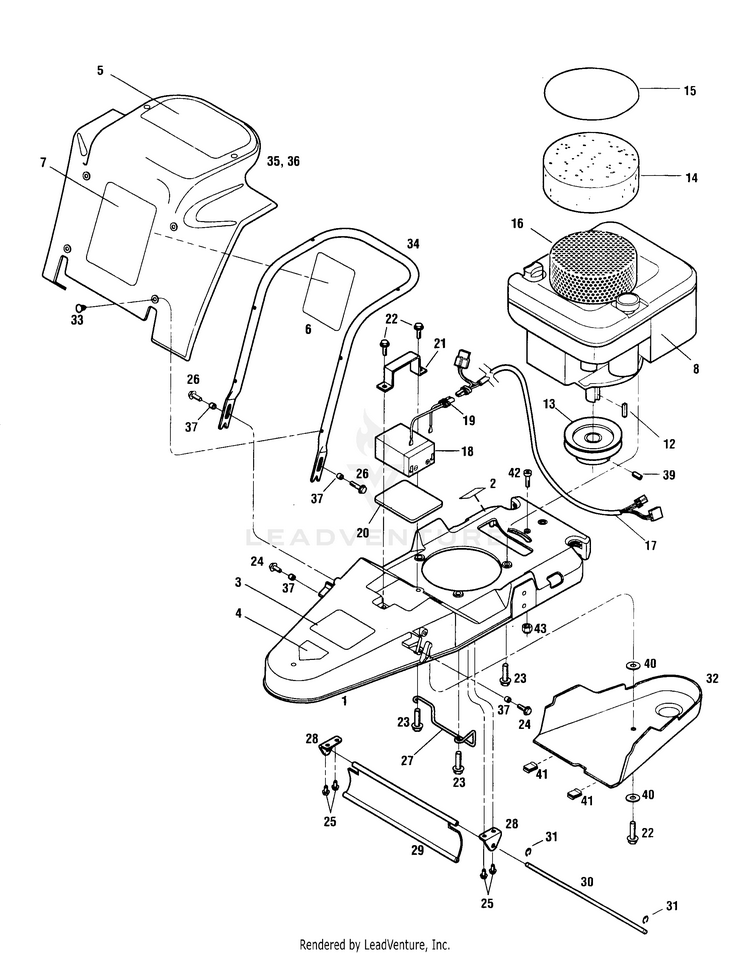

Deck, Covers And Guards, Battery

...
...
1
DECK WITH DECALS NLA MTD-1915722
...
2
DECAL-HOT SURFACE NLA MTD-1904511
...
3
DECAL-WARN. THRN O NLA MTD-1904403
...
4
Decal-Danger Feet/Hands MTD-1739687
...
5
DECAL-OPER INST NLA MTD-1904404
...
6
DECAL-PARALLEL TRI NLA MTD-1904405
...
7
Decal-Logo, 5HP. See Model T 5E MTD-NA
...
7
Decal-Logo, 4HP. See Model T 4 MTD-NA
...
8
Engine-Quantum, 4HP. See Model T 4. Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number. MTD-NA
...
8
Engine-Quantum, 5HP. See Model T 5E. Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number. MTD-NA
...
12
Key, 3/16 sq. x 1 MTD-GW-9301
...
13
ENGINE PULLEY NLA MTD-1915240
...
14
DEBRIS FOAM FILTER MTD-BS-693514
...
15
O-RING (TRIMMER EN MTD-1915304
...
16
ENGINE DEBRIS GUARD NLA MTD-1916571
...
17
HARNESS-WI See Model T 5E MTD-1910835P
...
18
Battery. See Model T 5E MTD-1909647
...
19
CONNECTOR-BATTERY See Model T 5E MTD-1909697
...
20
BATTERY PAD NLA See Model T 5E MTD-1915268
...
21
BATTERY BRACKET See Model T 5E MTD-1915204001
...
22
Hex Hd. Flange Screw, 5/16-18 x 1 Quantity of 3 for Model T 5E only. Quantity is 1 for Model T 4 MTD-710-0602
...
23
Hex Hd. Flange Screw, 3/8-16 x 1-1/2 MTD-710-1007
...
24
Hex Hd. Flange Screw, 1/4-20 x 3/4 MTD-1754128
...
25
SCREW 1/4-20 TAPTI MTD-1909301
...
26
HEX SCREW NLA MTD-1763187
...
27
GUILD-BELT MTD-1910865
...
28
FLAP BRACKET NLA MTD-1915219001
...
29
SHIELD-DEF NLA MTD-1915211
...
30
ROD-DEFLECTOR SHIE MTD-1915212
...
31
E-RING 5/16 MTD-1185304
...
32
BELT COVER MTD-1915205
...
33
PUSH-IN FASTENER NLA MTD-1915290
...
34
Engine Cover Support NLA MTD-1915238001
...
35
Engine Cover w/decals. See Model T 4 MTD-NA
...
36
Engine Cover w/decals. See Model T 5E MTD-NA
...
37
SPACER .35 MTD-1915320
...
39
SCREW-SET MTD-GW-9677
...
40
WASHER 2.5X.316X.0 MTD-GW-94018
...
41
CLIP-SPECIAL MTD-GW-9218
...
42
Socket Hd. Capscrew, 1/4-20 x 1 MTD-GW-9719
...
43
Toplock Nut, 1/4-20 MTD-712-0324

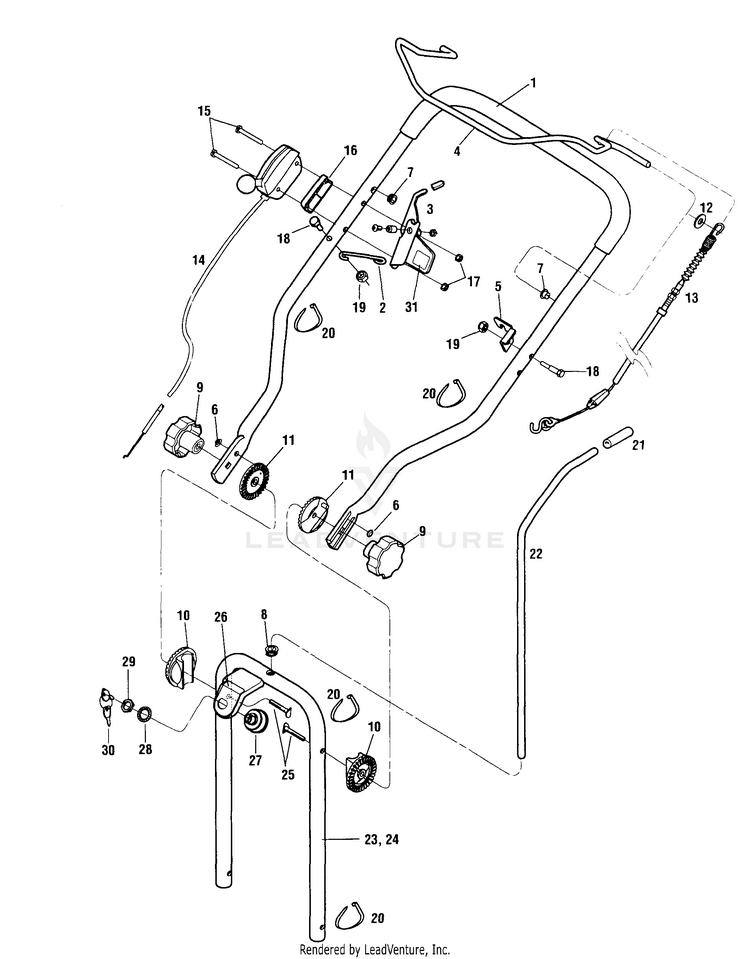

Handlebar Assembly

...
...
1
H/BAR-UPPER W/FOAM MTD-1904422
...
2
ROPE GUIDE NLA See Model T 5E MTD-1915309
...
3
ASSM-BAIL NLA MTD-1904424
...
4
BAIL NLA MTD-1915270001
...
5
CABLE BRACKET MTD-1749977001
...
6
RETAINER MTD-1765879
...
7
BUSHING-PLASTIC MTD-1908677
...
8
BEARING-NY MTD-1761046
...
9
ADJUSTING KNOB NLA MTD-1909250
...
10
Inside Hndlbr. Adj. Quadrant MTD-1903403
...
11
QUADRANT-OUTER MTD-1903404099
...
12
FLAT WASHER, 5/16 NLA MTD-1915340
...
13
Control Cable MTD-1910852P
...
14
THROTTLE CONTROL MTD-1910833
...
15
SCREW-PH MTD-1908793
...
16
SPACER NLA MTD-1909291
...
17
NUT-HK MTD-1983039
...
18
SCREW 1/4- NLA MTD-1983658
...
19
Top Lock Nut, 1/4-20 MTD-712-0324
...
20
Cable Tie MTD-725-0157
...
21
GRIP-HANDLE NLA MTD-1718534
...
22
Upper Steering Rod NLA MTD-1915279001
...
23
HANDLEBAR-LOWER See Model T 4 MTD-1910809001
...
24
HANDLEBAR-LOWER NLA See Model T 5E MTD-1904508
...
25
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
26
DECAL-KEYSWITCH NLA See Model T 5E MTD-1904406
...
27
SWITCH See Model T 5E MTD-1900455P
...
28
Lockwasher, 5/8 See Model T 5E MTD-736-0225
...
29
Hex Nut, 5/8-32 See Model T 5E MTD-712-0252
...
30
Ignition Key See Model T 5E MTD-925-0201
...
31
DECAL-BAIL RELEASE MTD-1904512

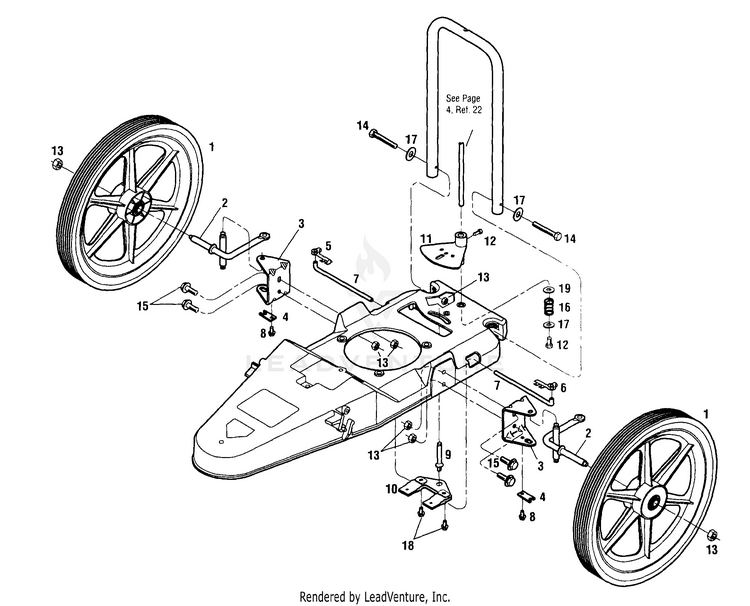

Lower Steering Assembly

...
...
1
WHEEL - 6 SPOKE NLA MTD-1910823
...
2
WELDMENT-W MTD-1910820001
...
3
WHEEL MOUNTING BRACKET NLA MTD-1915213001
...
4
WHEEL ARM RETAINER NLA MTD-1915218001
...
5
Rod End Clip/Right Side MTD-1765550
...
6
Rod End Clip/Left Side MTD-1765551
...
7
LINK-STEER NLA MTD-1910819
...
8
SCREW 1/4-20 TAPTI MTD-1909301
...
9
SHOULDER STUD NLA MTD-1915802
...
10
CLAMP LINK NLA MTD-1915803001
...
11
LINK-TRIM NLA MTD-1910811001
...
12
HEX SCREW NLA MTD-1111696
...
13
HEX LOCK NUT MTD-1744708
...
14
BOLT - HEX HD, 5/16-18 x 2 NLA MTD-1111606
...
15
Hex Flange Screw, 5/16-18 x 1 MTD-710-04048
...
16
SPRING NLA MTD-1725279
...
17
Washer, 5/16 ID NLA MTD-9901
...
18
Hex Flange Screw, 5/16-18 x 5/8 MTD-710-04049
...
19
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326

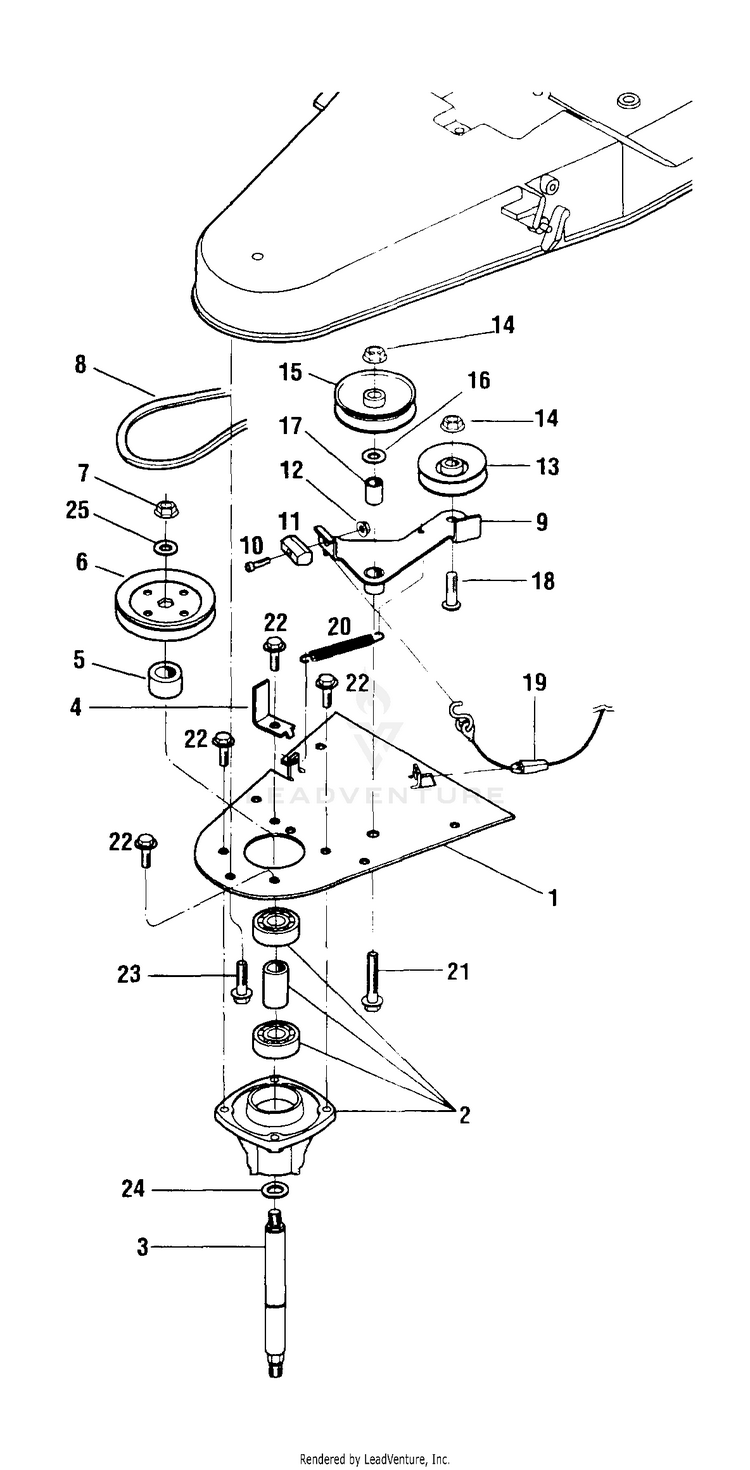

Spindle Plate Assembly

...
...
1
PLATE-SPINDLE MTG MTD-1910850001
...
2
Spindle Assembly MTD-1769048099
...
3
SPINDLE SHAFT W/WASHER # 992 (Incl. Ref. 25) MTD-1915477
...
4
BELT GUIDE MTD-1910860001
...
5
SPACER-SPINDLE MTD-1910856
...
6
Spindle Pulley NLA MTD-1910842
...
7
Hex Flange Nut, 1/2-13 MTD-712-3022
...
8
V-Belt MTD-1915555
...
9
ARM-IDLER W/BRAKE NLA MTD-1904479
...
10
SCREW-HXSKT M10-24 MTD-1910859
...
11
BRAKE SHOE MTD-1910847
...
12
NUT-HK MTD-1983039
...
13
IDLER-V MTD-1727978
...
14
Hex Flange Nut, 3/8-16 MTD-1186393
...
15
IDLER PULLEY MTD-1910855
...
16
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
17
IDLER SPACER PULLE MTD-1910854
...
18
Button Head Screw, 3/8-16 x 1-1/2 NLA MTD-1910857
...
19
Control Cable (See "Handlebar Assembly" illustration and parts list Ref. 13) MTD-1910852P
...
20
SPRING-TENSION IDL MTD-1910849
...
21
HEX SCREW FLANGE MTD-1910858
...
22
Hex Flange Screw, 5/16-18 x 3/4 MTD-710-1260A
...
23
Hex Flange Screw, 5/16-18 x 1 MTD-710-0602
...
24
WASHER 1.022 MTD-GW-9953
...
25
Belleville Washer, 5/8 MTD-GW-9928

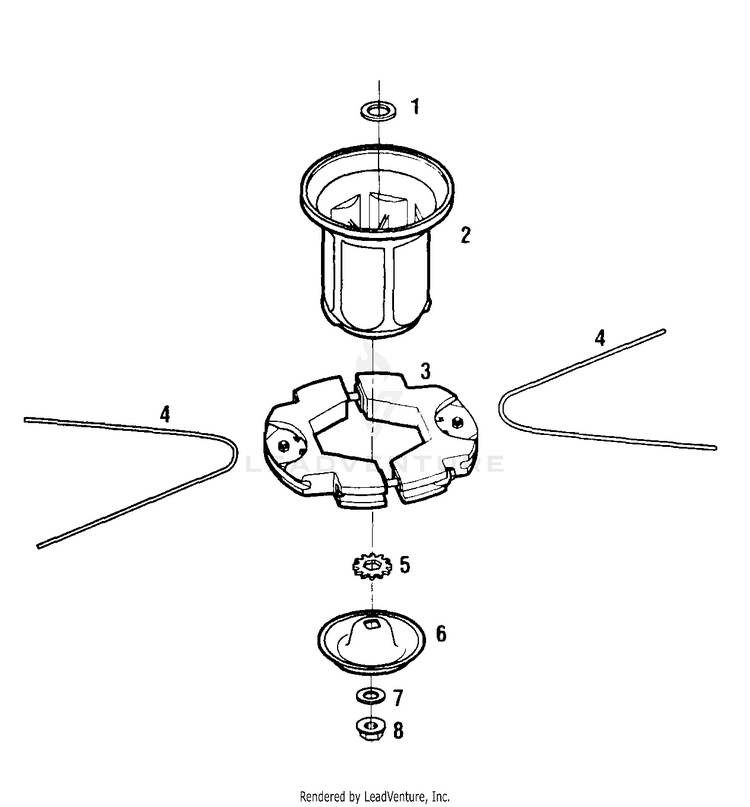

Trim Head Assembly

...
...
1
WASHER-SHO NLA MTD-1910863
...
2
Spindle Head NLA MTD-1910861
...
3
TRIMMER HEAD KIT MTD-1918879
...
4
Trimmer String (See "Accessories And Kits" illustration and parts list) MTD-NA
...
5
WASHER-HEX/SPLINED MTD-1910862
...
6
WEAR CUP MTD-1915220001
...
7
WASHER MTD-1915239
...
8
Hex Flange Nut, 1/2-13 MTD-712-3022
