White Outdoor 24AD595C190 33 Ton Log Splitters (2000) LS33T (2000) Log Splitter

Model: 24AD595C190 33 Ton Log Splitters (2000)

Save Part Not Listed?
product name

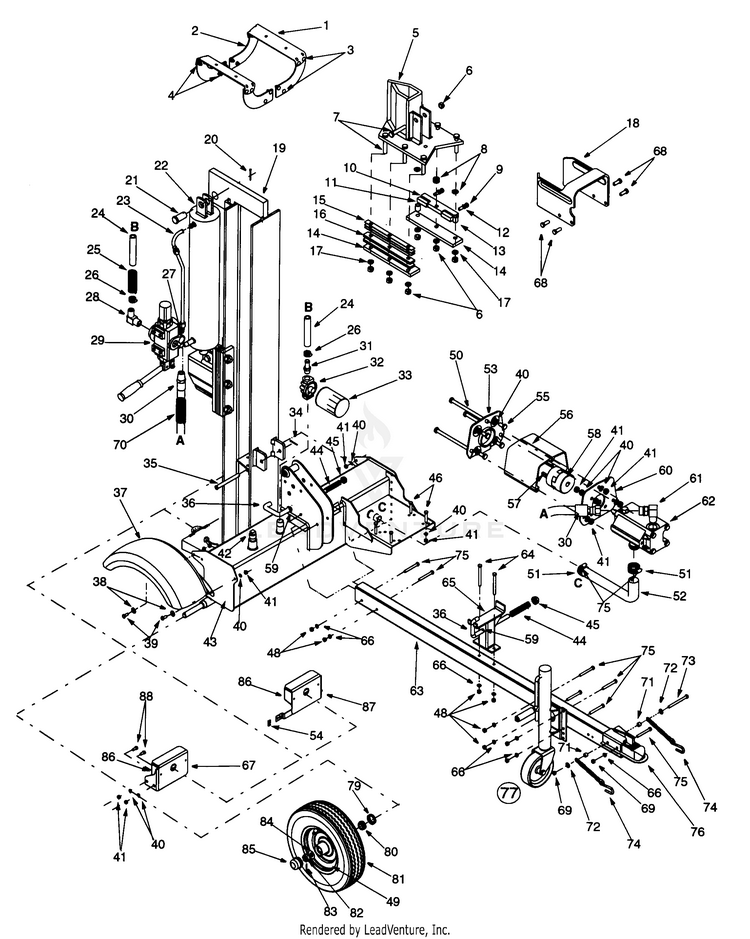

General Assembly

...
...
1
Log Cradle MTD-753-05424
...
2
LOGSPLITTER TRAY BRACKET MTD-753-05423
...
3
Carriage Bolt, 3/8-16 x 1.0 MTD-710-3097
...
4
Flanged Lock Nut, 3/8-16 MTD-912-0431
...
5
Wedge Assembly MTD-753-04120
...
6
Nut, Hex Center Lock, 1/2-20 MTD-712-0239
...
7
Hex Head Screw, 1/2-20 x 2.75 MTD-710-1018
...
8
Flat Washer, .531 ID x .94 OD MTD-936-0192
...
9
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
10
Floating Gib Plate *CHOOSE COLOR WHEN ORDERING* MTD-781-0356
...
11
Adjustable Gib, 5/8 x 5/8 x 2 MTD-781-0351
...
12
Hex Jam Nut, 3/8-24 MTD-912-3001
...
13
SPACER MTD-950-0750
...
14
Back Bracket Plate *CHOOSE COLOR WHEN ORDERING* MTD-781-0537
...
15
ADJUSTABLE GUB SHIM MTD-781-0352A-0637
...
16
Fixed Gib Shim *CHOOSE COLOR WHEN ORDERING* MTD-781-0350A
...
17
L-Wash. 1/2" I.D. MTD-736-0921
...
18
Log Dislodger Bracket *CHOOSE COLOR WHEN ORDERING* MTD-781-0525
...
19
LOGSPLITTER BEAM ASSEMBLY MTD-981-04080
...
20
Cotter Pin MTD-714-0211
...
21
CYLINDER MOUNTING PIN MTD-711-1135
...
22
LOGSPLITTER CYLINDER 5 x 24 replace with 718-0313A MTD-918-0313A
...
22
Kit Seal 5.0" for Fisher Hydraulics cylinder 718-0313 Fisher cylinders use a snap ring retainer system to secure the piston assembly into the cylinder. MTD-753-0564
...
22
KIT-SEAL L NLA - BEST cylinders will have "BM" or "BEST" cast into the end cap. MTD-753-0691
...
22
LOGSPLITTER CYLINDER 5 x 24 replaces 718-0313 MTD-918-0313A
...
22
SEAL KIT 5.0" XINGHUI See Service Kit 753-05609 MTD-953-05609
...
22
SEAL KIT 5.0" ENERGY See Service Kit 753-05610 MTD-953-05610
...
23
HYDRAULIC TUBE MTD-727-0471
...
24
Return Hose, 3/4 x 44 Lg MTD-727-0443
...
25
Hose Guard, 44" MTD-781-0526A
...
26
Hose Clamp MTD-726-0132
...
27
Tube Adapter MTD-737-0192
...
28
Return Elbow MTD-737-0153
...
29
Control Valve MTD-918-0481A
...
30
High Pressure Hydraulic Hose MTD-727-0502
...
31
HOSE BARB-3/4 IN MTD-737-0235
...
32
FILTER HOUSING MTD-681-0179
...
33
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
34
Cotter Pin 1/8" Dia. MTD-714-0470
...
35
HINGE PIN MTD-738-0805
...
36
Locking Rod MTD-781-0690
...
37
LOGSPLITTER FENDER *CHOOSE COLOR WHEN ORDERING* MTD-781-04000
...
38
Fl-Wash. .344" I.D. MTD-736-0159
...
39
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157
...
40
Lock Washer, 5/16 MTD-936-0119
...
41
Hex Nut, 5/16-24 MTD-912-3057
...
42
Vented Dipstick MTD-737-0348A
...
43
FRAME WELDMENT NLA MTD-681-0103A
...
44
Compression Spring, 4" MTD-732-0583
...
45
Push Cap MTD-726-0214
...
46
Hex Cap Screw, 5/16-24 x 1.75 MTD-710-0409
...
48
Hex Nut, 3/8-16 MTD-712-0798
...
49
RIM ASSEMBLY (3.75 x 8.0) (GRAY) MTD-634-0188
...
50
HEX SCREW 5/16-24X5.25LG NLA MTD-710-1253
...
51
Hose Clamp MTD-726-0174
...
52
Suction Hose MTD-727-0451
...
53
Front Coupling Support Bracket MTD-781-0098A-0637
...
54
Speed Clip MTD-712-0292
...
55
Hex Cap Screw, 5/16-24 MTD-710-0237
...
56
SHIELD COUPLING MTD-719-0315
...
57
Key, 1/4 x 2.00 for 1" diameter crankshaft MTD-914-0114
...
57
Square Key 3/16" x .75 for 7/8" diameter crankshaft MTD-714-0122
...
58
LOGSPLITTER COUPLING 1.00 Not shown, for 1" diameter crankshaft, use with 718-04128 MTD-718-04393
...
58
Coupling .875 Not shown, for 7/8" diameter crankshaft, use with 718-04128 MTD-718-04395
...
58
Coupling .500 Not shown, use with 718-04128 MTD-718-04392
...
58
Bushing, Spider Not shown, use with 718-04128 MTD-735-04103
...
58
Flexible Coupling, 1.00 x .4375 use with 718-0684 pump MTD-918-0685
...
59
Flat Washer, .63 x .93 x .060 MTD-936-0116
...
60
Rear Coupling Support Bracket MTD-781-0097-0637
...
61
90 MALE ADAPTER MTD-737-0264
...
62
KIT:LOGSPLITTER PU No longer available, Furnish 753-05195 MTD-753-05195
...
62
KIT:LOGSPLITTER PU includes pump and couplings MTD-753-05195
...
62
Gear Pump, Hyd (15 GPM) MTD-918-04128
...
63
Tongue Tube *CHOOSE COLOR WHEN ORDERING* MTD-781-0680B
...
64
Hex Screw, 3/8-16 x 4.0 MTD-710-0411
...
65
BEAM SUPPORT ASSEMBLY (POWDER BLACK) MTD-681-0110-0637
...
66
L-Wash. 3/8" I.D. MTD-736-0169
...
67
TAIL LIGHT BRACKET MTD-781-0624-0637
...
68
Hex Cap Screw 3/8-16 x 1 MTD-710-0514
...
69
Hex Lock Nut, 3/8-16 MTD-712-0375
...
70
Hose Guard MTD-781-0538A
...
71
Spacer MTD-750-0497
...
72
Flat Washer, 3/8" ID x .87" OD MTD-736-0262
...
73
Hex Bolt, 3/8-16 x 4.25 MTD-710-0944
...
74
Chain MTD-713-0433A
...
75
Hex Bolt, 3/8-16 x 3 MTD-710-0521
...
76
COUPLER-HITCH 1-7 NLA MTD-727-0311
...
77
Adjustable Jack Stand Assembly MTD-981-04029
...
79
Bearing Seal MTD-921-0168
...
80
Cone Bearing MTD-941-04298
...
81
Wheel Assembly MTD-634-0186
...
82
Slotted Nut, 3/4-16 MTD-712-0359
...
83
Cotter Pin MTD-714-0162
...
84
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
85
Hub Cap MTD-734-0873
...
86
TAIL LIGHT ASM NLA MTD-625-0009
...
87
TAIL LIGHT BRACKET (LH) (POWDER BLACK) MTD-681-0074-0637
...
88
Hex Cap Screw, 5/16-24 x .75 MTD-710-0157

Service Kit 753-05609

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA
...
2
O-ring (Large, Black) Not Available Separately MTD-NA
...
3
Backup Ring (Black) Not Available Separately MTD-NA
...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA
...
5
Scraper: Rod (Black) Not Available Separately MTD-NA
...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05610

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA
...
2
Scraper DA17 (Black) Not Available Separately MTD-NA
...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA
...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA
...
5
O-Ring (Black) Not Available Separately MTD-NA
...
6
Back-up Ring (White) Not Available Separately MTD-NA
...
7
INSTRUCTION SHEET Not Available Separately MTD-NA
