White Outdoor 24A-203B190 Yard Boss 550 (1999)

Model: 24A-203B190 Yard Boss 550 (1999)

Save Part Not Listed?
product name

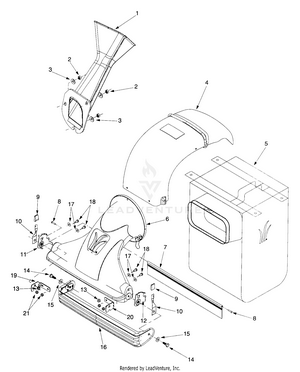

Chute, Nozzle And Bag

...
...
1
CHIPPER CHUTE ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-681-0095
...
2
HEX NUT 5/16-18 MTD-712-3010
...
3
Bell Washer .340 ID x .872 OD MTD-736-0242
...
4
DISCHARGE CHUTE MTD-731-1690A
...
5
Bag MTD-964-04001
...
6
NOZZLE ASSEMBLY (W/O LOGO BLACK) MTD-631-0086
...
7
Nozzle Flap MTD-731-1831
...
8
Screw MTD-710-0969
...
9
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
10
Spring Lever MTD-732-0754
...
11
Index Bracket RH MTD-781-0702-0637
...
12
Index Bracket LH MTD-781-0703-0637
...
13
Hex Flange Lock Nut 3/8-16 MTD-912-0431
...
14
Shoulder Screw MTD-738-0913
...
15
Flat Washer .510 x 1.12 x .060 MTD-736-3084
...
16
DOOR ASSEMBLY (YELLOW) MTD-631-0047
...
17
Flat Washer .28 ID x .74 OD MTD-736-0173
...
18
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
19
NOZZLE REINFORCEMENT BRACKET(RH) MTD-781-0704-0637
...
20
NOZZLE REINFORCEMENT BRACKET(LH) MTD-781-0705-0637
...
21
Hex Flange Lock Nut 1/4-20 MTD-912-3027

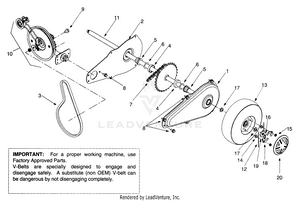

Drive Assembly

...
...
1
CASE CHAIN (LH) *CHOOSE COLOR WHEN ORDERING* MTD-781-0677
...
2
CASE CHAIN (RH) *CHOOSE COLOR WHEN ORDERING* MTD-781-0676
...
3
V-Belt MTD-954-0457
...
4
SPACER-.630 x 1.25 MTD-748-0313
...
5
Hex Flange Bearing MTD-941-0413
...
6
Flat Washer MTD-936-0336
...
7
CHAIN #41X.500 END MTD-913-0422
...
8
Hex Washer Screw 1/4-14 MTD-710-0896
...
9
Hex Washer Screw 5/16 MTD-710-0603
...
10
TRANSMISSION ASSEMBLY MTD-618-0256
...
11
AXLE SHAFT ASSEMBLY MTD-611-0063
...
12
Spring - Nylon MTD-10622B
...
13
Wheel Complete 10 x 4 x 4 MTD-634-0244
...
13
RIM ASSEMBLY (4 x 3.26) *CHOOSE COLOR WHEN ORDERING* MTD-634-0129
...
13
Pneumatic Tire 10.0 x 4.0 MTD-734-1598-0901
...
13
Valve MTD-934-0255
...
13
Flange Bearing .632 ID MTD-741-0487C
...
14
Hex Nut 1/4-20 MTD-712-0456
...
15
Hex Flanged Lock Nut 1/4-20 MTD-912-3027
...
16
Hairpin Clip MTD-714-0104
...
17
Flat Washer 5/8 ID x 1.0 OD MTD-736-0366
...
18
PAWL - (LH) MTD-948-0188B
...
18
Pawl RH .345 ID MTD-748-0381
...
19
Wheel Ratchet 1.62 OD x .5 serr MTD-748-0405
...
20
HUB CAP 4" (YELLOW) MTD-931-1825

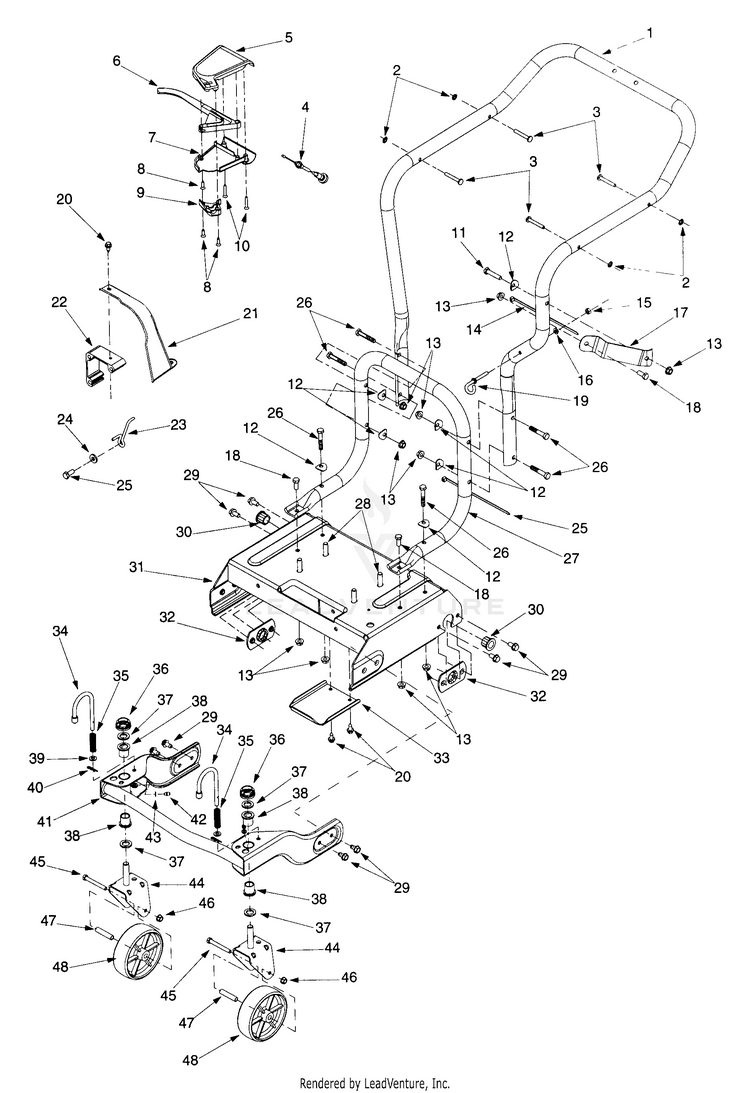

Frame And Handle

...
...
1
HANDLE UPPER COLOR NLA MTD-749-0996
...
2
Push Nut MTD-1539-019
...
3
Stud Pin .250 x 1.75 MTD-911-0737
...
4
Clutch Cable 56" MTD-946-0714
...
5
Upper Clutch Cover MTD-753-0832
...
6
Drive Lever MTD-731-0620A
...
7
Lower Clutch Cover NLA MTD-731-1736
...
8
Screw #10-12 x .750 MTD-710-0841
...
9
Mounting Cable Cap MTD-753-0833
...
10
Screw #10-16 x 1.25 MTD-710-1331
...
11
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
12
Saddle Wash. .32" I.D. MTD-736-0451
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
Cable Tie MTD-725-0157
...
15
Hex Nut 1/4-28 Thd. MTD-712-0138
...
16
Lock Washer 1/4 MTD-936-0329
...
17
STABILIZER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-781-0647
...
18
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
19
EYE-BOLT MTD-747-0815
...
20
Hex Washer Screw 1/4-14 x .625 MTD-710-0896
...
21
BELT COVER MTD-731-1646
...
22
ENGINE MOUNTING ADAPTER MTD-719-0359
...
23
BELT KEEPER MTD-747-0929A
...
24
Flat Washer .344 x .75 x .12 MTD-936-3008
...
25
Hex Cap Screw 5/16-24 x .75 MTD-710-0157
...
26
Hex Cap Screw 5/16-18 x 1.75 MTD-710-3180
...
27
HNDL. LOWER PUSH COLOR NLA MTD-749-0980
...
28
Screw 3/8-16 x 1.25 MTD-710-0502A
...
29
Hex Washer Screw 5/16-18 x .625 MTD-710-0604A
...
30
Hex Flange Bearing .631 x .720 MTD-941-0413
...
31
FRAME ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-681-0097A
...
32
AXLE BRACKET MTD-781-0700-0637
...
33
TRANSMISSION COVER MTD-781-0697-0637
...
34
Lock Pin MTD-747-0924
...
35
Compression Spring MTD-932-0306A
...
36
Push Cap MTD-726-0214
...
37
Flat Washer 5/8 ID x 1.0 OD MTD-736-0366
...
38
Flange Bearing .632 ID MTD-741-0487C
...
39
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
40
Hairpin Clip MTD-714-0104
...
41
Bracket Asm *CHOOSE COLOR WHEN ORDERING* MTD-681-0087
...
42
Grease Fitting 3/16 MTD-937-3000
...
43
Flat Washer .203 ID x .403 OD MTD-736-0931
...
44
Bracket Asm *CHOOSE COLOR WHEN ORDERING* MTD-681-0088
...
45
Hex Cap Screw 3/8-16 x 3.0 MTD-710-0521
...
46
Flange Lock Nut 3/8-16 MTD-912-0431
...
47
Spacer MTD-750-1042
...
48
Wheel 6.0 x 2.0 MTD-734-1804A

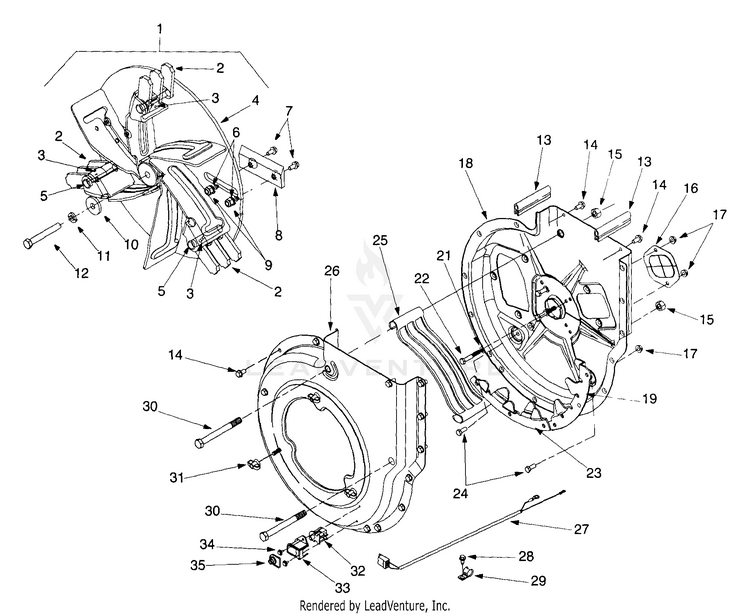

Impeller Assembly

...
...
1
IMPELLER ASSEMBLY (For model 103A) MTD-981-04090
...
1
IMPELLER ASSEMBLY (For model 203B) MTD-981-04090
...
2
Flail Blade MTD-719-0329
...
3
Spiral Pin MTD-715-0166
...
4
Impeller Assembly (For model 103A) MTD-981-04091
...
4
IMPELLER ASSEMBLY (For model 2038) MTD-981-04090
...
5
Clevis Pin MTD-911-0833B
...
6
Lock Washer 5/16 MTD-936-0119
...
7
Cap Screw 5/16-24 x 1.0 MTD-710-1054
...
8
Chipper Blade MTD-981-0490
...
9
Hex L-Nut 5/16-24 Thd. MTD-712-0411
...
10
Flat Washer .406 x 1/1/4 MTD-736-0247
...
11
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
12
Hex Cap Screw 3/8-24 x 2.75 MTD-710-1273
...
13
Rubber Seal MTD-723-0438
...
14
Hex Washer Screw 5/16-18 MTD-710-0604A
...
15
Hex Lock Nut 1/2-13 MTD-912-0384
...
16
CHIPPER BLADE COVER *CHOOSE COLOR WHEN ORDERING* MTD-781-0627
...
17
HEX FLANGE NUT MTD-712-3004A
...
18
FLAIL HOUSING ASSEMBLY (INNER) *CHOOSE COLOR WHEN ORDERING* MTD-681-0098
...
19
Upper Shredder Blade MTD-781-0599-0637
...
21
Lock Washer 5/16 MTD-936-0119
...
22
Hex Cap Screw 5/16-18 x 2 MTD-710-0772
...
23
Flail Housing Blade MTD-781-0653-0637
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
Discharge Screen MTD-719-0326
...
26
OUTER FLAIL HOUSING ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-681-0060
...
27
Wire Harness MTD-929-0241A
...
28
Hex Washer Screw 1/4-14 MTD-710-0896
...
29
Clamp MTD-726-0272
...
30
Hex Cap Screw 1/2-13 x 5.0 MTD-710-0382
...
31
Knob 5/16-18 MTD-712-0421
...
32
Switch MTD-925-3166
...
33
Safety Switch Mounting Cover MTD-931-1613
...
34
Hex Washer Screw MTD-710-1268
...
35
Switch Cover MTD-925-1700

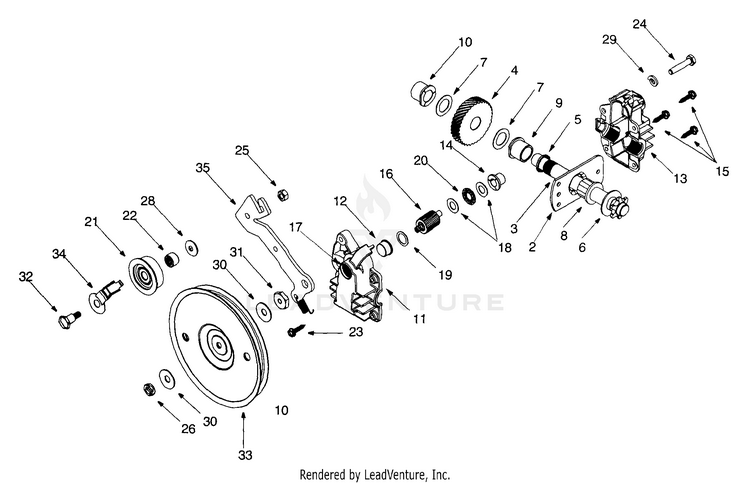

Transmission Assembly

...
...
1
TRANSMISSION Complete MTD-918-0255
...
2
CUP BEARING HEX MTD-16500A-0637
...
3
SHAFT W/SPRKT. 6TH MTD-911-1118
...
4
HELICAL GEAR 34T MTD-717-1432
...
5
Oil Seal MTD-721-0213
...
6
Flat Washer .64 ID x 1.24 OD MTD-736-0187
...
7
Flat Washer 5/8 x 1.0 MTD-936-0336
...
8
Hex Flange Bearing .631 ID MTD-941-0413
...
9
Flange Bearing .629 ID MTD-741-0414
...
10
Flange Bearing .566 ID MTD-941-0415
...
11
LOWER HOUSING MTD-719-0325
...
12
Flange Bearing .503 ID MTD-748-0373
...
13
UPPER HOUSING MTD-719-0324A
...
14
Flange Bearing .378 ID MTD-748-0208A
...
15
Hex Washer Screw #10-16 x .15 MTD-710-0589
...
16
Pinion Shaft 10T MTD-717-1433
...
17
Oil Seal MTD-921-0329
...
18
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
19
Flat Washer .504 ID x .70 OD MTD-936-0520
...
20
Thrust Bearing .375 ID x .812 OD MTD-741-0479
...
21
Pulley Ass'y Idler w/ Bearing MTD-956-0008
...
22
Needle Brg. .375" x .31 MTD-741-0556
...
23
Hex Screw #10-16 x .75 MTD-710-0589
...
24
Hex Cap Screw 1/4-20 x 1.25 MTD-710-1062
...
25
Hex Nut 1/4-28 Thd. MTD-712-0138
...
26
Hex Jam Nut 5/16-24 LH Thd MTD-912-3045
...
27
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
28
SPRING WASHER BELL MTD-736-0270
...
29
Lock Washer 1/4 MTD-936-0329
...
30
Bell-Wash. .325" I.D. MTD-736-0425
...
31
Shoulder Spacer .375 ID x .165 OD MTD-738-0440
...
32
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
33
Flat Pulley 5.06 Dia. MTD-756-0656
...
34
Belt Keeper MTD-782-7569
...
35
Idler Bracket MTD-682-0054
