White Outdoor 244-638-190 Log Splitter (1994)

Model: 244-638-190 Log Splitter (1994)

Save Part Not Listed?
product name

Log Splitter 31 Ton

...
...
1
Slotted Nut 3/4-16 Thd MTD-712-0359
...
2
Cotter Pin 5/32" Dia MTD-714-0162
...
3
Hub Cap MTD-734-0873
...
4
Wheel Ass'y. Comp. MTD-634-0186
...
4
Tire Only MTD-734-0872
...
4
RIM ASSEMBLY (3.75 x 8.0) (GRAY) MTD-634-0188
...
4
Air Valve Only MTD-934-0255
...
5
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
6
Bearing Cone MTD-941-04298
...
7
L-Wash. 1/2" I.D. MTD-736-0921
...
8
90ø Solid Male Adaptor MTD-737-0192
...
9
Pipe Nipple 1/2 NPT MTD-737-0238
...
10
Bearing Cup MTD-941-04299
...
11
Fl-Wash. .531" I.D. x .94" O.D. MTD-936-0192
...
12
Hex Cap Scr. 3/8-16 x 1" Lg. MTD-710-0514
...
13
Dislodger *CHOOSE COLOR WHEN ORDERING* MTD-781-0525
...
15
Hex Bolt 1/2-20 x 2.75" Lg (Grade 8) MTD-710-1018
...
16
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-0459A
...
17
Nut, Hex Center Lock, 1/2-20 MTD-712-0239
...
19
Hex Jam Nut 3/8-24 Thd (Grade 5) MTD-912-3001
...
21
Comp. Spring 4" Lg. MTD-732-0583
...
23
Wedge Ass'y. MTD-753-04120
...
24
Back Plate *CHOOSE COLOR WHEN ORDERING* MTD-781-0537
...
25
Fixed Side Gib *CHOOSE COLOR WHEN ORDERING* MTD-781-0350A
...
26
Adjustable Gib MTD-781-0351
...
27
ADJUSTABLE GUB SHIM MTD-781-0352A-0637
...
28
Floating Gib Plate *CHOOSE COLOR WHEN ORDERING* MTD-781-0356
...
29
External Cotter Pin NLA MTD-714-0203
...
30
PIN-CYLINDER MTG NLA MTD-715-0216
...
31
CYLINDER-HYDRO-5.0 NLA MTD-718-0247
...
32
Control Valve MTD-918-0481A
...
33
Metal Pressure Tube NLA MTD-727-0323
...
34
Hose Guard, 44" MTD-781-0526A
...
35
Return Elbow MTD-737-0153
...
36
ADAPTER NLA MTD-737-0279
...
37
HOSE BARB-3/4 IN MTD-737-0235
...
38
Hose Clamp 1.5" O.D MTD-726-0174
...
39
Hex Bolt 3/8-16 x 3" Lg (Grade 8) MTD-710-0521
...
40
SCREW 3/8-16 x 4.75 GR5 NLA MTD-710-3153
...
41
Hex Bolt 3/8-16 x 4.25" Lg. MTD-710-0944
...
44
Hex Nut 3/8-16 Thd. MTD-712-0798
...
45
Chain - Tow Hitch MTD-713-0433A
...
46
ROLL PIN NLA MTD-715-0116
...
47
COUPLER-HITCH 1-7 NLA MTD-727-0311
...
49
Fl-Wash. .635" I.D. x .93" O.D. MTD-936-0116
...
50
L-Wash. 3/8" I.D. MTD-736-0169
...
52
Spacer .445" Lg. MTD-750-0497
...
54
TUBE ASSEMBLY-TONGUE COLOR NLA MTD-781-0368A
...
55
ROD ASSEMBLY-LOCKING NLA MTD-781-0370A
...
57
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
58
FILTER HOUSING MTD-681-0179
...
60
Return Hose 3/4" I.D. x .44" Lg MTD-727-0443
...
61
Hose Guard MTD-781-0538A
...
62
BEAM ASSEMBLY-VERTICLE NLA MTD-681-0014
...
63
90 MALE ADAPTER MTD-737-0264
...
64
HOSE CLAMP-3/8 NLA MTD-726-0199
...
65
FUEL HOSE 1/4-24" MTD-751-22813-24
...
66
Cotter Pin 1/8" Dia. MTD-714-0470
...
67
TANK MOUNTING BRACKET MTD-781-0535
...
68
HINGE PIN MTD-738-0805
...
69
Fuel Tank Ass'y MTD-BS-691993
...
70
SUPPORT BRACKET MTD-781-0536
...
71
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
72
MUFFLER GUARD NLA MTD-751-0580
...
73
Hex Bolt 5/16-24 x 1" Lg MTD-710-0888
...
74
Hex Bolt 5/16-24 x 62" Lg MTD-710-0237
...
75
HEX SCREW 5/16-24X5.25LG NLA MTD-710-1253
...
76
Hex Nut 5/16-24 Thd MTD-912-3057
...
77
Sq -Key 1/4" x 2" Lg MTD-914-0114
...
78
COUPLING-FLEX NLA MTD-717-0462
...
79
KIT:LOGSPLITTER PU MTD-753-05195
...
80
SHIELD COUPLING MTD-719-0315
...
81
Hose Clamp 5/8" MTD-726-0132
...
82
Suction Hose 1" I.D. MTD-727-0451
...
83
HOSE-HIGH PRESSURE NLA MTD-727-0452
...
84
L-Wash 5/16" I.D. MTD-936-0119
...
85
Rear Coupling Support Brkt MTD-781-0097-0637
...
87
Hex Bolt 5/16-24 x 75" Lg MTD-710-0157
...
88
Hex Bolt 5/16-24 x 1.75" Lg MTD-710-0409
...
89
Engine MTD-NA
...
90
Fl-Wash. .344" I.D. MTD-736-0159
...
91
Vented Dipstick MTD-737-0348A
...
92
INSULATOR-SPARK PLUG MTD-735-0639
...
93
FENDER *CHOOSE COLOR WHEN ORDERING* MTD-781-0556
...
94
SUPPORT ASS'Y NLA MTD-681-0008
...
95
FRAME WELDMENT NLA MTD-681-0011
...
96
Grip MTD-720-04088
...
97
Control Handle MTD-947-0583
...
102
SPACER MTD-950-0750
...
103
Bearing Seal Only MTD-921-0168
...
104
Fl-Wash 3/8" I.D. x .87" O.D. MTD-736-0262
...
105
Jack Stand MTD-981-04029
...
106
Hex AB-Tap Scr 1/4 x 3/4" Lg. MTD-710-0895
...
107
SCREW-TRUSS MACH AB-TAPP #8 X NLA MTD-710-0200
...
108
Hex Bolt 1/4-20 x 5" Lg. MTD-910-0289
...
109
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
110
BRACKET-JACKSTAND *CHOOSE COLOR WHEN ORDERING* MTD-781-0558

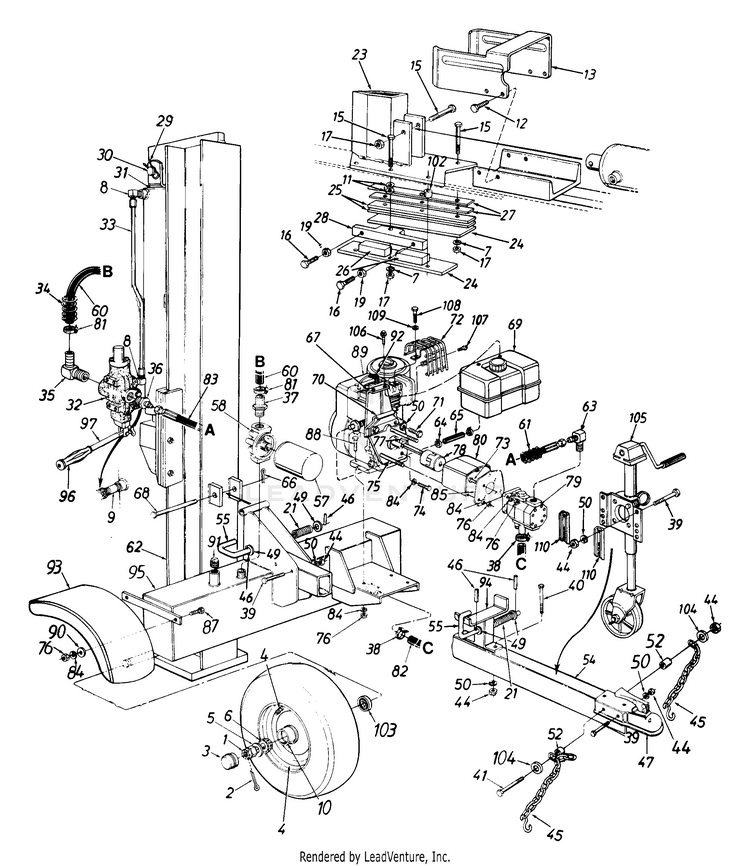

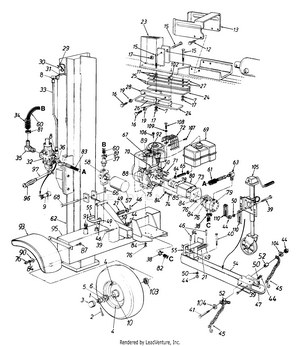

Schematic Image Zoomed
