White Outdoor 241-692-190 Leaf Blower (1991)

Model: 241-692-190 Leaf Blower (1991)

Save
 Part Not Listed?Part Not Listed?
product name

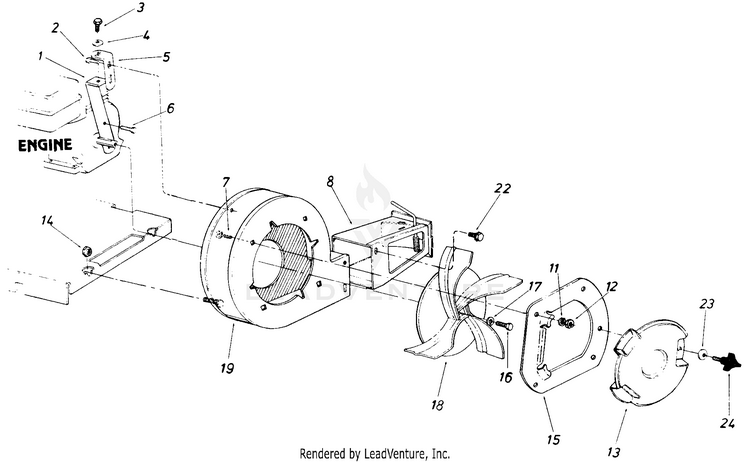

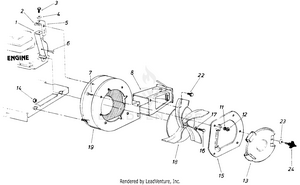

Blower Assembly

...
...
1
HOUSING-ENG BRACE MTD-14539-0637
...
2
SCREW 5/16-24 x .500 MTD-710-0600
...
3
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
4
L.-Wash. 5/16" I.D.* MTD-936-0119
...
5
BRACKET-RIGHT ANGLE MTD-14541-0637
...
6
Hex Locking Bolt 5/16-24 x .75" MTD-710-0627
...
7
Carriage Bolt 5/16-18 x .62" Lg. MTD-710-0260A
...
8
DISCHARGE ASSEMBLY MTD-14479
...
11
L.-Wash. 5/16" I.D.* MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BLOWER GUARD MTD-731-0608
...
14
Hex Shoulder Nut .50" I.D. MTD-911-0758
...
15
PLATE ASSEMBLY-NOZZLE MTD-14563A
...
16
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
17
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
18
AIR VANE PLATE ASS'Y. NLA MTD-14535
...
19
BLOWER HOUSING ASSEMBLY MTD-14496B
...
22
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
23
Belleville Wash. .34" I.D. x .87" O.D. MTD-736-0242
...
24
3-Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170

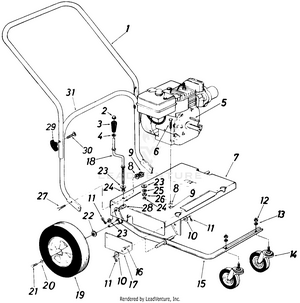

Frame Assembly

...
...
1
Upper Handle (Painted) MTD-749-0784-0637
...
xx
Upper Handle (Chrome) MTD-749-0784-0637
...
2
Push Cap 3/8" Rod MTD-726-0100
...
3
Crank Knob MTD-920-0171
...
4
Fl.-Wash. .385" I.D. x .62" O.D. MTD-936-0117
...
5
Sq. Key 1/4" x 2.0" Lg.* MTD-914-0114
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
FRAME ASSEMBLY-ENG MOUNTING MTD-16453
...
8
L.-Wash. 5/16" I.D.* MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Fl.-Wash. .63" I.D. x 1.25" O.D. MTD-736-0187
...
11
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
12
HEX NUT MTD-712-0206
...
13
L-Wash. 1/2" I.D. MTD-736-0921
...
14
Swivel Caster Wheel 5" Dia. x 1.25" MTD-734-1036
...
15
CASTER ARM ASSEMBLY MTD-16273
...
16
Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg. MTD-710-0726
...
17
CASTER ARM BRACKET MTD-14529
...
18
HEIGHT ADJUSTMENT CRANK MTD-747-0542
...
19
WHEEL ASSEMBLY W/TIRE 12 x 3 MTD-734-1035
...
19
WHEEL ASSEMBLY (11 x 4-4) MTD-634-0147
...
19
Tire Only MTD-734-1598-0901
...
19
RIM ONLY NLA MTD-734-1183
...
19
Flange Bearings MTD-741-0487C
...
20
Fl-Wash. .344" I.D. MTD-736-0159
...
21
Hex Locking Bolt 5/16-24 x .64" Lg. MTD-710-0170
...
22
Fl.-Wash. (692 Only) MTD-736-0162
...
23
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
24
SPACER MTD-950-0528
...
25
L-Wash. 3/8" I.D. MTD-736-0169
...
26
HEX NUT SPECIAL MTD-912-0354
...
27
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
28
FERRULE MTD-911-0797
...
29
Hand Knob MTD-720-04072A
...
30
Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
31
LOWER HANDLE MTD-749-0785
...
...
...
...
...
