White Outdoor 241-645-190 5 HP Shredder (1991)

Model: 241-645-190 5 HP Shredder (1991)

Save Part Not Listed?
product name

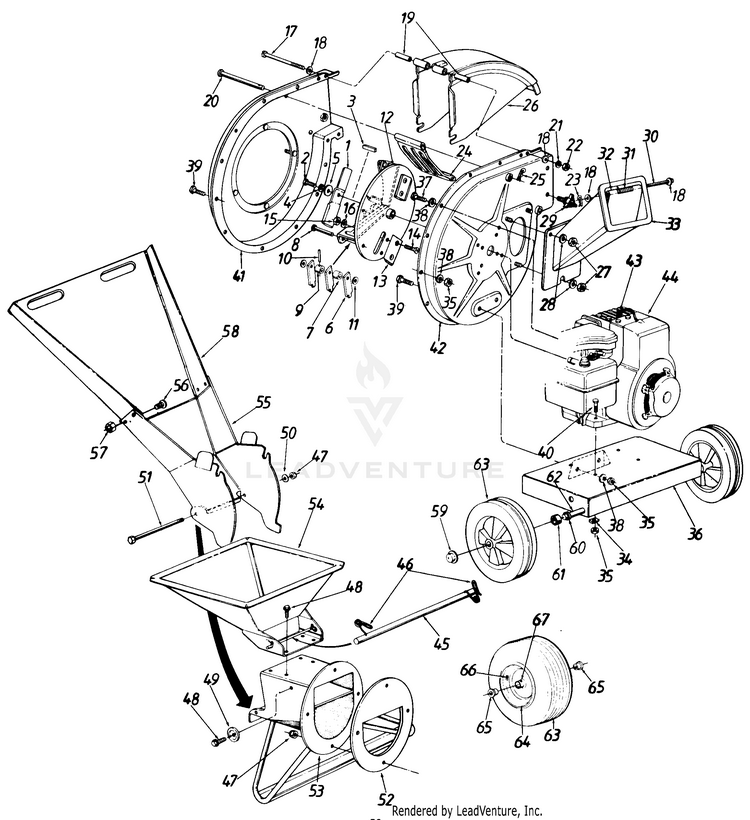

Shredder Assembly

...
...
1
SHREDDER BLADE BLACK MTD-13431-0637
...
2
Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8) MTD-710-0818
...
3
Sq. Key 1/4 x 2.0" Lg. MTD-914-0114
...
4
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
5
Fl-Wash. .406" I.D. x 1.25" O.D. Hdn. MTD-736-0247
...
6
Flail MTD-91459B
...
7
Flail Spacer MTD-911-0564
...
8
Clevis Pin .496" Dia. MTD-911-0833B
...
9
SPACER MTD-911-0834A
...
10
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
11
Fl-Wash. .531" I.D. x .94" O.D. MTD-936-0192
...
12
IMPELLER ASS'Y. NLA MTD-781-0484
...
13
Chipper Blade MTD-981-0490
...
14
Flat Hd. Scr. 5/16-24 x .75" Lg. MTD-710-1054
...
15
Hex L-Nut 5/16-24 Thd. MTD-712-0411
...
16
L-Wash. 5/16" I.D. MTD-936-0119
...
17
Hex Bolt 1/4-20 x 4.0" Lg.* MTD-710-1058
...
18
Fl-Wash. .344" I.D. MTD-736-0159
...
19
Chute Hinge Spacer 1.66" Lg. MTD-950-0793
...
20
Clevis Pin .5" Dia. x 4.62" Lg. MTD-911-0835
...
21
L-Wash. 1/4" I.D. MTD-936-0329
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
Cap Speed Nut 1/4" Rod MTD-926-0106
...
24
Shredder Screen MTD-781-0457-0637
...
25
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
26
DISCHARGE CHUTE ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-681-0094A
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
29
Hand Knob MTD-720-0170
...
30
CHIPPER DOOR ROD MTD-747-0744A
...
31
TORSION SPRING MTD-932-0542
...
32
DOOR NLA MTD-781-0489
...
33
CHIPPER CHUTE NLA MTD-781-0475
...
34
SPECIAL WASHER MTD-736-0170
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
FRAME ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-681-0184C
...
37
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
38
L-Wash. 5116" I.D.* MTD-936-0119
...
39
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
40
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
41
HOUSING ASSEMBLY (LH) NLA MTD-781-0473
...
42
FLAIL HOUSING ASS'Y. R.H. NLA MTD-781-0474
...
43
INSULATOR-SPARK PLUG MTD-735-0639
...
44
Engine MTD-NA
...
45
BAR-RELEASE NLA MTD-747-0531A
...
46
Torsion Spring 1.06" Lg. MTD-932-0546
...
47
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
48
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-1260A
...
49
WASHER-STOP MTD-11480
...
50
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
51
SCREW 5/16-18 x 8.375 GR5 MTD-710-0542
...
52
BACK-UP PLATE NLA MTD-781-0487A
...
53
GUIDE ASSEMBLY-INLET NLA MTD-16522A
...
54
HOPPER ASSEMBLY NLA MTD-11481B
...
55
RAMP SECTION NLA MTD-781-0509
...
56
Truss Mach. Scr. 1/4-20 x .5"* MTD-710-0286
...
57
Hex L-Nut 1/4-20 Thd. MTD-912-0107
...
58
RAMP SECTI NLA MTD-11461B
...
59
Push Cap 518" Dia. Rod MTD-726-0214
...
60
Fl-Wash. .64" I.D. x 1.24" MTD-736-0187
...
61
Spacer .64" I.D. x .38" Lg. MTD-950-0786
...
62
Shredder Axle (645) MTD-738-0814
...
62
Shredder Axle (648) MTD-738-0813
...
63
Wheel Ass'y. Comp. (645) MTD-734-1600
...
63
Wheel Ass'y. Comp. (648) MTD-934-04009
...
63
Tire Only (648) MTD-734-1598-0901
...
64
11 x 4.0 RIM ONLY NLA MTD-734-1455
...
65
Flange bearing .632" I.D. (648) MTD-741-0487C
...
66
Air Valve (648) MTD-934-0255
...
67
GREASE FITTING (SLOTTED) MTD-737-0280
...
xx
SHREDDER BAG (23.5 x 36) (WHITE) MTD-664P04022A
...
xx
Safety Glasses MTD-723-0400
