White Outdoor 215-031-190 3 HP Tiller RB-310 (1985)

Model: 215-031-190 3 HP Tiller RB-310 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

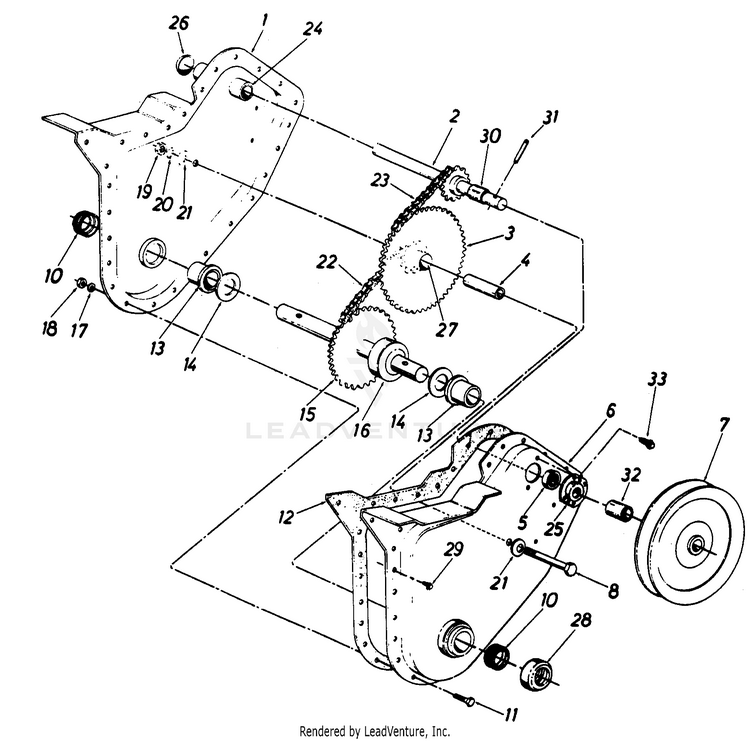

Chain Case Assembly

...
...
1
Chain Case Ass'y. R.H. NLA MTD-04926
...
2
SHAFT ASSEMBLY-INPUT MTD-04756
...
3
SPROCKET & HUB ASSEMBLY MTD-04757A
...
4
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
5
Ball Bearing MTD-941-0155
...
6
CHAIN CASE ASSEMBLY (LH)(POWDER BLACK) MTD-686-0087-0637
...
7
PULLEY MTD-756-0287
...
8
Hex Bolt 3/8-24 x 2.50" Lg.* MTD-710-0369
...
10
SEAL NLA MTD-721-0157
...
11
Hex Bolt 1/4-28 x .625" Lg.* MTD-910-0195
...
12
GASKET MTD-921-0156A
...
13
Flange Brg. .879 I.D. MTD-741-0227
...
14
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
15
SHAFT ASSEMBLY-TINE MTD-04920
...
16
SPACER MTD-750-0354A
...
17
L-Wash. 1/4" Scr.* MTD-936-0329
...
18
Hex Nut 1/4-28 Thd. MTD-712-0138
...
19
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
20
L-Wash. 3/8" I.D. MTD-736-0169
...
21
Bell-Wash. .406 I.D. x 1.130 O.D. MTD-936-0219
...
22
#420 CHAIN 1/2 PITCH x 38 LIN NLA MTD-713-0215
...
23
#35 CHAIN 3/8 PITCH x 50 LINK NLA MTD-713-0216
...
24
BEARING NLA MTD-748-0154
...
25
BEARING HOUSING MTD-05034A
...
26
EXPANSION PLUG NLA MTD-726-0164
...
27
SLEEVE BEARING MTD-941-0228
...
28
DUST CAP MTD-731-0486
...
29
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
30
SPACER NLA MTD-750-0471
...
31
Spring Pin 1.5" Lg. MTD-715-0114
...
32
SPACER NLA MTD-750-0550
...
33
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653

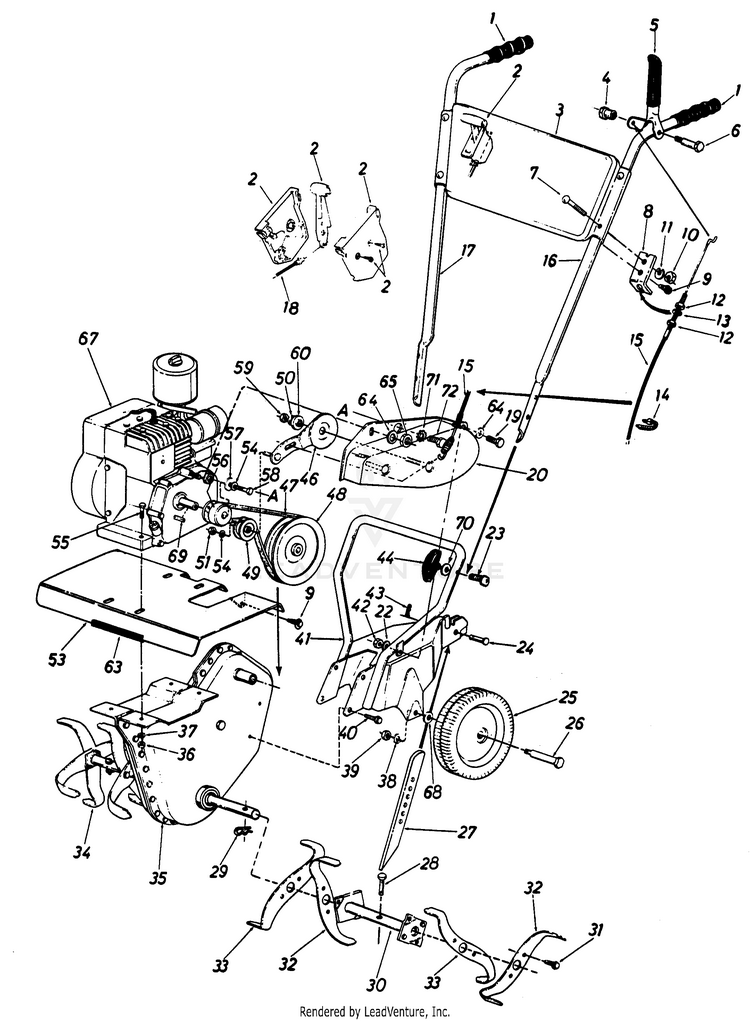

Tiller Assembly

...
...
1
Grip MTD-720-0204
...
2
Throttle Control Box Ass'y. MTD-831-0796A
...
3
PANEL NLA MTD-784-0036
...
4
SHOULDER NUT MTD-938-0561
...
5
CLUTCH GRIP ASS'Y. NLA MTD-784-0007
...
6
Shoulder Bolt 3/8 x 1.160" Lg . MTD-938-0572
...
7
Carriage Bolt 5/16-18 x 1.5" Lg . MTD-710-0262
...
8
BRACKET-CL MTD-15093C
...
9
Hex Wash. Hd. Self-Tap Scr 1/4-20 x .50" Lg. MTD-710-0599
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
L-Wash. 5/16" I.D.* MTD-936-0119
...
12
HEX JAM NUT 5/16-24 MTD-712-0256
...
13
L-Wash. 51/16" I.D.* MTD-936-0119
...
14
Cable Tie MTD-725-0157
...
15
Clutch Control Cable MTD-946-0926
...
16
HANDLE (LH) NLA MTD-749-0631
...
17
HANDLE (RH) NLA MTD-749-0630
...
18
Throttle Control Wire 26" Lg. MTD-946-0634
...
19
Hex Bolt 1/4-20 x .75" Lg.* MTD-710-3015
...
20
Belt Cover Ass'y. NLA MTD-784-0018
...
22
L-Wash. 1/4" I.D.* MTD-936-0329
...
23
Curved Hd. Bolt 5/16-18 x 1.75" Lg. MTD-710-1174
...
24
Clevis Pin MTD-711-0653
...
25
7 x 1.5-PLASTIC RIM NLA MTD-734-0840
...
26
Shoulder Bolt MTD-738-0213
...
27
483DEPTH BAR NLA MTD-04764
...
28
CLEVIS PIN .312 x 1.50 MTD-711-0702
...
29
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
30
ADAPTER ASSEMBLY-TINE MTD-04918-0637
...
31
Hex Wash. Hd. Self-Tap Scr 1/4-20 x .50" Lg. MTD-710-0599
...
32
TINE (LH) MTD-04923-0637
...
33
TINE (RH) MTD-04922-0637
...
34
TINE ASSEMBLY-COMP MTD-04921-0637
...
35
Chain Case Ass'y. Comp. NLA MTD-04924
...
36
HEX NUT 5/16-18 MTD-712-3010
...
37
L-Wash. 5/16" I.D.* MTD-936-0119
...
38
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
39
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
40
SCREW 5/16-24 x .500 MTD-710-0600
...
41
483SUPPORT BRKT. ASS'Y. NLA MTD-04762
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
Hairpin Clip MTD-714-0104
...
44
Hand Knob MTD-720-04072A
...
46
IDLER ARM NLA MTD-784-0016
...
47
Belt 3/8" x 29" Lg. MTD-954-0216
...
48
PULLEY MTD-756-0287
...
49
Fl-ldler 2" MTD-756-0199
...
50
L-Wash. 5/16" I.D.* MTD-936-0119
...
51
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
53
Tine Shield NLA MTD-04765
...
54
L-Wash. 3/8" I.D. MTD-736-0169
...
55
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
56
PULLEY MTD-756-0286
...
57
Fl-Wash. .385" I.D. x 1.00" O.D. MTD-736-0258
...
58
Hex Bolt 3/8-24 x 1.00" Lg.* MTD-710-1039
...
59
HEX NUT 5/16-18 MTD-712-3010
...
60
Shld. Spacer .50" Dia. x .133 MTD-936-0289
...
63
Trim Strip 4" MTD-731-0511
...
64
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
65
Hex Cent. L-Nut 1/4-20 Thd. MTD-912-0107
...
67
Engine MTD-NA
...
68
Bell-Wash. MTD-936-0219
...
69
Square Key 3/16" x .75 MTD-714-0122
...
70
Bell-Wash. MTD-736-0242
...
71
EXT. L-WASH. 1/2" I.D. NLA MTD-736-0190
...
72
HEX SCREW 1/2/20 x .75 SPEC NLA MTD-710-0121
...
...
...
...
...
