White Outdoor 214-410-190 Roto Boss 530 (1994)

Model: 214-410-190 Roto Boss 530 (1994)

Save
 Part Not Listed?Part Not Listed?
product name

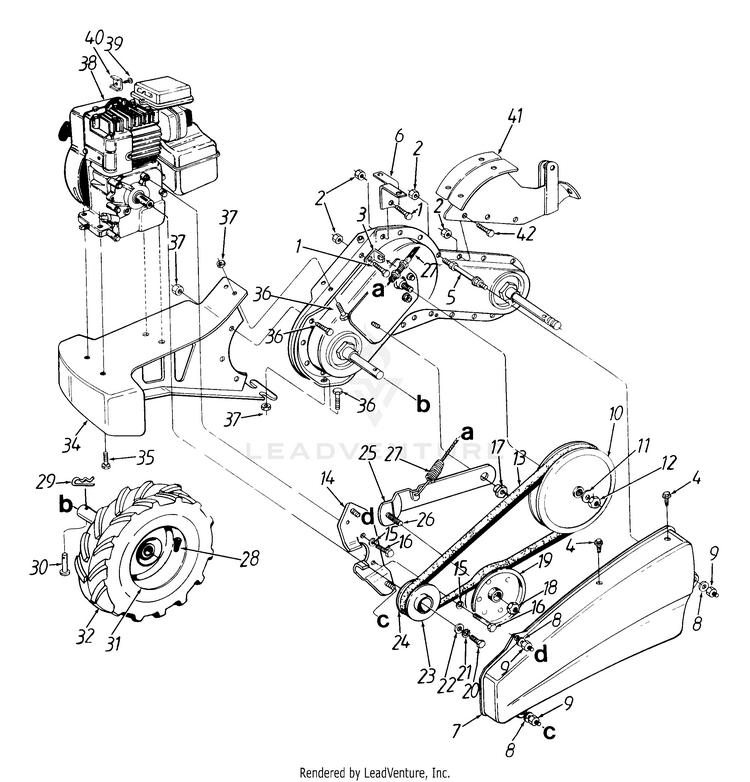

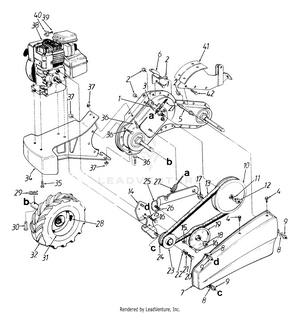

Engine, Frame & Wheel

...
...
1
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
CABLE BRACKET MOUNTING MTD-786-0107
...
4
Torx Mach. AB - Tap Scr. 1/4 x .6" Lg. MTD-710-1017
...
5
BELT COVER BOLT MTD-738-0899
...
6
BRACKET CO NLA MTD-786-0117
...
7
BELT COVER *CHOOSE COLOR WHEN ORDERING* MTD-786-0100
...
8
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
9
Hex Cap Nut 1/4-28 Thd. MTD-712-0392
...
10
Flat Pulley 8" O.D. MTD-756-0634
...
11
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
12
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
13
V - Belt MTD-954-0438
...
14
BELT KEEPER BRACKET (POWDER BLACK) MTD-686-0031A-0637
...
15
L-Wash. 5/16" I.D. MTD-936-0119
...
16
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
17
Shld. Nut MTD-738-0876A
...
18
Hex Jam L-Nut 3/8-16 Thd. MTD-712-0266A
...
19
Fl-Idler w/Flanges MTD-756-0405
...
20
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
21
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
22
Fl-Wash. 3/8" I.D. x 1" O.D. MTD-736-0258
...
23
Outer Engine Pulley Half MTD-756-0972
...
24
Inner Engine Pulley Half MTD-756-0971
...
25
IDLER BRACKET MTD-786-0080-0637
...
26
Hex Cap Bolt 3/8-16 x 1.25" Lg. MTD-710-0723
...
27
Clutch Cable MTD-946-0916
...
28
Air Valve MTD-934-0255
...
29
Hairpin Clip MTD-714-0104
...
30
Clevis Pin MTD-711-1017
...
31
RIM ASSEMBLY (6.0 x 3.25) *CHOOSE COLOR WHEN ORDERING* MTD-634-0112
...
32
WHEEL ASSEMBLY (14 x 4.5X 6) (RH) (GREY) MTD-634-0240
...
32
WHEEL ASSEMBLY (14 x 4.5X 6) (LH) (GREY) MTD-634-0241
...
32
Tire MTD-734-1796A
...
34
COUNTER WEIGHT MTD-919-0009A
...
35
Hex L-Wash TT-Tap Scr. 3/8-16 Thd. MTD-710-1007
...
36
Hex Cap Bolt 5/16-18 x 1" Lg. (Gr. 5) MTD-710-0376
...
37
HEX FLANGE NUT MTD-712-3004A
...
38
Engine MTD-NA
...
39
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
40
Casing Clamp MTD-751B221535
...
41
TINE SHIELD BRACKET ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0043A
...
42
Hex Cap Bolt 5/16-18 x 7/8" Lg. MTD-710-3038

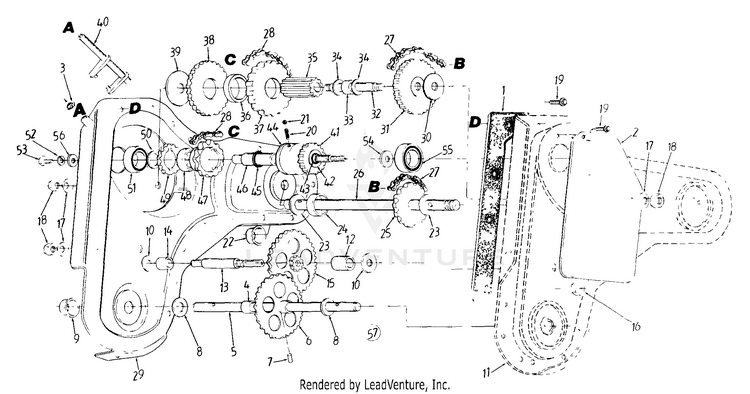

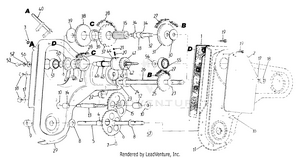

Gear Case

...
...
1
CHAIN CASE GASKET MTD-721P0295
...
2
Reinforcement Plate MTD-786-0086-0637
...
3
Snap Ring MTD-716-0865
...
4
SPACER MTD-950-0938
...
5
TILLER WHEEL AXLE KIT MTD-753-0645
...
6
TILLER WHEEL AXLE KIT MTD-753-0645
...
7
PIN TYPE "E" GROOVED NLA MTD-715-0215
...
8
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
9
Dust Cover Ass'y..75" Shaft MTD-721-0379
...
10
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
11
GEAR CASE ASSEMBLY HALF (LH) MTD-986-0039-0637
...
12
SPACER MTD-750-0935
...
13
JACK SHAFT MTD-738-0885
...
14
SPACER MTD-950-0936
...
15
IDLER GEAR ASSEMBLY MTD-917-0004
...
16
Hex Patch L-Nut 7/16-20 Thd. MTD-712-3067
...
17
Bell-Wash. .45" I.D. x 1" O.D. MTD-736-0407
...
18
Hex Nut 7/16-20 Thd. MTD-712-0378
...
19
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
20
DETENT SHAFT SPRING MTD-932-05125
...
21
DETENT BALL .250 MTD-741-0862
...
22
Dust Cover Ass'y. 1" Shaft MTD-921-0378
...
23
Thrust Wash. 1.03" I.D. x 1.62" O.D. MTD-936-0163
...
24
Spacer 1" I.D. x 2" O.D. x .5" Thk. MTD-950-0570
...
25
18T Sprocket NLA MTD-713-0205
...
26
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
27
Chain #50 5/8" Pitch x 52 Links - Endless MTD-913-0226
...
28
Chain - #41 1/2" Pitch x 30 Links - Endless MTD-713-0233
...
29
GEAR CASE HALF (RH) *CHOOSE COLOR WHEN ORDERING* MTD-686-0038
...
30
Fl-Wash 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
31
GEAR SPROCKET ASSEMBLY MTD-917-0003
...
32
JACK SHAFT MTD-738-0884
...
33
SPACER MTD-750-0931
...
34
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
35
GEAR SPUR 10T MTD-917-1411
...
36
SPACER MTD-950-0930
...
37
SPROCKET MTD-713-0436
...
38
REVERSE GEAR 46T MTD-717-1405
...
39
Thrust Wash .445" I.D. x 1.92" O.D. MTD-736-0518
...
40
Shifter Ass'y. MTD-753-0869
...
41
Spur Gear 17T MTD-717-1409
...
42
FLAT WASHER .67X 1.174X .02 MTD-736-05031
...
43
RETAINING RING-.66 MTD-916-0234
...
44
Clutch Collar MTD-718-0234
...
45
Retaining Ring .875" Shaft MTD-916-0235
...
46
KIT-DRIVE SHAFT MTD-753-0661
...
47
Sprocket 11T MTD-713-0435
...
48
NEUTRAL SPACER NLA MTD-750-0928
...
49
Spur Gear 16T MTD-717-1451A
...
50
Fl-Wash 5/8" I.D. x 1" O.D. MTD-936-0336
...
51
Ball Bearing .669" I.D. MTD-941-0600
...
52
L-Wash 1/4" I.D. NLA MTD-736-00329
...
53
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
54
Fl-Wash .635" I.D. x 1" O.D. NLA MTD-736-0511
...
55
Ball Bearing MTD-941-0563
...
56
Fl-Wash .281" I.D. x .875" O.D. MTD-736-0512
...
57
GEAR CASE ASS'Y. COMP. NLA MTD-686-0040

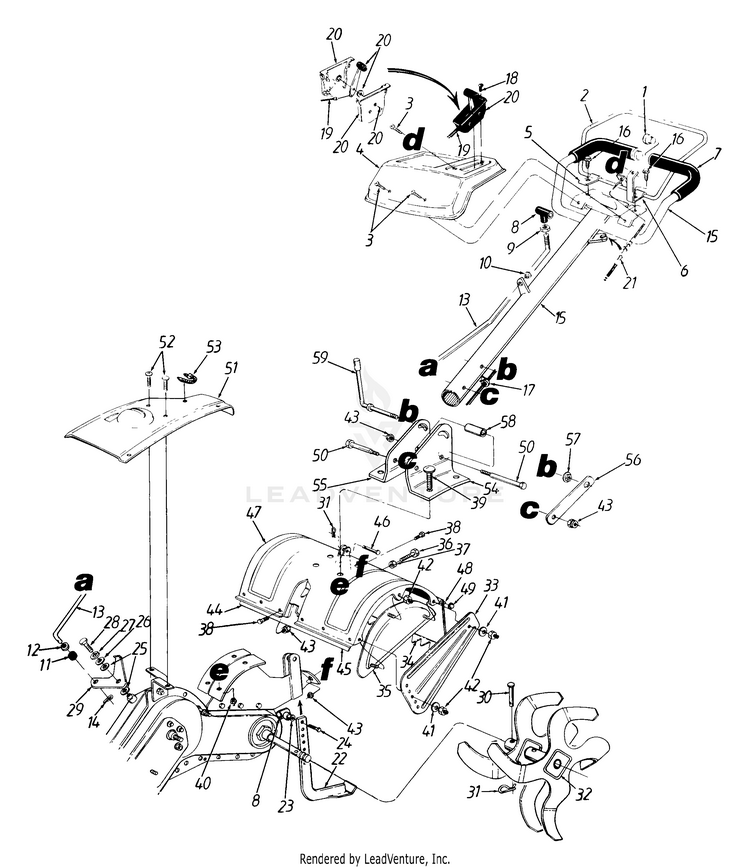

Handle Assembly & Tine Shield

...
...
1
Vinyl End Plug MTD-735-0246A
...
2
CLUTCH CONTROL ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-647-0014
...
3
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
4
HANDLE COVER MTD-786-0102-0638
...
5
RETAINING BRACKET MTD-786-0098-0637
...
6
RETAINING BRACKET MTD-786-0118-0637
...
7
Grip MTD-720-0278A
...
8
Knob MTD-720-0210A
...
9
Hex Jam Nut 3/8-16 Thd. MTD-912-3008
...
10
BUSHING NLA MTD-735-0228
...
11
Rubber Washer MTD-735-0127
...
12
Fl-Wash. .344" I.D. x .6" O.D. MTD-736-0204
...
13
GEAR SHIFT ROD MTD-747-0902
...
14
Hairpin Clip MTD-714-0104
...
15
HANDLE ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-649-0006A
...
16
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
17
CABLE CLIP MTD-726-0330
...
18
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
19
Throttle Wire 55" Lg. MTD-946-0917A
...
20
Throttle Control Box Ass'y. MTD-831-0823A
...
21
Clutch Cable MTD-946-0916
...
22
Depth Bar MTD-786-0120-0637
...
23
Fl-Wash. 3/8" I.D. x 5/8" O.D. MTD-936-0117
...
24
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
25
WASHER-HDN NLA MTD-717-0234
...
26
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
27
L-Wash. 1/4" I.D. MTD-936-0329
...
28
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
29
BRACKET NLA MTD-786-0095
...
30
Clevis Pin MTD-711-0415
...
31
Inter. Cotter Pin MTD-714-0149B
...
32
Tine Ass'y - L.H. MTD-642-0015-0637
...
32
Tine Ass'y - R.H. MTD-642-0016-0637
...
33
Side Shield *CHOOSE COLOR WHEN ORDERING* MTD-786-0090A
...
34
Rear Tine Shield *CHOOSE COLOR WHEN ORDERING* MTD-786-0113
...
35
END COVER ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0044B
...
36
Hex Cap Bolt 5/16-18 x 1.25" Lg. MTD-710-0528
...
37
HEX NUT 5/16-18 MTD-712-3010
...
38
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
39
Carriage Bolt 3/8-16 x 1" Lg. MTD-710-3097
...
40
Hex Ins L-Nut 3/8-16 Thd. MTD-712-0130
...
41
Bell-Wash .345" I.D. x .88" O.D. MTD-736-0242
...
42
LOCK NUT MTD-712-0419
...
43
HEX FLANGE NUT MTD-712-3004A
...
44
TINE SHIELD BRACKET (RH) MTD-786-0076-0637
...
45
TINE SHIELD BRACKET (LH) MTD-786-0077-0637
...
46
Clevis Pin MTD-711-0415
...
47
TINE SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-786-0085A
...
48
Tiller Flap Rod MTD-747-0432
...
49
Cap Speed Nut MTD-926-0106
...
50
Hex Bolt 5/16-18 x 3" Lg. MTD-710-0189
...
51
Shift Cover *CHOOSE COLOR WHEN ORDERING* MTD-786-0101B
...
52
Torx Mach. AB-Tap Scr. 1/4 x .6" MTD-710-1017
...
53
WIRE RETAINER CLIP MTD-726-0161
...
54
HANDLE BRACKET (LH) *CHOOSE COLOR WHEN ORDERING* MTD-786-0109
...
55
HANDLE BRACKET (RH) *CHOOSE COLOR WHEN ORDERING* MTD-786-0108
...
56
Hex Nut Retainer Brkt. MTD-784-0191
...
57
Hex Flange Nut 3/8-24 Thd. MTD-712-0379
...
58
Spacer .322 Dia. MTD-750-0885A
...
59
Handle Adjustment Crank MTD-784-0190
...
...
...
...
...
