White Outdoor 213-030-190 ROTO BOSS (1993)

Model: 213-030-190 ROTO BOSS (1993)

Save
 Part Not Listed?Part Not Listed?
product name

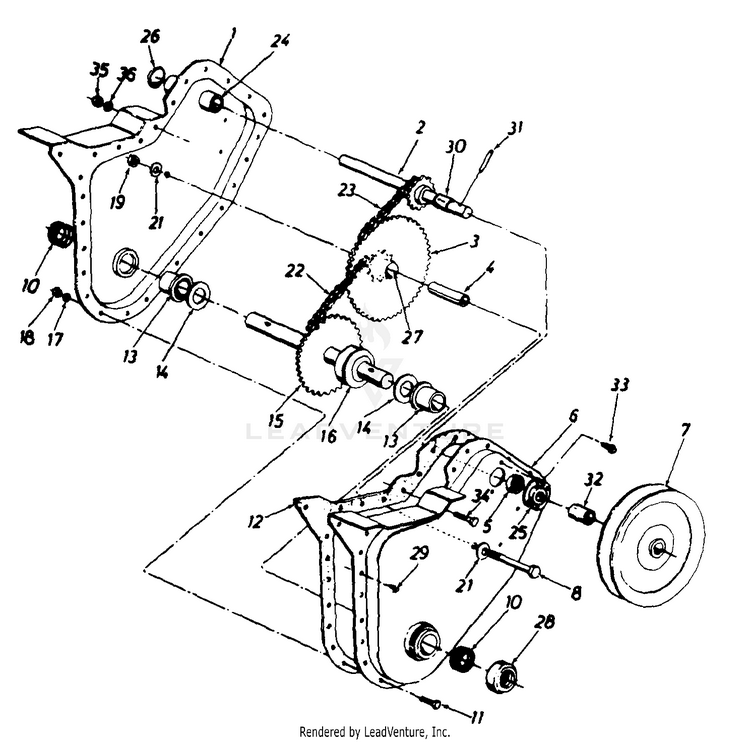

Chain Case Ass'y

...
...
1
Chain Case Ass'y, - R.H. NLA MTD-686-0024
...
2
SHAFT ASSEMBLY-INPUT MTD-04756
...
3
SPROCKET & HUB ASSEMBLY MTD-04757A
...
4
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
5
Ball Bearing MTD-941-0155
...
6
CHAIN CASE ASSEMBLY (LH)(POWDER BLACK) MTD-686-0087-0637
...
7
PULLEY Not part of chain case assembly. MTD-756-0287
...
8
Hex Bolt 3/8-24 x 2.5" MTD-710-0369
...
10
SEAL NLA Not part of chain case assembly. MTD-721-0157
...
11
Hex Bolt 1/4-28 x .625" MTD-910-0195
...
12
GASKET MTD-921-0156A
...
13
Flange Brg. .879" I.D. MTD-741-0227
...
14
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
15
SHAFT ASSEMBLY-TINE MTD-04920
...
16
SPACER MTD-750-0354A
...
17
L-Wash. 1/4" I.D. MTD-936-0329
...
18
Hex Nut 1/4-28 Thd. MTD-712-0138
...
19
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
21
Bell-Wash. .406" I.D. MTD-936-0219
...
22
#420 CHAIN 1/2 PITCH x 38 LIN NLA MTD-713-0215
...
22
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
23
#35 CHAIN 3/8 PITCH x 50 LINK NLA MTD-713-0216
...
23
#35 MASTER LINK 3/8 PITCH TYPE II MTD-913-0139
...
24
BEARING NLA MTD-748-0154
...
25
BEARING HOUSING MTD-05034A
...
26
EXPANSION PLUG NLA MTD-726-0164
...
27
SLEEVE BEARING MTD-941-0228
...
28
DUST CAP Not part of chain case assembly. MTD-731-0486
...
29
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
30
SPACER NLA MTD-750-0471
...
31
Spring Pin 1.5" Lg. Not part of chain case assembly. MTD-715-0114
...
32
SPACER NLA Not part of chain case assembly. MTD-750-0550
...
33
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
34
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
L-Wash. 5/16" I.D. MTD-936-0119
...
xx
CHAIN CASE ASS'Y COMP. NLA MTD-686-0022

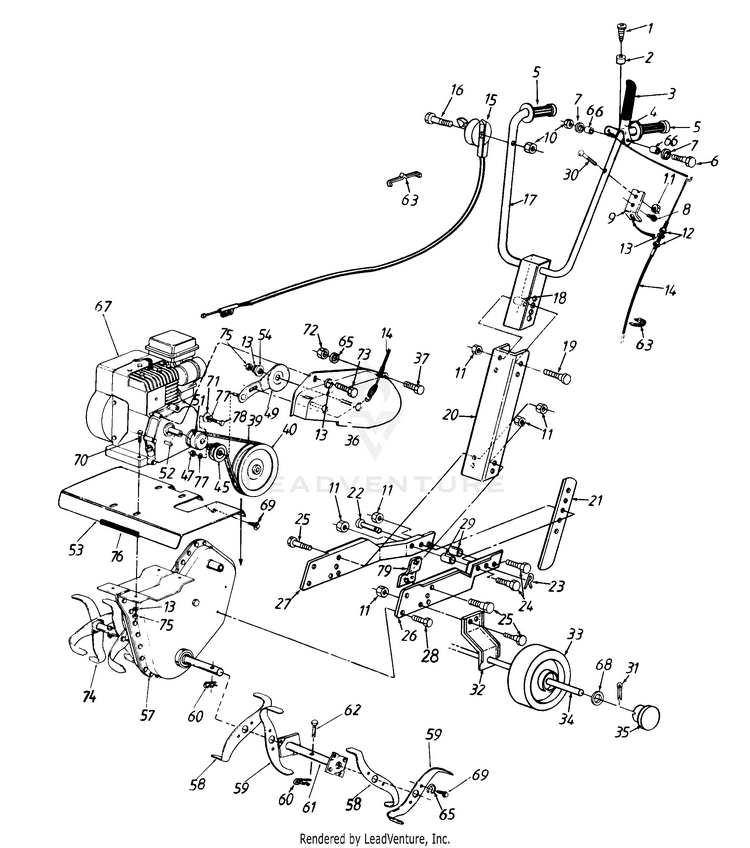

Tiller

...
...
1
TAP SCREW 10X16X.50 NLA MTD-710-1167
...
2
BUMPER-RECESS NLA MTD-720-0263
...
3
GRIP MTD-731-0473
...
4
Clutch Lever Ass'y. MTD-686-0002-0637
...
5
LIFT HANDLE GRIP MTD-920-0233
...
6
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
7
Fl-Wash. 1/4" I.D. MTD-736-3090
...
8
SCREW-SLOT PL-250-20X0.50 NLA MTD-710-1201
...
9
BRACKET-CL MTD-15093C
...
10
Lock Nut 1/4-20 Thd. MTD-712-0324
...
11
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
12
HEX JAM NUT 5/16-24 MTD-712-0256
...
13
L-Wash. 5/16" I.D. MTD-936-0119
...
14
Clutch Control Cable MTD-946-0926
...
15
THROTTLE CONTROL MTD-746P0756A
...
16
Hex Bolt 1/4-20 x 1-1/2" Lg. MTD-710-0606
...
17
KIT-UPPER MTD-753-0701-0637
...
18
SPACER NLA MTD-750-0848
...
19
Carr. Bolt 5/16-18 x 2-1/2" Lg. MTD-710-0572
...
20
FRAME-CHANNEL HDL NLA MTD-786-0013
...
21
483DEPTH BAR NLA MTD-04764
...
22
Clevis Pin MTD-711-0653
...
23
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
24
Hex Bolt 5/16-18 x 1" Lg. MTD-710-0376
...
25
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
26
FRAME HALF NLA MTD-786-0011
...
27
FRAME HALF (RH) POWDER B MTD-786-0010-0637
...
28
Hex Tap. Scr. 5/16-18 x 1/2" Lg. MTD-710-0607
...
29
SPACER MTD-750-0808
...
30
Hex Bolt 5/16-18 x 1-1/4" Lg. MTD-710-1090
...
31
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
32
WHEEL BRACKET MTD-786-0012-0637
...
33
WHEEL-6" MTD-634-0013
...
34
AXLE-WHEEL (MINI T NLA MTD-738-0855
...
35
HUB CAP MTD-720-0258
...
36
BELT COVER NLA MTD-686-0021
...
37
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
39
V-Belt MTD-954-0216
...
40
PULLEY MTD-756-0287
...
45
Flat Idler Pulley MTD-756-0199
...
47
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
49
IDLER ARM NLA MTD-784-0016
...
51
PULLEY MTD-756-0286
...
52
Square Key 3/16" x .75 MTD-714-0122
...
53
Tine Shield NLA MTD-04765
...
54
Washer-Bushing MTD-936-0289
...
57
CHAIN CASE ASS'Y COMP. NLA MTD-686-0022
...
58
TINE (RH) MTD-04922-0637
...
59
TINE (LH) MTD-04923-0637
...
60
Hairpin Cotter NLA MTD-714-01498
...
61
ADAPTER ASSEMBLY-TINE MTD-04918-0637
...
62
CLEVIS PIN .312 x 1.50 MTD-711-0702
...
63
PLASTIC TIE MTD-726-0306
...
65
L-Wash. 1/4" I.D. MTD-936-0329
...
66
SPLIT SPACER MTD-750-0846
...
67
Engine MTD-NA
...
68
Flat Washer .375 ID x .738 OD MTD-736-0185
...
69
Tap Scr. 1/4-20 x 1/2" Lg. MTD-710-0599
...
70
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
71
Fl-Wash. 3/8" I.D. x 1" O.D. MTD-736-0258
...
72
HEX NUT 1/4-20 MTD-912-0287
...
73
HEX SCREW 5/16-24 x .50 MTD-710-0107
...
74
TINE ASSEMBLY-COMP MTD-04921-0637
...
75
HEX NUT 5/16-18 MTD-712-3010
...
76
Trim Strip MTD-731-0511-12
...
77
L-Wash. 3/8" I.D. MTD-736-0169
...
78
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
79
BRACKET-BELT COVERPOWDER BLAC MTD-786-0046-0637
...
...
...
...
...
