White Outdoor 212-390-190 ROTO BOSS 510 (1992)

Model: 212-390-190 ROTO BOSS 510 (1992)

Save
 Part Not Listed?Part Not Listed?
product name

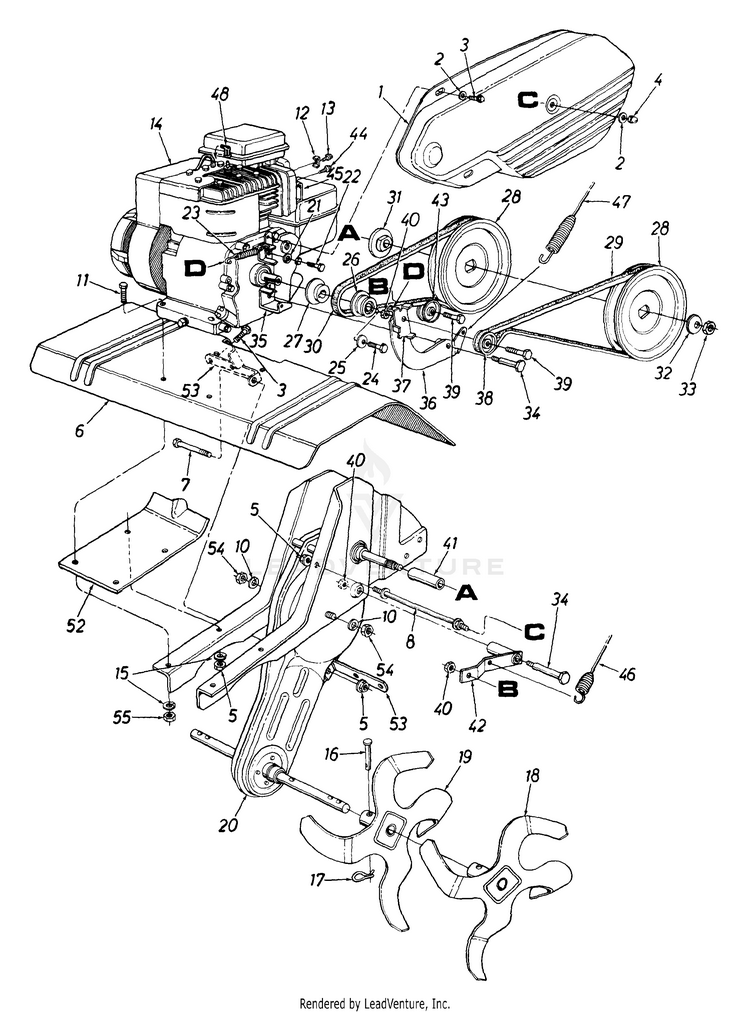

Belts, Pulleys & Chain Case Ass'y

...
...
1
Belt Cover *CHOOSE COLOR WHEN ORDERING* MTD-786-0057
...
2
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
3
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
4
Hex L-Stop Nut 1/4-28 Thd. MTD-712-0392
...
5
HEX FLANGE NUT MTD-712-3004A
...
6
TINE SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-786-0035A
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Belt Cover Bolt MTD-711-0920
...
10
L-Wash. 7/16" I.D. MTD-936-0171
...
11
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
12
Casing Clamp MTD-751B221535
...
13
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
14
Engine MTD-NA
...
15
SPECIAL WASHER MTD-736-0170
...
16
Clevis Pin .375" Dia. x 1.75" Lg. MTD-711-0679A
...
17
Inter. Cotter Pin MTD-714-0149B
...
18
Outer Tine Ass'y. - L.H. MTD-642-0005-0637
...
18
Outer Tine Ass'y. - R.H. MTD-642-0004-0637
...
19
Inner Tine Ass'y. - L.H. MTD-642-0003-0637
...
19
Inner Tine Ass'y. - R.H. MTD-642-0002-0637
...
20
CHAIN CASE MTD-986-0091C
...
21
L-Wash. 5/16" I.D. MTD-936-0119
...
22
HEX SCREW 5/16-24 x .50 MTD-710-0107
...
23
Return Spring 2.7" Lg. MTD-732-0697
...
24
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
25
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
26
PULLEY NLA MTD-756-0588
...
27
1/2" "V"-PULLEY HALF NLA MTD-748-0321
...
28
Fl-Pulley 6" Dia. MTD-756-0585
...
29
V-Belt (Reverse) MTD-954-0429
...
30
V-Belt (Forward) MTD-954-0428
...
31
Pulley Mounting Adapter MTD-948-0350
...
32
Bell-Wash. .535" I.D. x 1.5" O.D. MTD-736-0112
...
33
Hex Jam Nut 1/2-20 Thd. (Gr. 5) MTD-712-3029
...
34
Axle Bolt for Plastic Rim MTD-738-0102
...
35
Reverse Mounting Brkt. MTD-786-0040B-0637
...
36
Reverse Arm Ass'y. MTD-686-0013
...
37
Keeper Plate MTD-786-0041-0637
...
38
Fl-Idler 2.12" O.D. MTD-756-0313
...
39
Hex Cap Bolt 3/8-16 x 1.25" Lg. MTD-710-0723
...
40
Hex Cent. Jam Nut 3/8-16 Thd. MTD-712-0266A
...
41
Spacer .64" I.D. x 2.4" Lg. MTD-950-0892
...
42
IDLER BRACKET ASSEMBLY NLA MTD-686-0011
...
43
Fl-Idler 2" O.D. MTD-756-0199
...
44
HEX SCREW WASH HD 10-32X.38 NLA MTD-710-0783
...
45
MUFFLER DEFLECTOR MTD-BS-796956
...
46
FORWARD CLUTCH CABLE MTD-746-0879
...
47
CLUTCH REVERSE CABLE NLA MTD-746-0880
...
48
INSULATOR-SPARK PLUG MTD-735-0639
...
52
ENGINE PLATE NLA MTD-786-0047
...
53
Tine Shield Support MTD-786-0053-0637
...
54
Hex Nut 7/16-20 Thd. MTD-912-0240
...
55
HEX NUT 5/16-18 MTD-712-3010

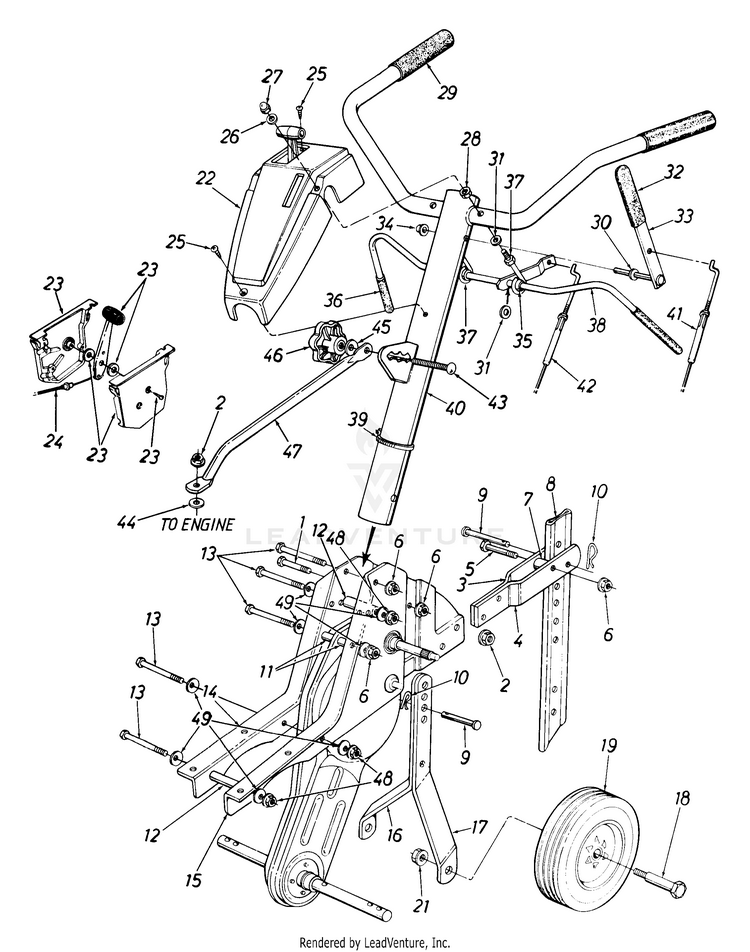

Longhorn Handle Ass'y & Frame

...
...
1
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0874
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
Tail Piece Brkt. (R.H.) MTD-786-0004-0637
...
4
Tail Piece Brkt. (L.H.) MTD-786-0003-0637
...
5
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
Spacer .32" I.D. x .75" O.D. MTD-750-0890
...
8
Depth Bar MTD-786-0005-0637
...
9
Clevis Pin .375" I.D. x 1.75" Lg. MTD-711-0679A
...
10
Inter. Cotter Pin MTD-714-0149B
...
11
Spacer .326" I.D. x .47" O.D. MTD-750-0470
...
12
Spacer .322" I.D. x .44" I.D. MTD-750-0885A
...
13
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
14
FRAME (RH) NLA MTD-786-0028
...
15
FRAME (LH) NLA MTD-786-0029
...
16
WHEEL HANGER BRKT. (RH) NLA MTD-786-0002
...
17
WHEEL HANGER BRKT. (LH) NLA MTD-786-0001
...
18
Shld. Bolt .498" Dia. x 1.45" Lg. MTD-738-0213
...
19
Wheel Ass'y. 8" x 1.75" MTD-734-1268
...
22
HANDLE COVER W/REV NLA MTD-731-1287
...
23
Throttle Control Box Ass'y. MTD-831-0823A
...
24
35" THROTTLE CABLE MTD-946-0503
...
25
Truss Mach. AB-Tap Ser. #10 x .5" Lg. MTD-710-0779A
...
26
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
27
Hex L-Stop Nut 1/4-28 Thd. MTD-712-0392
...
28
Hex Nut 1/4-28 Thd. MTD-712-0138
...
29
GRIP-HANDLE NLA MTD-720-0268
...
30
Fl-Wash. .344" I.D. x .62" O.D. MTD-936-0264
...
31
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
32
REVERSE LEVER GRIP MTD-720-0270
...
33
REVERSE HANDLE ASSEMBLY NLA MTD-686-0014
...
34
Cap Speed Nut MTD-726-0135
...
35
Plastic Bushing .38" I.D. MTD-941-0475
...
36
Grip - Clutch MTD-720-0269
...
37
EYE-BOLT MTD-747-0815
...
38
CLUTCH HANDLE ASSEMBLY NLA MTD-686-0008
...
39
Cable Tie 9" Lg. MTD-726-0317
...
40
HANDLE ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-649-0022A
...
41
CLUTCH REVERSE CABLE NLA MTD-746-0880
...
42
FORWARD CLUTCH CABLE MTD-746-0879
...
43
Carr. Bolt 5/16-18 x 1" Lg. (Special) MTD-710-1236
...
44
Fl-Wash. .344" I.D. x 1.12" O.D. MTD-936-0123
...
45
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
46
Hand Knob MTD-720-0195
...
47
ENGINE TUBING BRACE NLA MTD-749-0915
...
48
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
49
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
...
...
...
...
