White Outdoor 211-430-190 Roto Boss 580 (1991)

Model: 211-430-190 Roto Boss 580 (1991)

Save
 Part Not Listed?Part Not Listed?
product name

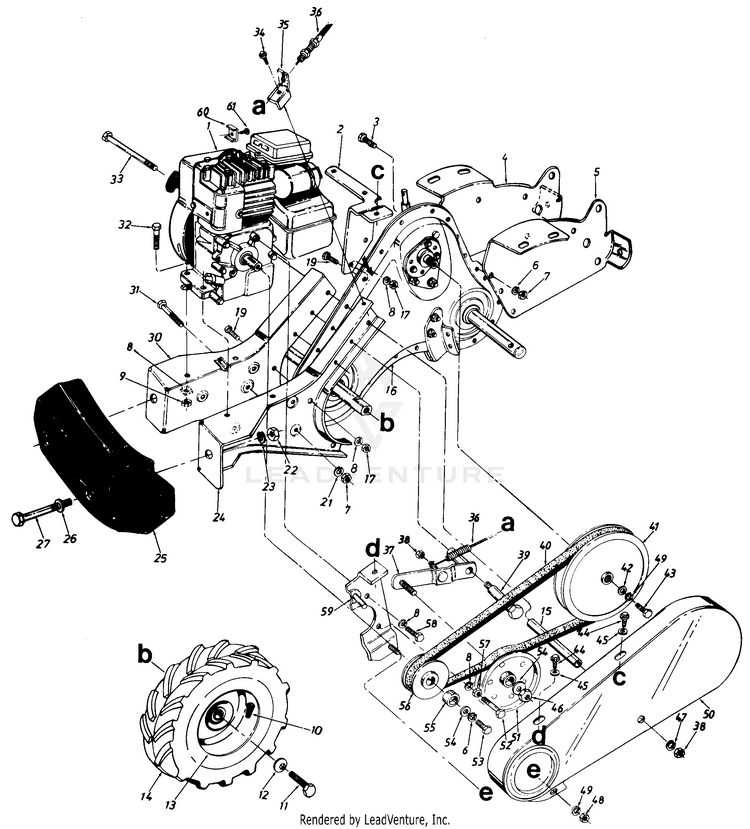

Drive Assembly

...
...
1
Engine MTD-NA
...
2
BELT COVER MOUNTING BRKT NLA MTD-784-0199A
...
3
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
4
MOUNTING BRACKET(RH) MTD-784-0178-0637
...
5
MOUNTING BRACKET(LH) NLA MTD-784-0177
...
6
L-Wash. 3/8" I.D. MTD-736-0169
...
7
Hex Nut 3/8-16 Thd. MTD-712-0798
...
8
L-Wash. 5/16" I.D. MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Air Valve MTD-934-0255
...
11
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
12
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
13
Wheel Rim Ass'y. Only NLA MTD-734-1376
...
14
WHEEL ASSEMBLY W/TIRE (LH) NLA MTD-734-1377
...
14
R.H. Wheel Ass'y. Comp. NLA MTD-734-1378
...
14
TIRE-13X5.0-6 CARLISLE MTD-734-1154-0901
...
15
SPACER NLA MTD-750-0688
...
16
GEAR CASE NLA MTD-784-0150
...
17
HEX NUT 5/16-18 MTD-712-3010
...
19
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
22
HEX NUT MTD-712-0206
...
23
L-Wash. 1/2" I.D. MTD-736-0921
...
24
ENGINE MOUNTING RAIL (RH) NLA MTD-784-0155
...
25
COUNTERWEIGHT MTD-723P0381
...
26
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
27
Hex Bolt 1/2-13 x 5.00" Lg. MTD-710-0382
...
30
RAIL-ENGIN NLA MTD-784-0154
...
31
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
32
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
33
Hex Bolt 5/16-18 x 4.75" Lg.-Gr. 2 MTD-710-0974
...
34
Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg. MTD-710-0604A
...
35
BRACKET NLA MTD-784-0203
...
36
Clutch Control Cable 53" Lg. MTD-946-0612
...
37
BRACKET ASSY-IDLER NLA MTD-784-0175
...
38
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
39
SHOULDER SCREW NLA MTD-738-0681
...
40
V-BELT 1/2 x 57.0 MTD-954-0325
...
41
V-PULLEY NLA MTD-756-0472
...
42
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
43
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
44
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
45
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
46
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0262
...
47
Fl-Wash. 5116" I.D. MTD-936-0123
...
48
HEX NUT 1/4-20 MTD-912-0287
...
49
L-Wash. 1/4" I.D.* MTD-936-0329
...
50
BELT COVER *CHOOSE COLOR WHEN ORDERING* MTD-784-0158B
...
51
Fl-ldler w/Flanges 3.75" O.D. MTD-756-0405
...
52
Hex Bolt 5/16-24 x 1.75"* MTD-710-0409
...
53
Hex Bolt 3/8-24 x 1.00" Lg.* MTD-710-1039
...
54
Fl-Wash. 3/8" l.D. x 1.00" MTD-736-0258
...
55
SPACER NLA MTD-750-0345
...
56
HALF PULLEY-ENGINE NLA MTD-748-0282
...
57
Hex Nut 5/16-24 Thd.* MTD-912-3057
...
58
Hex Bolt 5/16-24 x .62" Lg.* MTD-710-0237
...
59
BELT KEEPER ASS'Y. NLA MTD-784-0197
...
60
Casing Clamp MTD-751B221535
...
61
Hex Sems Scr. #10-32 x .62" MTD-710-0899A

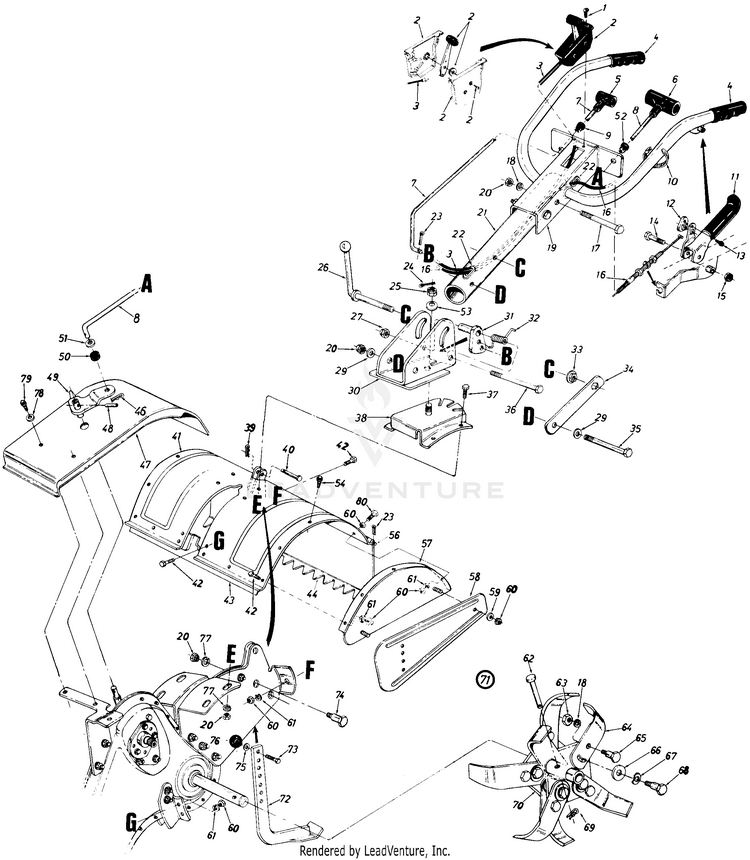

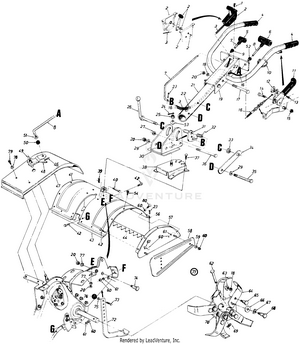

Frame Assembly

...
...
1
Truss Mach. AB-Tap. Scr. #10 x .50" Lg. MTD-710-0779A
...
2
Throttle Control Box Ass'y. MTD-831-0823A
...
3
THROTTLE CABLE 50" MTD-946-0513B
...
4
Handle Grip MTD-720-04083
...
5
Small "T" Knob MTD-720-0210A
...
6
Large"T" Knob MTD-720-0209
...
7
Clutch Rod MTD-747-0666
...
8
Control Rod 37" Lg. MTD-747-0664
...
9
BUSHING NLA MTD-735-0228
...
10
Cable Tie-Self Clinching MTD-725-0157
...
11
CLUTCH LEVER ASSEMBLY (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-684-04399A-0637
...
12
Barrel Cable Hold Down MTD-946-0605
...
13
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919
...
14
Hex Bolt 3/8-16 x 2.0" Lg.* MTD-710-3144
...
15
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0266A
...
16
Clutch Control Cable 53" Lg. MTD-946-0612
...
17
HEX SCREW 3/8-16 x 3.00 GR2 NLA MTD-710-0194
...
18
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
19
HANDLE ASSEMBLY W/THROTTLE *CHOOSE COLOR WHEN ORDERING* MTD-649-0030
...
20
Hex Nut 3/8-16 Thd. MTD-712-0798
...
21
HANDLE ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-784-0189
...
22
Rubber Grommet .66" I.D. MTD-735-0226
...
23
Cotter Pin 3/32" Dia. x .75" Lg.* MTD-914-0507
...
24
COTTER PIN MTD-914-3021
...
25
Hex Slotted Nut 5/8-18 Thd. MTD-712-0386A
...
26
Handle Adj. Crank MTD-784-0190
...
27
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
29
Bell-Wash. .4" I.D. x.87" O.D. MTD-736-0105
...
30
PIVOT BRACKET ASSEMBLY (POWDER BLACK) MTD-684-0263A-0637
...
31
CRANK ASSEMBLY NLA MTD-784-0183
...
32
Spring Handle Adj.(Torsion) MTD-732-0493
...
33
Hex Flange Nut 3/8-24 Thd. MTD-712-0379
...
34
Bracket Hex Nut Retainer MTD-784-0191
...
35
Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8) NLA MTD-710-3130
...
36
Hex Bolt 3/8-16 x 8.00" Lg.- 0 Gr. 8 MTD-710-0521
...
37
Hex Bolt 3/8-16 x 75n Lg.* MTD-710-0216
...
38
POSITIONER BRACKET ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0071
...
39
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
40
Clevis Pin MTD-711-0415
...
41
SHIELD-TIN NLA MTD-784-0156
...
42
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
43
BRACKET-REINF NLA MTD-784-0210
...
44
483 Tine Shield Hinge Flap *CHOOSE COLOR WHEN ORDERING* MTD-786-0113
...
46
Hairpin Clip MTD-714-0104
...
47
SHIFT COVER *CHOOSE COLOR WHEN ORDERING* MTD-784-0208C
...
48
Spring Roll Pin 3/16" Dia. MTD-715-0120
...
49
CRANK ASSEMBLY-SHIFT NLA MTD-784-0173
...
50
Rubber Washer .33" I.D. MTD-735-0127
...
51
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 MTD-736-0133
...
52
BUSHING NLA MTD-735-0227
...
53
Bell-Wash. .63" I.D. x 1.25" MTD-736-0317
...
54
Hex Wash. Tap Scr. MTD-710-0607
...
56
Tiller Flap Rod MTD-747-0432
...
57
COVER ASSEMBLY MTD-984-0179A-0637
...
58
483 SIDE SHIELD NLA MTD-15390
...
59
Bell-Wash. .345" l.D. x .88" MTD-736-0242
...
60
HEX NUT 5/16-18 MTD-712-3010
...
61
L-Wash. 5/16n l.D.* MTD-936-0119
...
62
Clevis Pin MTD-711-0415
...
63
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
64
13" Dia. Articulating Tine MTD-742-0305A-0637
...
65
Shld. Bolt 1/2" Dia. x .175 MTD-938-0689
...
66
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
67
Bell Washer MTD-736-0255
...
68
Shld. Bolt 1/2" Dia. x .320 MTD-938-0688
...
69
Inter. Cotter Pin MTD-714-0149B
...
70
Tine Adapter Ass'y. 1 8" MTD-784-0160-0637
...
71
Tine Ass'y. Comp. 18" MTD-984-0205A-0637
...
72
Depth Bar Ass'y. MTD-786-0120-0637
...
73
Hex Bolt 3/8-16 x .75n Lg.* MTD-710-0216
...
74
Shld. Bolt 1/2" l.D. x .62" Lg. MTD-938-0148
...
75
Fl-Wash. 818" l.D. x 5/8" O.D. MTD-936-0117
...
76
Ball Knob MTD-920-0232
...
77
L-Wash. 3/8" I.D. MTD-736-0169
...
78
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
79
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
80
Hex Bolt 5/16-18 x 11/4" Lg. MTD-710-0528

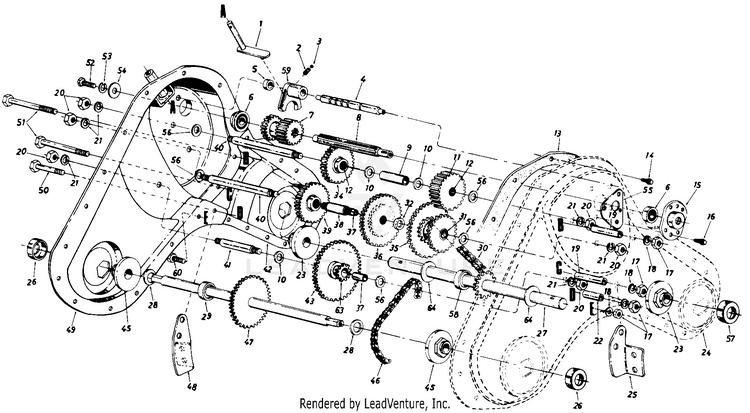

Transmission Assembly

...
...
1
BRACKET ASSEMBLY-SHIFT NLA MTD-784-0171A
...
2
Compression Spring .60" Lg. MTD-932-0496
...
3
DETENT BALL .250 MTD-741-0862
...
4
Detent Shaft 1/2" Dia. MTD-738-0645
...
5
Spacer .505" I.D. x .88" O.D. MTD-750-0664
...
6
Ball Brg. .62" I.D. x 1.38" MTD-941-0155
...
7
GEAR-SPUR-16T NLA MTD-717-0851
...
8
INPUT SHAFT MTD-717-0852
...
9
SPACER MTD-750-0651
...
10
Fl-Wash. .640" l.D. x 1.24" MTD-736-0187
...
11
GEAR-SPUR-30T NLA MTD-717-0857
...
12
NEEDLE BEARING MTD-941-0478
...
13
GASKET MTD-921-0211
...
14
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
15
HOUSING-BRG NLA MTD-784-0211
...
16
Hex TT-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
L-Wash. 5/16" I.D. MTD-936-0119
...
19
SPACER-1.560 1D MTD-750-0662
...
20
Hex Nut 7/16-20 Thd. MTD-712-0378
...
21
Bell-Wash. .45" l.D. x 1.0n MTD-736-0407
...
22
SPACER-1.015 1D MTD-750-0661
...
23
BEARING MTD-941-0420B
...
24
HOUSING ASSEMBLY (LH) NLA MTD-784-0214
...
25
BRACKET NLA MTD-784-0193
...
26
Dust Cover Ass'y. .75" Shaft MTD-721-0379
...
27
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
28
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
29
Spacer .75" l.D. x 50" Lg. MTD-950-0671
...
30
Chain #50 5/8 Pitch x 52 0 Links-Endless MTD-913-0226
...
31
NEEDLE BEARING MTD-941-0488
...
32
FLAT WASHER NLA MTD-736-0402
...
34
Spur Gear 30T 12/16" I.D. NLA MTD-717-0854
...
35
GEAR-30/44T MTD-917-0874
...
36
GEAR-SPUR-44T NLA MTD-717-0863
...
37
SLEEVE BEARING .627 x .750 X MTD-941-0181
...
38
HUB-GEAR NLA MTD-717-0835
...
39
SPUR GEAR-30T NLA MTD-717-0855
...
40
JACKSHAFT NLA MTD-738-0647
...
41
Jack Shaft 5/8" Dia. x 2.38" MTD-738-0648
...
42
GEAR CASE HOUSING (RH) (POWDER BLACK) MTD-686-0073-0637
...
43
GEAR-SPUR-55T NLA MTD-717-0858
...
45
BEARING MTD-741-0421B
...
46
#420 Chain 1/2 Pitch x 50 0 Links-Endless MTD-913-0367
...
47
WHEEL SHAFT ASSEMBLY MTD-784-0170
...
48
BRACKET GEAR CASE - R H. NLA MTD-784-0192
...
49
HOUSING ASSEMBLY (RH) NLA MTD-784-0195
...
50
Hex Bolt 5/16-18 x 2"* MTD-710-3103
...
51
Hex Bolt 5/16-18 x 2.5"* MTD-710-0378
...
52
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
53
L-Wash. 3/8" I.D. MTD-736-0169
...
54
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
55
BRACKET-GEAR POS NLA MTD-784-0207
...
56
Fl-Wash. 7/16" I.D. x 1-3/8" MTD-936-0406
...
57
Dust Cover Ass'y. 1" Shaft MTD-921-0378
...
58
Spacer 1" I.D. x 2" O.D. MTD-950-0570
...
59
Shifting Fork MTD-717-0853A
...
60
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
63
SPROCKET ASSEMBLY-10T MTD-984-0162A
...
64
Thrust Wash. 1.03" I.D. x 1.62" O.D. MTD-936-0163
...
...
...
...
...
