White Outdoor 210-405-190 Roto Boss 550 (1990)

Model: 210-405-190 Roto Boss 550 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

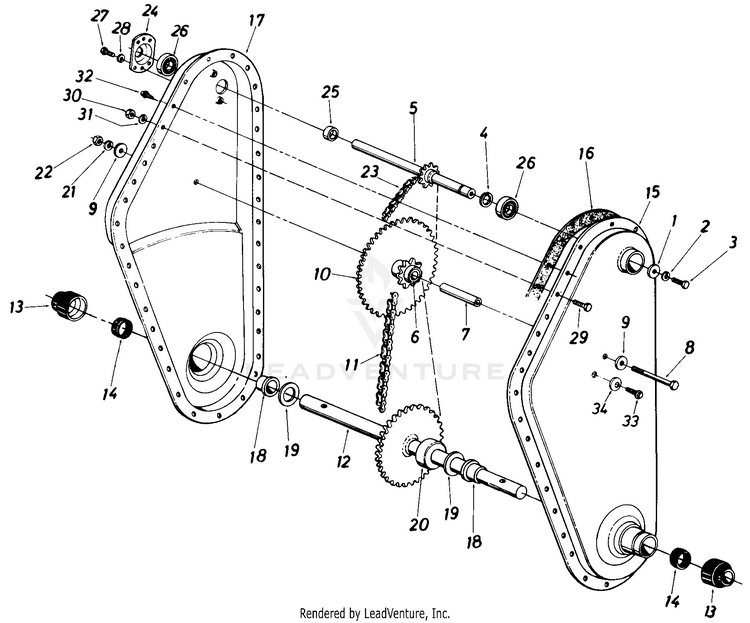

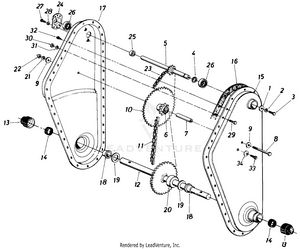

Chain Case Tine Assembly

...
...
1
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
4
Extemal Snap Ring-5/8" Dia. MTD-916-0131
...
5
INPUT SHAFT MTD-04956
...
6
BEARING NLA MTD-741-0304
...
7
HUB-SPROCKET NLA MTD-750-0275
...
8
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
9
Fl-Wash. 3/8" l.D. x 1.25" O.D. x .10 MTD-736-0258
...
10
SPROCKET ASSEMBLY-8T & 40T MTD-913-0331
...
11
#50 Chain 5/8" Pitch x 46 Links Endless MTD-913-0328
...
12
TINE SHAFT ASSEMBLY MTD-14986
...
13
Dust Cup MTD-931-0487
...
14
SEAL MTD-721-0175
...
15
ASS'Y. TILLER HOUSING (RH) NLA MTD-14984
...
16
GASKET MTD-721P0170
...
17
ASS'Y. TILLER HOUSI NG L.H. NLA MTD-14985
...
18
Flange Brg. 1.00" I.D. MTD-931-0374
...
19
Fl-Thrust Wash. 1.0" I.D. x .03 Thk. MTD-936-0163
...
20
Step Spacer MTD-950-0570
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Nut 3/8-24 Thd. MTD-712-0711
...
23
#35 CHAIN 3/8 PITCH MTD-913-0327
...
24
BEARING HOUSING MTD-05034A
...
25
SPACER NLA MTD-750-0471
...
26
Ball Bearing .625" l.D. x 1.38 O.D. x .437 MTD-941-0155
...
27
Hex Wash. SF-Tap Scr. 1/4-20 x .501' Lg. MTD-710-0599
...
28
L-Wash. 1/4" l.D. MTD-936-0329
...
29
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
L-Wash. 5/16" I.D. MTD-936-0119
...
32
Hex Wash. SF-Tap Scr. 1/4-20 x 50" Lg MTD-710-0599
...
33
Hex Wash. Hd. Tap Scr. 1/4-20 x.38" Lg. MTD-710-0653
...
34
SPRING WASHER BELL MTD-736-0270

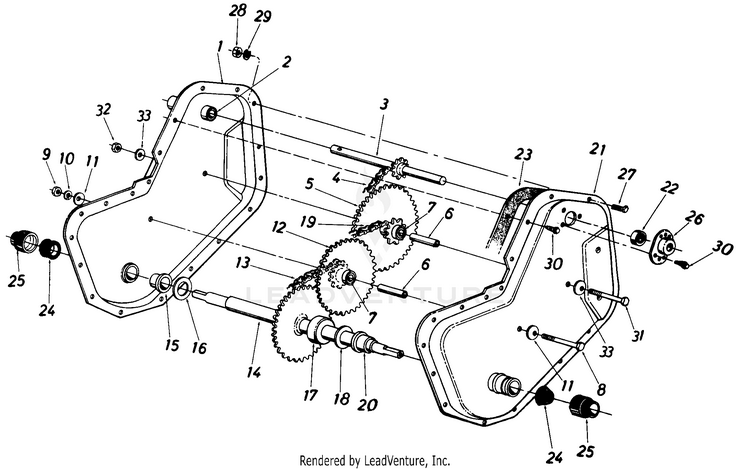

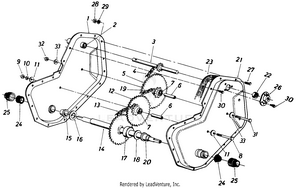

Chain Case Wheel Assembly

...
...
1
HOUSING-CH NLA MTD-14962
...
2
BEARING NLA MTD-748-0154
...
3
SHAFT ASSEMBLY NLA MTD-14960
...
4
#35 CHAIN MTD-913-0325
...
5
Sprocket and Hub Ass'y. NLA MTD-713-0316
...
6
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
7
SLEEVE BEARING MTD-941-0228
...
8
Hex Bolt 3/8-24 x 2 50" Lg. MTD-710-0369
...
9
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
Bell-Wash. .41" I.D. x 1.13" O.D. x .03 MTD-936-0219
...
12
SPROCKET & HUB ASSEMBLY (9T & 22T) NLA MTD-713-0330
...
13
#420 CHAIN 1/2 PITCH MTD-913-0326
...
14
SHAFT ASSEMBLY-WHEEL NLA MTD-784-0126A
...
15
Flange Bearing MTD-741-0227
...
16
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
17
SPACER MTD-750-0354A
...
18
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
19
#420 CHAIN 1/2 PIT NLA MTD-713-0267
...
20
Flange Bearing MTD-741-0227
...
21
WHEEL CHAIN CASE ASSY - LH NLA MTD-15797
...
22
Bearing MTD-941-0155
...
23
GASKET MTD-921-0156A
...
24
SEAL NLA MTD-721-0157
...
25
DUST CAP MTD-731-0486
...
26
BEARING HOUSING MTD-05034A
...
27
Hex Bolt 1/4-28 x 5/8" Lg. MTD-910-0195
...
28
Hex Nut 1/4-28 Thd. MTD-712-0138
...
29
L-Wash. 1/4" l.D. MTD-936-0329
...
30
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
31
Hex Bolt 5/16-18 x 2.5" Lg. MTD-710-0378
...
32
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
33
Fl-Wash. .344" I.D. MTD-736-0159
...
xx
CHAIN CASE NLA MTD-16976

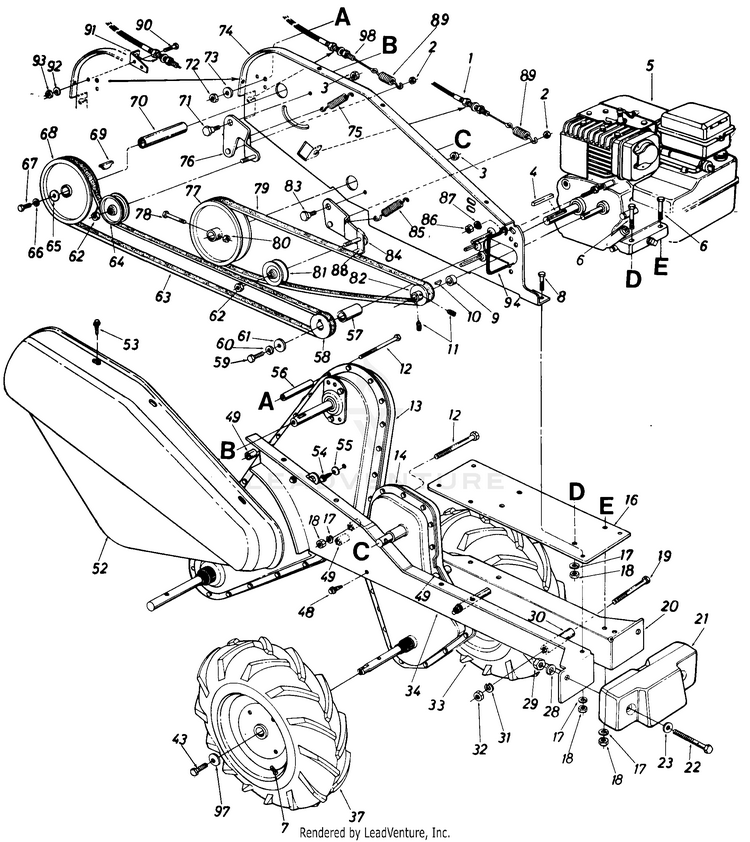

Drive Assembly

...
...
1
Clutch Control Cable(Wheels) MTD-946-0484
...
2
Hex Cent. L-Nut 1/4-20 Thd. MTD-912-0107
...
3
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0266A
...
4
Square Key 3/16" x .75 MTD-714-0122
...
5
Engine MTD-NA
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
Air Valve MTD-934-0255
...
8
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
9
SPACER NLA MTD-711-0494
...
10
KEY-HI-PRO #5-1/8X5/8 DIA NLA MTD-714-0131
...
11
SCREW-SET 1/4-28 x .25 NLA MTD-710-0938
...
12
Hex Bolt 5/16-18 x 3.0" Lg. MTD-710-0189
...
13
CHAIN CASE (TINES) NLA MTD-14981
...
14
Chain Case Ass'y. Comp.-Wheels NLA MTD-14963
...
16
483ENGINE MOUNTING PLATE NLA MTD-14973
...
17
L-Wash. 5/16" I.D. MTD-936-0119
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
HEX SCREW 3/8-24 x 3.0 LG NLA MTD-710-0830
...
20
483FRAME RAIL-L.H. NLA MTD-14975
...
21
COUNTERWEIGHT NLA MTD-723-0340
...
22
Hex Bolt 1/2-13 x 4.0" Lg. MTD-710-0786
...
23
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
28
L-Wash. 1/2" I.D. MTD-736-0921
...
29
HEX NUT MTD-712-0206
...
30
Spacer 3/8" l.D. x 5/8" O.D. x 2.18" Lg. NLA MTD-750-0579
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Nut 3/8-24 Thd. MTD-712-0241
...
33
WHEEL ASSEMBLY W/TIRE (LH) NLA MTD-734-1377
...
33
Rim Ass'y. NLA MTD-734-1376
...
33
TIRE-13X5.0-6 CARLISLE MTD-734-1154-0901
...
34
FRAME RAI I-R.H. NLA MTD-14974
...
37
Comp. Wheel Ass'y.-R.H. NLA MTD-734-1378
...
37
Rim Ass'y. NLA MTD-734-1376
...
37
TIRE-13X5.0-6 CARLISLE MTD-734-1154-0901
...
43
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
48
SCREW 5/16-24 x .500 MTD-710-0600
...
49
Spacer 5/16" I.D. x 16 Ga. x.96" Lg. MTD-750-0470
...
52
BELT COVER NLA MTD-14980A
...
53
Hex Wash. S-Tap Scr. 1/4-20 x 50" Lg MTD-710-0599
...
54
Hex Wash. S-Tap Scr. 1/4-20 x 3/8" La. MTD-710-0653
...
55
SPRING WASHER BELL MTD-736-0270
...
56
Spacer 3/8" l.D. x 1/2" O.D. x 2.0" Lg. NLA MTD-750-0219
...
57
SPACER NLA MTD-750-0442
...
58
PULLEY NLA MTD-756-0396
...
59
Hex Bolt 5/16-24 x 1.0" Lg. MTD-710-0888
...
60
L-Wash. 5/16" l.D. MTD-936-0119
...
61
Fl-Wash. 5/16" l.D. x 1.25" O.D. MTD-736-0343
...
62
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
63
V-Belt MTD-954-0195A
...
64
Fl-ldler Pulley 3.75" O.D. x 3/8" l.D. MTD-756-0405
...
65
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
66
L-Wash. 1/4" l.D. MTD-936-0329
...
67
Hex Bolt 1/4-28 x 75" Lg. MTD-710-0412
...
68
PULLEY MTD-756-0389A
...
69
Hi-Pro Key MTD-914-0388
...
70
SPACER MTD-750-0472
...
71
SHOULDER SCREW MTD-938-0183
...
72
HEX NUT 5/16-18 MTD-712-3010
...
73
L-Wash. 5/16" l.D. MTD-936-0119
...
74
PLATE ASSY-SIDE NLA MTD-14991
...
75
EXTENSION SPRING MTD-732-0445
...
76
483Idler Bracket Ass'y.-Tines NLA MTD-14971
...
77
Pulley 6" Dia. x 5/8" I.D. NLA MTD-756-0387A
...
78
SCREW 1/4-28 x 1.50 GR5 MTD-710-0698
...
79
V-Belt MTD-954-0109
...
80
HEX NUT CENTER L-1/4-28 MTD-912-0117
...
81
V-ldler Pulley 2-5/8" O.D. MTD-756-1035A
...
82
PULLEY NLA MTD-756-0386A
...
83
SHOULDER SCREW .500 DIA x .170 NLA MTD-738-0147
...
84
BRACKET AS NLA MTD-14969
...
85
EXTENSION SPRING MTD-732-0445
...
86
HEX NUT 1/4-20 MTD-912-0287
...
87
SPRING WASHER BELL MTD-736-0270
...
88
BRACKET-BE NLA MTD-15399
...
89
EXTENSION SPRING MTD-732-0387
...
90
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
91
BRACKET-CL MTD-15093C
...
92
Lock Washer 5/16" I.D. MTD-936-0119
...
93
HEX NUT 5/16-18 MTD-712-3010
...
94
Belt Keeper NLA MTD-747-0507
...
97
Bell-Wash. 5/16" l.D. MTD-736-0242
...
98
Clu,ch Control Cable rTines) MTD-946-0535

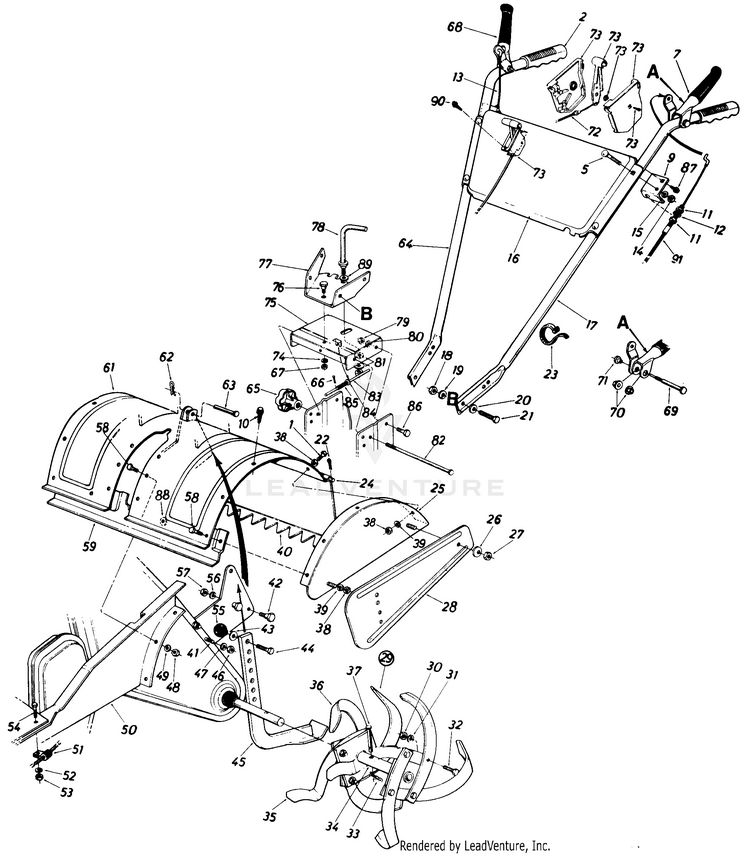

Frame Assembly

...
...
1
Hex Bolt 5/16-18 x 1-1/4" Lg. MTD-710-0528
...
2
Grip MTD-720-04083
...
5
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
7
GRIP ASSEMBLY-CLUTCH (LH) NLA MTD-784-0031
...
9
BRACKET-CL MTD-15093C
...
10
Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg. MTD-710-0607
...
11
HEX JAM NUT 5/16-24 MTD-712-0256
...
12
L-Wash. 5/16" I.D. MTD-936-0119
...
13
Wheel Drive Cable MTD-946-0484
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
L-Wash. 5/16" I.D. MTD-936-0119
...
16
HANDLE PANEL NLA MTD-784-0036A
...
17
Handle-L . H . NLA MTD-749-0637
...
18
Hex Nut 3/8-16 Thd. MTD-712-0798
...
19
L-Wash. 3/8" I.D. MTD-736-0169
...
20
Bell-Wash. 3/8" I.D. MTD-736-0105
...
21
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
22
Cotter Pin 3/32" Dia. x 3/4" MTD-914-0507
...
23
Cable Tie MTD-725-0157
...
24
Tiller Flap Rod MTD-747-0432
...
25
End Cover Ass'y.-L.H. NLA MTD-14989
...
25
COVER ASSY-END-RH NLA MTD-14990
...
26
Bell-Wash. 5/16" I.D. MTD-736-0242
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
483 SIDE SHIELD NLA MTD-15390
...
29
L.H. TINE ASS'Y. COMP. NLA MTD-15397
...
29
R.H. TINE ASS'Y. COMP. NLA MTD-15398
...
30
Hex Nut 3/8-24 Thd. MTD-712-0241
...
31
L-Wash. 3/8" I.D. MTD-736-0169
...
32
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
33
Inter. Cotter Pin MTD-714-0149B
...
34
ADAPTER AS NLA MTD-14978
...
35
Tine 12" R.H. MTD-1916946001
...
36
TINE 12 L.H. NLA MTD-742-0105
...
37
Clevis Pin MTD-711-0415
...
38
HEX NUT 5/16-18 MTD-712-3010
...
39
L-Wash. 5/16" I.D. MTD-936-0119
...
40
Tine Shield Flap *CHOOSE COLOR WHEN ORDERING* MTD-786-0113
...
41
BOLT-HEX 5/16-18X1 NLA MTD-710-0736
...
42
Shoulder Bolt .50" Dia. MTD-738-0507B
...
43
Fl-Wash. 3/8" l.D. x 5/8" O.D. MTD-936-0117
...
44
Hex Bolt 3/8-16 x 3/4" Lg. MTD-710-0216
...
45
Depth Bar Ass'y. MTD-786-0120-0637
...
46
HEX NUT 5/16-18 MTD-712-3010
...
47
L-Wash. 5/16" l.D. MTD-936-0119
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
L-Wash. 5/16" l.D. MTD-936-0119
...
50
483FRAME RAIL-L.H. NLA MTD-14975
...
51
CLAMP MTD-726-0175
...
52
L-Wash. 5/16" l.D. MTD-936-0119
...
53
HEX NUT 5/16-18 MTD-712-3010
...
54
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
55
Ball Knob 1-1/4" Dia. MTD-920-0232
...
56
L-Wash. 3/8" I.D. MTD-736-0169
...
57
Hex Nut 3/8-16 Thd. MTD-712-0798
...
58
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
59
BRACKET REINFORCEMENT NLA MTD-15393
...
61
TINE SHIELDCOLOR NLA MTD-784-0026
...
62
Inter. Cotter Pin MTD-714-0149B
...
63
Clevis Pin MTD-711-0415
...
64
HANDLE (RH) NLA MTD-749-0762
...
65
Hand Knob MTD-720-0195
...
66
COTTER PIN-1/16 DIA x .75 MTD-714-0127
...
67
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
68
GRIP-CLUTCH (RH) NLA MTD-784-0270
...
69
Shoulder Bolt 38" Dia. x 1.53" Lg. MTD-938-0560
...
70
FLANGE BEARING MTD-941-0402
...
71
SHOULDER NUT MTD-938-0561
...
72
ThroKle Control Wire MTD-946-0502
...
73
ThroKle Control Box Ass'y. MTD-831-0823A
...
74
Bell-Wash..40" l.D. MTD-936-0219
...
75
BRACKET NLA MTD-784-0022
...
76
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
77
HANDLE MOUNTING BRKT NLA MTD-784-0019
...
78
Adj. Handle Ass'y. NLA MTD-784-0025
...
79
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
80
Bell-Wash. .40" l.D. x .88" O.D. MTD-736-0105
...
81
Bell Washer MTD-736-0253
...
82
LOCKING PIN NLA MTD-711-0765
...
83
SLIDING ASSEMBLY-LOWER NLA MTD-784-0023
...
84
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
85
Compression Spring .36" O.D. x 1.00" Lg. MTD-732-0145
...
86
SHOULDER SCREW .500 DIA x .170 NLA MTD-738-0147
...
87
Hex Wash. S-Tap Scr. 1/4-20 x 50" Lg MTD-710-0599
...
88
Bell-Wash. 5/16" l.D. MTD-736-0242
...
89
Fl-Wash. 5/8" l.D. MTD-736-0285
...
90
Self-Tap Scr. #10 x 1/2" Lg. MTD-710-0779A
...
91
Tine Control Cable MTD-946-0535
...
...
...
...
...
