White Outdoor 210-310-190 Roto Boss 510 (1990)

Model: 210-310-190 Roto Boss 510 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

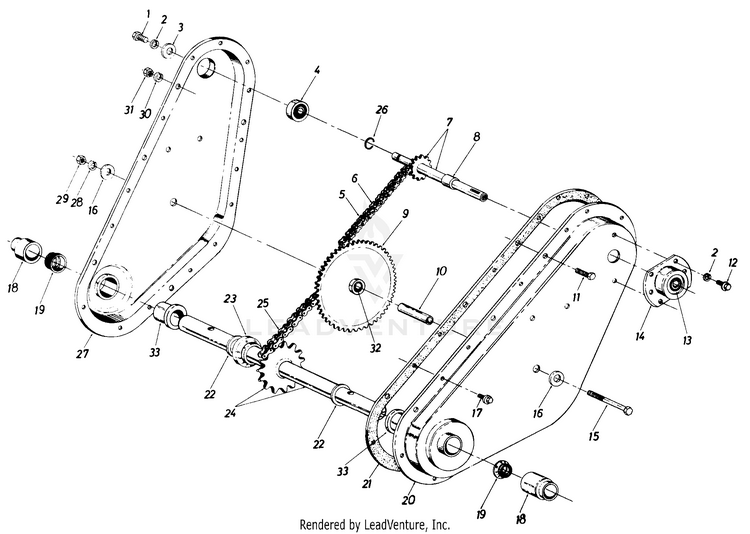

Chain Case Assembly

...
...
1
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
2
L-Wash. 1/4" l.D. MTD-936-0329
...
3
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
4
Bearing .62" l.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
5
#35 CHAIN 3/8 PITCH MTD-913-0327
...
6
#35 MASTER LINK 3/8 PITCH TYPE II (Service Only) MTD-913-0139
...
7
INPUT SHAFT MTD-04956
...
8
SPACER NLA MTD-750-0471
...
9
SPROCKET ASSEMBLY-8T & 40T (Includes Ref. No. 32) MTD-913-0331
...
10
HUB-SPROCKET NLA MTD-750-0275
...
11
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
12
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
13
Bearing .625" l.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
14
BEARING HOUSING MTD-05034A
...
15
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
16
Fl-Wash. 3/8 I.D. x 1.25 0 O.D. x .100 Thk. MTD-736-0258
...
17
Hex Wash. Hd. Self-Tap Scr. l/4-20 x .60" Lg MTD-710-0599
...
18
Dust Cap MTD-931-0487
...
19
SEAL MTD-721-0175
...
20
ASS'Y. TILLER HOUSI NG L.H. NLA MTD-14985
...
21
GASKET MTD-721P0170
...
22
Thrust Wash. 1.00" l.D. x .030 Thk. MTD-936-0163
...
23
Step Spacer MTD-950-0570
...
24
SHAFT ASSEMBLY-TINE NLA MTD-784-0089
...
25
#50 Chain 5/8" Pitch x 46 Links-Endless MTD-913-0328
...
26
Snap Ring MTD-916-0131
...
27
ASS'Y. TILLER HOUSING (RH) NLA MTD-14984
...
28
L-Wash. 3/8" I.D. MTD-736-0169
...
29
Hex Nut 3/8-24 Thd. MTD-712-0711
...
30
L-Wash. 5/16" Scr. MTD-936-0119
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
BEARING NLA (For Service Only-Must be Press Fit) MTD-741-0304
...
33
Bearing MTD-931-0374

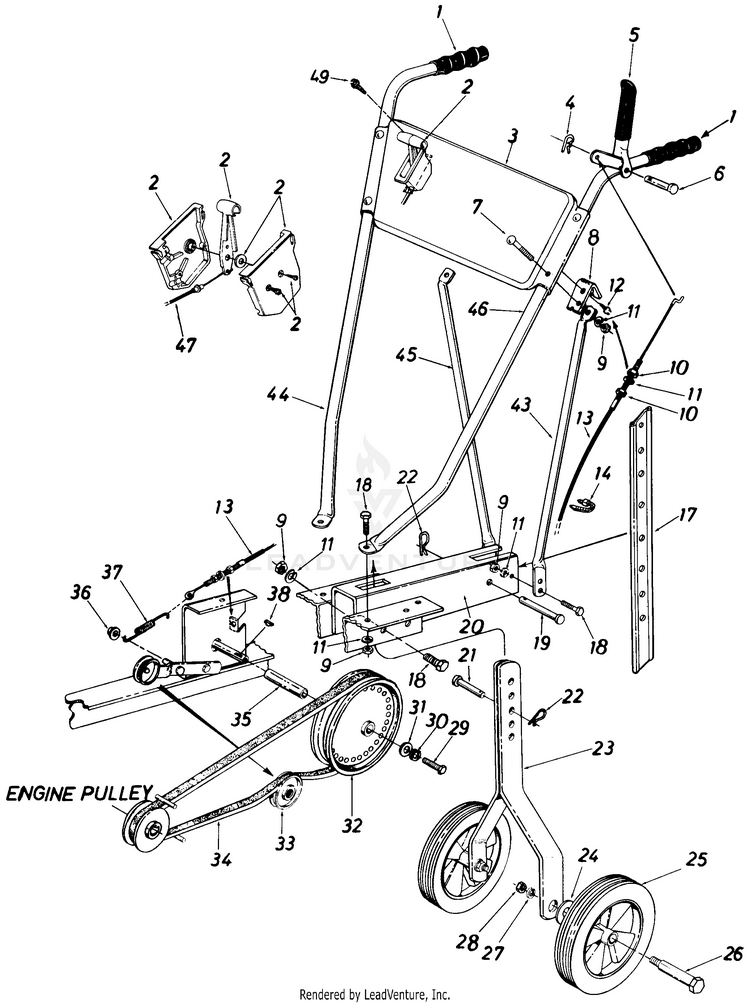

Frame Assembly

...
...
1
Grip MTD-720-0204
...
2
Throttle Control Box MTD-831-0823A
...
3
HANDLE PANEL NLA MTD-784-0036A
...
4
Hairpin Clip MTD-714-0104
...
5
GRIP ASSEMBLY-CLUTCH-L NLA MTD-784-0008
...
6
Clevis Pin MTD-711-0415
...
7
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
8
BRACKET-CL MTD-15093C
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
HEX JAM NUT 5/16-24 MTD-712-0256
...
11
L-Wash 5/16" I.D. MTD-936-0119
...
12
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
13
Clutch Control Cable MTD-946-0508
...
14
Cable Tie MTD-725-0157
...
17
BAR-DEPTH NLA MTD-04668
...
18
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
19
Clevis Pin 1/2" Dia. x 2.50" Lg. MTD-711-0761
...
20
TAIL PIECE ASSEMBLY NLA MTD-784-0005
...
21
CLEVIS PIN MTD-911-0755
...
22
Inter. Cotter Pin MTD-714-0149B
...
23
BRACKET AS MTD-06813
...
24
Bell Washer MTD-736-0253
...
25
WHEEL KIT REPLACEM'T MTD-753-04874
...
25
FLANGE BEARING NLA MTD-741-0116
...
26
SCREW-SHLD NLA MTD-738-0318
...
27
L-Wash. 1/2" I.D. MTD-736-0921
...
28
Hex Nut 1/2-20 Thd. MTD-712-0200A
...
29
Hex Bolt 1/4-28 x 75" Lg. MTD-710-0412
...
30
L-Wash. 1/4" l.D. MTD-936-0329
...
31
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
32
PULLEY MTD-756-0389A
...
33
FLAT IDLER PULLEY-2 1/4 OD X NLA MTD-756-0137
...
34
V-Belt 1/2" Pitch x 39" Lg. MTD-954-0190
...
35
SPACER MTD-750-0472
...
36
Cap Speed Nut MTD-926-0106
...
37
EXTENSION SPRING MTD-732-0387
...
38
Hi-Pro Key MTD-914-0388
...
43
SUPPORT BRACKET (LH) NLA MTD-749-0633
...
44
Handle Bar-R.H. NLA MTD-749-0626
...
45
Handle Support Bracket R. H . NLA MTD-749-0632
...
46
HANDLE (LH) NLA MTD-749-0627
...
47
35" THROTTLE CABLE MTD-946-0503
...
49
Self-Tap Scr. #10 x 1/2" Lg. MTD-710-0779A

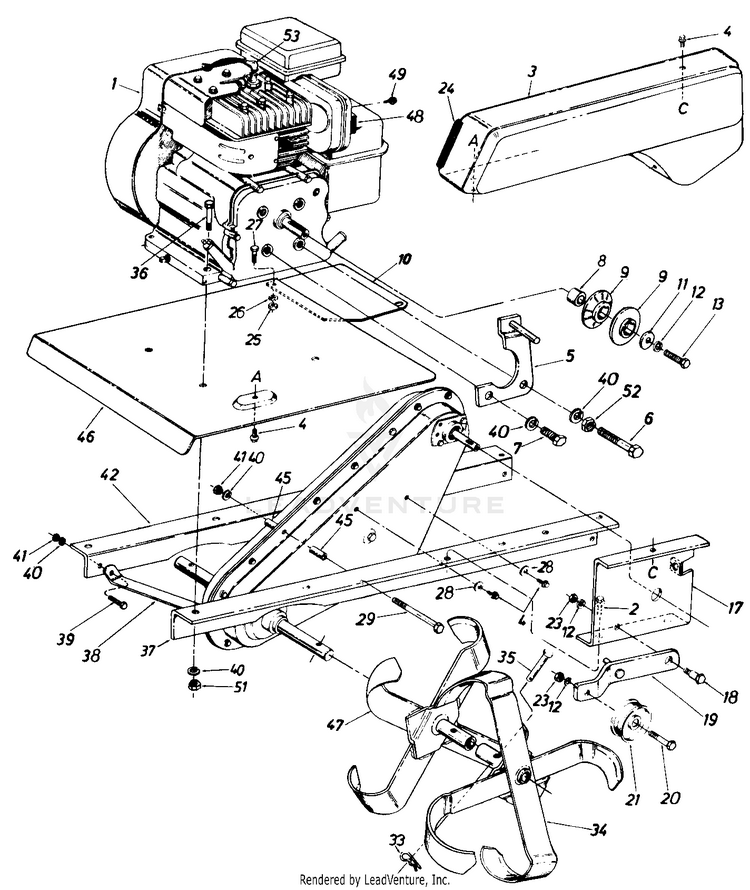

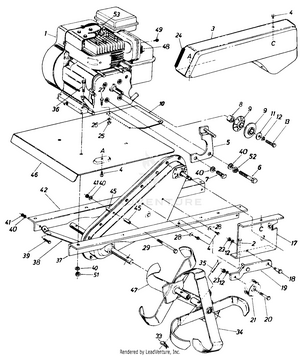

Tiller Assembly

...
...
1
Engine MTD-NA
...
2
SCREW 5/16-24 x .500 MTD-710-0600
...
3
463 BELT COVER NLA MTD-04958
...
4
Hex Self-Tap Scr. 1/4-20 X .5" MTD-710-0599
...
5
Belt Keeper Brkt. Ass'y. NLA MTD-784-0114
...
6
HEX SCREW 5/16-24 x 2.25 MTD-710-0593
...
7
Hex Bolt 5/16-24 x .62" Lg. (Gr. 5) MTD-710-0237
...
8
SPACER NLA MTD-750-0345
...
9
HALF PULLEY-ENGINE NLA MTD-748-0282
...
10
Tine Shield Extension NLA MTD-784-0265
...
11
Fl-Wash. 3/8" l.D. x 1.25" MTD-736-0258
...
12
L-Wash. 3/8" I.D. MTD-736-0169
...
13
Hex Bolt 3/8-24 x 1.00" Lg. MTD-710-1039
...
17
463 IDLER MOUNTING BRKT. NLA MTD-04934
...
18
Shld. Bolt MTD-738-0322A
...
19
Idler Bracket Ass'y. NLA MTD-784-0027
...
20
Hex Bolt 3/8-16 x 1.5" Lg. MTD-710-0344
...
21
FLAT IDLER PULLEY-2 1/4 OD X NLA MTD-756-0137
...
23
Jam Nut, 3/8-16 MTD-912-3008
...
24
Trim Strip-3" MTD-731-0511
...
25
HEX NUT 1/4-20 MTD-912-0287
...
26
L-Wash. 1/4" I.D. MTD-936-0329
...
27
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
28
SPRING WASHER BELL MTD-736-0270
...
29
Hex Bolt 5/16-18 x 3" Lg. MTD-710-0189
...
33
Inter. Cotter Pin MTD-714-0149B
...
34
See Tine Chart MTD-NA
...
35
Clevis Pin MTD-711-0679A
...
36
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
37
FRAME-RAIL NLA MTD-04949B
...
38
Front Brace Brkt. NLA MTD-04933
...
39
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
40
L-Wash. 5/16" l.D. MTD-936-0119
...
41
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
42
FRAME-RAIL NLA MTD-04948B
...
45
Spacer MTD-750-0470
...
46
TINE SHIELD NLA MTD-784-0001A
...
47
TINE ASSEMBLY-INNER (RH) MTD-784-0092-0637
...
47
TINE ASSEMBLY-OUTER (RH) MTD-784-0094-0637
...
47
TINE ASSEMBLY-INNER (LH) MTD-784-0091-0637
...
47
TINE ASSEMBLY-OUTER (LH)POWDER NLA MTD-784-0093
...
48
MUFFLER DEFLECTOR MTD-BS-796956
...
49
HEX SCREW WASH HD 10-32X.38 NLA MTD-710-0783
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Hex Nut 5/16-24 Thd. MTD-912-3057
...
53
INSULATOR-SPARK PLUG MTD-735-0639
...
...
...
...
...
