White Outdoor 196-990-000 45" Snow Thrower (1986)

Model: 196-990-000 45"" Snow Thrower (1986)

Save Part Not Listed?
product name

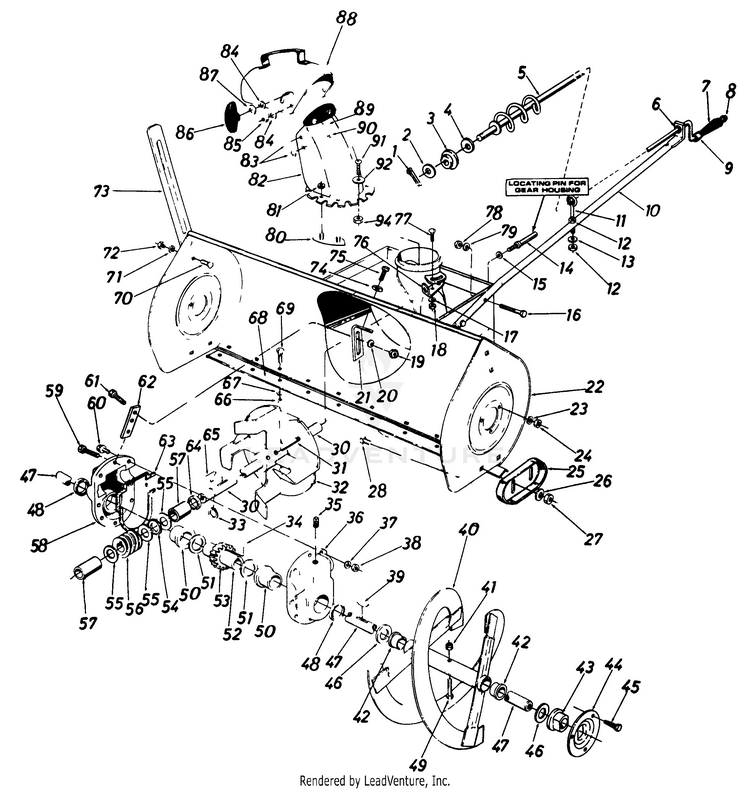

Chute Assembly

...
...
1
Cotter Pin MTD-914-0507
...
2
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
3
Plastic Bushing MTD-941-0475
...
4
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
5
CRANK ASSEMBLY NLA MTD-05982
...
6
Plastic Bushing MTD-941-0475
...
7
Knob Ball 3/8 Dia. Hole MTD-920-0171
...
8
Push Cap 3/8" Rod MTD-726-0100
...
9
Spacer .385 1. D. x .50" 1. D. MTD-750-0526
...
10
CHUTE CRANK SUPPORT TUBING NLA MTD-749-0230
...
11
BOLT-EYE NLA MTD-747-0416
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Bell. Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
14
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
15
Bell.-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
16
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
17
Bell.-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Hex Nut 1/4-28 Thd. MTD-712-0138
...
20
SPRING WASHER BELL MTD-736-0270
...
21
Gear Housing Support Brkt. MTD-784-5076-0637
...
22
45 " Snow Blower Housing Ass'y. NLA MTD-784-5036
...
23
L.-Wash. 5/16" I.D. * MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
Slide Shoe MTD-784-5038B-0637
...
26
Bell .-Wash. .400" I . D. x .88 " O.D. MTD-736-0105
...
27
Jam Nut, 3/8-16 MTD-912-3008
...
28
Carriage Bolt 3/8-16 x .62" Lg.* MTD-710-0389
...
30
IMPELLER SHAFT NLA MTD-738-0679
...
31
SPRING PIN SPIR 5/16 DIA X 1.7 MTD-715-0118
...
32
BLOWER FAN ASSEMBLY (POWDER BLACK) MTD-784-5145-0637
...
33
Snap Ring For .875" Dia. Shaft MTD-716-0111
...
34
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
35
Vent Plug MTD-737-0175
...
36
GEAR BOX HOUSING KIT MTD-753-0889
...
37
Spr.-Wash. .32" I.D. x .62" O.D. MTD-936-0271
...
38
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
39
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
40
Spiral Ass'y. R.H. *CHOOSE COLOR WHEN ORDERING* MTD-684-04196
...
40
45" SPIRAL ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-684-04197
...
41
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
42
BUSHING-PLASTIC MTD-05136
...
43
Flange Brg. w/ flats l" I.D. MTD-941-0170
...
44
Bearing Housing MTD-05845C-0637
...
45
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
46
Fl.-Wash. 1.00" I.D. x 1.75" O.D. MTD-736-0250
...
47
Spiral Axle MTD-738-0492
...
48
BEARING, FLANGE NLA MTD-741-0182
...
49
Shear Bolt 5/16-18 x 1.75" Lg. MTD-710-0891
...
50
Oil Seal 1.50" I.D. MTD-921-0146
...
51
FLAT WASHER MTD-736-0266
...
52
Worm Gear Shaft MTD-738-0275
...
53
Double Threaded Worm Gear- 0 L . H . MTD-917-1425
...
54
Thrust Brg.-.88" I.D. x 1.44" O.D. MTD-741-0184
...
55
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
56
Double Threaded Worm-L.H. MTD-917-0299
...
57
Sleeve MTD-941-0217
...
58
GEAR BOX HOUSING KIT MTD-753-0889
...
59
Hex Bolt 5/16-18 x l.25" Lg.* MTD-710-0528
...
60
Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5) MTD-710-0376
...
61
Hex Bolt 1/4 28 x .75" Lg. MTD-710-0412
...
62
SUPPORT PLATE-GEAR MTD-784-5075
...
63
Rubber Gasket MTD-921-0144
...
64
Oil Seal-.875" I.D. MTD-921-0145
...
65
Key MTD-714-0126
...
66
HEX NUT 5/16-18 MTD-712-3010
...
67
L.-Wash. 5/16" I.D.* MTD-936-0119
...
68
Shave Plate MTD-05598-0637
...
69
Carriage Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
70
Carriage Bolt 5/16-18 x .62" Lg. * MTD-710-0260A
...
71
L.-Wash. 5/16" I.D.* MTD-936-0119
...
72
HEX NUT 5/16-18 MTD-712-3010
...
73
Guide Blade MTD-790-00181-0637
...
74
Bell.-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
75
Hex Wash. Hd. AB Tap Scr 5/16 x .75" Lg. MTD-710-0726
...
76
Chute Crank Brkt. *CHOOSE COLOR WHEN ORDERING* MTD-784-5123-0637
...
77
Carriage Bolt 5/16-18 x .75" Lg.* MTD-710-0451
...
78
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
79
L-Wash. 3/8" I.D. MTD-736-0169
...
80
GUARD ASSEMBLY NLA MTD-05783
...
81
Hex Cent. L. Nut 1/4-20 Thd. MTD-912-0107
...
82
LOWER CHUTE MTD-931-0843B
...
83
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
84
Bell.-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
85
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
86
Knob Handle MTD-720-04072A
...
87
Bell.-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
88
Top Chute Ass'y. MTD-731-0846C
...
89
Carriage Bolt 5/16-18 x 1.00" Lg.* MTD-710-0276
...
90
Carriage Bolt 5/16-18 x .62" Lg * MTD-710-0260A
...
91
Truss l\/lach. Scr. 1/4-20 x .50 MTD-710-0286
...
92
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
94
Hex Cent. L-Nut 1/4-20 Thd. MTD-912-0107

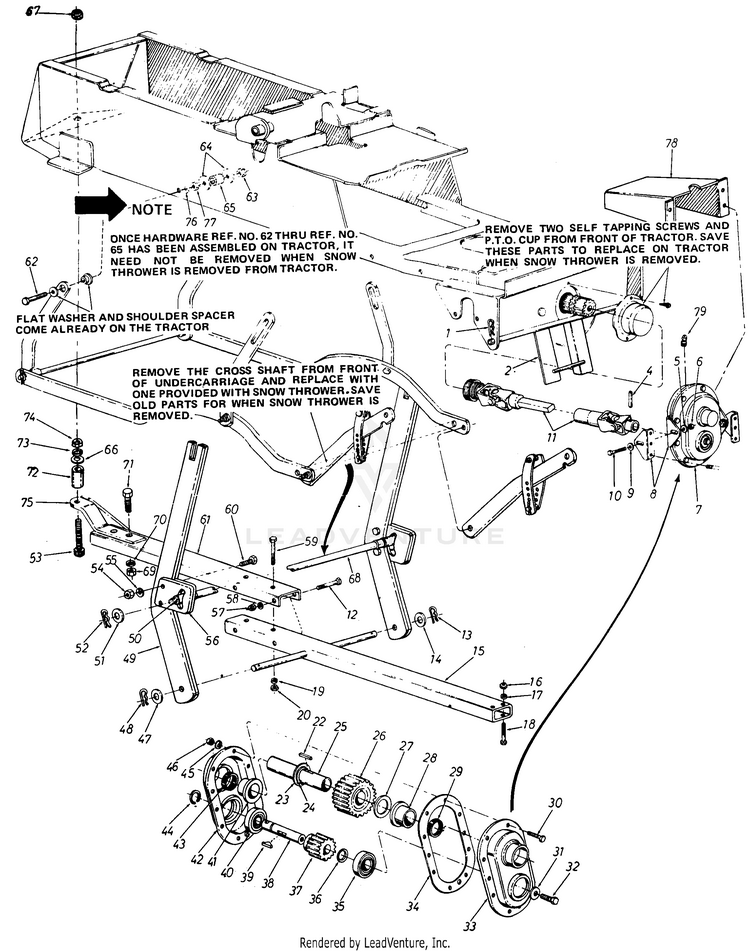

Drive Assembly

...
...
1
Intern. Cotter Pin 3/4" Dia. MTD-714-0117
...
2
BRACKET ASSEMBLY-GUARD MTD-05707
...
4
Spring Pin Spirol 1 /4 " Dia. x Lg. MTD-715-0121
...
5
Be lleville Wash. .341 " I.D. x.88" O.D. MTD-736-0242
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Gear Box Ass'y. Comp. NLA MTD-717-0370
...
8
BRACKET-GE NLA MTD-05607
...
9
Belleville Wash. .341 " I.D. x .88" O.D. MTD-736-0242
...
10
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
11
UNIVERSAL DRIVE SHAFT NLA MTD-717-0366
...
12
Hex Scr. 3/8-24 x 4.50" Lg.* MTD-710-0620
...
13
Hair Pin Cotter MTD-714-0147
...
14
Fl.-Wash. .62" I.D. x 1.12" O.D. MTD-736-0156
...
15
SHAFT ASSEMBLY NLA MTD-05670
...
16
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
17
L-Wash. 3/8" I.D. MTD-736-0169
...
18
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
19
L-Wash. 3/8" I.D. MTD-736-0169
...
20
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
22
Hi-Pro Key 1/4" x 7/8" Dia. MTD-714-0113
...
23
FLAT WASHER 1.25 ID x 2.0 OD x .060 MTD-736-0246
...
24
Snap Ring for 1.25" Dia. Shaft MTD-716-0116
...
25
SHAFT-GEAR NLA MTD-738-0677
...
26
SPUR GEAR-28T MTD-917-0362
...
27
FLAT WASHER 1.25 ID x 2.0 OD x .060 MTD-736-0246
...
28
Flange Bearing 1.25" I.D. x 1.75" O.D. MTD-748-0194
...
29
OIL SEAL -1.25 ID x 1.75 OD MTD-921-0117
...
30
HEX SCREW 1/4-28 X.875 GR5 MTD-710-0281
...
31
Fl.-Wash. .40 I.D. x 1.25" O.D. x . 1 60 MTD-736-0247
...
32
Hex L.-Scr. 3/8-24 x 1.00" Lg. MTD-710-0591
...
33
HOUSING HALF (LH) NLA MTD-717-0359
...
34
GASKET NLA MTD-721-0158
...
35
Ball Bearing 1.00" I.D. x 2.00" O.D. MTD-941-0131
...
36
FLAT WASHER MTD-936-0259
...
37
15 TEETH SPUR GEAR NLA MTD-717-0361
...
38
INPUT SHAFT NLA MTD-738-0361
...
39
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
40
Ball Bearing 1.00" I.D. x 2.00" O.D. MTD-941-0131
...
41
Flange Bearing 1.25" I.D. x 1.75" O.D. MTD-748-0194
...
42
HOUSING HALF (RH) MTD-717-0360
...
43
OIL SEAL -1.25 ID x 1.75 OD MTD-921-0117
...
44
SNAP RING NLA MTD-716-0118
...
45
Spring Wash. 1/4" I.D. MTD-936-0175
...
46
Hex Nut 1/4-28 Thd. MTD-712-0138
...
47
Fl. Wash. .62" I.D. x 1.12" O.D. MTD-736-0156
...
48
Hair Pin Cotter MTD-714-0147
...
49
BAR-LIFT NLA MTD-13780
...
50
SPACER NLA MTD-750-0444
...
51
Fl. Wash. .62" I.D. x 1.12" O.D. MTD-736-0156
...
52
Hair Pin Cotter MTD-714-0147
...
53
HEX BOLT MTD-910-0763
...
54
HEX NUT 5/16-18 MTD-712-3010
...
55
L. Wash. 5/16" Scr. MTD-936-0119
...
56
CAM:LIFT NLA MTD-13781
...
57
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
58
L-Wash. 3/8" I.D. MTD-736-0169
...
59
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
60
Hex Scr. 5/16-18 x 1.00" Lg.* MTD-710-0376
...
61
LIFT BRACKET NLA MTD-05611
...
62
Hex Scr. 3/8-24 x 2.50" (Flat washer and shoulder spacer come already on the tractor) MTD-710-0369
...
63
Hex L-Nut 3/8-24 Thd. (Once this piece is put on tractor, it doesn’t need to be removed when snow thrower is removed from tractor) MTD-712-0116
...
64
Fl.-Wash...375 I.D. x 1.00" O.D x .135" (Once this piece is put on tractor, it doesn’t need to be removed when snow thrower is removed from tractor) MTD-736-0258
...
65
Spacer .275 I.D. x .625 O.D. x 440 (Once this piece is put on tractor, it doesn’t need to be removed when snow thrower is removed from tractor) MTD-750-0497
...
66
Fl.-Wash. .66" I.D. x 1.25" O.D. x .100 MTD-736-0237
...
67
HEX NUT MTD-712-0221
...
68
SHAFT ASSEMBLY NLA MTD-13789
...
69
HEX NUT MTD-712-0206
...
70
L-Wash. 1/2" I.D. MTD-736-0921
...
71
SCREW 1/2-13 x 1.25 GR5 MTD-710-0474
...
72
SPACER MTD-750-0462
...
73
L.-Wash. 5/8" Scr.* MTD-936-0158
...
74
HEX JAM NUT 5/8-18 MTD-712-0318
...
75
PLATE ASSEMBLY MTD-05646-0637
...
76
L-Wash. 3/8" I.D. MTD-736-0169
...
77
Hex Nut 3/8-24Thd.* MTD-712-0241
...
78
DRIVE SHAFT COVER NLA MTD-784-5093
...
79
Grease Fitting NLA MTD-746-0146
