White Outdoor 195-931-190 44" Rear Discharge Deck (1985)

Model: 195-931-190 44"" Rear Discharge Deck (1985)

Save Part Not Listed?
product name

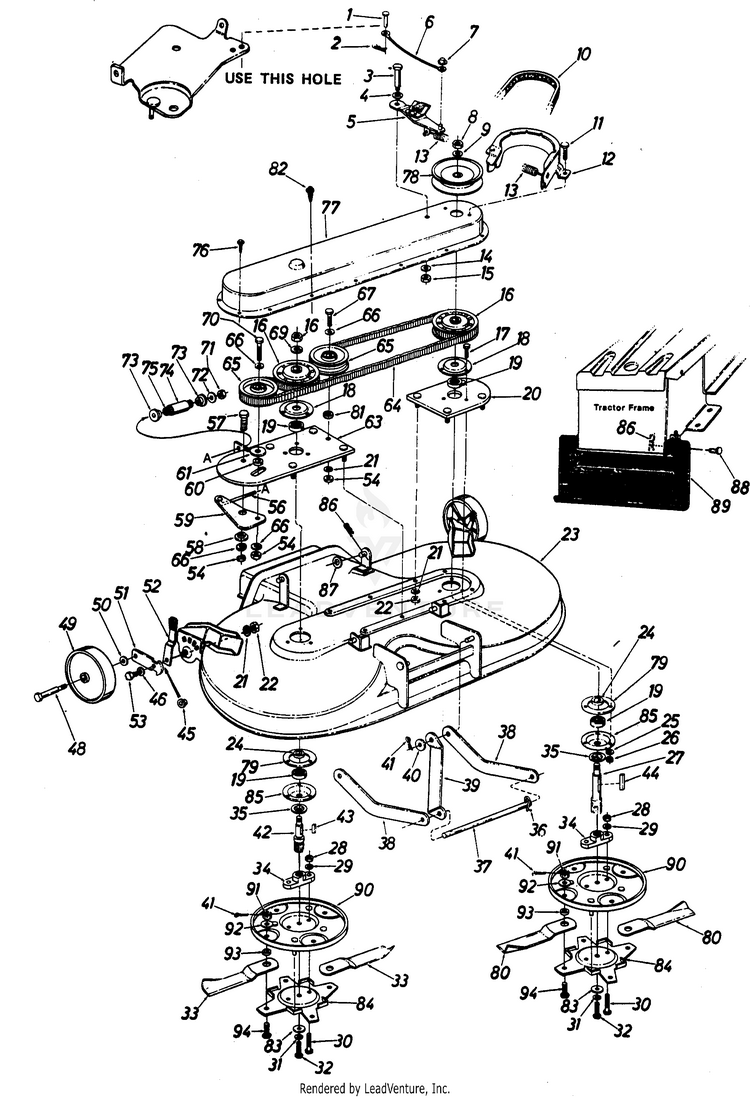

44-Inch Rear Discharge Deck

...
...
1
Clevis Pin 1/4" Dia. x 1/2" Lg. MTD-911-0701
...
2
Hairpin Clip MTD-714-0104
...
3
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
4
WaveWasher 7/16" Scr. MTD-936-0141
...
5
Spindle Brake Arm Ass'y. NLA MTD-16321
...
6
BRAKE CABLE MTD-946-0237
...
7
Push Cap 1/4" Stud. MTD-926-0106
...
8
HEX JAM NUT 5/8-18 MTD-712-0318
...
9
Bell.-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317
...
10
V-BELT 1/2 x 56 MTD-954-0230
...
11
Hex Wash. Hd. Self Tap Scr. 1/4 20 x .50" Lg. MTD-710-0599
...
12
BELT GUARD MTD-14258B-0637
...
13
Extension Spring NLA MTD-732-0465
...
14
Bell.-Wash 340" I.D. MTD-736-0242
...
15
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
16
Sprocket Pulley Ass'y. NLA MTD-756-0334
...
17
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
18
Bearing Housing MTD-08253B
...
19
BALL BEARING MTD-741P0919B
...
20
PLATE ASSEMBLY NLA MTD-13868
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
23
44" R.D. Deck Ass'y. NLA MTD-14251
...
24
SPACER .790 ID X .347 LG. MTD-750-0456
...
25
L.-Wash. 5/16" I.D.* MTD-936-0119
...
26
Hex Nut 5/16-24 Thd.* MTD-912-3057
...
27
SPINDLE (LH) NLA MTD-738-0504
...
28
Hex Nut 5/16-24Thd.* MTD-912-3057
...
29
L.-Wash. 5/16" I.D." MTD-936-0119
...
30
Hex Bolt 5/16-24 x 1.00" Lg. MTD-710-0888
...
31
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
32
Hex Bolt 3/8-24 x .88" Lg. (Grade 5) MTD-710-0696
...
33
BLADE L.H. ROTATION NLA MTD-742-0277
...
34
BLADE ADAPTER MTD-748-0235
...
35
SHIELD-BRG MTD-13703
...
36
Inter. Cotter Pin MTD-714-0149B
...
37
CONNECTING ROD MTD-738-0392
...
38
DECK STABI I IZER NLA MTD-13866
...
39
DIAGONAL BRACE NLA MTD-13867
...
40
Fl.-Wash. .50" I.D. x 1.00 O .D. x .090 MTD-936-0192
...
41
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
42
BLADE SPINDLE (RH) NLA MTD-738-0505
...
43
Square Key 3/16" x .75 MTD-714-0122
...
44
Sq. Key 3/16 x 1.5" Lg. MTD-714-0133
...
45
SHOULDER SPACER NLA MTD-748-0279
...
46
Bell.-Wash 400" I.D. MTD-936-0219
...
48
SHOULDER SCREW MTD-938-0455
...
49
Wheel Ass'y. Comp. 6" x 1.38 MTD-734-0974
...
50
Bell-Wash. 3/8" I.D. MTD-736-0105
...
51
BAR-WHEEL PIVOT NLA MTD-10937
...
52
LEVER ASSEMBLY-SPRING MTD-14082
...
53
Hex Bolt 3/8-24 x 1.25" Lg. Grade 5 MTD-710-0191
...
54
Hex Cent. L-Nut 3/8-24 Thd. MTD-912-0214
...
54
L-Wash. 3/8" I.D. MTD-736-0169
...
56
CHAIN ADJUSTMENT LINK 5/16-18 x 4. MTD-710-0437A
...
57
Hex Bolt 3/8-24 x 1.00" MTD-710-1039
...
58
Shld. Spacer .625" I.D. MTD-938-0347
...
59
BRACKET-ID NLA MTD-14256
...
60
Spacer, .380 x .625 x .255 MTD-750-04776
...
61
Fl.-Wash. .38" I.D. x 1.37" O.D. x.125 MTD-736-0320
...
63
PLATE ASSEMBLY NLA MTD-14254
...
64
HTD Twin Power Belt MTD-954-0260
...
65
Fl.-ldler Pulley 3.50" O.D. MTD-956-0365
...
66
Bell.-Wash 38" I.D. MTD-736-0105
...
67
Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5) MTD-710-0539
...
67
HEX JAM NUT 5/8-18 MTD-712-0318
...
69
Bell.-Wash. 5/8" I.D. MTD-736-0317
...
70
Hex Bolt 3/8-24 x 2.00" Lg. MTD-710-0151
...
71
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
72
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
73
Sh Id. Spacer .625" 1. D. MTD-938-0347
...
74
SPACER NLA MTD-750-0455
...
75
COMPRESSION SPRING NLA MTD-732-0377
...
76
Hex Wash. Hd. Self Tap. Scr. 1/4-20 x . 50" Lg. MTD-710-0599
...
77
Belt Cover NLA MTD-14253
...
78
PULLEY MTD-756-0375
...
79
Deck Reinforcement Plate MTD-09164A-0637
...
80
BLADE-R.H. ROTATION NLA MTD-742-0278
...
81
Fl.-Wash. .38" I.D. x 1.00" O.D. MTD-936-0206
...
82
Hex Wash. Hd. Self Tap-Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
83
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
84
BLADE DISC-LOWER MTD-742-0279-0637
...
85
Open Bearing Housing MTD-15296A
...
86
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
87
Fl.-Wash. 1/2" I.D. MTD-936-0192
...
88
Pin, Clevis, .375 x .969 HT MTD-711-04722
...
89
SHIELD-SAF NLA MTD-14268
...
89
SHIELD-SAF NLA MTD-14269
...
90
BLADE-DISC MTD-742-0286-0637
...
91
HEX NUT 1/2-20 MTD-912-0114
...
92
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
93
SPACER MTD-950-0610
...
94
SHOULDER SCREW .500X.360 MTD-938-0587

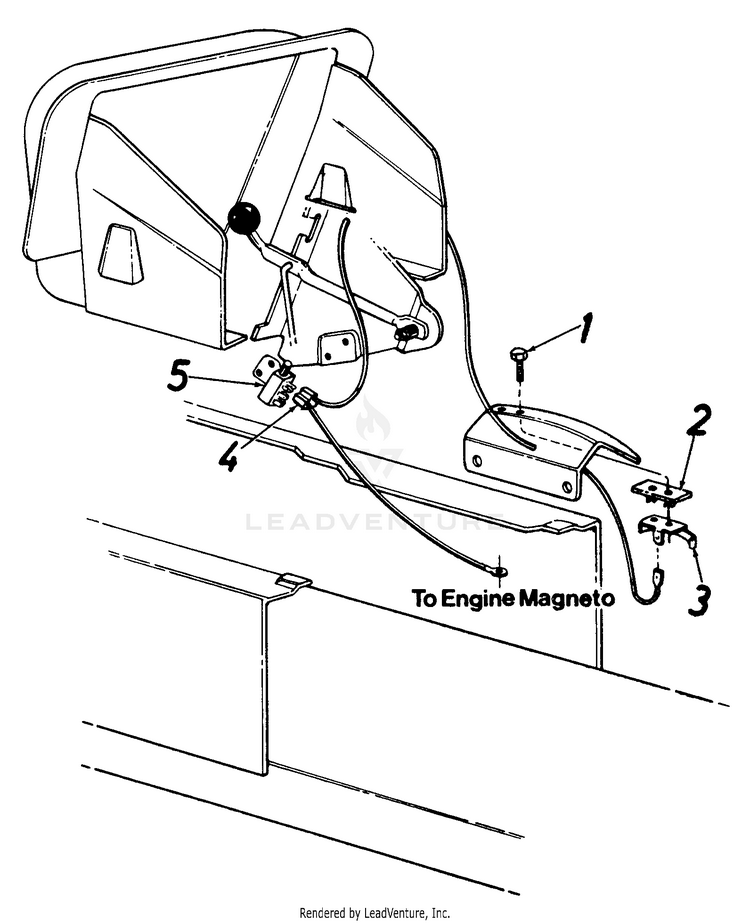

Safety Reverse Switch For 050, 720 Thru 786 Models

...
...
1
Hex Wash. Hd. Screw #8 x .50" Lg. MTD-710-0227
...
2
Insulator Nut Plate MTD-926-0320
...
3
KIT-SAFETY SWITCH (For model Series 050, 720 and 730) MTD-753-0580
...
3
KIT-SAFETY SWITCH (For model Series 760 thru 786) MTD-753-0579
...
4
Reverse LockoutWire Harness NLA MTD-725-0764
...
5
Safety Switch MTD-925-0465A

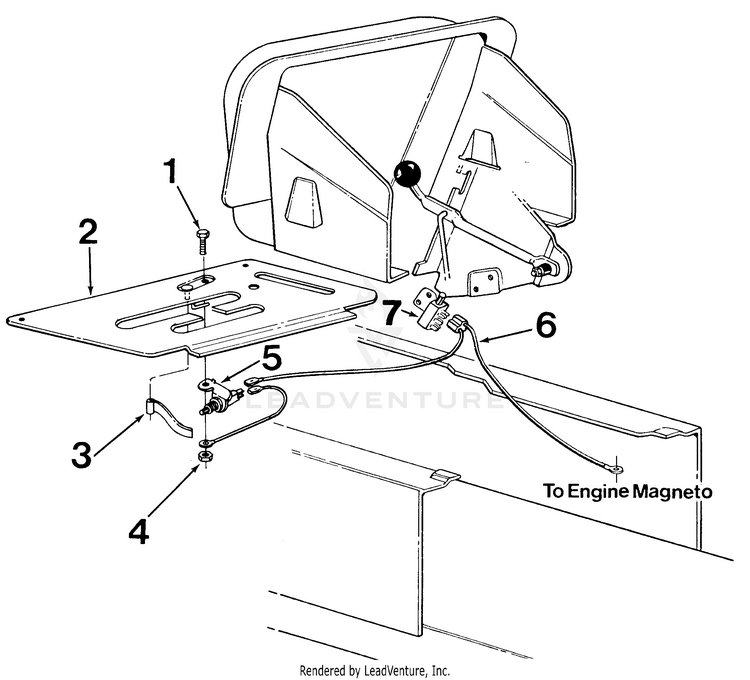

Safety Reverse Switch For 810 Thru 836 Models

...
...
1
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
2
Transmission Cover Ass'y. NLA MTD-14466
...
3
Switch Actuator Spring Lever NLA MTD-732-0405
...
4
HEX NUT 1/4-20 MTD-912-0287
...
5
SWITCH MTD-925-0268
...
6
Reverse Lockout Wire Harness NLA MTD-725-0764
...
7
Safety Swi tch MTD-925-0465A
