White Outdoor 190-993-190 50" Mower Deck (1993)

Model: 190-993-190 50"" Mower Deck (1993)

Save Part Not Listed?
product name

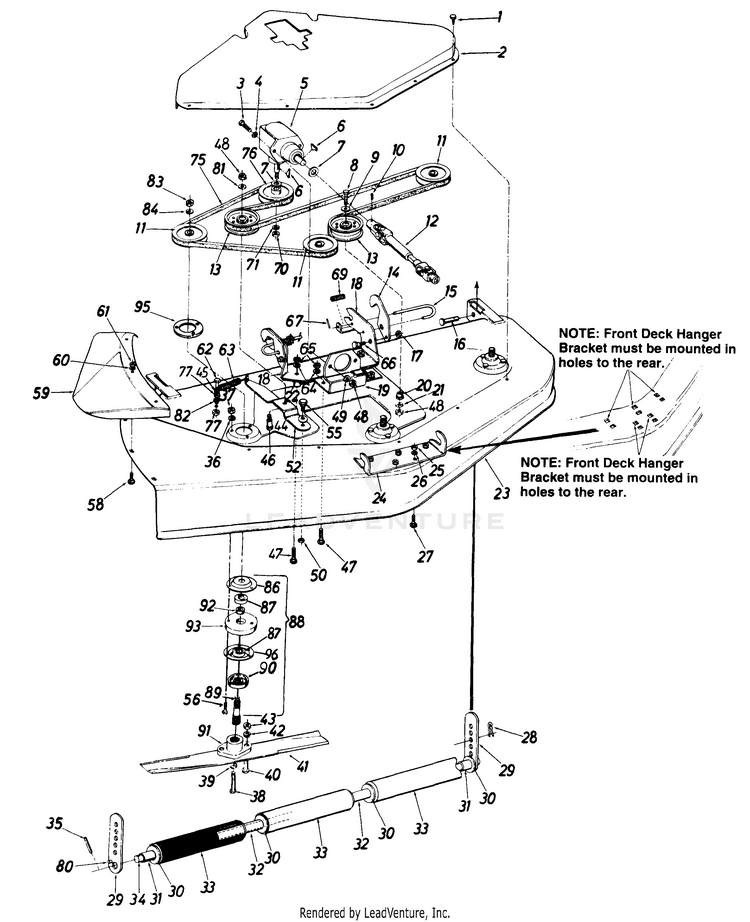

50-Inch Mowing Deck

...
...
1
Hex B-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0352
...
2
BELT COVER NLA MTD-12651
...
3
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
4
Ext. L-Wash. 3/8" I.D. MTD-736-0148
...
5
Right Angle Drive MTD-NA
...
6
Key MTD-714-0126
...
7
FLAT WASHER .938 ID x 1.47 OD X NLA MTD-736-0181
...
8
HEX SCREW NLA MTD-710-0756
...
9
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
10
SCREW-SQ HD SET 3/8-16 x .50 CUP MTD-710-0357
...
11
PULLEY-5.00 DIA MTD-756-0519
...
12
SHAFT ASSEMBLY MTD-717-0401
...
12
UNIVERSAL DRIVE SHAFT MALE MTD-717-0439
...
12
Universal Drive Female Half MTD-717-0440
...
13
Deck Idler Pulley MTD-711-0306
...
14
LOCK-HANGE NLA MTD-12564
...
15
RELEASE PIN MTD-747-0160
...
16
Clevis Pin MTD-711-0310
...
17
Hex L-Nut 5/16-18 Thd. MTD-912-0158
...
18
REAR DECK HANGER BRACKET. NLA MTD-12648
...
19
GEAR BOX MOUNTING BRACKET. ASS'Y. NLA MTD-13705
...
20
ADAPTER-IDLER MTD-711-0598
...
21
L-Wash. 3/8" I.D. MTD-736-0169
...
22
SPACER .33" I D. x .88" NLA MTD-750-0776
...
23
50" DECK ASS'Y. NLA MTD-12640
...
24
BRACKET-DE MTD-12646-0637
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
L-Wash. 5/16" I.D. MTD-936-0119
...
27
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
28
Hairpin Cotter MTD-714-0101
...
29
Height Adjuster MTD-12650
...
30
Fl-Wash. .75" I.D. x 1.5" O.D. MTD-736-0188
...
31
Spacer.75" I.D. MTD-750-0212
...
32
SPACER-TUBE MTD-750-0288-0637
...
33
Roller MTD-731-0335
...
34
Roller Shaft MTD-738-0295
...
35
Roll Pin 3/16 x 1.25" MTD-915-0246
...
36
L-Wash. 5/16" I.D. MTD-936-0119
...
37
Hex Cent. L-Nut 5/16-24 Thd. MTD-912-0237
...
38
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
39
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
40
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
41
17.3" BLADE MTD-742-0171B-0637
...
42
L-Wash. 5/16" I.D. MTD-936-0119
...
43
Hex L-Nut 5/16-24 Thd. MTD-912-0237
...
44
Spr. Wash. .445" I.D. MTD-936-0141
...
45
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
46
SHOULDER SCREW .625 DIA x .960 MTD-938-0150
...
47
Carriage Bolt 5/16-18 x 1.5" Lg. MTD-710-0262
...
48
Hex Nut 3/8-16 Thd. MTD-712-0798
...
49
L-Wash. 3/8" I.D. MTD-736-0169
...
50
Hex L-Nut 7/16-14 Thd. MTD-712-0290
...
52
BRACKET-SP NLA MTD-09489
...
55
SHOULDER SCREW .625 DIA x .261 MTD-738-0163
...
56
Hex Bolt 5/16-24 x 1.5" Lg. (Grade 5) MTD-710-0672
...
58
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
59
GUARD-CHUTE MTD-12649-0637
...
60
L-Wash. 5/16" I.D. MTD-936-0119
...
61
HEX NUT 5/16-18 MTD-712-3010
...
62
SCREW 1/4-28 x 1.75 GR5 NLA MTD-710-0559
...
63
EXTENSION SPRING MTD-932-0180
...
64
L-Wash. 5/16" I.D. MTD-936-0119
...
65
HEX NUT 5/16-18 MTD-712-3010
...
66
Shld. Bolt .437" x .286" MTD-738-0296
...
67
Roll Pin 1/8" Dia. MTD-715-0129
...
69
Compression Spring MTD-932-0306A
...
70
Hex L-Nut 5/8-18 Thd. MTD-712-0923
...
71
L-Wash. 5/8" I.D. MTD-936-0158
...
75
V-Belt MTD-954-0197
...
76
Drive Pulley MTD-756-0632
...
77
HEX JAM NUT 5/8-18 MTD-712-0318
...
80
Spring Pin Spiral 1/4" Dia. 1.00" Lg. MTD-715-0108
...
81
Bell-Wash. 3/8" I.D. x .87" O.D. MTD-736-0105
...
82
L-Wash. 1/4" I.D. MTD-936-0329
...
83
HEX JAM NUT 5/8-18 MTD-712-0318
...
84
L-Wash. 5/8" I.D. MTD-936-0158
...
86
Bearing Housing MTD-08253B
...
87
BALL BEARING MTD-741P0919B
...
88
SPINDLE ASSEMBLY-50"DECK MTD-14199A
...
89
BLADE SPINDLE MTD-938-0469B
...
90
SHIELD-BRG MTD-13703
...
91
BLADE ADAPTER MTD-748-0235
...
92
SPACER .790 ID X .347 LG. MTD-750-0456
...
93
Spindle Spacer Plate MTD-14088B-0637
...
95
PLATE-REIN NLA MTD-14249A
...
96
Open Bearing Housing MTD-15296A

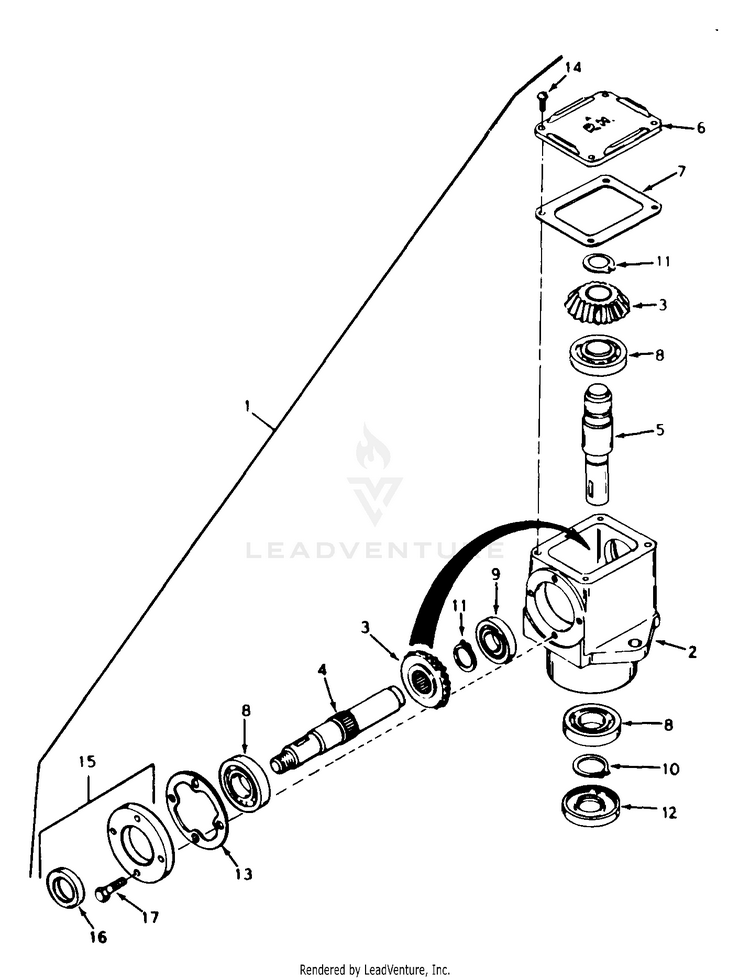

Right Angle Drive Box - Peerless 2604-P91

...
...
xx
Peerless Right Angle Drive Box NLA MTD-2604-P91
...
1
Head Ass'y. R.H. NLA (Incl. Nos. 2 thru 15) MTD-PE-794111A
...
2
HOUSING,RI NLA MTD-TC-770026A
...
3
GEAR MTD-TC-778046
...
4
INPUT SHAFT MTD-TC-776149
...
5
OUTPUT SHAFT MTD-TC-776129
...
6
Cover, Right Hand NLA MTD-PE-772034
...
7
GASKET-COVER PLATE MTD-TC-788028
...
8
Bearing, Ball MTD-TC-780034
...
9
Bearing, Ball MTD-TC-780024
...
10
RETAINING RING MTD-TC-788019
...
11
RETAINING RING MTD-TC-788018
...
12
OIL SEAL MTD-TC-788029
...
13
GASKET-END CAP MTD-TC-788030B
...
14
Screw, Rd. Hd. Self-Tap. 10-24 x 1/2 MTD-TC-792025
...
15
CAP ASSEMBLY-SEAL & END (Incl. Nos. 16 & 17) MTD-TC-786029
...
16
Seal, Oil MTD-TC-788031
...
17
BOLT,1/4-20X7/8 MTD-TC-792026
