White Outdoor 190-857-190 51" Snow Blower (1997)

White Outdoor 190-857-190 51" Snow Blower (1997)

Model: 190-857-190 51"" Snow Blower (1997)

Save Part Not Listed?

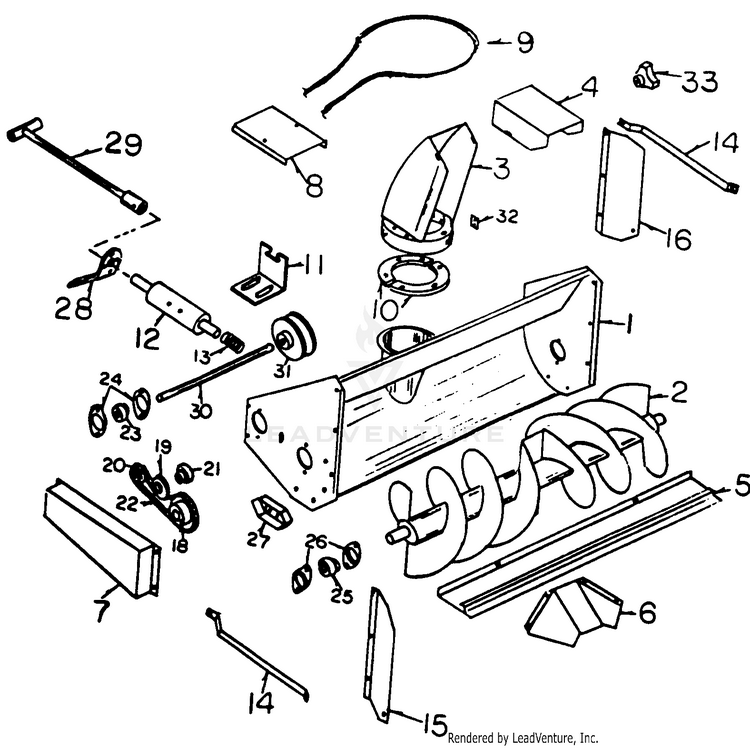

51-Inch Snow Blower

1

Snow Blower Housing MTD-WD-430-0000

2

Auger MTD-WD-430-0001

3

Chute MTD-WD-430-0019

4

Snow Deflector MTD-WD-430-0003

5

SNOW BLOWER BIT MTD-WD-430-0026

6

SNOW RETAINER MTD-WD-430-0005

7

Chain Cuard MTD-WD-430-0006

8

Belt Cuard MTD-WD-430-0007

9

CABLE, 1/8" x 84" MTD-WD-900-5602

10

CHUTE CLAMP MTD-WD-430-0020

11

CABLE RETAINER MTD-WD-430-0022

12

Cable Pulley MTD-WD-430-0023

13

Spring MTD-WD-900-5600

14

Extender Brace MTD-WD-430-0012

15

Extender, RH MTD-WD-430-0013

16

EXTENDER, LH MTD-WD-430-0014

18

Auger Sprocket MTD-WD-900-1508

19

IDLER SPROCKET MTD-WD-900-1507

20

SPROCKET MTD-WD-900-1506

20

DRIVE SPROCKET MTD-WD-900-1509

21

IDLER SPORCKET BUSHING MTD-WD-430-0016

22

CHAIN MTD-WD-900-1006

23

BEARING-BA MTD-WD-900-3509

24

BEARING FLANGE MTD-941-0311

25

Ball Bearing MTD-741-0303

26

1 in. Bearing Flange MTD-741-0242

27

SKID SHOE MTD-WD-430-0017

28

Cable Pulley Support MTD-WD-430-0021

29

Handle MTD-WD-430-0024

30

Shaft MTD-WD-430-0018

31

CEARBOX PULLEY, OUTPUT MTD-WD-900-2510

31

SNOW BLOWER PULLEY MTD-WD-900-2544

32

Cable Clamp MTD-WD-430-0025

33

WING NUT MTD-WD-900-5601

xx

1/2 Link, #40 (2000) MTD-WD-6D5209
