White Outdoor 190-825-101 30" Hydraulic Tiller (2000)

Model: 190-825-101 30"" Hydraulic Tiller (2000)

Save
 Part Not Listed?Part Not Listed?
product name

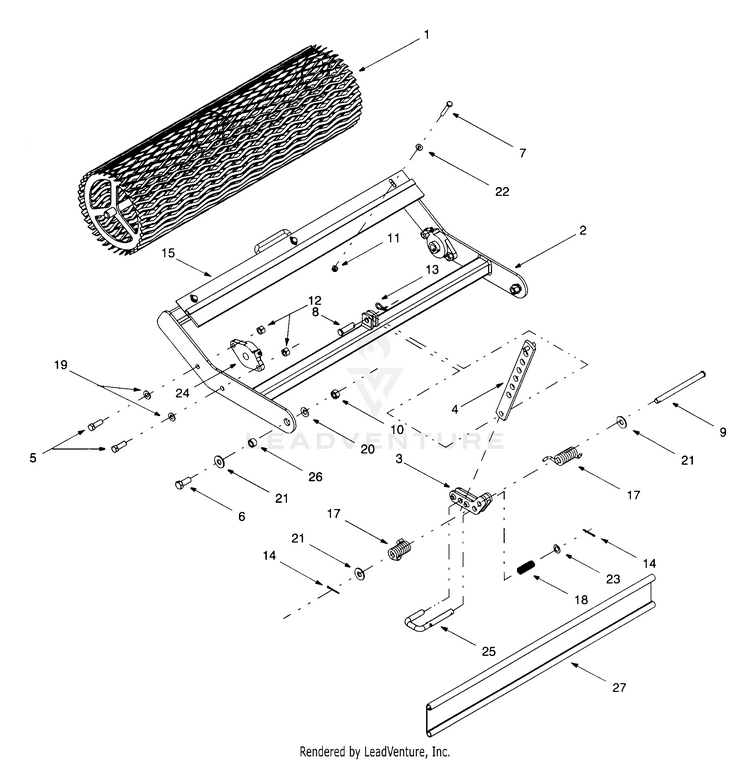

007 Roller Assembly (Optional)

...
...
1
ROLLER ASSEMBLY (POWDER BLACK) MTD-686-0145-0637
...
2
FRAME ASSEMBLY (POWDER BLACK) MTD-686-0146-0637
...
3
BRACKET ASSEMBLY (POWDER BLACK) MTD-686-0149-0637
...
4
ADJUSTMENT BAR (POWDER BLACK) MTD-686-0153-0637
...
5
Hex Cap Screw, 7/16-20 x 1.25 MTD-710-3029
...
6
Hex Cap Screw, 1/2-13 x 1.25 MTD-710-3032
...
7
Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103
...
8
CLEVIS PIN .500 x 1.875 MTD-711-0231A
...
9
CLEVIS PIN .50 x 6 MTD-711-1384
...
10
HEX NUT MTD-712-0206
...
11
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
12
Hex Lock Nut, 7/16-20 MTD-712-3067
...
13
Inter. Cotter Pin MTD-714-0149B
...
14
Cotter Pin 1/8" Dia. MTD-714-0470
...
15
GRADE ROLLER BRUSH MTD-727-0522
...
16
TORSION SPRING (RH) MTD-732-0988
...
17
TORSION SPRING (LH) MTD-732-0989
...
18
COMPRESSION SPRING MTD-732-3091
...
19
Flat Washer, .474 x .879 x .064 MTD-936-0226
...
20
Bell Washer MTD-736-0253
...
21
FLAT WASHER MTD-736-0275
...
22
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
23
Flat Washer, .50 x .875 x .060 MTD-736-3068
...
24
FLANGE BEARING ASSEMBLY MTD-741-1103
...
25
ROLLER LOCKING PIN MTD-747-1207
...
26
SPACER MTD-950-1069
...
27
FRONT TINE SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-786-0274

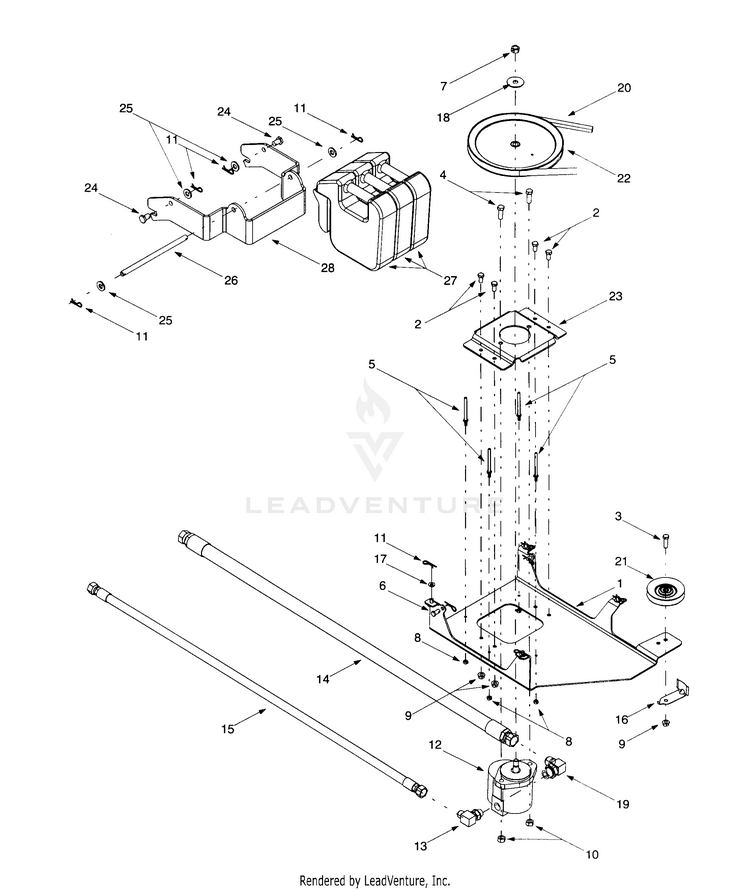

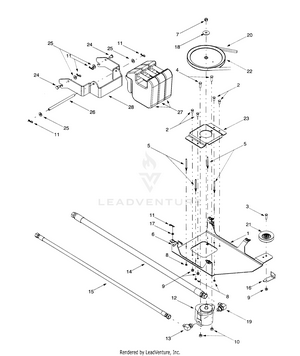

Filter, Drive, Weights

...
...
1
PUMP BRACKET ASSEMBLY(POWDER BLACK) MTD-683-0309-0637
...
2
Hex Cap Screw, 3/8-16 x .75 MTD-710-0216
...
3
Hex Cap Screw, 3/8-16 x 1.25 MTD-710-3005
...
4
Hex Cap Screw, 7/16-20 x 1.25 MTD-710-3029
...
5
Belt Keeper Pin MTD-911-1000
...
6
Clevis Pin, 3/8 x .75 MTD-711-1421
...
7
Nut, Hex Center Lock, 1/2-20 MTD-712-0239
...
8
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
9
Hex Lock Nut,3/8-16 MTD-912-0431
...
10
Hex Lock Nut, 7/16-20 MTD-712-3067
...
11
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
12
HYDRAULIC PUMP MTD-718-0545
...
13
90 DEG HYDRO FITTING MTD-727-0220
...
14
TANK TO PUMP HOSE MTD-727-0628
...
15
PUMP TO VALVE HOSE MTD-727-0629
...
16
BELT GUARD MTD-732-0990
...
17
FLAT WASHER MTD-736-0275
...
18
FLAT WASHER MTD-736-3027
...
19
90 DEGREE FITTING MTD-737-0309
...
20
V-belt (For Manual PTO Tractors) MTD-954-0341
...
20
BELT A-SEC x 76" (For Electric PTO Tractors) MTD-954-0490
...
21
Idler Pulley, 5/8 x 4.0 MTD-756-0487
...
22
PULLEY MTD-756-1178
...
23
BRACKET-PUMP MTG POWDER MTD-786-0283-0637
...
24
Clevis Pin, .5 x .78 MTD-911-0332
...
25
Flat Washer, .531 x 1.062 x .134 MTD-736-3019
...
26
WEIGHT GUARD ROD MTD-747-1186
...
27
Genuine Factory Parts WEIGHT - SUITCASE 42LB PLASTIC MTD-490-900-M059
...
28
WEIGHT BRACKET NLA MTD-783-0870

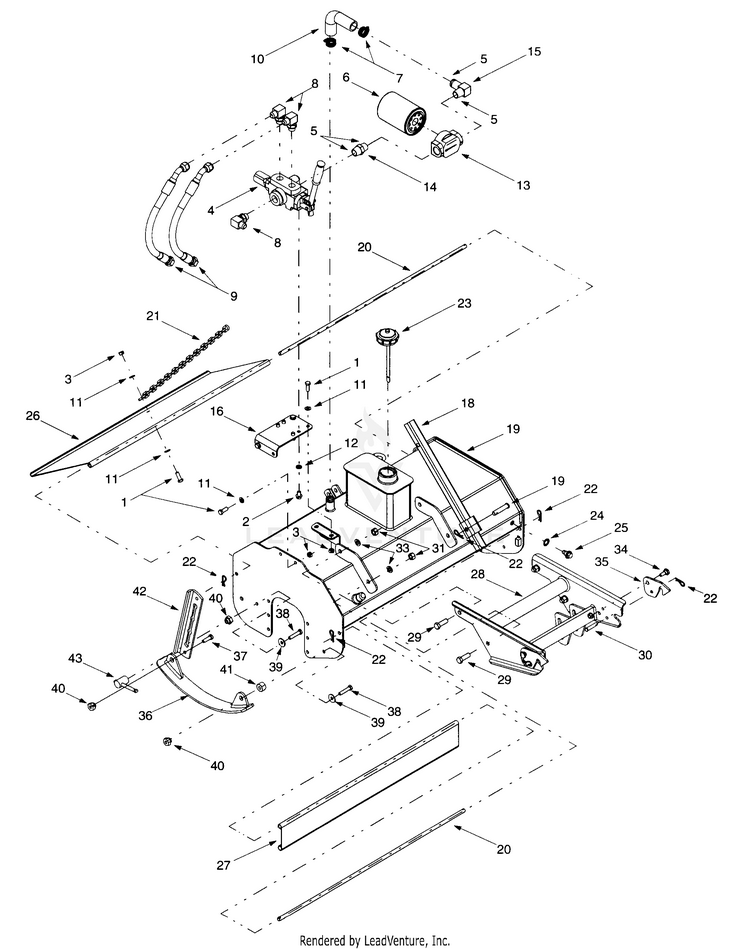

General Assembly

...
...
1
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
2
Shoulder Screw, 3/8-16 x.625 MTD-710-0870
...
3
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
4
CONTROL VALVE W/HANDLE MTD-918-0673
...
5
Locktite Hydraulic Sealant MTD-NA
...
6
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
7
Adjustable Hose Clamp MTD-726-0132
...
8
90 DEG HYDRO FITTING MTD-727-0220
...
9
VALVE TO MOTOR HOSE MTD-727-0520
...
10
90 DEG HYDRO HOSE MTD-727-0625
...
11
Flat Washer .375 ID x .738 OD MTD-736-0185
...
12
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
13
FILTER HOUSING MTD-681-0179
...
14
HYDRO FITTING MTD-737-0338
...
15
90 DEGREE HYDRO FITTING NLA MTD-737-0341
...
16
VALVE MOUNTING BRACKET MTD-786-0265-0637
...
17
FRAME ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0143
...
18
TILLER STAND (POWDER BLACK) MTD-686-0155-0637
...
19
Clevis Pin, .50 x 2.0 MTD-711-0510
...
20
SHIELD PIVOT ROD MTD-711-1380
...
21
TINE SHIELD CHAIN MTD-713-0490
...
22
Internal Cotter Pin NLA MTD-714-0419B
...
23
CAP MTD-720-0315
...
24
DRAIN PLUG SEAL MTD-921-0223
...
25
OIL DRAIN PLUG MTD-738-0940
...
26
REAR TINE SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-786-0252
...
27
FRONT TINE SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-786-0274
...
28
HITCH LINK ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0142
...
29
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
30
Clevis Pin MTD-711-0415
...
31
HEX NUT MTD-712-0206
...
?32
Flange Lock Nut, 3/8-16 MTD-912-0431
...
33
L-Wash. 1/2" I.D. MTD-736-0921
...
34
Shoulder Screw MTD-738-0380
...
35
SLEEVE HITCH LATCH MTD-786-0281-0637
...
36
SKID SHOE ASSEMBLY (POWDER BLACK) MTD-686-0154-0637
...
37
Hex Cap Screw, 3/8-24 x 1.0 MTD-710-1039
...
38
Hex Cap Screw, 3/8-24 x 1.75 MTD-710-1810
...
39
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
40
Shoulder Nut, 3/8-24 MTD-738-1144
...
41
SPACER-1.00 x .380 MTD-950-0706
...
42
Skid Adjuster Bracket MTD-786-0302-0637
...
43
HGT CRANK ADJUSTER MTD-786-0308

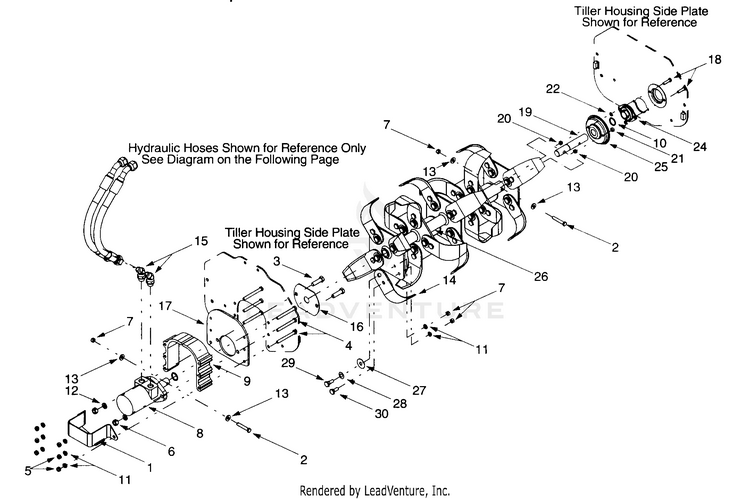

Tine & Motor

...
...
1
MOTOR GUARD ASSEMBLY(POWDER BLACK) MTD-686-0123-0637
...
2
SCREW 3/8-24X2.25 GR8 MTD-710-1254
...
3
Hex Cap Screw, 1/2-13 x 1.75 MTD-710-3067
...
4
Hex Cap Screw, 3/8-16 x 3.5 MTD-710-3085
...
5
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
6
Hex Lock Nut, 1/2-13 MTD-712-3022
...
7
Hex Lock Nut, 3/8-24 MTD-712-3054
...
8
HYDRAULIC MOTOR MTD-718-0659
...
9
SPACER MTD-719-0552
...
10
O-RING SEAL MTD-721-0513
...
11
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
12
L-Wash. 1/2" I.D. MTD-736-0921
...
13
Fl.-Wash 3/8" 1.C) x 875" OD MTD-736-3004
...
14
Articulating Tine MTD-786-0290-0637
...
15
45 DEGREE HYDRO FITTING MTD-737-0342
...
16
MOTOR COVER MTD-786-0241-0637
...
17
PLATE MTD-786-0291-0637
...
18
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
19
TINE SHAFT MTD-711-1418
...
20
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Washer, 5/16 MTD-936-0119
...
23
FLANGE BEARING ASSEMBLY MTD-741-0723
...
24
DUST COVER CAP MTD-786-0242-0637
...
25
BEARING COVER MTD-786-0262-0637
...
26
TINE ADAPTER ASSEMBLY (POWDER BLACK) MTD-686-0148-0637
...
27
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
28
Bell Washer MTD-736-0253
...
29
Shoulder Screw, .49 x .21, 3/8-24 MTD-738-1138
...
30
TINE SHOULDER BOLT .49X.21X3/8-24 MTD-738-1139
...
...
...
...
...
