product name

White Outdoor 190-766-000 (1997) (White)

Model: 190-766-000 (1997) (White)

Save
 Part Not Listed?Part Not Listed?

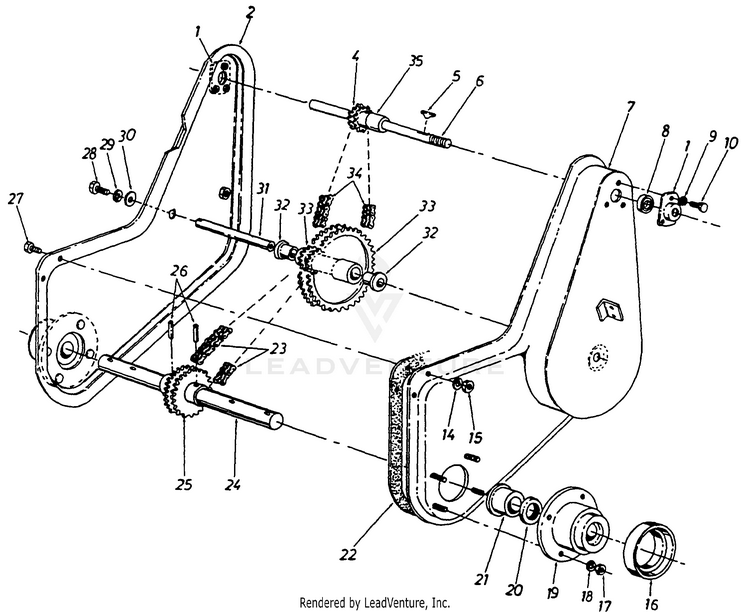

product name

Chain Case Assembly Complete

...
...
1
BEARING HOUSING MTD-05034A
...
2
HOUSING (RH) MTD-14895-0637
...
4
UNKNOWN MTD-NA
...
5
KEY-HI-PRO #6-5/32X 5/8 DIA-H MTD-714-0136
...
6
SHAFT ASSEMBLY-INPUT MTD-94892
...
7
HOUSING (LH) NLA MTD-14894
...
8
Ball Bearing .62" I.D. x 1.38" 0 D. MTD-941-0155
...
9
L-Wash. 1/4" I.D. MTD-936-0329
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
HEX NUT 1/4-20 MTD-912-0287
...
16
DUST COVER NLA MTD-04973
...
17
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
18
L-Wash. 5/16" I.D. MTD-936-0119
...
19
HOUSING ASSEMBLY-BEARING-C MTD-94530
...
20
OIL SEAL -1.25 ID x 1.75 OD MTD-921-0117
...
21
Flange Bearing 1.25" I.D. x 1.75" 0 D. MTD-748-0194
...
22
GASKET MTD-721-0119
...
23
#40-2 CHAIN 1/2 PICH MTD-913-0150
...
24
SHAFT-TINE NLA MTD-711-0506
...
25
SPROCKET MTD-717-0189
...
26
Spiral Pin 3/8" Dia. x 2.00" Lg. MTD-915-0125
...
27
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
28
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
29
L-Wash. 5/16" I.D. MTD-936-0119
...
30
FLAT WASHER .344 ID x .88 OD x .040 MTD-736-0195
...
31
SHAFT-SPROCKET NLA MTD-711-0504
...
32
FLANGE BEARING .626 ID MTD-748-0855
...
33
SPROCKET ASSEMBLY-DBL MTD-04529
...
34
#35-2 CHAI NLA MTD-713-0149
...
35
Spacer 5/8" I.D. x 7/8" O.D. MTD-748-0192

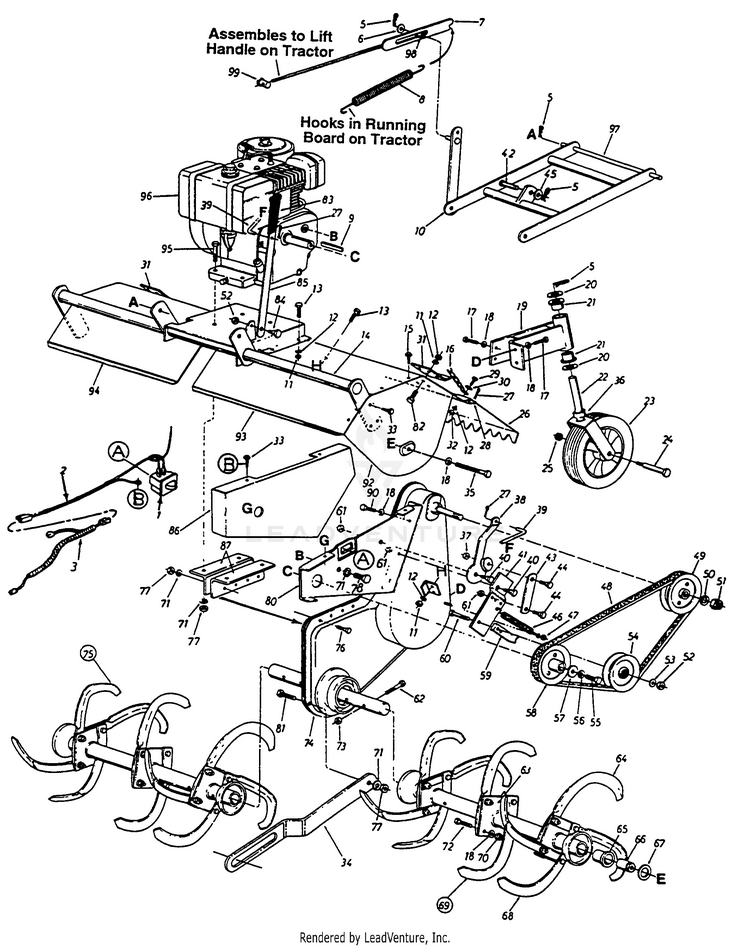

Hitch Bar Assembly

...
...
1
ROCKER SWITCH NLA MTD-725-0713
...
2
WIRE HARNESS NLA MTD-725-1290
...
3
ADAPTER NLA MTD-725-1393
...
5
Internal Cotter Pin MTD-714-0147
...
6
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
7
LINK ROD ASSEMBLV NLA MTD-04997
...
8
EXTENSION SPRING NLA MTD-732-0390
...
9
Sq. Key 1/4" x 1/4" x 2.00" Lg. MTD-914-0114
...
10
Bar NLA MTD-04993
...
11
Hex Nut 1/4-28 Thd. MTD-712-0138
...
12
L-Wash. 1/4" l.D. MTD-936-0329
...
13
Hex Bolt 1/4-28 x .62" Lg. MTD-910-0195
...
14
FRAME ASSEMBLY-SUPPORT MTD-04966A
...
15
Hex Hd. "B"-Tap Scr. #10 x .62" Lg. MTD-910-0429
...
16
CHAIN-DOG #2X20 MTD-727-0225
...
17
Hex Wash. Hd. Self-Tap Scr. 3/8-24 x .75" Lg. MTD-710-0623
...
18
L-Wash. 3/8" I.D. MTD-736-0169
...
19
SUPPORT-SWIVEL WHE MTD-04978-0637
...
20
Fl-Wash. 3/4" I.D. x 1.50" O.D. MTD-736-0188
...
21
FLANGE BEARING MTD-941-0382
...
22
CASTER:SWIVEL WHEEL MTD-04981-0637
...
23
WHEEL ASSEMBLY W/TIRE-10.0 x 2.75 MTD-734-0979
...
24
SHOULDER SCREW NLA MTD-738-0476
...
25
Hex Cent. L-Nut 7/16-14 Thd. MTD-712-0290
...
26
FLAP, L.H. SHIELD NLA MTD-04985
...
26
FLAP, R.H. SHIELD NLA MTD-04986
...
27
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
28
L.H. Flap Rod NLA MTD-747-0340
...
28
R.H. Flap Rod NLA MTD-747-0339
...
29
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
30
Fl-Wash. 1/4" I.D. MTD-736-0173
...
31
BRACE - TINE SHIELD NLA MTD-14891
...
32
HEX NUT 1/4-20 MTD-912-0287
...
33
Hex Wash. Hd. Self-Tap Scr. 1/4" x .62" Lg. MTD-710-0896
...
34
LINK-STABI MTD-14890-0637
...
35
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
36
Spacer.752" l.D. x 1.25" O.D. MTD-711-0469
...
37
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
38
CLUTCH LEVER NLA MTD-04987
...
39
CLUTCH ROD MTD-747-0379
...
40
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
41
idler Bracket NLA MTD-04992
...
42
Clevis Pin MTD-711-0310
...
43
CLUTCH LINK 3.62 LG. NLA MTD-747-0342
...
44
Shoulder Bolt .435" Dia. x .160" MTD-938-0155
...
45
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
46
EXTENSION SPRING MTD-932-0384
...
47
Hex Crown Nut 3/8-24 Thd. MTD-912-0214
...
48
V-BELT 1/2 x 43 MTD-954-0253
...
49
1/2" "V"-PULLEY 4.75" O.D. x .625" BORE NLA MTD-756-0351
...
50
L-Wash. 5/8" I.D. MTD-936-0158
...
51
HEX NUT MTD-712-0221
...
52
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
53
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
54
idler Pulley 4.0" O.D. MTD-756-0487
...
55
Hex Bolt 7/16-20 x 1" Lg. MTD-710-0314
...
56
L-Wash. 7/16" I.D. MTD-936-0171
...
57
Fl-Wash. 7/16" I.D. x 1.38" MTD-936-0319
...
58
PULLEY NLA MTD-756-0350
...
59
BEL GUARD NLA MTD-13819
...
60
Hex Bolt 3/8-16 x 1.50" Lg. MTD-710-0520
...
61
Hex Cent. L-Nut 5/16-18 Thd. MTD-912-0158
...
62
SCREW 7/16-14 x 2.00 GR5 MTD-710-0780
...
63
ADAPTER ASSY, TINE NLA MTD-04970
...
64
TINE (LH) (POWDER BLACK) MTD-742-0243-0637
...
65
Flange Bearing 1.00" l.D. MTD-931-0374
...
66
SPACER-BRAKE NLA MTD-748-0276
...
67
Thrust Wash. 1/2 I.D. x 1.55" MTD-936-0163
...
68
TINE (RH) (POWDER BLACK) MTD-742-0244-0637
...
69
TINE ASSEMBLY (LH) MTD-04995-0637
...
70
Hex Nut 3/8-24 Thd. MTD-712-0241
...
71
L-Wash. 5/16" l.D. MTD-936-0119
...
72
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-0459A
...
73
Hex Cent. L-Nut 7/16-14 Thd. MTD-712-0290
...
74
CHAIN CASE ASS'Y. COMP. NLA MTD-04991
...
75
R.H. TINE ASSY NLA MTD-04996
...
76
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
77
HEX NUT 5/16-18 MTD-712-3010
...
78
Hex Bolt 5/16-24 x.62" MTD-710-0237
...
80
Clutch Support Bracket NLA MTD-04988A
...
81
Shld. Bolt .437" x .286" MTD-738-0296
...
82
Hex Bolt 1/4-28 x .75 Lg. MTD-710-0412
...
83
Plastic Grip MTD-720-0142
...
84
SHOULDER SCREW MTD-938-0183
...
85
Clutch Handle NLA MTD-747-0378
...
86
SHROUD-CLUTCH SUP MTD-14298-0637
...
87
BRACKET-EN MTD-04519-0637
...
90
HEX SCREW 3/8-16 x .625 GR5 NLA MTD-710-0201
...
92
PLATE ASSEMBLY-SIDE (LH) MTD-04975-0637
...
92
PLATE ASSEMBLY NLA MTD-04976
...
93
TINE SHIELD MTD-04983-0637
...
94
SHIELD-TIN NLA MTD-04984
...
95
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
96
8 H.P. Engine MTD-NA
...
97
HITCH ROD MTD-738-0482
...
98
SLEEVE MTD-950-0336
...
99
ADJUSTMENT FERRULE MTD-711-0700
...
...
...
...
...
