White Outdoor 190-756-190 28" Tiller Attachment (1991)

Model: 190-756-190 28"" Tiller (1991)

Save Part Not Listed?
product name

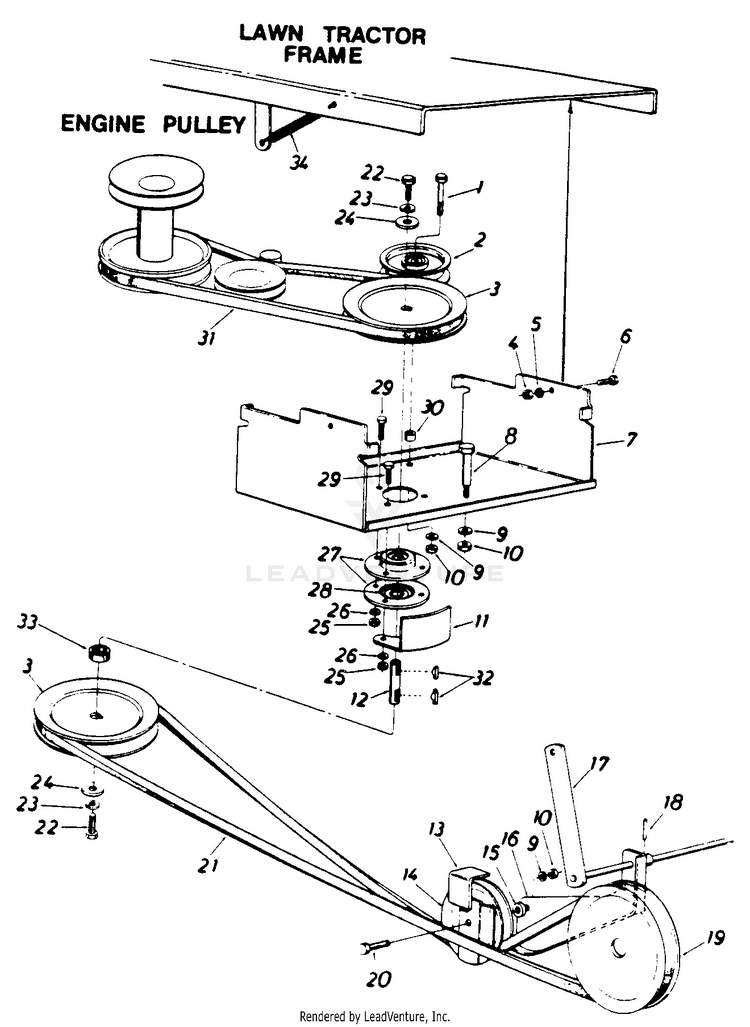

28-Inch Tiller Drive Assembly

...
...
1
Hex Bolt 3/8-16 x 2n Lg. MTD-710-3144
...
2
FL-ldler w/Flange 3-3/4" O.D. MTD-756-0405
...
3
5/8" "V"-Pulley .79" I.D. x .65" O.D. MTD-956-0438
...
4
Hex Nut 3/8-24 Thd. MTD-712-0241
...
5
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
6
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696
...
7
CARRIAGE BRACKET MTD-784-0054A-0637
...
8
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
9
L-Wash. 3/8" I.D. MTD-736-0169
...
10
Hex Nut 3/8-16 Thd. MTD-712-0798
...
11
BELT GUARD MTD-05406-0637
...
12
SHAFT .787" DIA. x 3.21" LG. NLA MTD-738-0789
...
13
BELT SEPARATOR PLATE NLA MTD-784-0070
...
14
IDLER PULLEY NLA MTD-756-0433
...
15
Fl-Wash. .406 I.D. x 1.25n MTD-736-0247
...
16
IDLER BRACKET ASS'Y. NLA MTD-784-0071
...
17
IDLER BRACKET SUPPORT ARM ASS'Y NLA MTD-784-0073
...
18
SPRING PIN ROLL 3/16 x 1.50 MTD-715-0105
...
19
PULLEY NLA MTD-756-0439
...
20
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
21
V -BELT NLA MTD-754-0283A
...
22
SCREW 5/16-18 x .750 MTD-710-1880
...
23
L-Wash. 5/16" l.D. MTD-936-0119
...
24
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
L-Wash. 5/16" l.D. MTD-936-0119
...
27
Bearing Housing 1.85" l.D. MTD-08253B
...
28
BALL BEARING MTD-741P0919B
...
29
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
30
Spacer MTD-750-0497
...
31
V-BELT 1/2 x 52 MTD-954-0229
...
32
Hi-Pro Key 3/16" x 5/8" MTD-914-0161
...
33
SPACER .66" I.D. x 1" O.D. NLA MTD-750-0763
...
34
Extension Spring MTD-932-0611

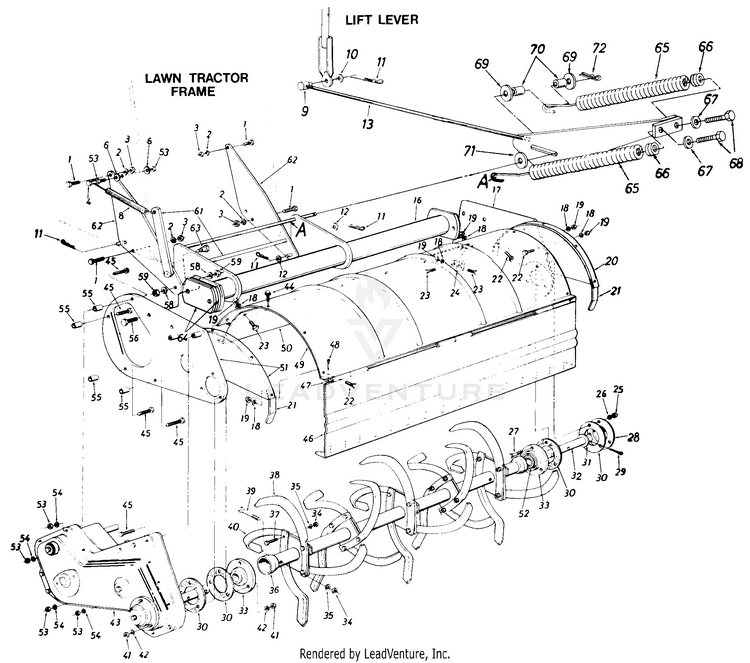

28-Inch Tiller Tine Assembly

...
...
1
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696
...
2
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
3
Hex Nut 3/8-24 Thd. MTD-712-0241
...
4
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
6
SPRING WASHER BELL MTD-736-0270
...
8
TENSION SPRING MTD-732-0185A
...
9
FERRULE MTD-911-0770
...
10
Fl-Wash. .64" I.D. x 1.24 O.D. x .06 MTD-736-0187
...
11
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
12
FLAT WASHER .510 x .995 MTD-736-0272
...
13
LIFT BRACKET ASSEMBLY (POWDER BLACK) MTD-689-0000-0637
...
13
SPRING NLA MTD-732-0460
...
13
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
16
PIVOT BRACKET ASSEMBLY NLA MTD-784-0279
...
17
PLATE, RH TILLER HOUSING NLA MTD-784-0056
...
18
L-Wash. 5/16" l.D. MTD-936-0119
...
19
Hex Nut 5/16-24 Thd. MTD-912-3057
...
20
COVER, RH TINE SHIELD END NLA MTD-784-0058
...
21
SUPPORT, TINE SHIELD HINGE NLA MTD-784-0069
...
22
Hex Bolt 5/16-24 x .751 Lg. MTD-710-0157
...
23
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
24
Chute Pivot Bracket NLA MTD-12541
...
25
Hex L-Nut 5/16-18 Thd. MTD-912-0158
...
27
Hex Bolt 5/16-18 x 1" Lg. (Grade 5) MTD-710-0376
...
28
CUP, GREASE NLA MTD-784-0068
...
29
Cotter Pin 1/8" Dia. MTD-714-0470
...
30
GASKET FOR BEARING HGS. NLA MTD-721-0133
...
31
FLAT WASHER 1.25 ID x 2.0 OD x .060 MTD-736-0246
...
32
SHAFT-TINE NLA MTD-738-0630
...
33
HOUSING-BR NLA MTD-741-0417
...
36
ADAPTER-TI NLA MTD-784-0107
...
37
Hex Bolt 3/8-24 x l.Sn Lg. MTD-710-0459A
...
38
TINE (LH) (POWDER BLACK) MTD-742-0243-0637
...
39
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331
...
40
TINE (RH) (POWDER BLACK) MTD-742-0244-0637
...
43
Chain Case Ass'y. Comp. NLA MTD-884-0061
...
44
Hex TT-Tap Scr. 5/16-18 x .62" Lg. MTD-710-0604A
...
45
Hex Bolt 1/4-20 x 2.75" Lg. MTD-710-0564
...
46
HINGE ASSEMBLY-FLAP 637 *CHOOSE COLOR WHEN ORDERING* MTD-784-0076
...
47
TILLER FLAP ROD MTD-747-0479
...
48
Cotter Pin 1/8" Dia. x 1" Lg. MTD-714-0115
...
49
TINE SHIELD NLA MTD-784-0074
...
50
BRACKET-RE NLA MTD-784-0060
...
51
PLATE, LH TILLER HOUSING NLA MTD-784-0055
...
52
OIL SEAL -1.25 SHAFT NLA MTD-721-0192
...
53
HEX NUT 1/4-20 MTD-912-0287
...
54
L-Wash. 1/4" I.D. MTD-936-0329
...
55
SPACER MTD-950-0599
...
56
CAP SCREW:.500-13X1.50 NLA MTD-710-3177
...
58
L-Wash. 1/2" I.D. MTD-736-0921
...
59
Hex Nut 1/2-20 Thd. MTD-712-3029
...
61
IDLER BRACKET SUPPORT ARM ASS'Y NLA MTD-784-0073
...
62
PIVOT BRACKET MTD-784-0064B-0637
...
63
SHOULDER SCREW MTD-938-0816
...
64
PLATE-TUBING SUP MTD-784-0066
...
65
HELPER SPRING MTD-732-0323
...
66
Spring Insert MTD-711-0509
...
67
FLAT WASHER MTD-736-0275
...
68
Hex Bolt 5/16-18 x 3.25" Lg. MTD-710-1207
...
69
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
70
SPLIT SPACER .505" I.D. x .57" LG. NLA MTD-750-0881
...
71
FLAT WASHER .531 ID x 1.25 OD x .036 MTD-736-0100
...
72
Inter. Cotter Pin 3/8" Dia. MTD-714-0145

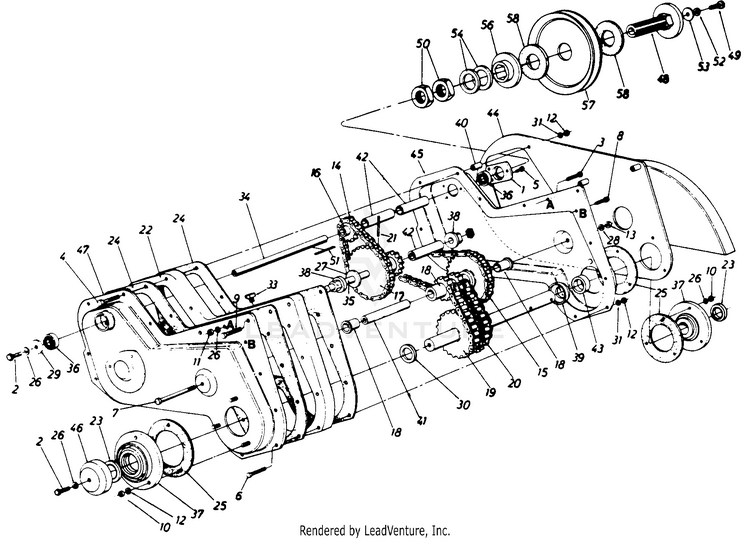

Chain Case Assembly

...
...
1
BEARING HOUSING MTD-05034A
...
2
SCREW 5/16-18 x .750 MTD-710-1880
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
Hex Bolt 1/4-20 x 2.75" Lg. MTD-710-0564
...
5
Hex S-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
6
Hex Bolt 1/4-20 x 1.5" Lg. MTD-710-0606
...
7
Hex Bolt 3/8-16 x 4.5" Lg. MTD-710-0693
...
8
Hex Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
8
Hex TT-Tap Scr. 5/16-18 x 1.75 MTD-710-0909A
...
10
Hex L-Nut 5/16-18 Thd. MTD-912-0158
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
HEX NUT 1/4-20 MTD-912-0287
...
13
Hex Nut 3/8-16 Thd. MTD-712-0798
...
14
#41 CHAIN NLA MTD-713-0131
...
15
#420 CHAIN 1/2 PITCH x 48 LIN MTD-913-0186
...
16
SPROCKET ASSEMBLY-10T NLA MTD-713-0206
...
17
SPROCKET ASSEMBLY (28T x 10T) MTD-713-0341
...
18
SPROCKET SLEEVE ASSEMBLY MTD-713-0342
...
19
SPROCKET SHAFT MTD-713-0362
...
20
#50-2 CHAIN 5/8" PITCH x 28 LINKS - ENDLESS NLA MTD-713-0344
...
21
Spring Pin 1.5" Lg. MTD-715-0114
...
22
SPACER-BLOCK NLA MTD-717-0811
...
23
OIL SEAL -1.25 SHAFT NLA MTD-721-0192
...
24
GASKET MTD-921-0132
...
25
GASKET FOR BEARING HGS. NLA MTD-721-0133
...
26
L-Wash. 5/16" I.D. MTD-936-0119
...
27
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187
...
28
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
29
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
30
WASHER-SPEC 1.25 ID x 1.75 OD NLA MTD-736-0368
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
33
Vent Plug MTD-737-0175
...
34
JACK SHAFT MTD-738-0181
...
35
SHAFT, SPROCKET NLA MTD-738-0594
...
36
Ball Brg. .62" I.D. x 1.38" O.D. MTD-941-0155
...
37
HOUSING-BR NLA MTD-741-0417
...
38
HEX FLANGE BEARING MTD-948-0229
...
39
SPACER-STEPPED NLA MTD-750-0563
...
40
SPACER MTD-950-0599
...
41
SPACER MTD-750-0600
...
42
SPACER MTD-950-0601
...
43
SPACER NLA MTD-750-0636
...
44
PLATE, LH TILLER HOUSING NLA MTD-784-0055
...
45
TILLER HOUSING MTD-784-0061-0637
...
46
DUST CAP MTD-784-0067
...
47
HOUSING (RH) NLA MTD-784-0077
...
48
HUB & DISC NLA MTD-15727
...
49
Hex Bolt 5/16-18 x 1.25" Lg. Grade 5 MTD-710-0573
...
50
Sq. Key 3/16 x 1.5" Lg. NLA MTD-714-0133
...
51
Sq. Key 3/16 x 1.5" Lg. MTD-936-0119
...
52
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
53
Fl-Wash. .344" I.D. x 1.125" MTD-736-0231
...
54
SPRING WASHER BELL MTD-736-0352
...
56
FLOATING DISC MTD-748-0296
...
57
PULLEY NLA MTD-756-0439
...
58
FRICTION PAD NLA MTD-761-0189
