White Outdoor 190-740-000 60" Deck (1997)

Model: 190-740-000 60"" Deck (1997)

Save Part Not Listed?
product name

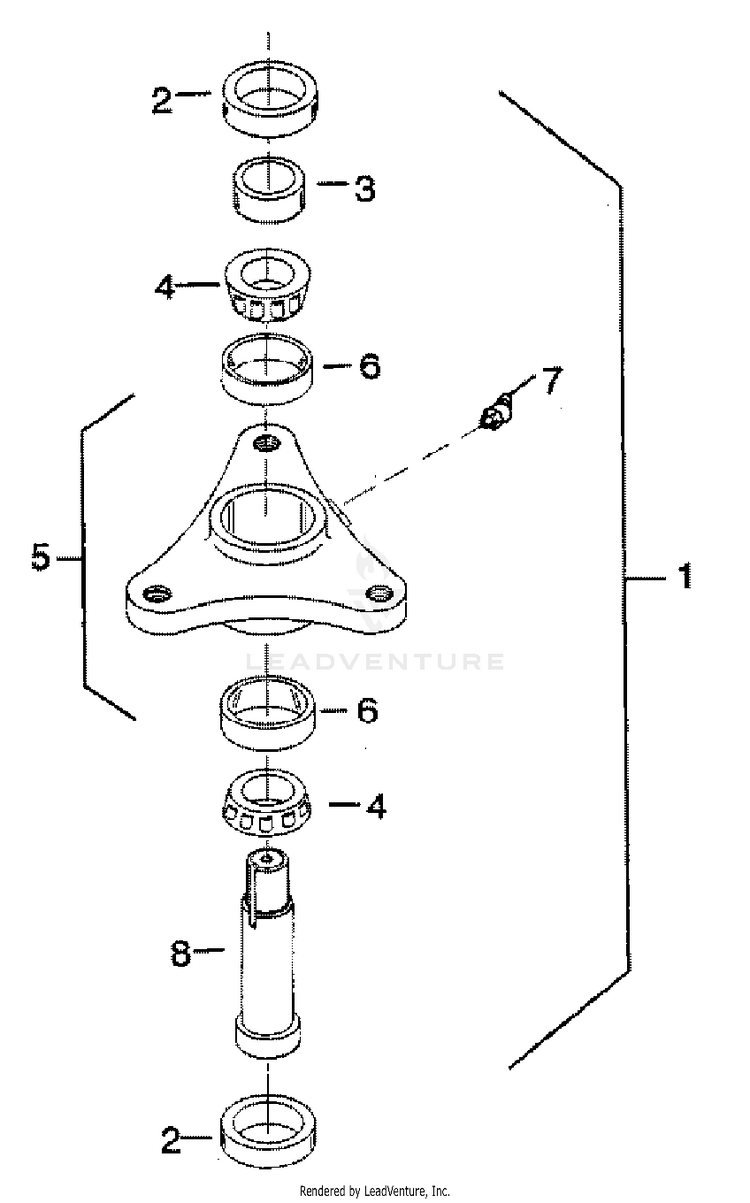

Blade Spindle Assembly

...
...
1
CW BLD SPDL ASY MTD-WM-66562
...
2
SEAL1.063 x 2.004 MTD-WM-66755
...
3
SLV .84 x 1.06 x . MTD-WM-66842
...
4
BEARING CONE #M126 MTD-WM-04107
...
5
HOUSING W/CUPS-SPI MTD-WM-66843
...
6
BEARING CUP #M1261 MTD-WM-04106
...
7
45° 1/8 Pipe thread grease fitting NLA - Obtain Locally MTD-WM-1267
...
8
SHAFT,SPDL 1.06X3. MTD-WM-66841

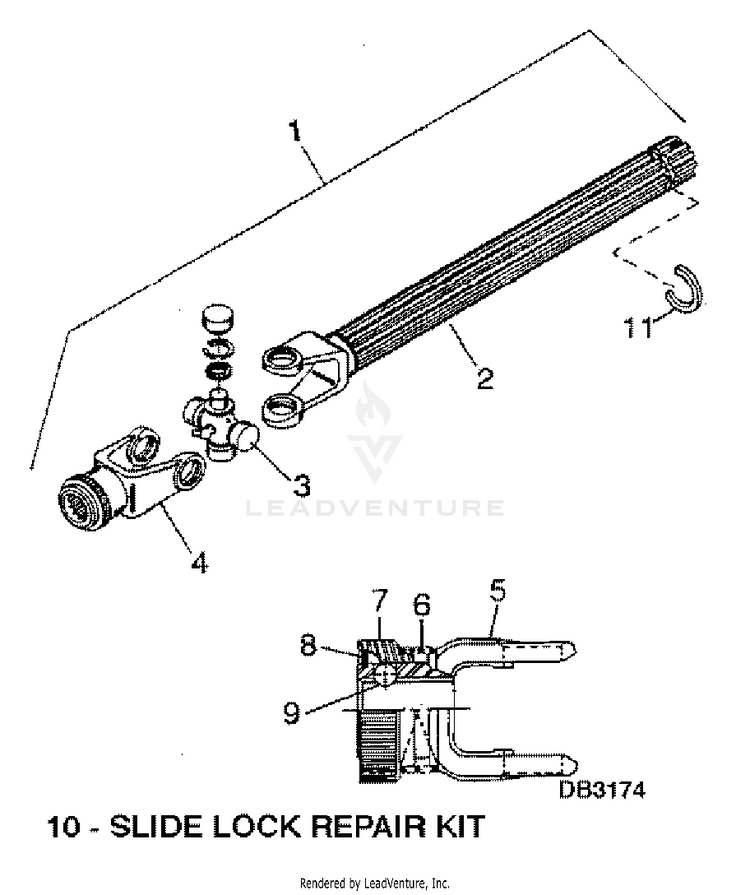

Drive Shaft - Front Half

...
...
1
Rear half U-joint drive Not Sold Separately MTD-NA
...
2
YOKE AND SHAFT NLA MTD-WM-67492
...
3
U-JOINT REPAIR KIT MTD-WM-65689
...
4
SLDE COLLAR YK ASY (Includes items 5, 6, 7, 8 & 9 MTD-WM-34508
...
5
Slide collar yoke Not Sold Separately Not Sold Separately MTD-NA
...
6
Spring Not Sold Separately MTD-NA
...
7
Slide collar Not Sold Separately MTD-NA
...
8
Snap ring Not Sold Separately MTD-NA
...
9
Steel ball Not Sold Separately MTD-NA
...
10
Slide lock repair kit #0600 (Includes items 6, 7, 8 & 9) MTD-WM-65690
...
11
RING-RETAIN EXT MTD-WM-34578

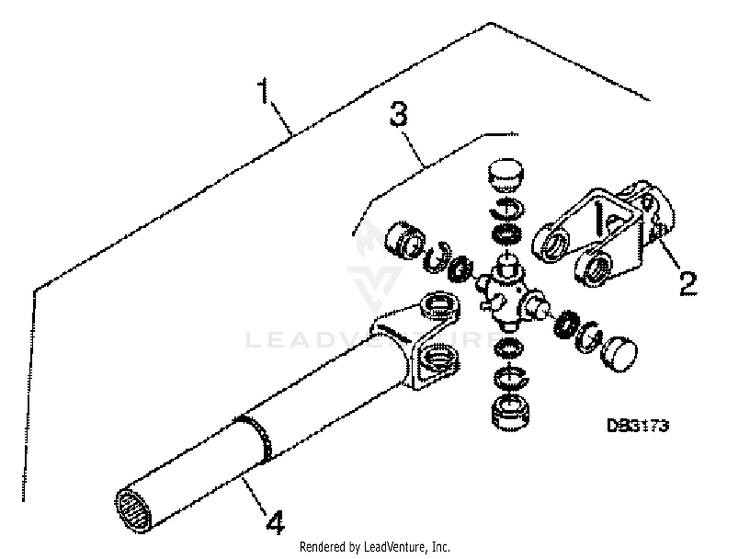

Drive Shaft - Rear Half

...
...
1
Splined front half assembly Not Sold Separately MTD-NA
...
2
END YOKE-1 NLA MTD-WM-34773
...
3
U-JOINT REPAIR KIT MTD-WM-65689
...
4
Yoke, tube and sleeve NLA MTD-WM-34774

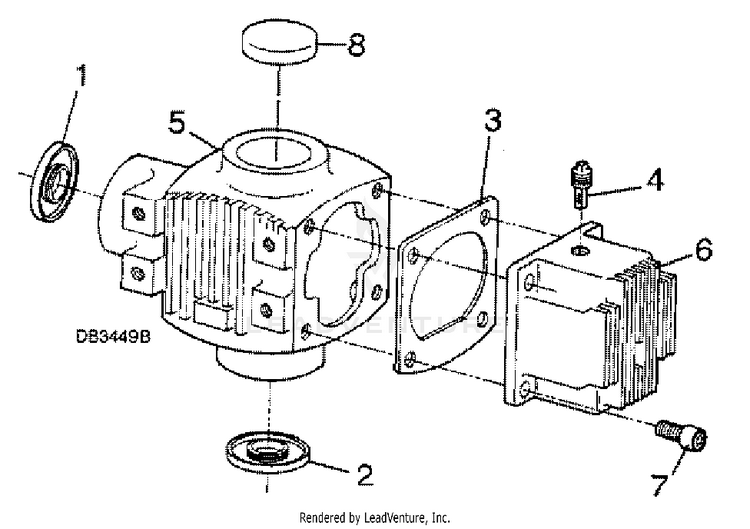

Gear Box Assembly

...
...
xx
GEARBOX AS NLA MTD-WM-64933
...
1
SEAL1.063 x 2.004 MTD-WM-66755
...
2
SEAL .866 x 1.850 MTD-WM-66545
...
3
GASKET, GEARBOX MTD-WM-66519
...
4
PLASTIC GRBX VENT MTD-WM-34576
...
5
GEARBOX HOUSING MTD-WM-66512
...
6
GEARBOX COVER MTD-WM-66517
...
7
SCREW-SOCKET HEAD MTD-WM-15625
...
8
CAP-GEAR B NLA MTD-WM-66525

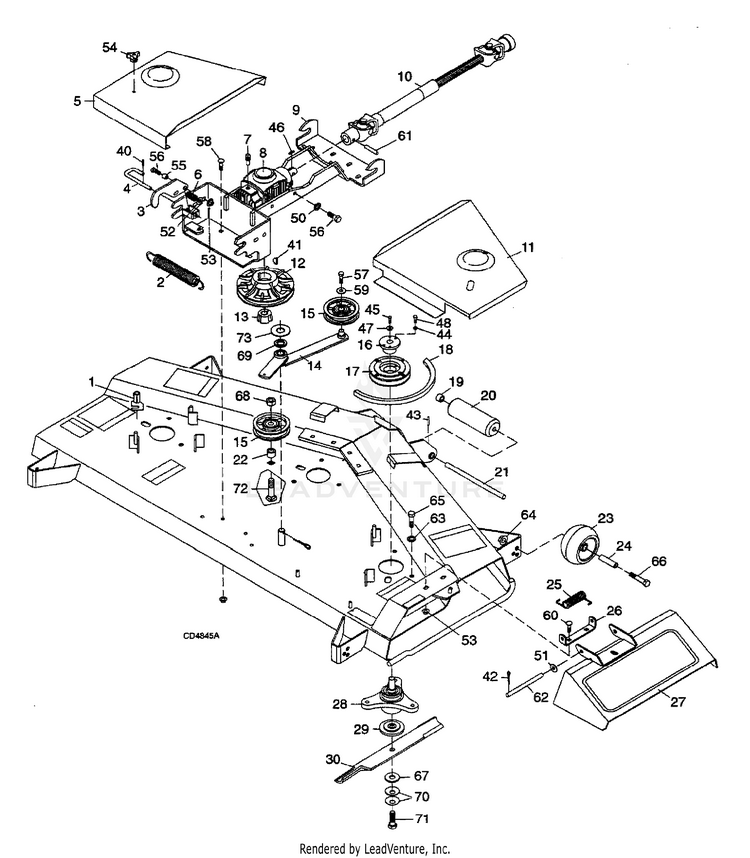

Main Frame Assembly

...
...
1
BELT GUIDE MTD-WM-34531
...
2
SPRING/EXT1.45 .20 8 MTD-WM-31360
...
3
LINK NLA MTD-WM-66479
...
4
Pin, Bent-U .375 diameter x 3.00 NLA MTD-WM-66427
...
5
C360 LT BELT SHIELD NLA MTD-WM-34597
...
6
Spring-compression .58 x .08 x 2.4 x 40 NLA MTD-WM-21957
...
7
PLASTIC GRBX VENT MTD-WM-34576
...
8
GEARBOX AS NLA MTD-WM-64933
...
9
STAND-GEAR NLA MTD-WM-66470
...
10
SHAFT-COMP NLA MTD-WM-67490
...
11
BELT SHIELD C360 R MTD-WM-34596
...
12
SHEAVE NLA MTD-WM-66428
...
13
TAPER LK BUSHING . MTD-WM-66505
...
14
IDLER ARM NLA MTD-WM-66476
...
14
BRZ BSHG- 3/4 IDX MTD-WM-16162
...
15
FLAT IDLER W/BEARING MTD-WM-24260
...
15
BEARING MTD-WM-24259
...
16
H 3/4 Straight bore bushing with key P.1 MTD-WM-34756
...
17
H SHEAVE 1 BK 4.6 MTD-WM-34505
...
18
V-BELT 5/8"X 135" MTD-WM-1469
...
19
SLEEVE 1/2 x 3/J X MTD-WM-27887
...
20
FRT ROLLER BLNK U MTD-WM-16173
...
21
PIN, HDLS .5 x 9.7 MTD-WM-66981
...
22
SLEEVE-5/8X1X9/16 MTD-WM-1791
...
23
ROLLER-SCALP MTD-WM-67365
...
24
SLEEVE NLA MTD-WM-66446
...
25
SPRING TORSION MTD-WM-66815
...
26
DECK BRACKET MTD-WM-66865
...
27
DISCHARGE CHUTE NLA MTD-WM-66866
...
28
CW BLD SPDL ASY MTD-WM-66562
...
29
SHLDR WSHR 5/8 ID MTD-WM-33736
...
30
BLADE KIT-WOODS 60" 1BOXOF3=1 KIT MTD-759-3779
...
40
1/8 x 5/8 Spring pin NLA MTD-WM-35626
...
41
.187 x .75 Woodruff key NLA MTD-WM-62233
...
42
3/16 x 1 Cotter pin NLA - Obtain Locally MTD-WM-1256
...
43
3/16 x 1-1/8 Spring pin Obtain Locally MTD-715-0150
...
44
1/4 Standard lockwasher Obtain Locally MTD-936-0329
...
45
HEX SCREW NLA - Obtain Locally MTD-WM-2457
...
46
1/4 Square x 7/8 key NLA - Obtain Locally MTD-WM-62234
...
47
FLAT WASHER 1/4 X MTD-WM-32806
...
48
1/4 NC x 1 Hex head cap screw GR5 NLA - Obtain Locally MTD-WM-10378
...
?49
1/4 x 1-1/2 Cotter pin NLA - Obtain Locally MTD-WM-1285
...
50
3/8 STANDARD LOCKWASHER Obtain Locally MTD-WM-838
...
51
3/8 Standard flat washer NLA - Obtain Locally MTD-WM-565
...
52
WASHER-3/8 Obtain Locally MTD-WM-21757
...
53
FLNG HEX LOCK NUT MTD-WM-14350
...
54
KNOB - 3/8 NC MTD-WM-66840
...
55
SLEEVE NLA MTD-WM-35092
...
56
SCREW Obtain Locally MTD-WM-839
...
57
SCREW MTD-WM-64518
...
58
3/8 NC x 1 CARRIAG MTD-WM-6697
...
59
WASHER 3/8 x 1 x 7 MTD-WM-21298
...
60
3/8 NC x 1-1/4 Carriage bolt NLA - Obtain Locally MTD-WM-24890
...
61
PIN-3/8X1 1/2 MTD-WM-11606
...
62
3/8 x 7-1/4 PIN MTD-WM-11760
...
63
L-Wash. 1/2" I.D. Obtain Locally MTD-736-0921
...
64
FLNGD HEX LOCK NUT 1/2 NC Obtain Locally MTD-WM-11900
...
65
HHCS-1/2-20X1 GR5 MTD-WM-4119
...
66
1/2 NC x 3-1/4 Hex head cap screw GR5 NLA - Obtain Locally MTD-WM-14069
...
67
5/8 Standard flat washer NLA - Obtain Locally MTD-WM-692
...
68
5/8 NC Hex locknut NLA - Obtain Locally MTD-WM-6239
...
69
FELT SEAL 5/8 x 1 MTD-WM-22060
...
70
WASHER 5/8 x 1-3/4 MTD-WM-10635
...
71
SCREW 5/8 NC x 2 H MTD-WM-34582
...
72
5/8 NC x 2-1/2 Carriage bolt NLA - Obtain Locally MTD-WM-5836
...
73
SHM WSHR 3 MTD-WM-11036
...
xx
SPINDLE LOCK WRENC (Not shown) MTD-WM-34590
...
xx
SPINDLE WRENCH HAN (Not shown) MTD-WM-34595
