White Outdoor 190-620-000 (1998)

Model: 190-620-000 (1998)

Save Part Not Listed?
product name

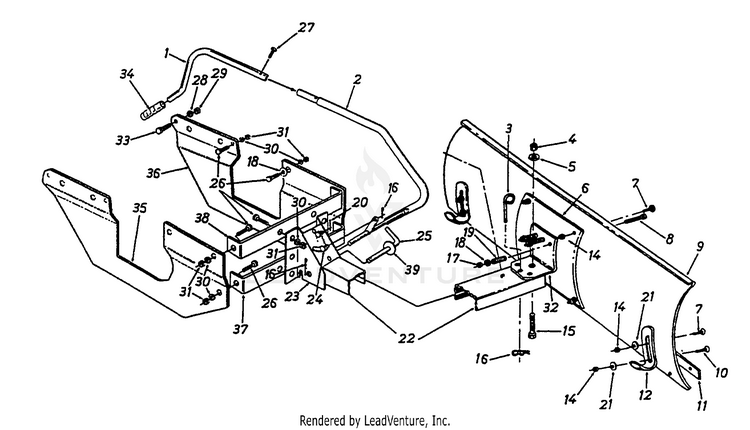

42" Snow Blade

...
...
1
Upper Lift Handle New Part MTD-AF-46553
...
2
Lift Handle Ass'y. New Part MTD-AF-63283
...
3
Pivot Lock Pin MTD-AF-43038
...
4
Hex Lock Nut, 1/2-13 Thread MTD-912-0384
...
5
Fl-Wash. 17/32" I.D. MTD-736-0179
...
6
REINFORCEMENT PLATE MTD-AF-23061
...
7
Carriage Bolt 5/16-18 x .75" Lg. Common Hardware may be purcahsed locally. MTD-710-0451
...
8
BOLT HEX 3/8-16X3.75 MTD-AF-43036
...
9
BLADE 42" MTD-AF-23114
...
10
Carriage Bolt 5/16-18 x 1" Lg. Common Hardware may be purcahsed locally. MTD-710-0276
...
11
WEAR PLATE 42" MTD-AF-23117
...
12
Shoe Skid MTD-20505
...
14
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
15
SCREW 1/2-13 x 1.25 GR5 Common Hardware may be purcahsed locally. MTD-710-0474
...
16
Int. Cotter Pin MTD-714-0101
...
17
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
18
Fl-Wash. 3/8" I.D. MTD-736-0258
...
19
BLADE ADJUSTMENT SPRING MTD-AF-43035
...
20
COTTER PIN-5/32 DIA x 1.00 Common Hardware may be purcahsed locally. MTD-914-0121
...
21
Fl-Wash. .344" I.D. MTD-736-0159
...
22
PUSH BAR CHANNEL MTD-AF-63284
...
23
Pivot Support Bracket MTD-AF-24023-0637
...
24
LIFT LINK ASSEMBLY MTD-AF-69740
...
25
Channel Pivot Shaft MTD-AF-46065
...
26
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
27
HEX SCREW DRILLING#10-16 X.75 MTD-710-04082
...
28
L-Wash. 1/4" I.D. Common Hardware may be purcahsed locally. MTD-936-0329
...
29
HEX NUT 1/4-20 Common Hardware may be purcahsed locally. MTD-912-0287
...
30
L-Wash. 3/8" I.D. Common Hardware may be purcahsed locally. MTD-736-0169
...
31
Hex Nut 3/8-16 Thd. Common Hardware may be purcahsed locally. MTD-712-0798
...
32
SUPPORT BRACKET MTD-AF-23115
...
33
Hex Bolt 1/4-20 x .75" Lg. Common Hardware may be purcahsed locally. MTD-710-3015
...
34
Rubber Grip MTD-720-0204
...
35
FRAME SUPPORT BRACKET MTD-AF-24134
...
36
FRAME SUPPORT BRACKET MTD-AF-24133
...
37
SUPPORT KIT MTD-AF-24128
...
38
SUPPORT KIT MTD-AF-24132
...
39
FLAT WASHER .510 x .995 MTD-736-0272
