White Outdoor 190-604-101 Toolbox (2001)

Model: 190-604-101 Toolbox (2001)

Save Part Not Listed?
product name

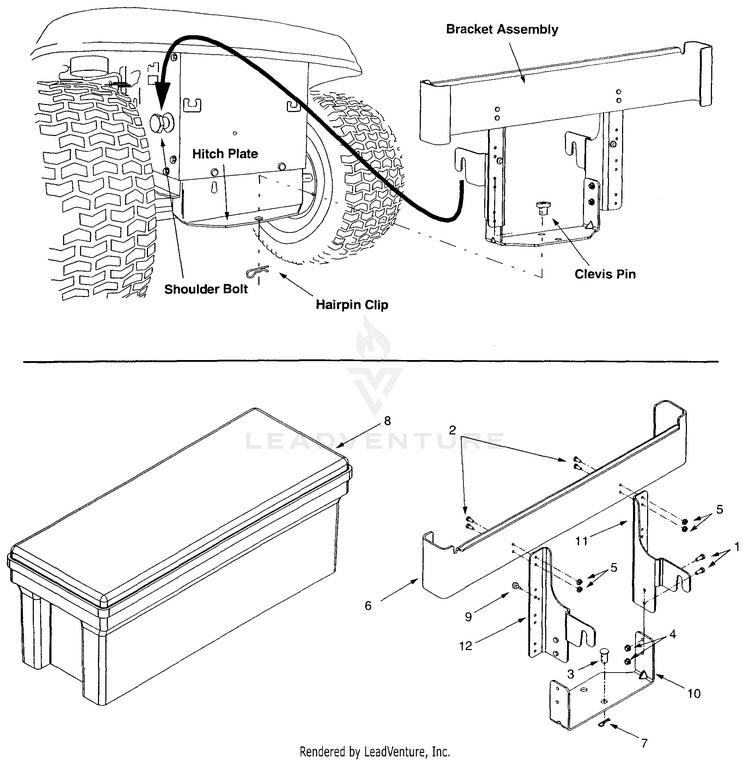

Tool Box & Bracket Assembly

...
...
1
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
2
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
3
Clevis Pin MTD-711-0309A
...
4
HEX FLANGE NUT MTD-712-3004A
...
5
Hex Flange Lock Nut, 1/4-20 MTD-912-3027
...
6
TOOL BOX SUPPORT BRACKET NLA MTD-783-0777
...
7
Internal Cotter Pin, .148 x 3 MTD-714-0117
...
8
BOX TOOL NLA MTD-731-2110
...
9
Bumper, .62 Dia. x .3 MTD-735-0271A
...
10
Cross Support Bracket MTD-783-0765-0637
...
11
LH Support Bracket MTD-783-0764B-0637
...
12
RH Support Bracket MTD-783-0673B-0637
