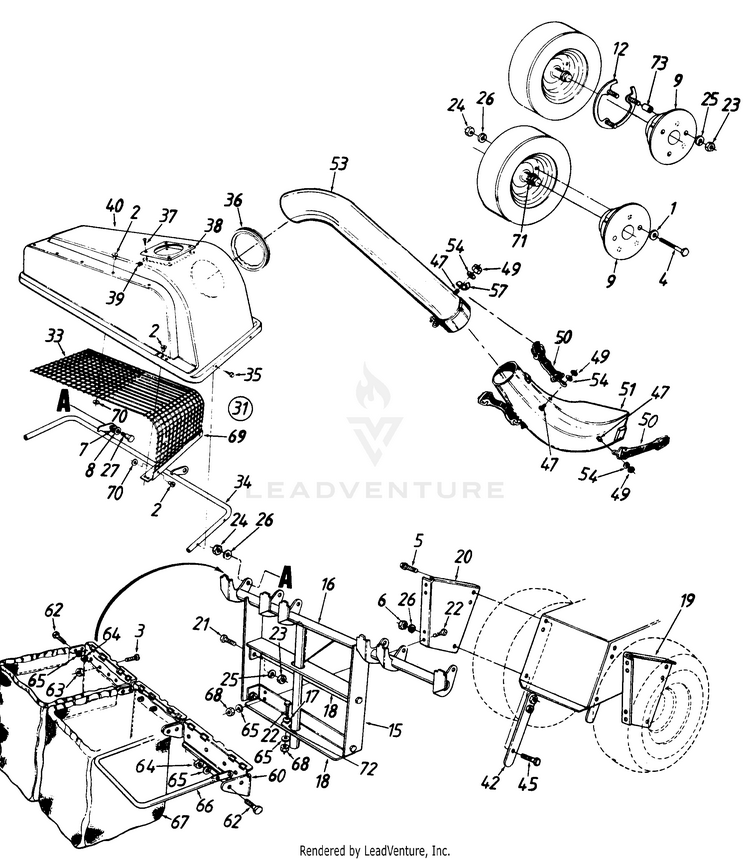

White Outdoor 190-083-190 Rear Bagging Grass Catcher (1988)

Model: 190-083-190 Rear Bagging Grass Catcher (1988)

Save Part Not Listed?
product name

Grass Collector

...
...
1
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
2
Pop Rivet MTD-928-0123
...
3
Truss Mach. Scr. #10-24 x .38" Lg. MTD-710-0192
...
4
Hex Bolt 3/8-16 x 4.5" Lg. MTD-710-0693
...
5
Hex Wash. Hd. Tap Scr. 5/16-18 x .62 MTD-710-0604A
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
Bell Washer MTD-736-0255
...
8
Fl-Wash. .510" l.D. MTD-936-0108
...
9
WHEEL WEIGHT NLA MTD-723-0414
...
12
WHEEL WEIGHT SNAP NLA MTD-16810
...
15
BRACKET, CATCHER SUPPORT TUBE MOUNTING NLA MTD-17200
...
16
GRASSCATCHER SUPPORT ASSEMBLY (POWDER BLACK) MTD-689-00002-0637
...
17
SPRING WASHER BELL MTD-736-0270
...
18
Catcher Latch and Support Brkt. MTD-783-0601-0637
...
19
SUPPORT BRACKET (RH) NLA MTD-17190
...
20
SUPPORT BRACKET MTD-17191-0637
...
21
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
22
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex Nut 3/8-16 Thd. MTD-712-0798
...
25
L-Wash. 5/16" I.D. MTD-936-0119
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
Shoulder Screw MTD-738-0380
...
27
Bell Washer MTD-736-0253
...
31
COVER ASSEMBLY- NLA MTD-17204
...
33
SCREEN MTD-723-0407
...
34
HINGE BRACKET ASSEMBLY MTD-749-0747-0637
...
35
Hex Tap Scr. 1/4-20 x .5' Lg. MTD-710-0599
...
36
Tube Seal MTD-723-0413
...
37
Truss Mach. B-Tap Scr. #10 x .5" Lg MTD-710-0351
...
38
PLASIC PLATE NLA MTD-731-0824
...
39
Speed Nut MTD-712-0147
...
40
COVER ASSEMBLY- NLA MTD-731-0896
...
42
BRACKET ASSEMBLY- NLA MTD-17192
...
45
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
47
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
49
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
50
Retainer Strap Ass'y. MTD-923-0383
...
51
Discharge Chute MTD-731-0925C
...
53
Catcher Elbow Tube MTD-731-0926B
...
54
L-Wash. .270n l.D. x .57" O.D. MTD-936-0175
...
57
Retainer Hook Brkt. MTD-96606
...
60
Bag Frame Hanger Brkt. MTD-17201A-0637
...
62
Hex Bolt 1/4-28 x .75n Lg. MTD-710-0412
...
63
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
64
Hex Nut 1/4-28 Thd. MTD-712-0138
...
65
L-Wash. 1/4" l.D. MTD-936-0329
...
66
CATCHER BAG FRAME MTD-749-0745A-0637
...
67
Grass Catcher Bag MTD-964-0251
...
68
HEX NUT 1/4-20 MTD-912-0287
...
69
BRACKET SCREEN MTG NLA MTD-17202
...
70
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400
...
71
FOAM STRIP MTD-722-0157
...
72
Support Tubing Adapter Brkt. MTD-17247-0637
...
73
SPACER MTD-750-0527
