White Outdoor 190-066-190 Side Discharge Grass Catcher (1987)

Model: 190-066-190 Side Grass Catcher (1987)

Save Part Not Listed?

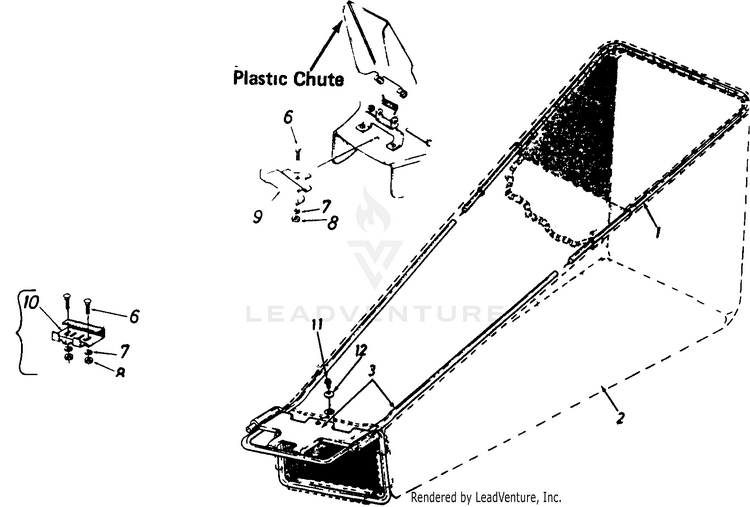

product name

Grass Catcher

...
...
1
UPPER FRAME NLA MTD-749-0677
...
2
GRASSBAG NLA MTD-764-0217
...
3
FRAME-LOWE NLA MTD-16307
...
6
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
7
Lock Washer 1/4" I.D.* MTD-936-0329
...
8
HEX NUT 1/4-20 MTD-912-0287
...
9
Adapter Plate NLA MTD-14343
...
10
Adapter Plate NLA MTD-08832
...
11
Self-Tap Scr. 1/4" x 1/2" Lg. MTD-710-0599
...
12
SPRING WASHER BELL MTD-736-0270
