White Outdoor 190-064-190 Rear Bagging Grass Catcher (1989)

Model: 190-064-190 Rear Bagging Grass Catcher (1989)

Save Part Not Listed?
product name

Grass Collector Double Bag

...
...
1
WHEEL WEIGHT SNAP NLA MTD-16810
...
2
SPACER MTD-750-0527
...
3
WHEEL WEIGHT NLA MTD-723-0414
...
4
Lock Washer 5/16" I.D. MTD-936-0119
...
5
HEX NUT 5/16-18 MTD-712-3010
...
15
Catcher Support Tube Mtg. Brkt. MTD-16587D-0637
...
16
Catcher Support Tube Assy. MTD-16592-0637
...
18
Catcher Latch and Support Brkt. MTD-783-0601-0637
...
19
SUPPORT BRACKET (LH) (Used with 36" and 38" decks) MTD-16610C-0637
...
20
Grass Catcher Support Brkt.-L.H. (Used with 36" and 38" decks) MTD-16611C-0637
...
21
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
22
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex Nut 3/8-16 Thd. MTD-712-0798
...
25
L.-Wash. 5/16" I.D.* MTD-936-0119
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
Shoulder Screw MTD-738-0380
...
28
Bell Washer MTD-736-0253
...
31
COVER ASSEMBLY- NLA MTD-16594A
...
32
Twist Fastener MTD-726-0258
...
33
SCREEN NLA MTD-723-0382A
...
34
BRACKET ASSEMBLY-HINGE MTD-16596-0637
...
35
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
36
SEAL (7.1") MTD-723-0412
...
37
Truss Mach. B-Tap Scr. #10 0 x .5" Lg. MTD-710-0351
...
38
PLASIC PLATE NLA MTD-731-0824
...
39
Speed Nut MTD-712-0147
...
40
COVER ASSEMBLY- NLA MTD-731-0821
...
43
BRACKET-CATCHER (Used with 32" decks) MTD-16672A-0637
...
47
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
49
Hex Ins. L.-Nut 1/4-20 0 Thd. MTD-712-0324
...
50
Retainer Strap Ass'y. MTD-923-0383
...
51
ELBOW-CATCHER NLA MTD-731-0825
...
52
Catcher Tube MTD-731-0899E
...
53
Discharge Chute MTD-731-0827D
...
54
L.-Wash. .27" I.D. MTD-936-0175
...
57
Retainer Hook Brkt. MTD-96606
...
60
Bag Frame Hanger Brkt. MTD-16591A-0637
...
61
Truss Mach. Scr. #10-24 0 x .50" Lg. MTD-710-0473
...
62
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
63
Hex Sems Nut #10-24 0 Thd. MTD-712-0272
...
64
Hex Nut 1/4-28 Thd. MTD-712-0138
...
65
L.-Wash. 1/4" I.D.* MTD-936-0329
...
66
Catcher Bag Frame MTD-749-0701A-0637
...
67
Grass Catcher Bag MTD-964-0221
...
68
HEX NUT 1/4-20 MTD-912-0287
...
69
SCREEN ASSEMBLY NLA MTD-16595A
...
70
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400

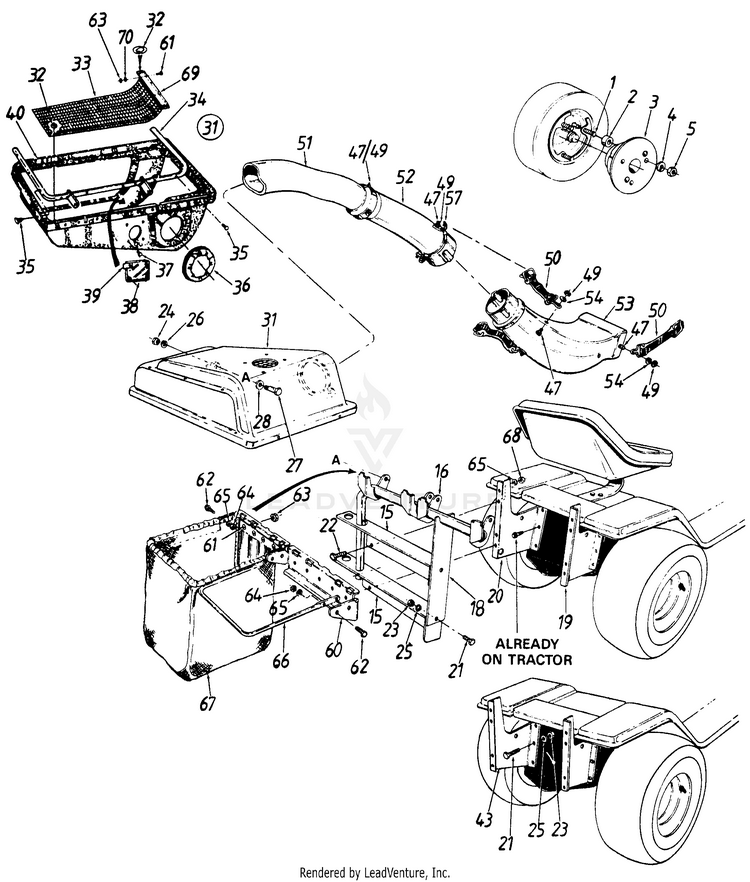

Schematic Image Zoomed
