White Outdoor 190-064-190 Rear Bagging Grass Catcher (1988)

Model: 190-064-190 Rear Bagging Grass Catcher (1988)

Save Part Not Listed?
product name

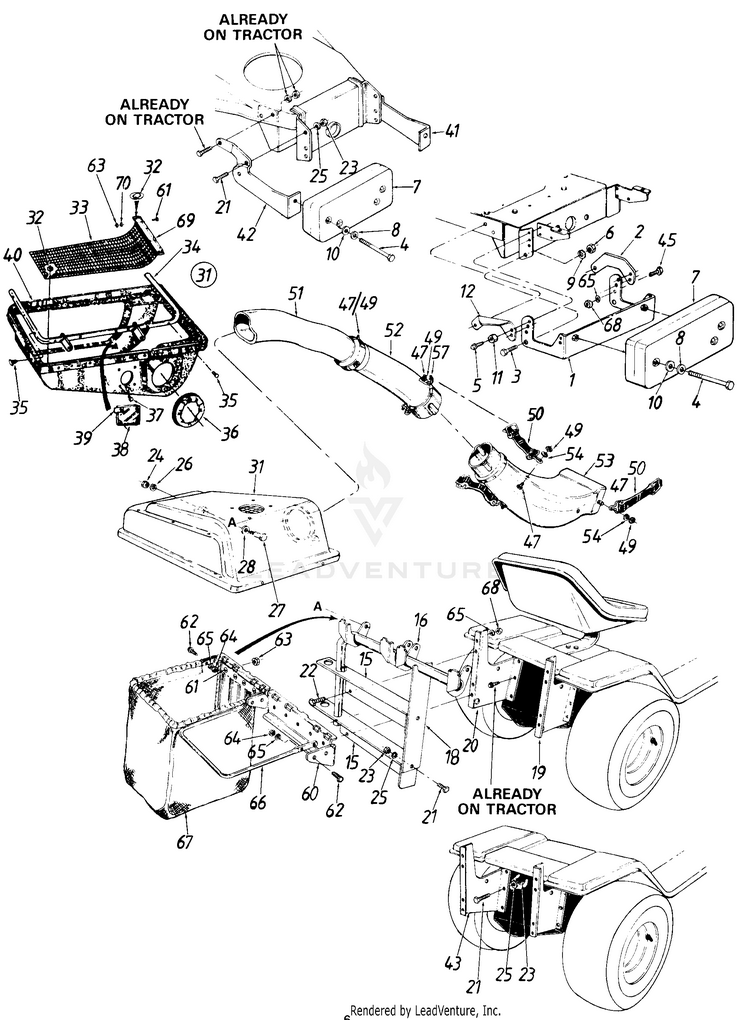

Grass Collector

...
...
1
BRACKET-WE NLA (Used with 38" decks) MTD-15873
...
2
TIE-STRAP NLA (Used with 38" decks) MTD-16024
...
3
Hex Bolt 7/16-20 x 1.0" Lg. (Used with 38" decks) MTD-710-0314
...
4
Hex Bolt 3/8-16 x 4.5" Lg. MTD-710-0693
...
5
HEX SCREW AB-TAP NLA (Used with 38" decks) MTD-710-0915
...
6
Hex Jam Nut 7/16-20 Thd. (Used with 38" decks) MTD-912-0240
...
7
COUNTERWEIGHT NLA MTD-723-0367
...
8
Bell.-Wash. 400" I.D. x .88" O.D. MTD-736-0105
...
9
L.-Wash. 7/16" I.D. (Used with 38" decks) MTD-936-0171
...
10
FLAT WASHER .395x1.120x.140:HD MTD-736-04005
...
11
SPACER-.354 ID x . NLA MTD-748-0298
...
12
TIE STRAP (RH) MTD-16027
...
15
Catcher Support Tube Mtg. Brkt MTD-16587D-0637
...
16
Catcher Support Tube Ass'y. MTD-16592-0637
...
18
Catcher Latch and Support Brkt. MTD-783-0601-0637
...
19
SUPPORT BRACKET (LH) MTD-16610C-0637
...
20
Grass Catcher Support Brkt.-LH. MTD-16611C-0637
...
21
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
22
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
23
HEX NUT 5/16-18 MTD-712-3010
...
24
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
25
L.-Wash. 5/16" I.D.* MTD-936-0119
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
Shoulder Screw MTD-738-0380
...
28
Bell Washer MTD-736-0253
...
31
COVER ASSEMBLY- NLA MTD-16594
...
32
Twist Fastener MTD-726-0258
...
33
SCREEN ASSEMBLY NLA MTD-723-0382
...
34
BRACKET ASSEMBLY-HINGE MTD-16596-0637
...
35
Hex Tap Scr. 1/4-20 x .5" N Lg. MTD-710-0599
...
36
SEAL (7.1") MTD-723-0412
...
37
Truss Mach. B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
38
PLASIC PLATE NLA MTD-731-0824
...
39
Speed Nut MTD-712-0147
...
40
COVER ASSEMBLY- NLA MTD-731-0821
...
41
BRACKET-WE NLA MTD-17141
...
42
BRACKET-WE NLA MTD-17142
...
43
BRACKET-CATCHER MTD-16672A-0637
...
45
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
47
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
49
Hex Ins. L.-Nut 1/4-20 Thd. MTD-712-0324
...
50
Retainer Strap Ass'y. MTD-923-0383
...
51
ELBOW-CATCHER NLA MTD-731-0825
...
52
Catcher Tube MTD-731-0899E
...
53
Discharge Chute MTD-731-0827D
...
54
L.-Wash. .270" I.D. x .57" O.D. MTD-936-0175
...
57
Retainer Hook Brkt. MTD-96606
...
60
Bag Frame Hanger Brkt. MTD-16591A-0637
...
61
Truss Mach. Scr. #10-24 x .50" Lg. MTD-710-0473
...
62
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
63
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
64
Hex Nut 1/4-28 Thd. MTD-712-0138
...
65
L.-Wash. 1/4" I.D.* MTD-936-0329
...
66
Catcher Bag Frame MTD-749-0701A-0637
...
67
Grass Catcher Bag MTD-964-0221
...
68
HEX NUT 1/4-20 MTD-912-0287
...
69
SCREEN ASSEMBLY NLA MTD-16595
...
70
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400

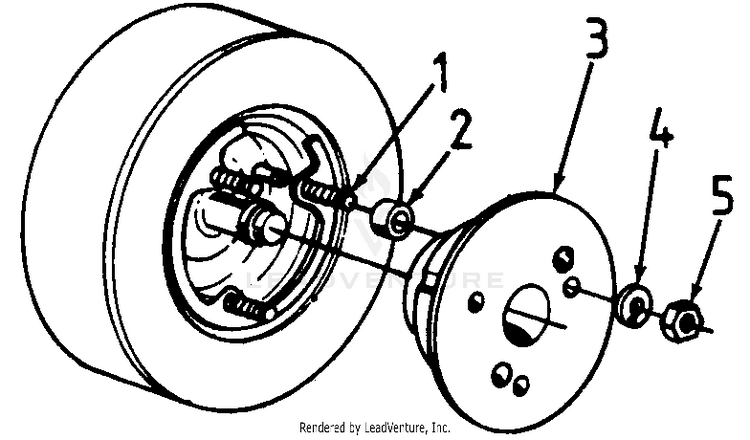

Wheel Weight

...
...
1
WHEEL WEIGHT SNAP NLA MTD-16810
...
2
SPACER MTD-750-0527
...
3
WHEEL WEIGHT NLA MTD-723-0414
...
4
Lock Washer 5/16" I.D MTD-936-0119
...
5
HEX NUT 5/16-18 MTD-712-3010
